Good price 20 feet transport refrigeration buy shipping container

Tank Type

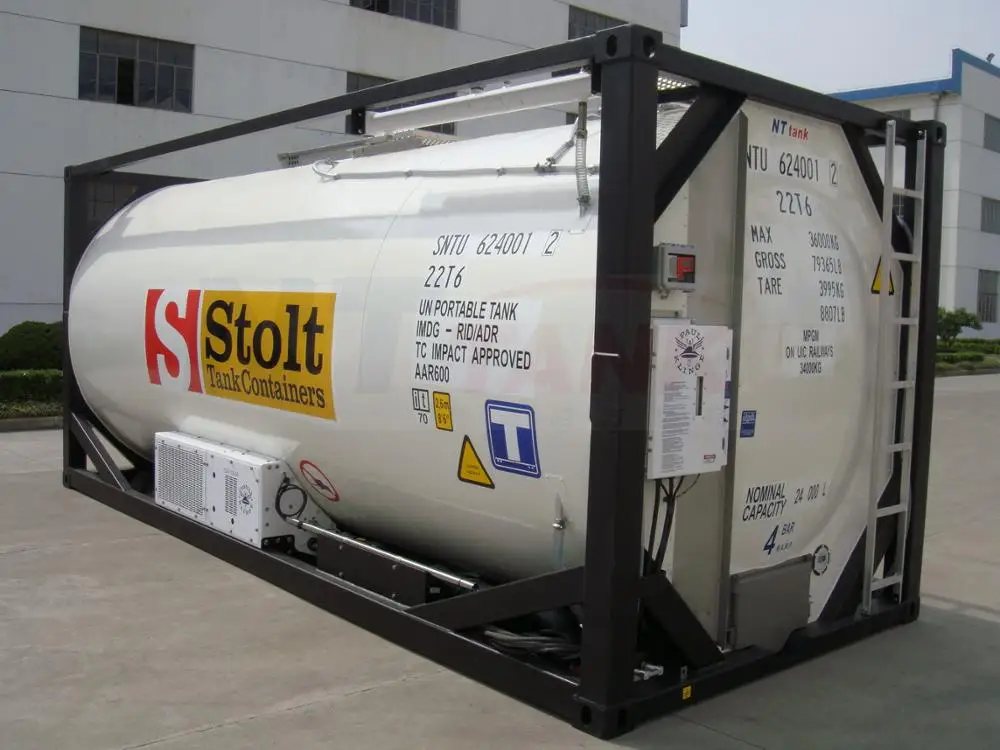

20’ ISO full frame collar tank, Type UN Portable Tank T11

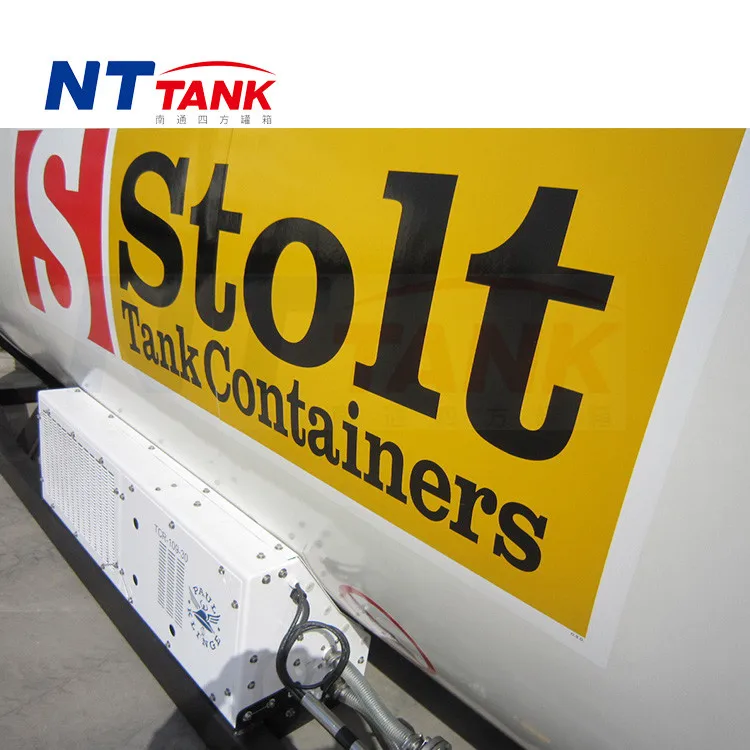

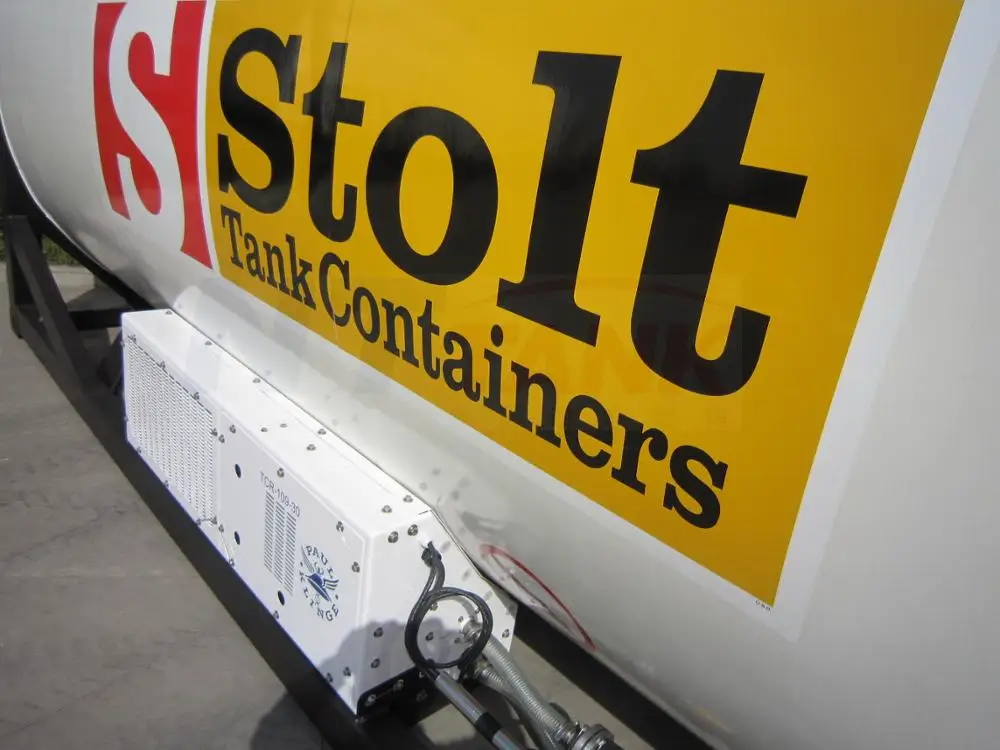

Insulated and fitted with refrigeration unit and pumped glycol cooling system

Frame Dimensions

20’ x 8’ x 8’6”

Capacity

24,000 Litres +/- 2%

M.G.W.

36,000 kg

Tare (est.)

4,150 kgs ets – (with glycol system filled)

Max Payload

31,850 kgs

Working Pressure

4 Bar

Test Pressure

6 Bar

Design Temp

-40°C to +130°C

Vessel Material

SANS 50028-7 WNr 1.4402/1.4404 (C<0.03%), 316L stainless steel equivalent

Shell: Cold Rolled 2B finish

Dished ends: Internally polished to 1.2 Micron CLA

Shell Thickness

4.4 mm Nominal

Ends Thickness(B.F)

4.5 mm Minimum after forming

Corrosion Allowance

0.2 mm

Frame Material

GB/T 1591-Q345D

Frame to Shell

304 stainless steel

Corner castings

ISO 1161 - 8 off

Vessel Design Code

ASME VIII Div 1

Radiography

Shell

Ends

ASME Spot

ASME Full

Inspection Agency

LR or BV

Cargo carried

See dangerous cargo lists for UN Portable T11 tank

Design Approvals

IMDG T11, CFR 49, ADR/RID, CSC, TC, TIR, ISO, UIC, US DOT
