3W 2X3W bi color yellow and white high power led chip
- Category: >>>
- Supplier: Ningbo Junsheng Electronics Co. Ltd.
Share on (60697006411):
Product Overview
Description

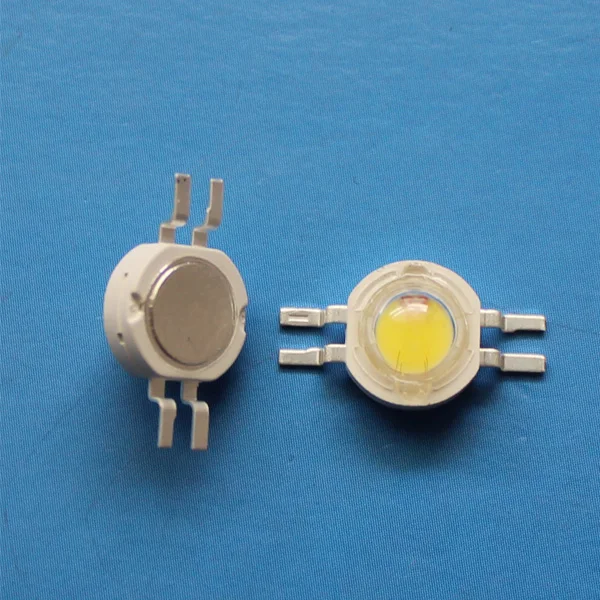

3W 2X3W bi-color yellow and white high power led chip
Product Description
Highest Flux yellow and white
low voltage DC operated
high reliability and long life time
soon delivery
RoHs&CE

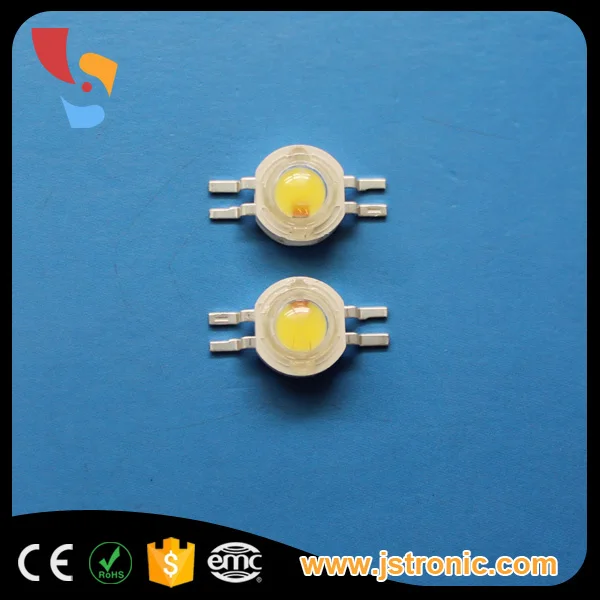

3W 2X3W bi-color yellow and white high power led chip

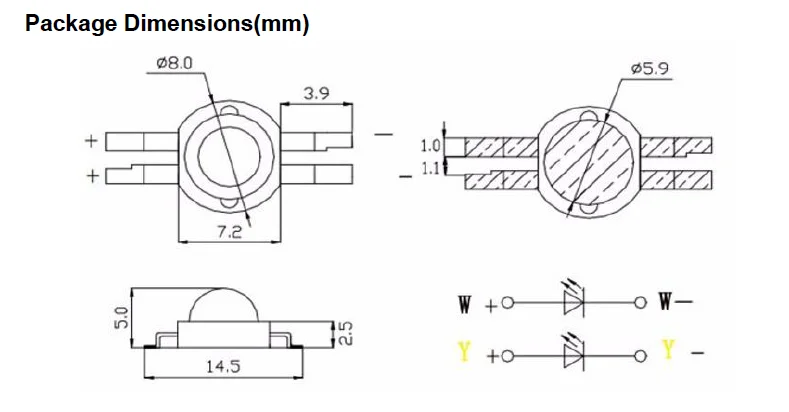

package dimension
3W 2X3W bi-color yellow and white high power led chip dimension

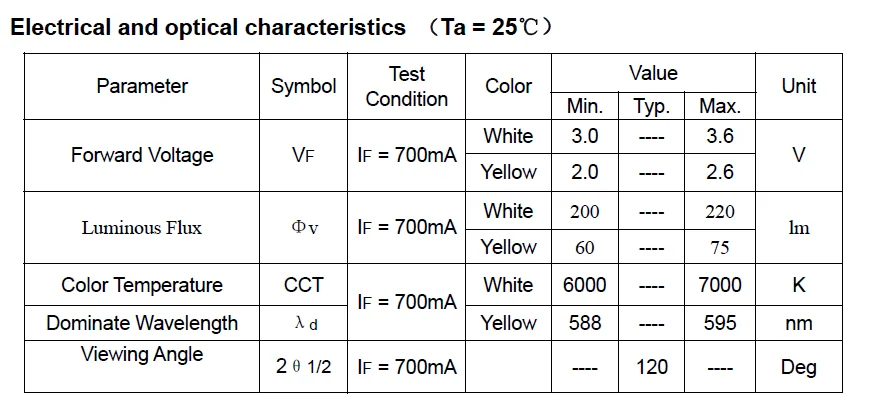

3W 2X3W bi-color yellow and white high power led chip
Absolute maximum ratings(Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | |
Min. | Max. | ||||
DC Forward Current
| IF | ---- | ---- | 700 | mA |
Peak Pulse Current
| Ipeak | Duty=0.1,1kHz | ---- | 1000 | mA |
Power Dissipation
| Pd | ---- | ---- | 2.5 | W |
LED Junction Temperature
| Tj | ---- | ---- | 120 | ℃ |
Operating Temperature
| Topr | ---- | -25 | +100 | ℃ |
Storage Temperature
| Tstr | ---- | -40 | +120 | ℃ |
ESD Sensitivity
| --- | HBM | 8000 | ---- | V |
Soldering Temperature
| --- | ---- | 260℃ for 5 Seconds max | ||
Related products

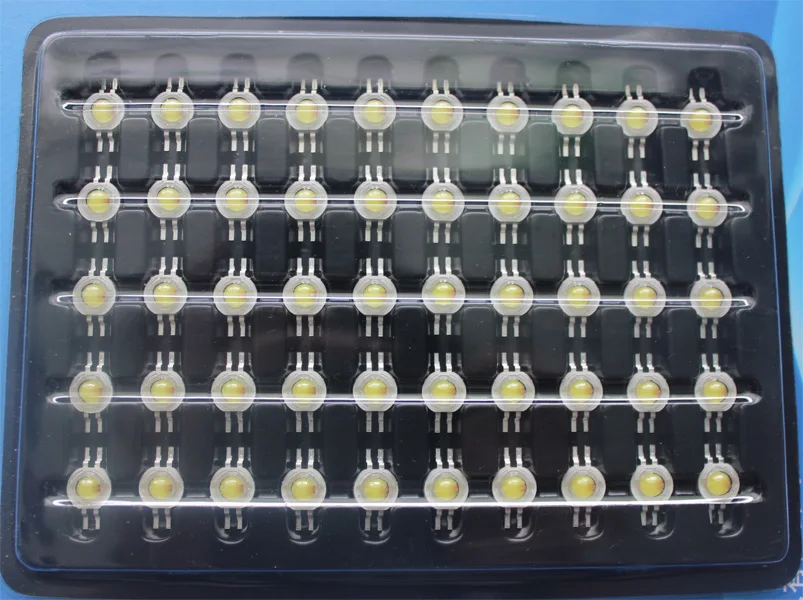

Product Packing
3W 2X3W bi-color yellow and white high power led chip
