Full Automatic Animal Pet Fish Food Feed Making Machine / Production Line

1. Automatic animal fish feed processing line can produce different shapes food for fish, also can produce animal feed, such as dog, cat etc.

2. Through the pretreatment of the fodder, animal fish feed processing line can reduce loss of nutrition and advance the protein ratio. So the fodder will be digested easily by animals.
3. The animal fish feed processing line adopts corn flour, wheat flour, low temperature soya flakes meal, rice bran , wheat bran as raw materials.

Flow chart of floating fish feed pellet machine

Mixing system---Extrusion system----Drying system----Flavoring system--Packing system

Depending on different request, the line could adjust as your special request.

Product Paramenters

Voltage of floating fish feed pellet machine

Three phases of floating fish feed pellet machine: 380V/50Hz, Single phase: 220V/50Hz in china, we can make it according to customers' Local voltage in different countries

Technical Parameter of floating fish feed pellet machine

Model	Installed capacity	Power consumption	Output	Length
CW65-I	58KW	38KW	100~120KG/H	16*1.2*2.2m
CW70-II	70KW	45KW	150~200KG/H	18*1.2*2.2m
CW85-II	90KW	60KW	450~500KG/H	20*1.5*3.2m
CW90-II	180KW	150KW	800~1200KG/H	25*2.5*3.5m

1. Twin screw conveyor

1. Twin screw instead of one screw which will be more strong powerful
2. It can be opened easily by locker which will be easily cleaned

3. The exclusive design of new technology of converoy, conveying more stable and continuous.

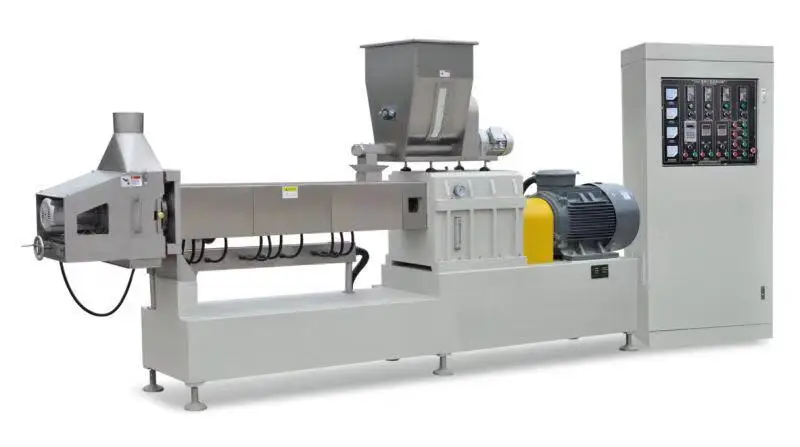

2.1 SX65-II Twin screw extruder

1. This machine is consisting of feeding system, extruding system, cutting system, heating system and controlling system. 2. It can process various materials, frequency speed-controlling, high automation, stable per formation, long life. 3. Longer life: uses special material and technology, endure fray.

2.2 New SX70 Twin screw extruder

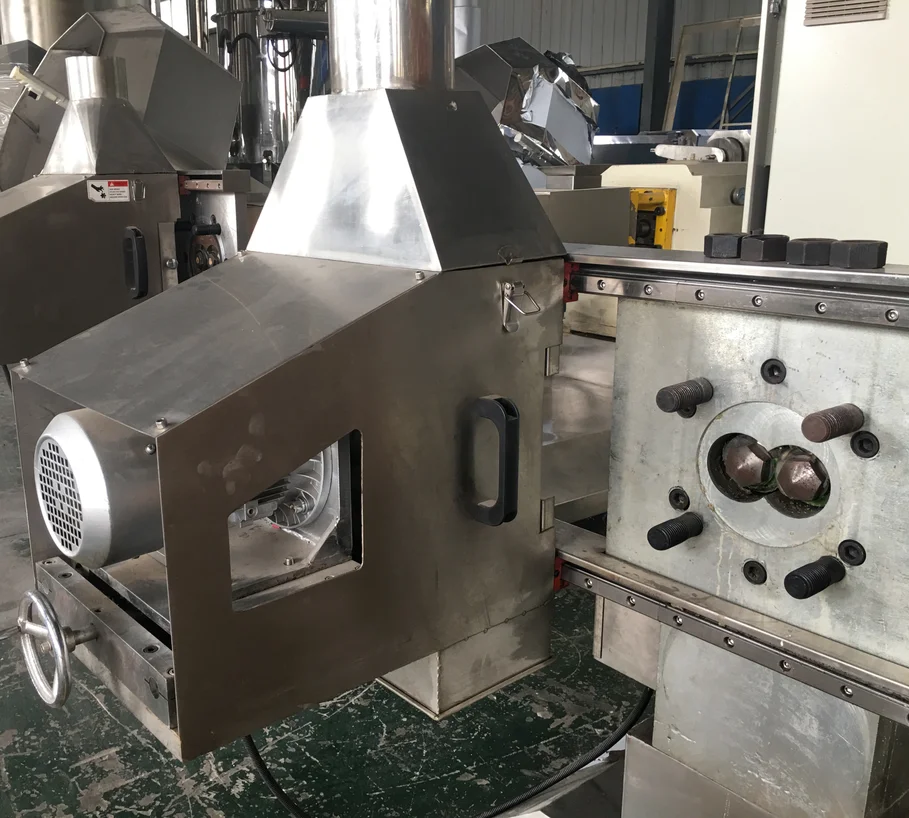

1. New type Rail-mounted cutting system;

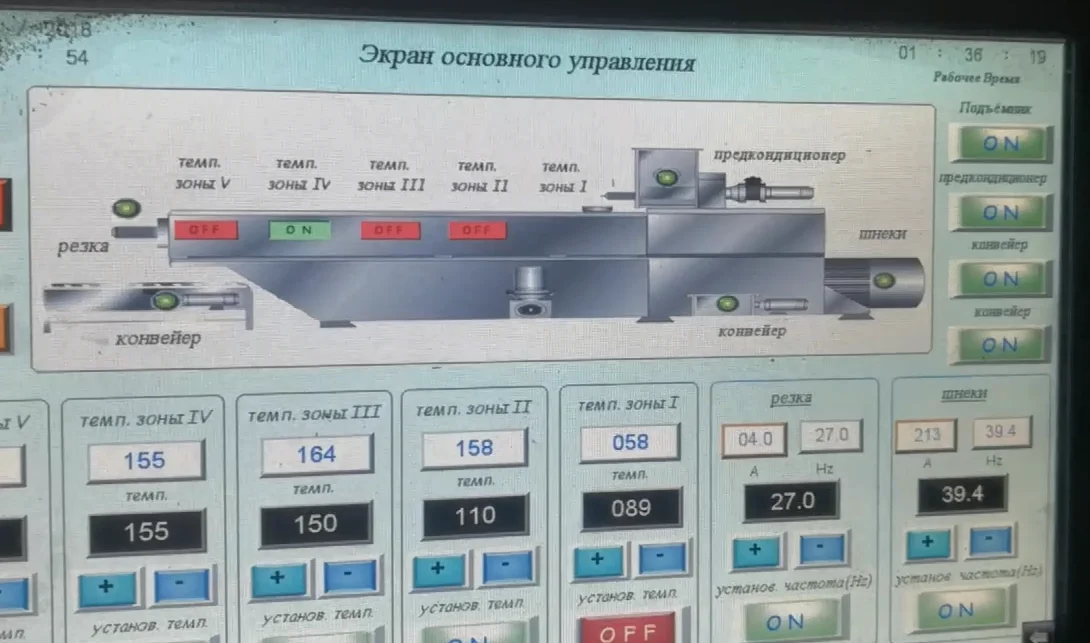

2. Gear Box is manufactured by our factory; 3. New Type Direct Transmit System, more power (no belt, between gear box with motor), reducing energy consumption; 4. Full automatic heating system and cooling system; 5. PLC touch screen system.

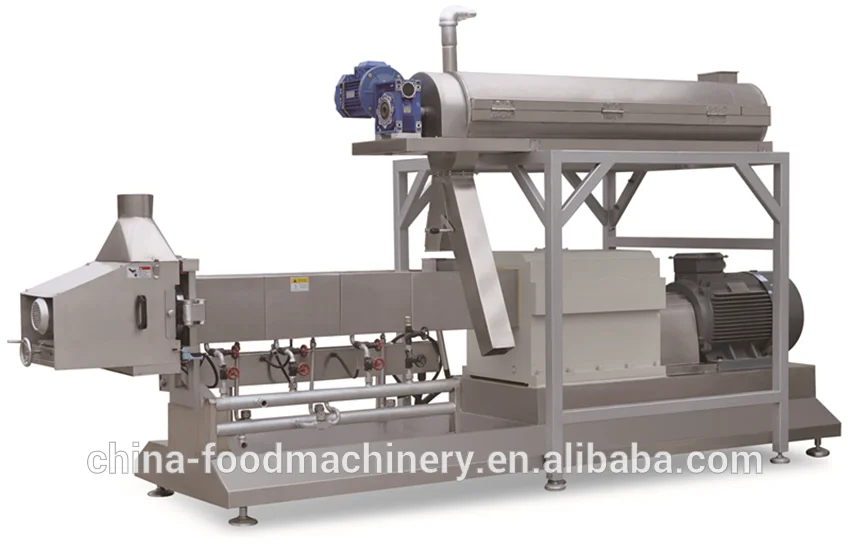

2.3 SX85 SX100 SX110 Twin Screw Extruder With Pre-conditioner

1. Screw design uses dual-head full-mesh structure, using self-clean block screw, can be any combination

2. New type Rail-mounted
cutting system;

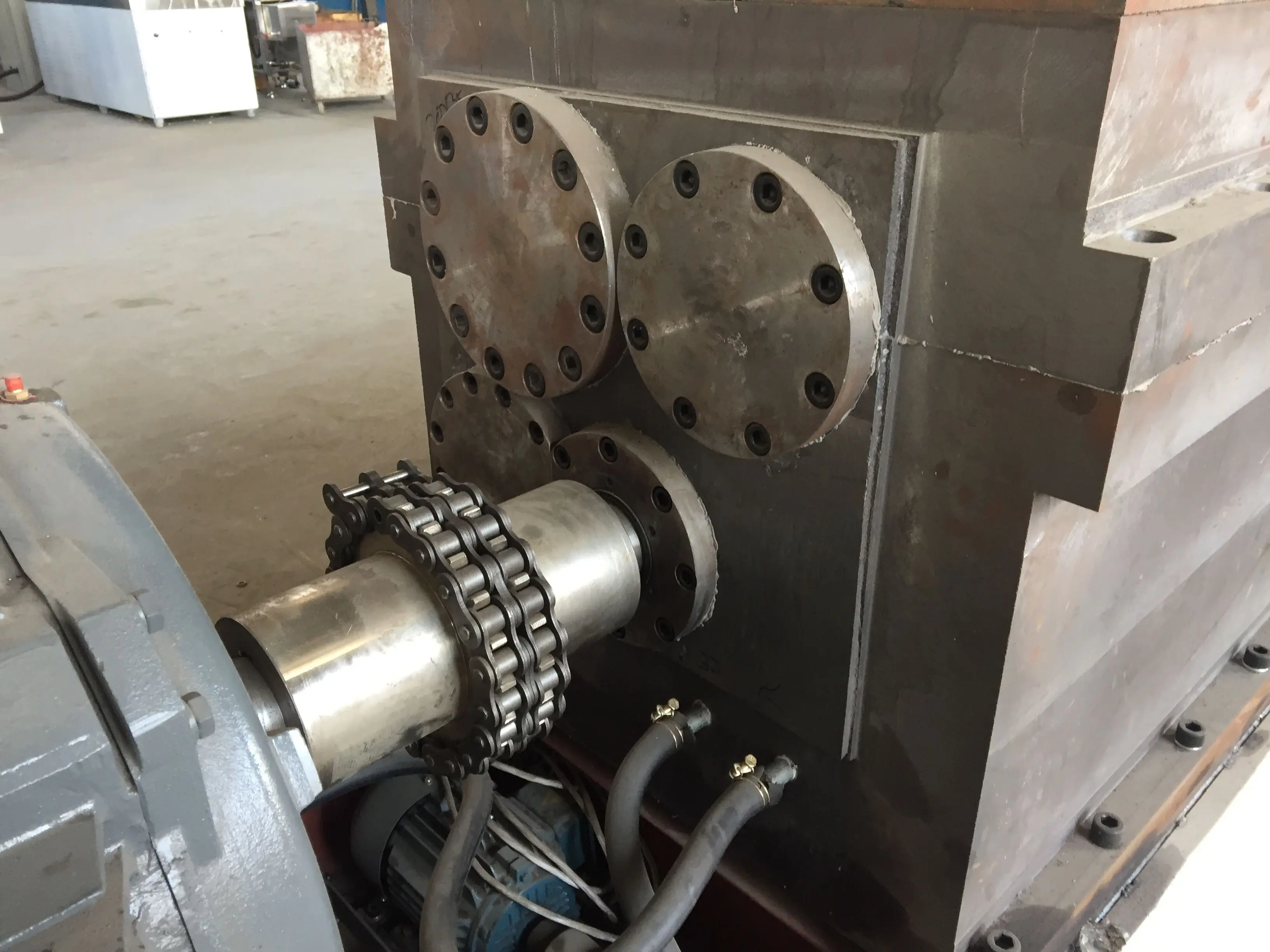

3. Parallel shaft cylindrical helical Gear Box, it is manufactured by our factory; 4. New Type Direct Transmit
System, more power (no belt, between gear box with motor), reducing energy consumption;

5. Full automatic heating system and
cooling system;

6. PLC touch screen control system.

3. Main Machine (New design) - Dryer

1. The oven is a five layers,10 meters circulated continuous dryer. (Can be customized for you)
2. It mainly consist of drive motor,stainless steel drive belt, circulating fan, dehumidification equipment, aircraft, PLC control system, etc.
3. The Moisture of the dried material is around 9-10%.
