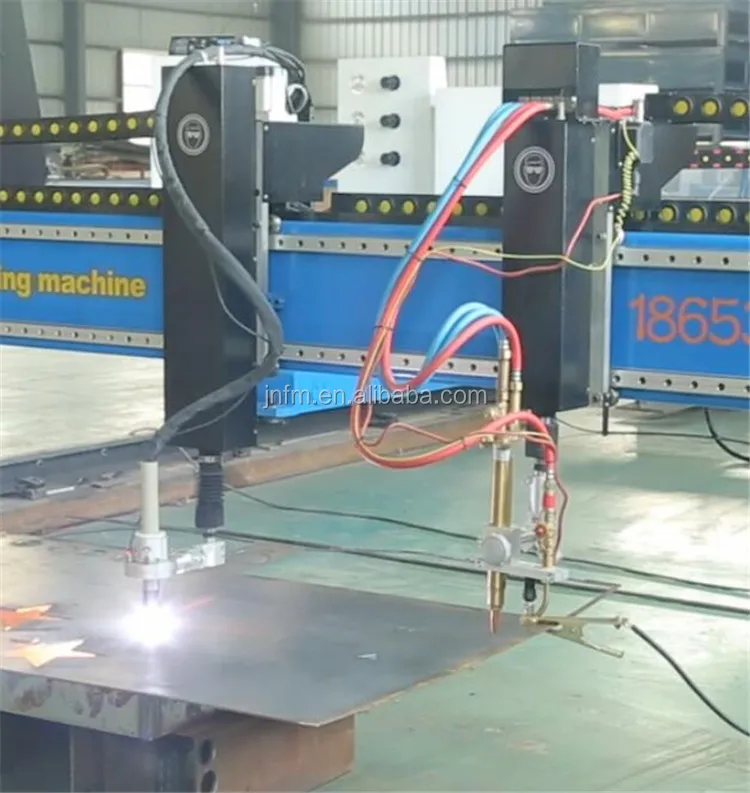

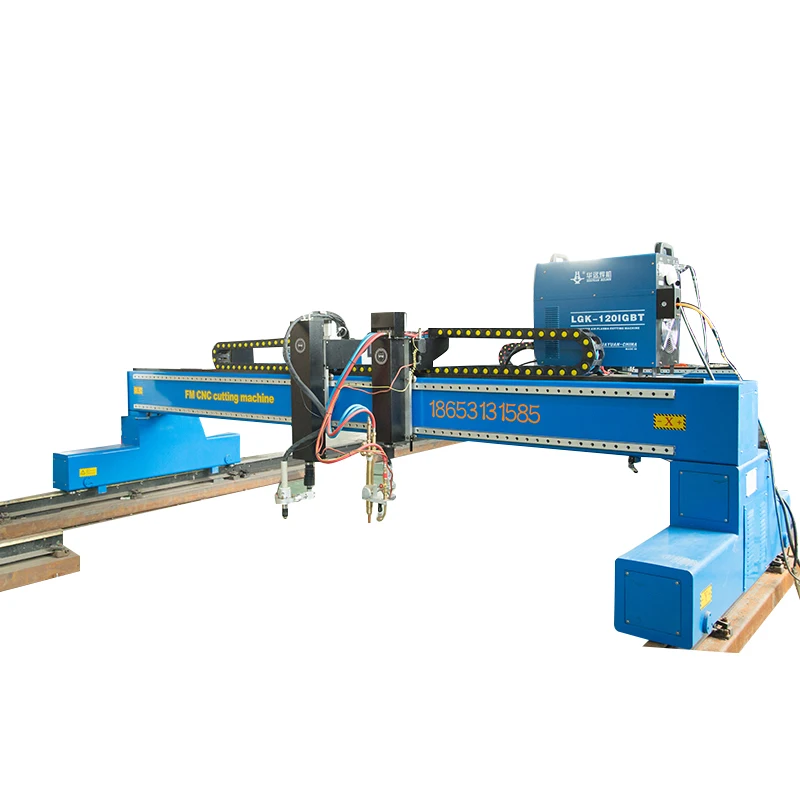

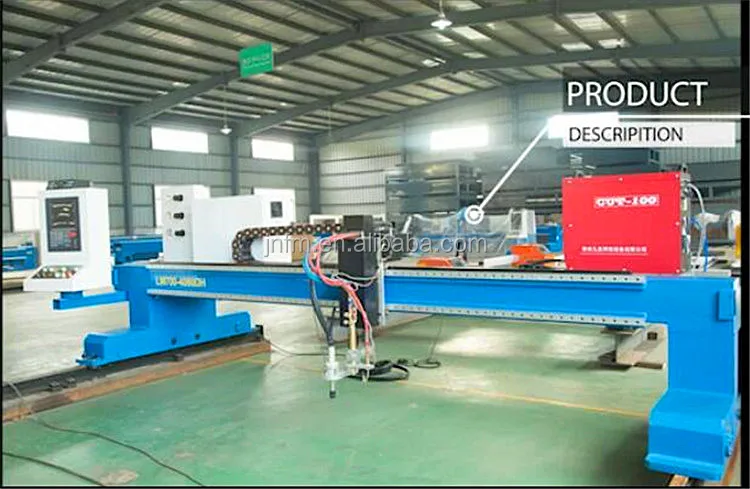

High Precision Gantry Cnc Plasma Cutter Cutting Machine For Sale

Product Overview

Description

1. Frame adopts carbon steel welding structure and overall annealing treatment with high precision

and small inertia. XYZ axis is with high precision processing to prevent deformation.

2. Transmission structure is high precision rack and special reducer, Cable made by the German

materials to ensure running accuracy.

3. The drive system adopts USA chip control, double drive, Panasonic Servo motors. Inovance Servo motor or precision stepper motor are also available to providing AC power with big torque to ensure running smoothly under the high speed.

4. Adopts high precision controller, with English and Chinese language. And the machine also equip with Automatic THC.

5. Optional machine size: A, 40120: 4m*12m(6m, 8m, 10m)    B, 30120: 3m*12m(6m, 8m, 10m)



MODEL	FX-300LM3080DH
BASIC INFORMATION	Cutting method	Plasma	Flame
	Machine size	3600*8000mm
	Cutting material	All metal sheet	Mild/High Carbon steel
	Cutting size	2000*6000mm
	Cutting thickness	According to Plasma source	6-200mm
	Lifting travel	≤170mm
	Max travel speed	8000mm/min
	Running accuracy	≤0.05mm
CONFIGURATION LIST	CNC controller	Startshaphon (Optional: FangLing)
	Electric parts	France Schneider

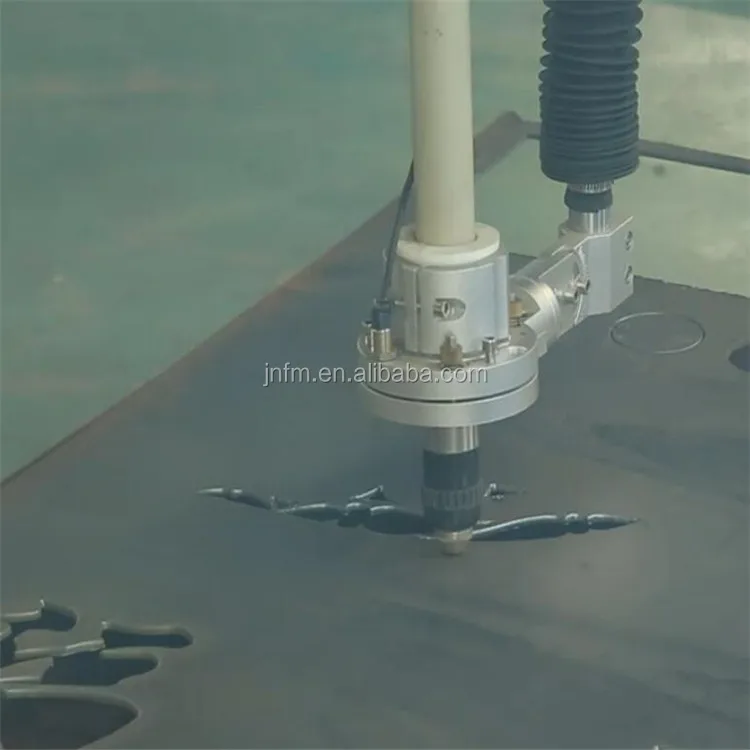

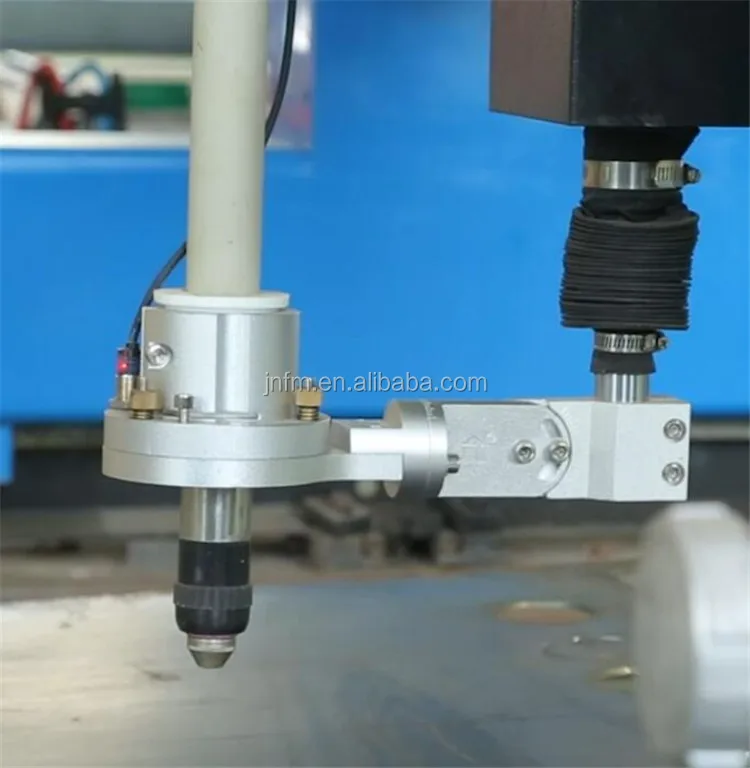

	Auto Height control	HYD 200DC-PT (optional:FL1620)	Manual (optional:CHC-200F)
	Motor drive mode	Stepper motor(optional: Panasonic servo motor)
	Drive system	Dual drive
	Reducer	Planetary reducer
	Drive method	Rack and pinion drive
	Gas pressure	0.4-0.7Mpa for normal plasma power
	X, Y axis	High Quality Rack & Pinion and 24kg linear rail
EXTERNAL SUPPLY	Power	220V/ 380V(optional)
	Cutting gas	Compressed air	Oxygen + Ethyne(Propane)
	Gas pressure	0.4-0.7MPa	Oxygen:0.5MPa Fuel gas:0.1MPa
SOFTWARE	Graphic import method	USB
	Programming software	AutoCAD(all dxf,dwg,CAM,NC files)
	Nesting software	FastCAM

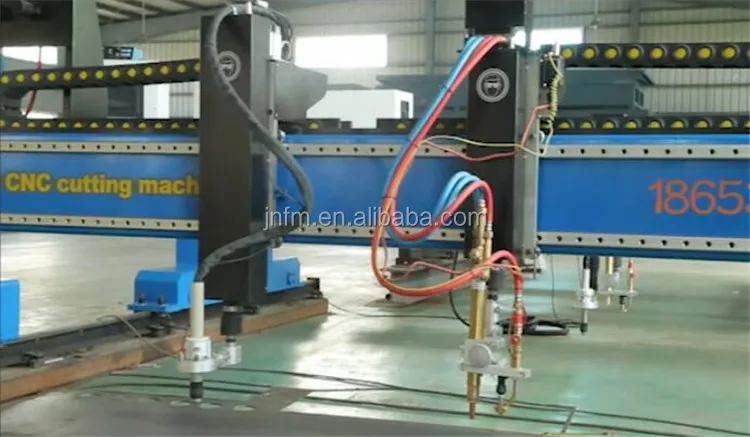

ACCESSORIES	Torch	One set of Plasma torch	One set of Flame torch
	Consumables	10 sets of nozzles	3 Flame nozzles











Q1: I knew nothing about this machine, what kind of machine I should choose?

Very easy to choose. Just tell us what you want to do by using CNC plasma machine, then let us give you perfect solutions and suggestions.



Q2: When I got this machine, but I don’t know how to use it. What should I do?

We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or whatsapp and e-mail.



Q3: If some problems happen to this machine during warranty period, what should I do?

We will supply free parts during machine warranty period if machine have some problems. So any doubts, just let us know, we will give you solutions.



Q4: Before sending me an inquiry on our plasma, it is better for you to provide me the following information

1)Your cutting size. Because in our factory, we have different models according to working area.

2)Your materials: Carbon steel, stainless steel , aluminum, or other materails

3) what’s your cutting thickness?

We will recommend suitable power source to you according to your cutting thickness



Q4: Our Service:

1) 24 Hours online service. my whatsapp: 15165193115

2) 12 months warranty for the whole machine except for wearing parts.

3) Engineers available to service machinery overseas.
