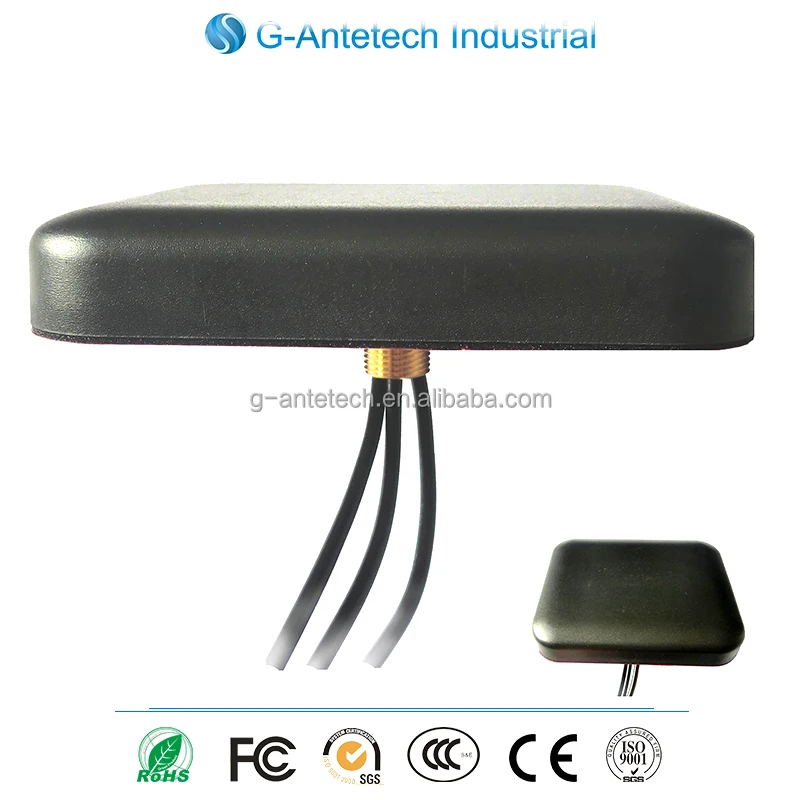

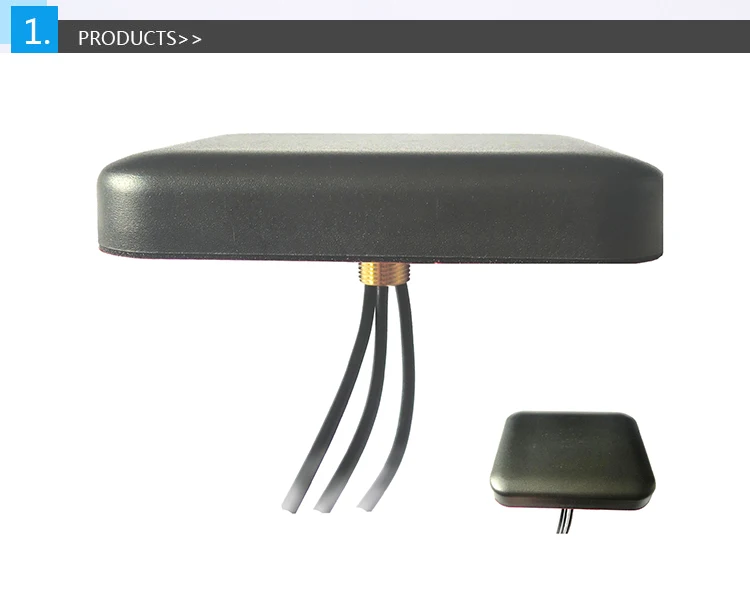

High quality good selling gain multi band gps/wifi/iridium antenna with SMA/MCX/FAKRA connector

Item

Specifications

GPS Antenna Dielectric Antenna

Center Frequency

1575.42±1MHz

Band Width

±5MHz

Polarization

RHCP

Gain

2dBi

V.S.W.R

<1.5

Impedance

50Ω Axial Ratio 3dB(max)

GPS LNA/Filter

Gain

28±2dB

Noise Figure

<1.5

Ex-band Attenuation

12dB@CF+50MHz/16dB@CF-50MHz

VSWR

<2.0

Supply Voltage

2.2~5V DC

Current Consumption

5~15mA

WiFi Antenna

Frequency(MHz):

2400-2500

V.S.W.R

 ≤1.5

Gain(dBi)

2.15

Polarization

Vertical

Impedance

50Ω

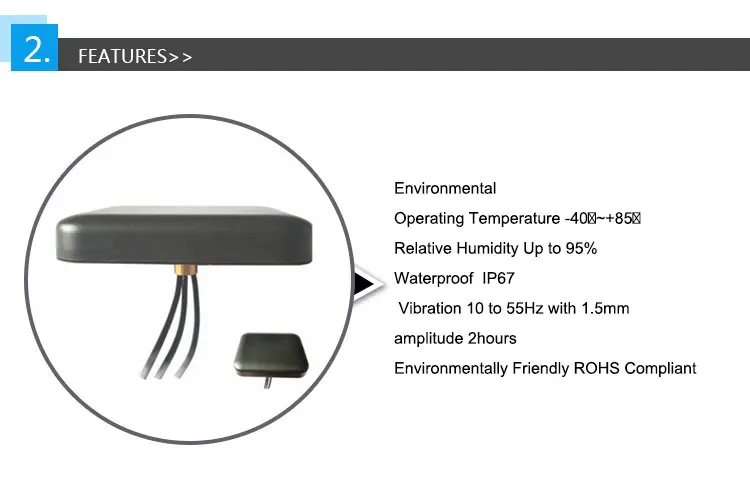

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Waterproof

IP67

Environmentally Friendly

ROHS Compliant
