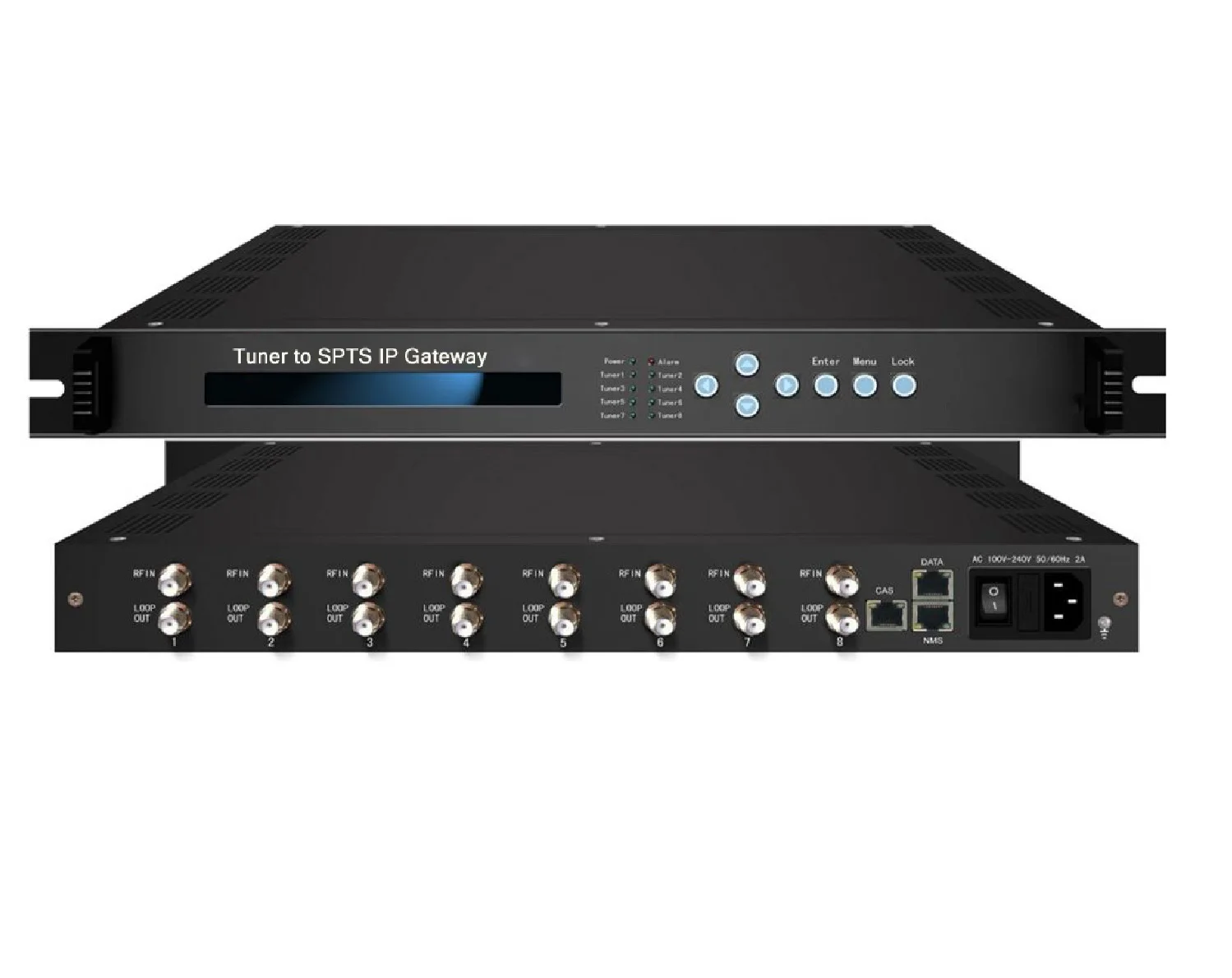

LAN /WAN IPTV Server Gateway Streaming for Hotel HD 1080P

Product Overview

Description

LAN /WAN  IPTV Server Gateway Streaming for Hotel HD 1080P

Skype:   live:jiexiang02  to contact Jaylyn





JX-3508Tx Tuner to IP Gateway is a head-end interface conversion device. It supports SPTSx256, SPTSx32 or SPTSx20 (For version with BISS function) output.  It is also integrated with demodulation and gateway function, which can demodulate the signal from 8 tuners (ASI) into TS. After multiplexing the TS, then packet the TS into IP package and output the IP package through different IP address and ports. It supports IP output (UDP, RTP/RTSP protocol).

BISS function is now embedded to descramble your tuner input programs.

Features

Integrated with demodulation and gateway function

Support 8 channels tuner (ASI) input

Support BISS descrambling (Up to 120Mbps)

Support accurate PCR adjusting

Support PID filtering, re-mapping(256xSPTS without PID re-mapping)

Support PSI/SI rebuilding and editing

1 GE output, maximum output bit-rate is 800Mbps

SPTSx256, SPTSx32 or SPTSx20 (For version with BISS function) over UDP, RTP/RTSP, unicast

and multicast

Support DisEqc function

Support LCD display and keyboard

Support SNMP/Web operation(256*SPTS without SNMP operation)

Interface	Input	8 Channels tuner input(DVB-S/S-2 /C/T/ISDB-T optional)
	Output	1 GE output, UDP protocol, unicast and multicast
Transmission Bit-rate		Maximum total bit-rate is 800Mbps
General	Dimension (WxLxH)	482mm×410mm×44mm
	Weight	3.6kg
	Temperature	0~45℃(working ),-20~80℃(storage)
	Power supply	100~240VAC,50/60Hz
	consumption	20W
