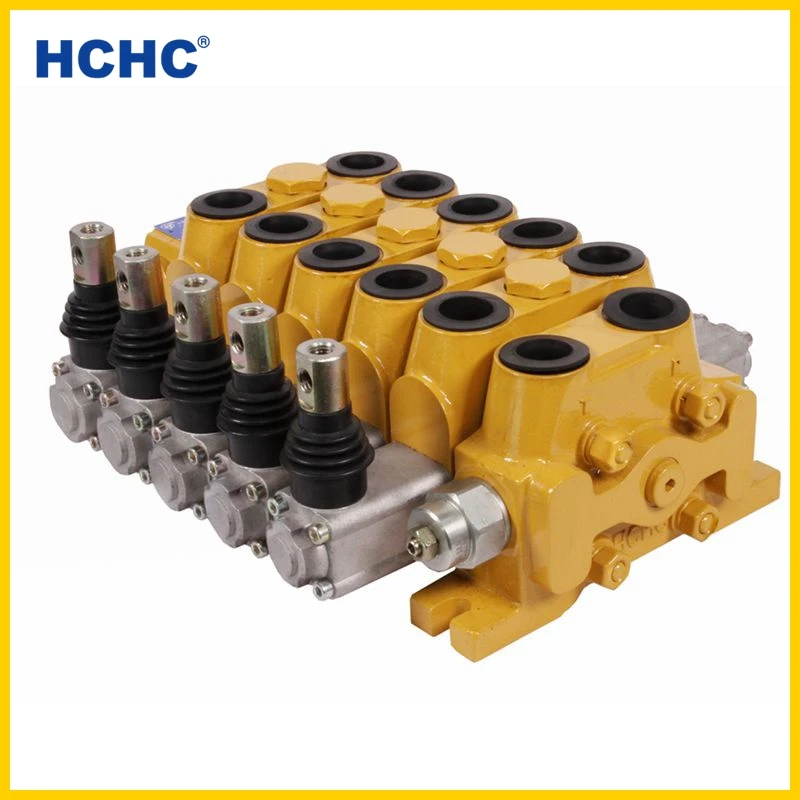

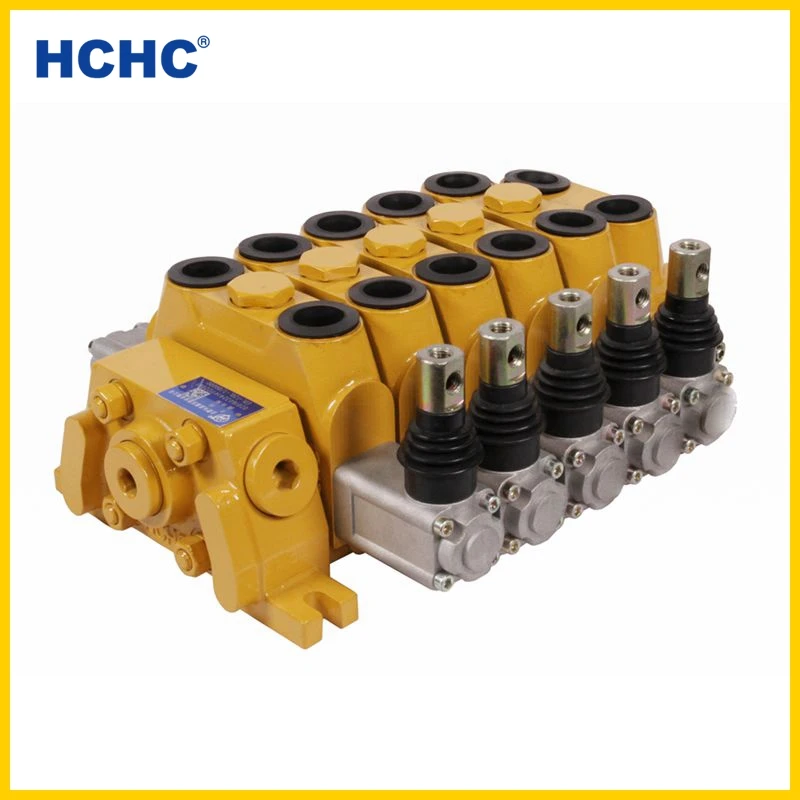

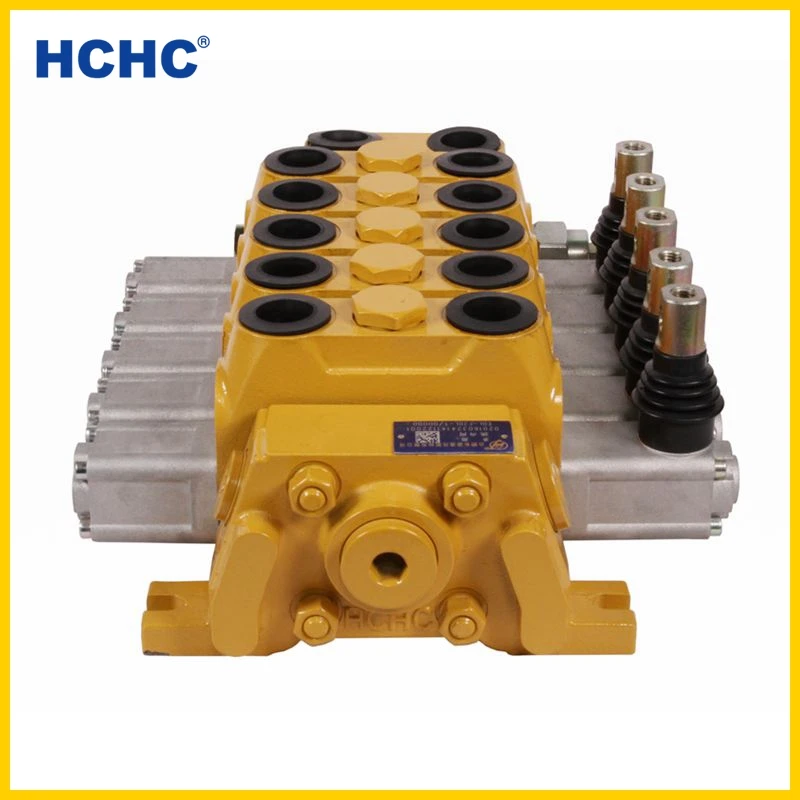

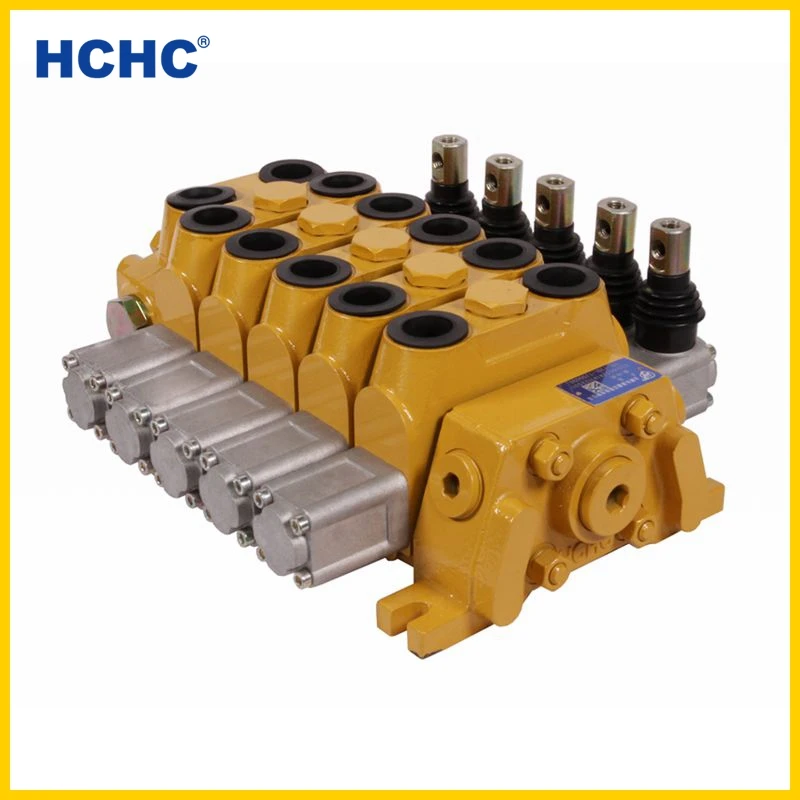

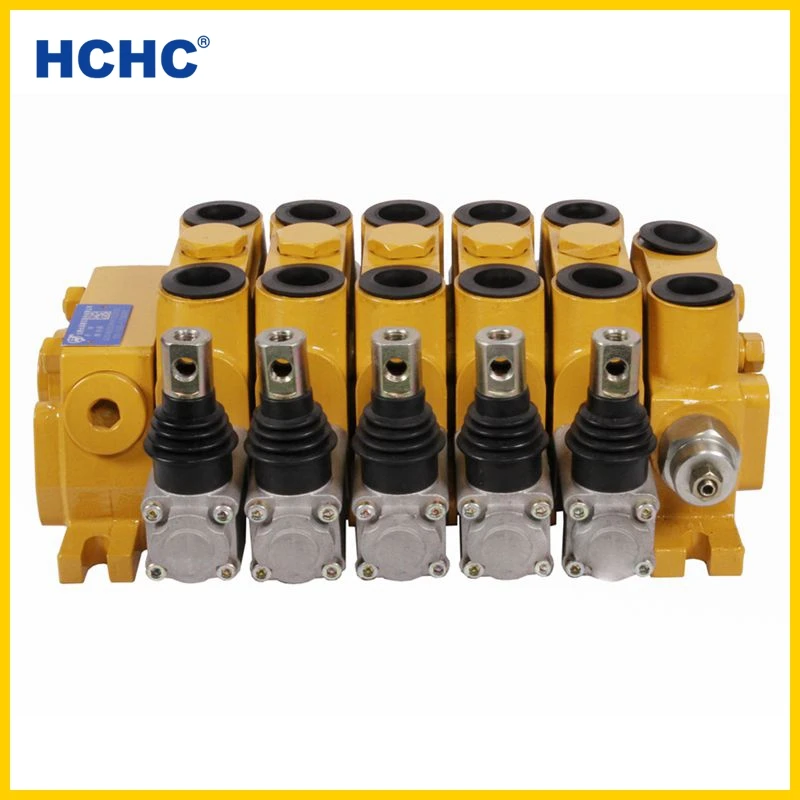

China products sectional type hydraulic directional control valves EDL for sale

EDL-F20L-T/OOOOO multitandem valve is a combination of overload valve, oil filling valve, safety valve and multi-direction valve. The oil circuit can realize parallel, series and series/parallel combination oil line to meet the needs of different complex systems.

It mainly used in the domestic new style self-loading and unloading compression truck, and it can also be used in the hydraulic systems of other crane transportation machinery, mining machinery and sanitation machinery .

Product Characteristics:
★ Complete functions
★ Advanced features
★ Compact structure
★ Security and reliability
★ Easy maintenance

Internal one-way valve: each commutator has an one-way valve to prevent backflow of the oil.
Additional valve: an overload valve or oil filling valve can be added on both ends of the commutator as required.
Structure type: sectional valve, any 1-6 sections may combine upon customer’s requirement.
Spool function at neutral position: O, Y.

Specification

Model Code

EDL * －* 20 L－* / *

①   ②   ③④⑤  ⑥ ⑦

① Product code
② Design code
③ Pressure grade:
E=160bar, F=200bar, G=250bar
④ Nominal size: 15mm
⑤ Joining port type: L=thread
⑥ Spool control type: T=spring
⑦ Spool function type of block 1: O、Y

Nominal pressure (bar)	200
Nominal size (mm)	20
Nominal flow (L/min)	100
Valve shaft stroke (mm)	8+8

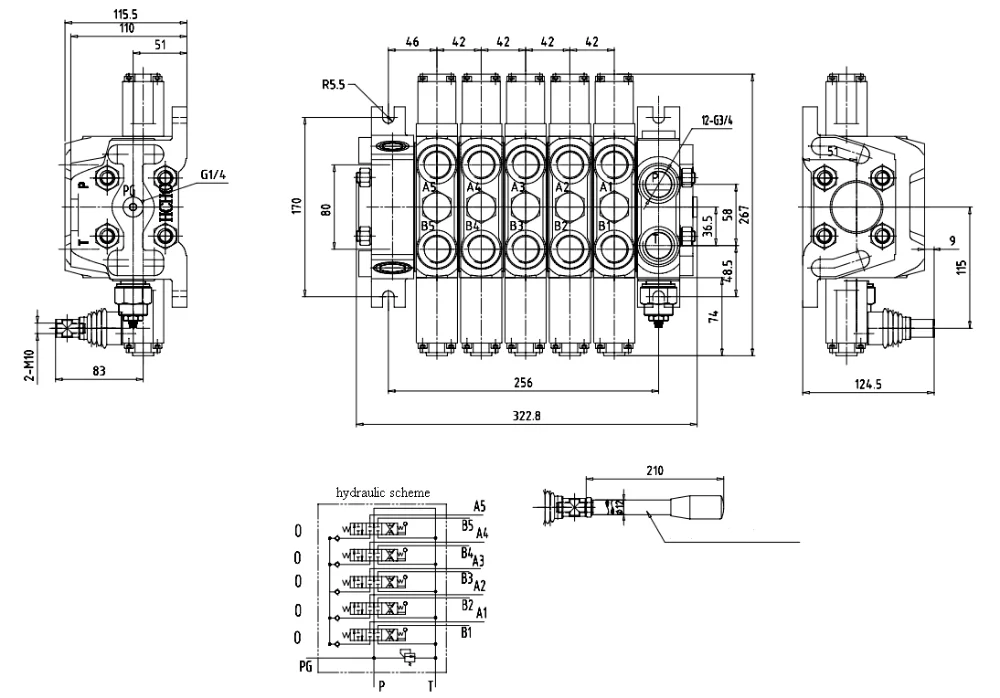

Outline Dimension
