Semi auto 25kg bag packing machine for caustic soda flake
- Category: >>>
- Supplier: Shanghai Jinbao Packaging Machinery Co. Ltd.
Share on (60697185264):
Product Overview
Description

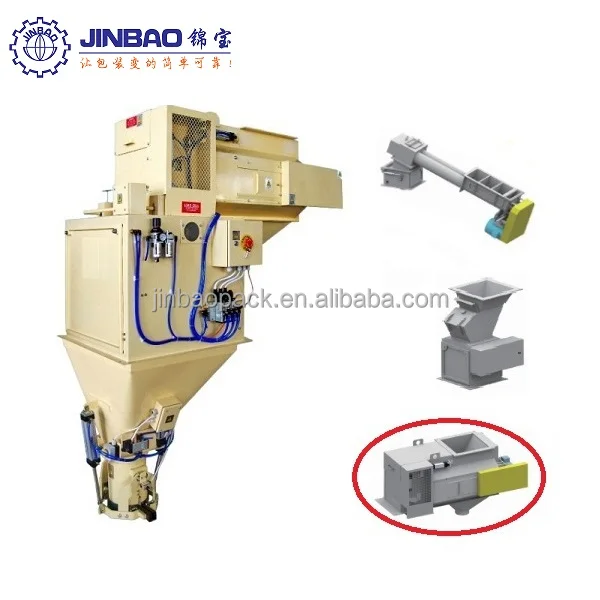

Semi-auto caustic soda flake in 25kg bag packing machine
Product Description

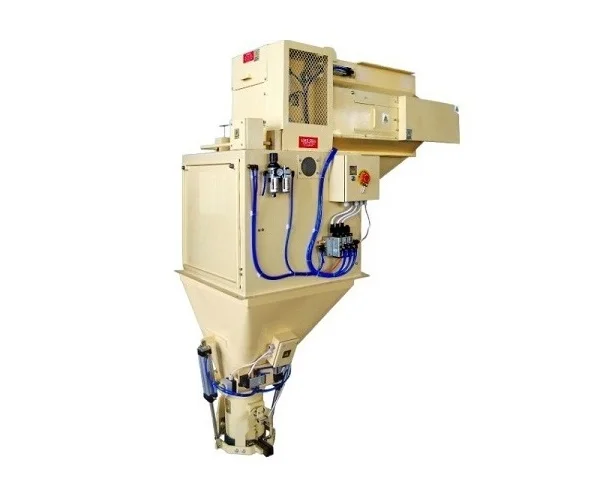

This belt feeding type weighing filling machine is mainy used for irrecgular shapes granule products .such as flakes , wood husks,.etc.
By combining with belt conveyor and sewing/sealing machine, it can finish weighing filling sealing process with only one or two operator .
Using this kind of packing machine, can solve your irregular shapes products with good performance !
| SPECIFICATION | |||||
| Technical parameters | Model | DCS-55A-PD-DJ | DCS-55B-PD-DJ | DCS-110A-PD-DJ | DCS-110B-PD-DJ |
| Hopper capacity | 55L | 110L | |||
| Packing range | 5-25KG | 20-50KG | |||
| Packing accuracy | ±0.2% | ||||
| Packing speed | 6-8 bags/min | 10-14 bags/min | 6-8 bags/min | 10-14 bags/min | |
| Voltage | AC380V 50HZ | ||||
| Power | 2.5KW | 4.8KW | 2.5KW | 4.8KW | |
| Machine weight | 340KG | 520KG | 480KG | 900KG | |
| Machine diemension | 780*1400*1800mm | 1370*1400*2100mm | 910*900*2305mm | 1670*1900*2660mm | |
| Advantages | 1. In acordance with GMP requirement, anti-corssion which can be used in chemical ,food industry.
2. Variety feeding structure depends on material ,each feeding mouth equipped with shutter device to ensure accuracy of measurement.
3. Two type of weighing measurment: net and gross weight type, clients can choose the suitable one according to their workshop space, output and product material request.
4. According to customer needs and material property, we can provide different bag clamp device.
5. Touch screen, easy to operate , packing specifications can be adjusted as you need, working order can be changed at any time. | ||||
Suitable material & Package sample

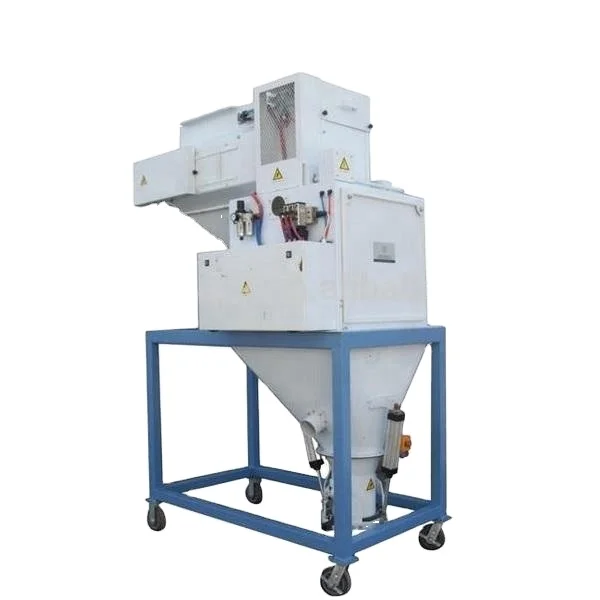

Detailed Images

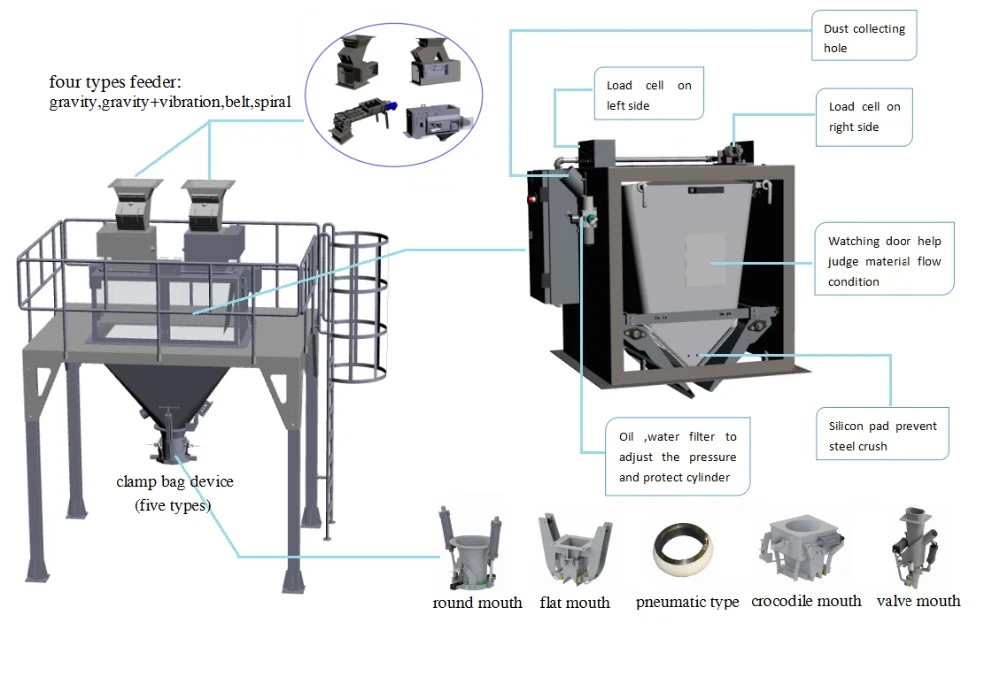

Full Line Picture For Reference
Company Information
Shanghai Jinbao Packaging Machinery Co., Ltd specializes in the production and sale of packaging machine, packaging and palletizing line, big bag automatic weighing packaging production line, particle packing machine, powder packing machine, automatic mixing packaging production line, according to customer requirements the specific system. The products are widely used in chemical, fertilizer feed, pesticide, washing powder, seeds, grain, food, medicine, spices, tea, building materials and other industries, and exported to the Middle East, Southeast Asia, North America, Northern Europe and other more than 10 countries and regions.
Customers
Packaging & Shipping
Packaging:
Machine packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine corrosion.
Shipping:
Upon receipt of payment , delivery date will be in 3-15days
By Air, by Sea or by Express (DHL etc)
Shipment cost will depend on the destination, shipment way,size and the weight of the goods
Our Services
Life-time warranty.
Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment.
After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
