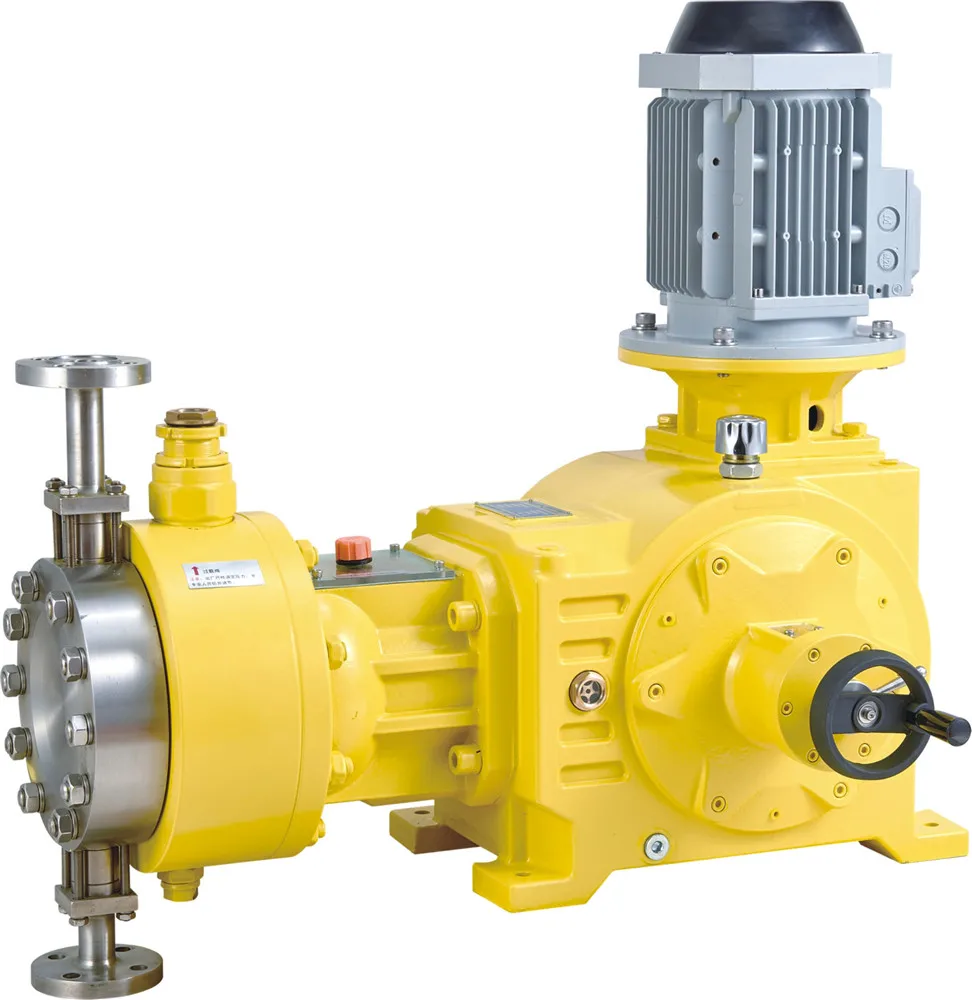

JYSD series Hydraulic Diaphragm Metering Dosing Pumps

Product Overview

Description

Model	Flow                 l/h	Pressure Mpa	Plunger diameter mm	Stroke mm	Pump Speed min	Motor Power KW	Inlet and outlet diameter	Connection Method
JYSD  /35	40/63	35	16	40	100/150	3	DN15	TG Flange  (WN)
JYSD 80/30	80	30	18		150
JYSD 100/26	100	26	20
JYSD 125/23	125	23	22
JYSD 160/18	160	18	25				DN15	TG Flange  (WN)
JYSD 240/12	240	12	30
JYSD 260/11	260	11	32
JYSD 340/8.5	340	8.5	36				DN20	TG Flange  (WN)
JYSD 420/6.8	420	6.8	40
JYSD 540/5.6	540	5.6	45				DN20	RF Flange
JYSD 670/4.5	670	4.5	50
JYSD 820/3.8	820	3.8	55				DN25
JYSD 980/3.2	980	3.2	60
JYSD 1100/2.8	1100	2.8	63
JYSD 1160/2.6	1160	2.6	65
JYSD 1350/2.3	1350	2.3	70				DN32
JYSD 1550/2.0	1550	2.0	75
JYSD 1800/1.8	1800	1.8	80
JYSD 2020/1.6	2020	1.6	85
JYSD 2250/1.4	2250	1.4	90				DN40
JYSD 2500/1.2	2500	1.2	95
JYSD 2800/1.0	2800	1.0	100
