Custom IR Laser Grade ZnSe Plano Convex/Concave Lenses With Surface Quality 40/20
- Category: Lenses >>>
- Supplier: Wuhan Especial Optic Inc.
Share on (60697240037):
Product Overview
Description
Product Description
Features
1.ZnSe Substrate
2.Broadband AR Coating for the 8-12 μm Range
3.Focal Lengths from -25.4 mm to -200 mm Available

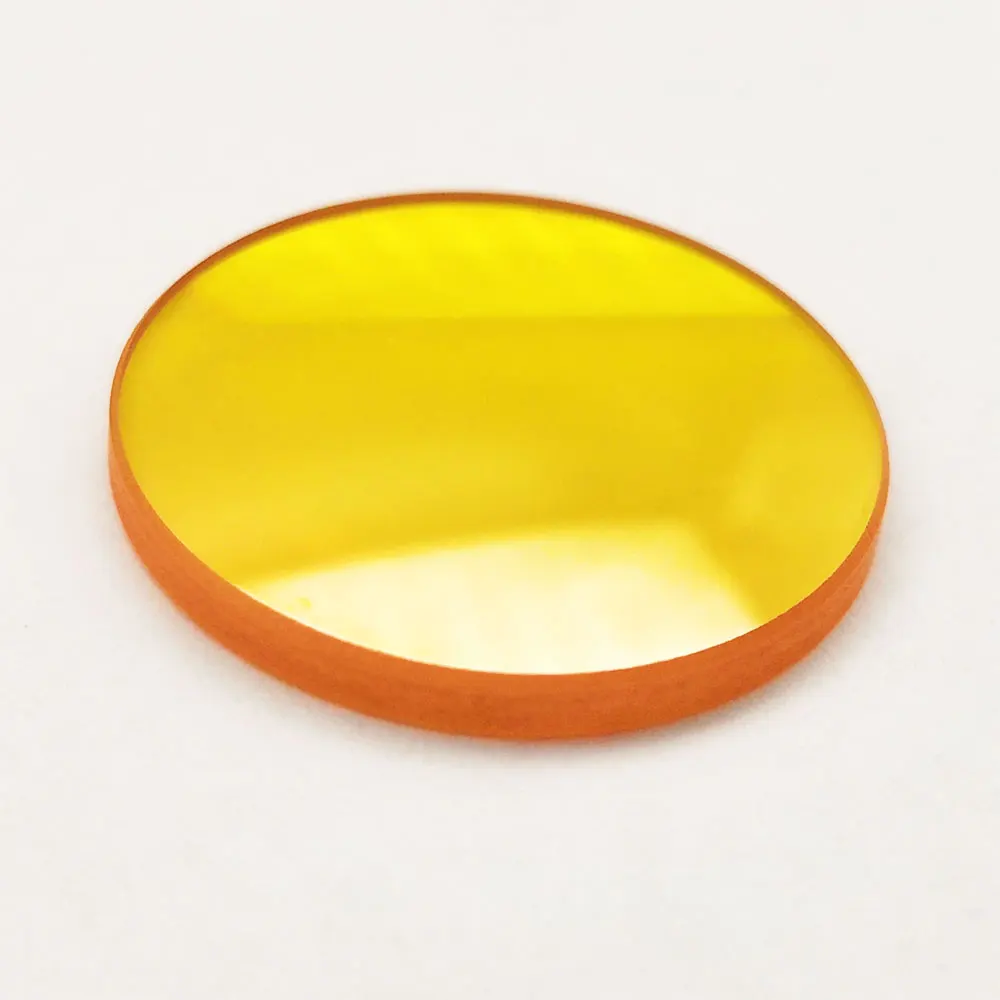

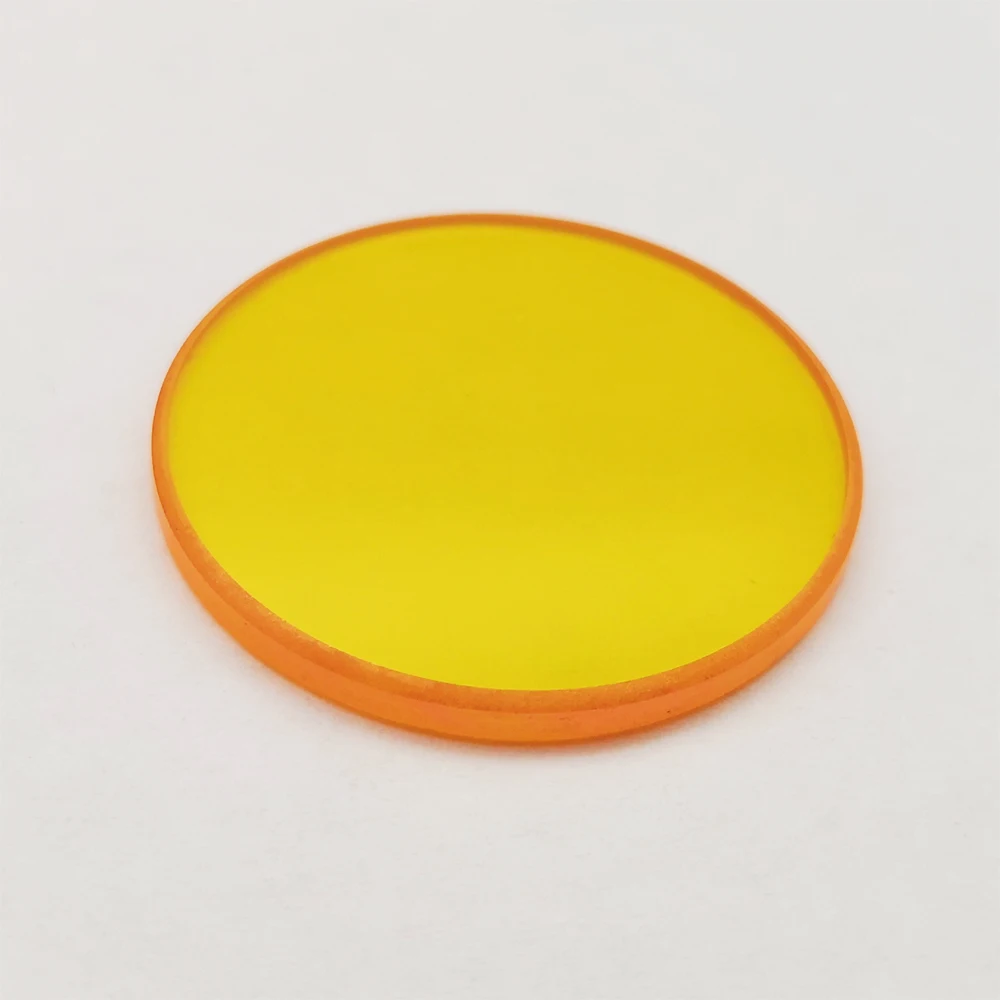

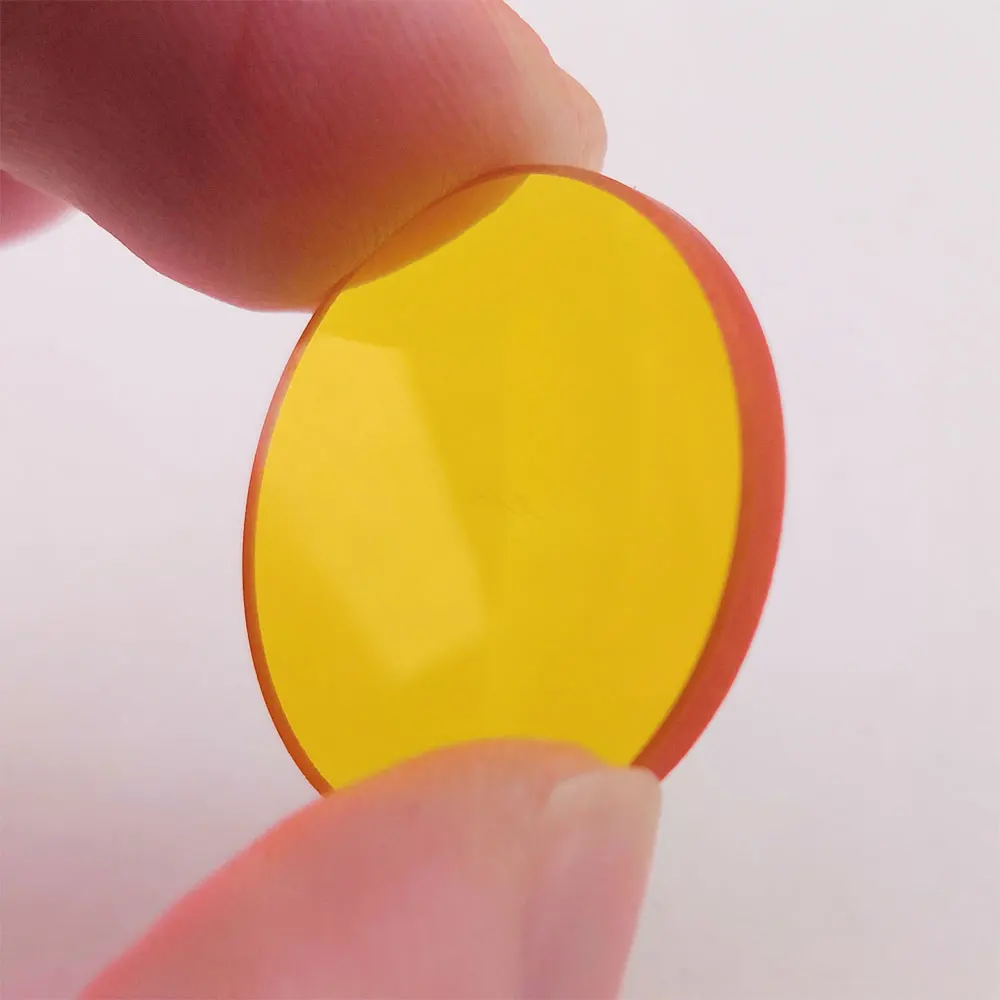

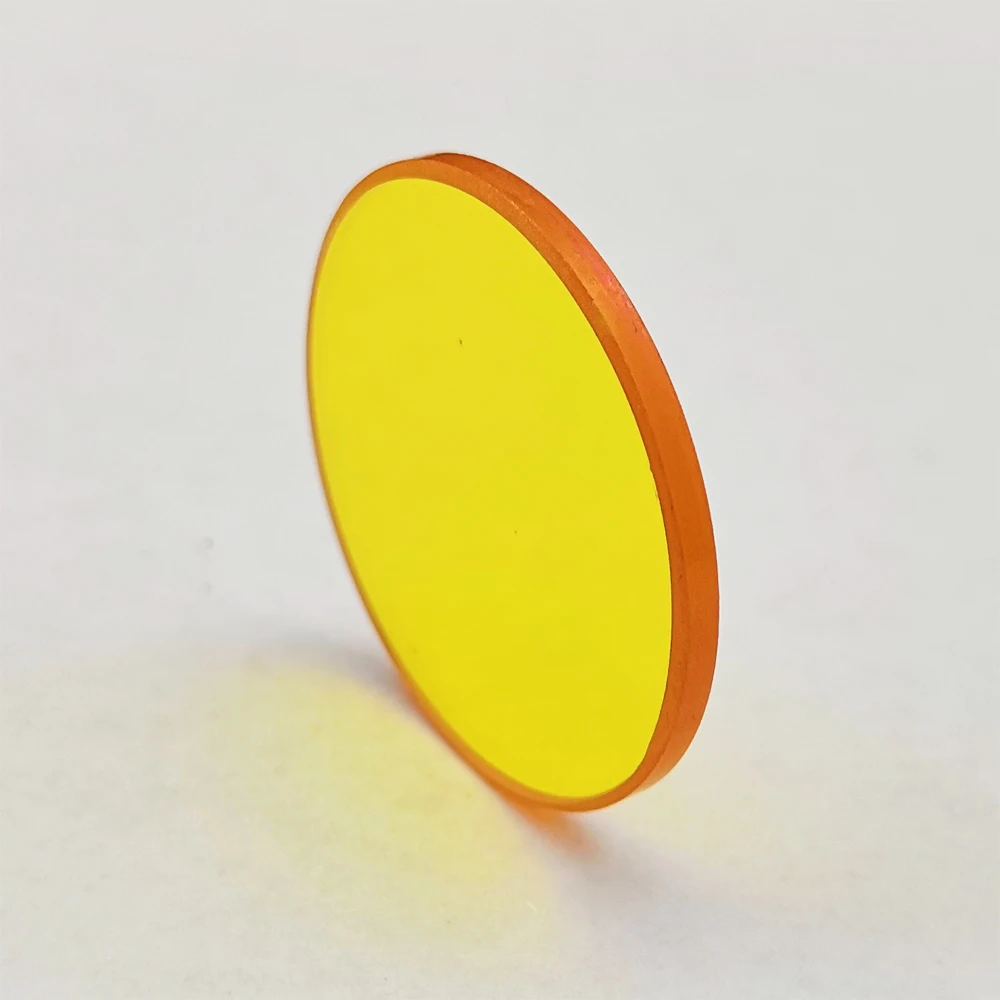

Wuhan Especial Optics' Ø1" Zinc Selenide (ZnSe) Plano-Concave Lenses, which offer high transmission from 0.6-16 μm, are available with a broadband AR coating optimized for the 8-12 μm spectral range deposited on both surfaces. This coating greatly reduces the high surface reflectivity of the substrate, yielding an average transmission in excess of 97% over the entire AR coating range. See the Specs tab for detailed information.
Like all plano-concave lenses, these lenses have negative focal lengths and can be used to diverge collimated beams; in this case, the curved surface should face the source in order to minimize spherical aberration. In addition, they can be employed to offset the effects of spherical aberration caused by other lenses in an optical system. ZnSe lenses are particularly well suited for use with high-power CO2 lasers.
Reflectance over Coating Range (Avg.) | <1.5% |
Damage Threshold | 5 J/cm2 |
Diameter Tolerance | +0.00/-0.10 |
Thickness Tolerance | ±0.2 mm |
Focal Length Tolerance | ±1% |
Surface Quality | 60-40 Scratch-Dig |
Surface Power (Plano Side) | λ/2 |
Spherical Surface Power (Concave Side) | 3λ/2 |
Surface Irregularity (Peak to Valley) | λ/2 |
Centration | ≤3 arcmin |
Clear Aperture | 80% of Diameter |
Design Wavelength | 10.6 μm |
Detailed Images
Like all plano-concave lenses, these lenses have negative focal lengths and can be used to diverge collimated beams; in this case, the curved surface should face the source in order to minimize spherical aberration. In addition, they can be employed to offset the effects of spherical aberration caused by other lenses in an optical system. ZnSe lenses are particularly well suited for use with high-power CO2 lasers.
Zinc Selenide (ZnSe) Plano-Concave Lenses, which offer high transmission from 0.6-16 μm, are available with a broadband AR coating optimized for the 8-12 μm spectral range deposited on both surfaces. This coating greatly reduces the high surface reflectivity of the substrate, yielding an average transmission in excess of 97% over the entire AR coating range.
