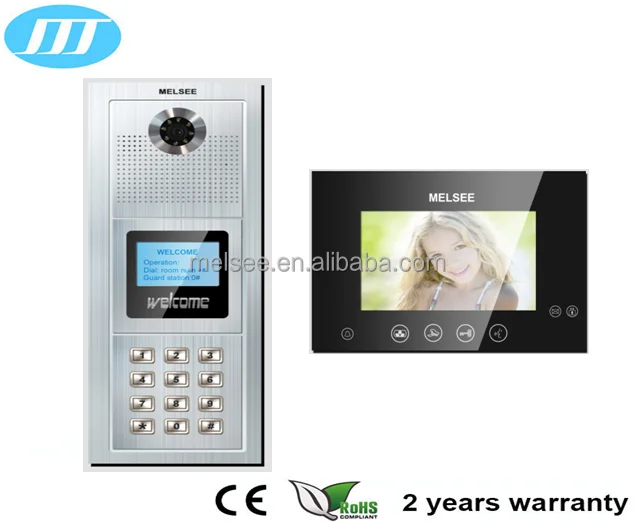

China manufacturer apartment building video door intercom on sale

Product Overview

Description

China manufacturer apartment building video door intercom on sale



MS317C

Outdoor station with code access and metal square keypad



·Anti-vandal and durable alum alloy.

·Codes access, Infrared induction, indoor monitor unlock

·Built-in TFT-LCD screen and color CCD camera

·Round keypad with blue backlight

·Calling indoor monitor/guard station, connect with management center

·Code access and disarm indoor monitor simultaneously

·Can work as wall outdoor station, building outdoor station, or multi-entrance outdoor station



Model No.	System	Remark
MS311C	4+2 wires building system	Cat 5 one cable system



Specification:



Input voltage	DC 12V-18V
Installation Type	Flush mounted
Panel material	Alum alloy
Applicable Temperature	-25℃~65℃
Minimum illumination	0.1 Lux
Camera	CCD
Body Dimension	110X330X13(mm)

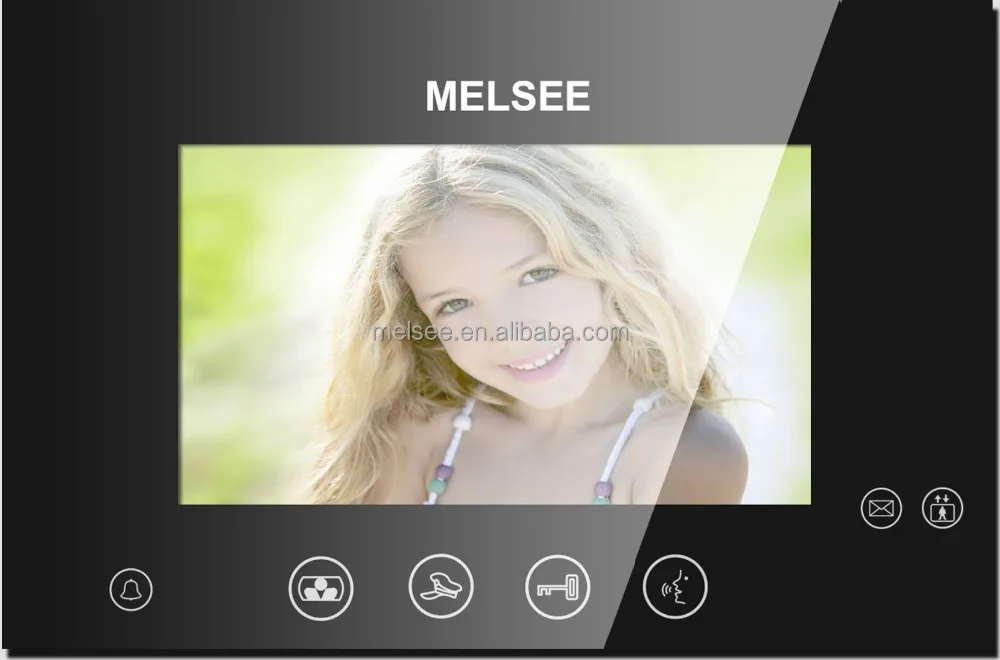

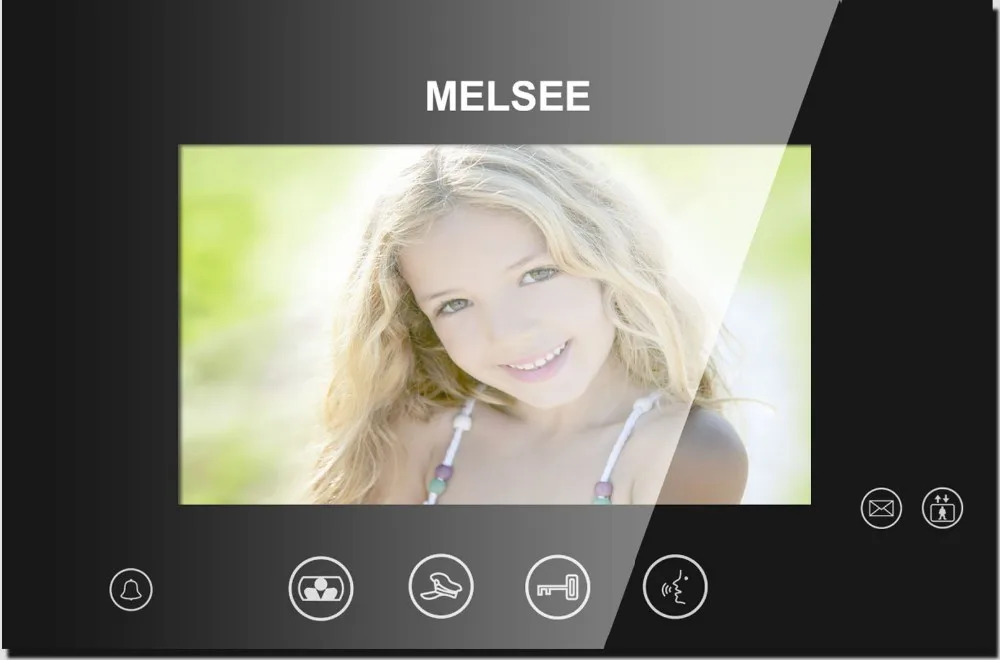

MS703C

7 Inch TFT-LCD indoor monitor-touch button

·Color display

·Backlit touch buttons

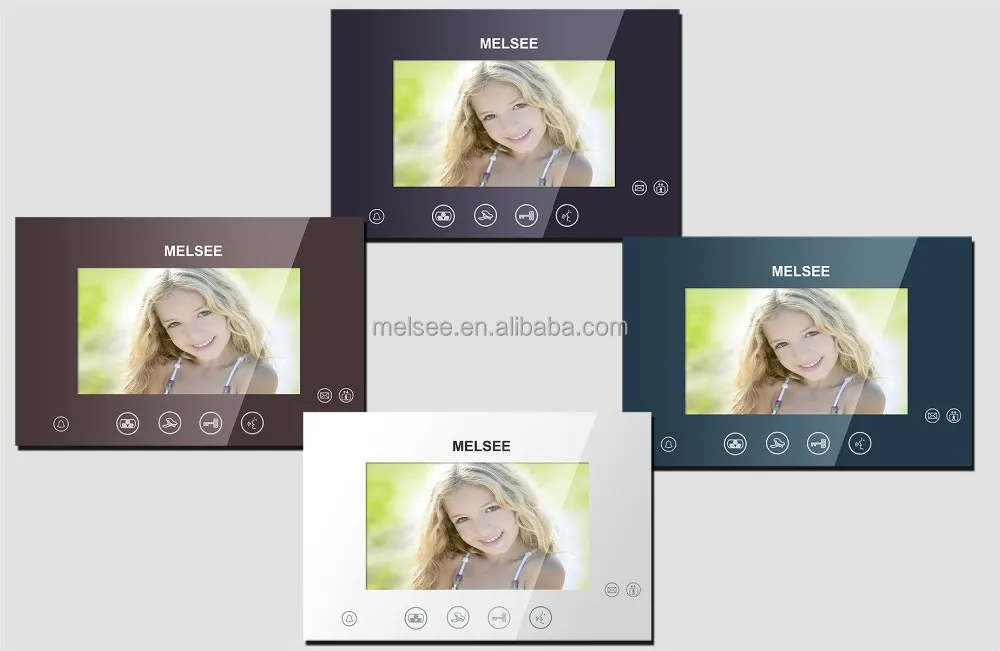

·Five color for selection: Gold/Silver/Brown/Black/White

·Talking, unlocking, monitoring

·Call guard station, call lift, SOS

·Check message



Model No.	System	Remark
MS703C	4 +2wires building system	Cat 5 one cable system
MS703C-V2	2 wires villa system
MS703C-V4	4 wires villa system

Specification:

Screen size	7 Inch LCD
Installation Type	Surface mounted
Material	Acrylic
Applicable Temperature	-10℃~60℃
Input voltage	DC 12V-18V
Pixel	800×480

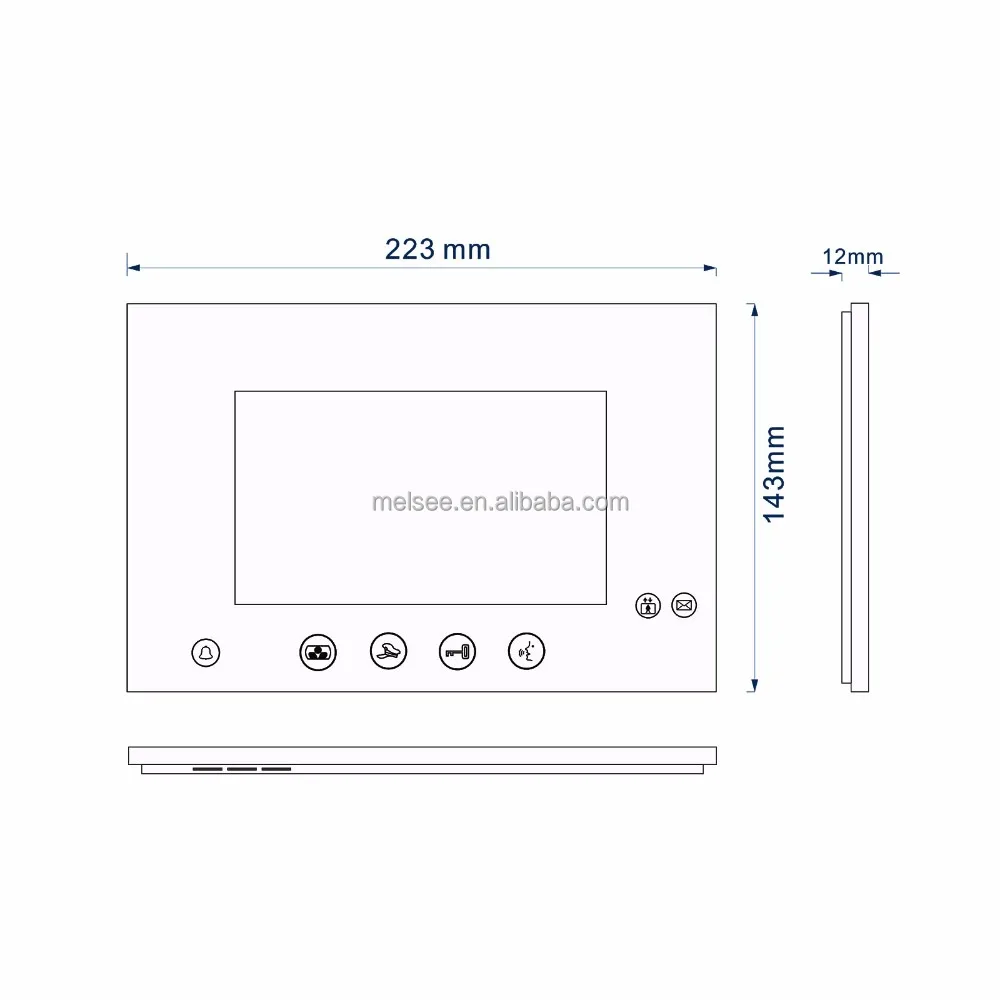

Body Dimension	223×143×12 (mm)
