Reasonable price climbing wiped thin film evaporator

Share on (60697343117):


Price:$2,000.00

Quantity:


Product Overview

Description



Product posters

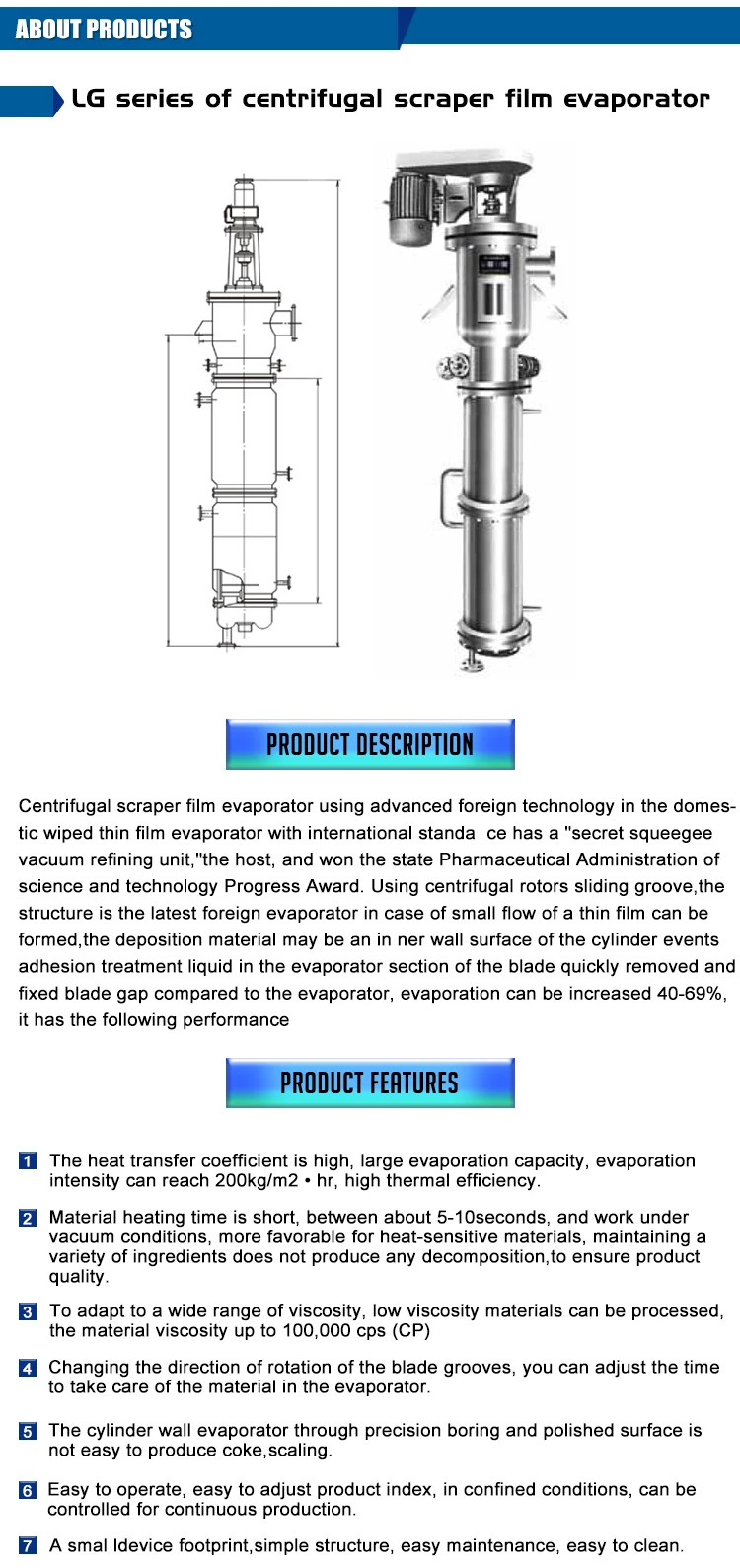

_01.jpg _02.jpg

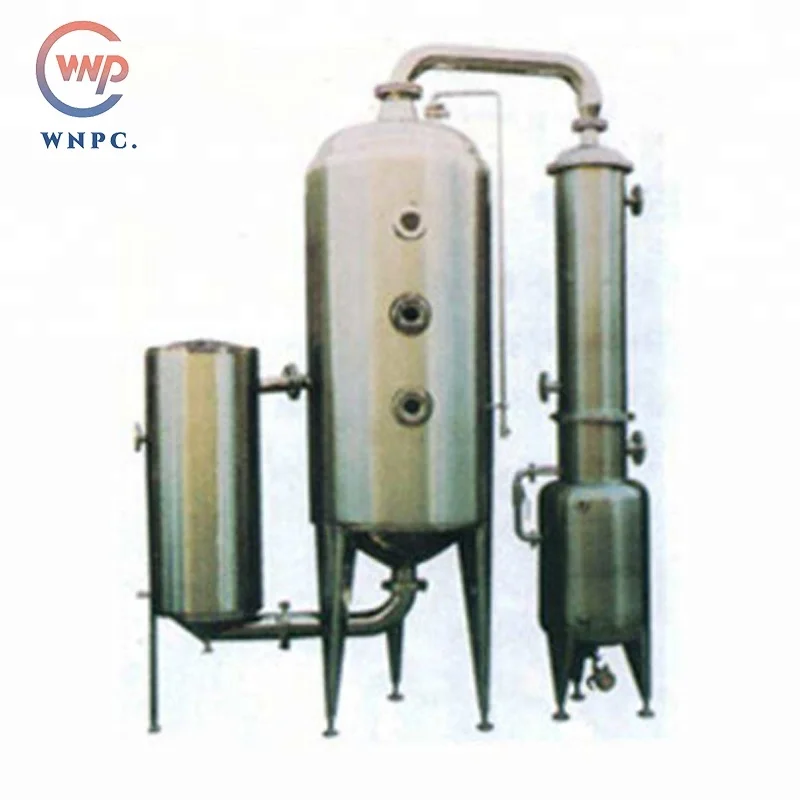

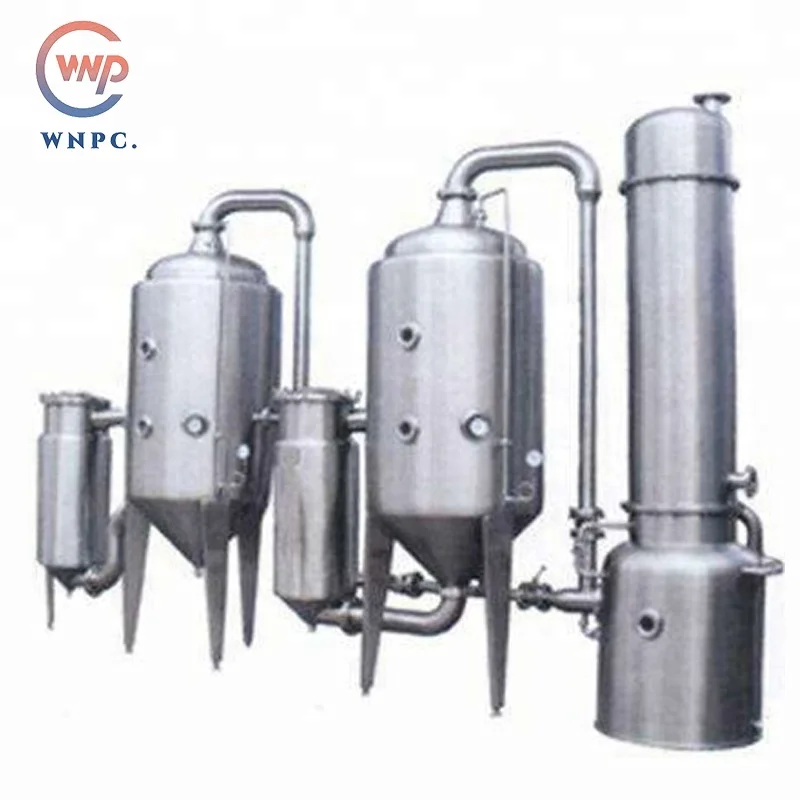

Reasonable price climbing wiped thin film evaporator






















































































Project ModelLGO.8LG1.5LG2.5LG4LG6LG10
Heattransfer area m20.81.52.54610
steam pressure MPa0.30.30.30.30.30.3
Vacuum of KP707070707070
Evaporation kg/n16030050080012002000
Consumption kg/n16831552584012602100
Motor Power KW1.11.52.245.511
speed rpm30030028013413488
Epuipment height mm250032954100518058007800




Company Information


Wuxi Nanquan Pharmaceutical Chemical Container Factory is located at Hudai Industrial Park in Wuxi, Jiangsu,China.Our company is dedicated to designing and manufacturing the pressure vessels with high quality and excellence. The company has the manufacture license of D1,D2 pressure vessels, which are class I and class II vessels with middle or low pressure. In addition, the company has the ASME certificate with “U” steel seal.


Our factory occupies a land of over 13,000 square meters and the workshop occupies an area of 8,000 square meters. We have more than 20 sets of advanced equipment for the manufacturing and testing of the pressure vessels. The lifting capacity of the overhead crane in the factory is 50 tons.We are led by a professional team consisted of the field experts (some of them have obtained the post-graduate degrees outside of China). 30% of the employees have good technical ability. The backbone of the workshop is composed of employees acquiring relevant experience of over 20 years. So far, the annual output of the pressure vessels manufactured is as high as 10,000 tons. And our pressure vessels cover all over the world now,such as Australia,Turkey,Russia,India,Thailand,Canada,etc.
