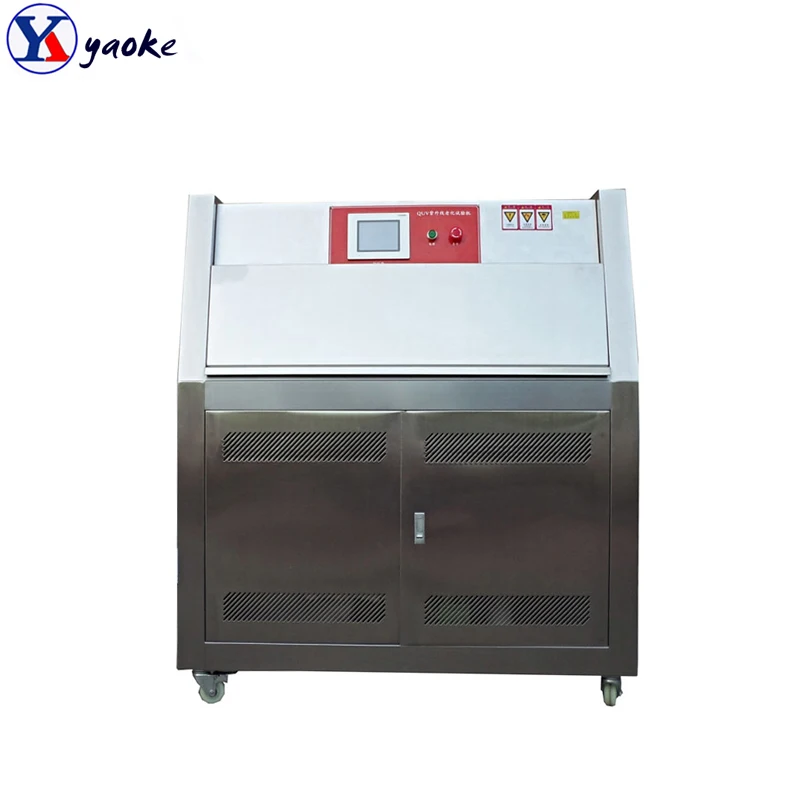

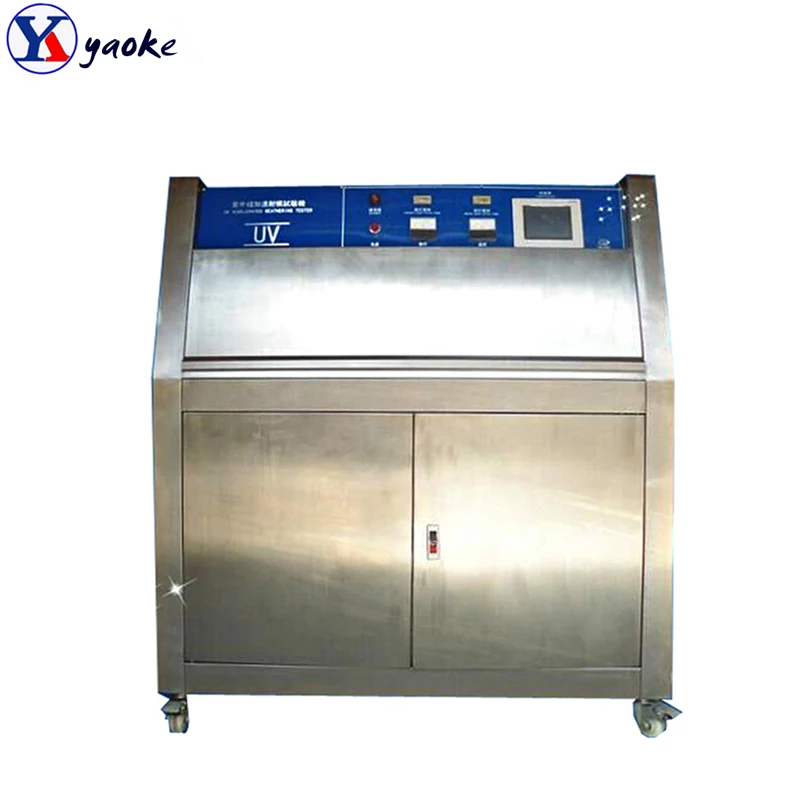

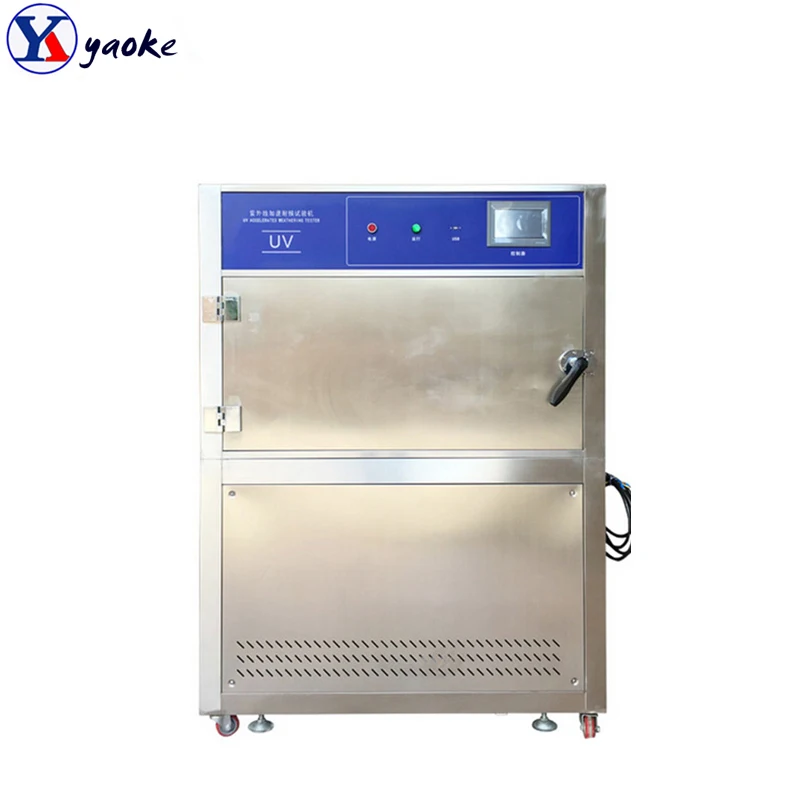

Fluorescent UV lamp test machine/ Ultraviolet Light Tester/ UV irradiation weathering test chamber

This tester can provide reliable aging test data to make the exact prediction of products’ weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.

Designing Standard:

 IEC61215,  ASTM D4329,D499,D4587,D5208,G154,G53;ISO 4892-3,ISO 11507;EN 534;prEN 1062-4,BS 2782;JIS D0205;SAE J2020,etc.

Characteristics:

1.The ultraviolet aging tester is designed according to uses’ operation , it’s easy to operate, safe and reliable.

2.The thickness of specimen installation is adjustable and the specimen installation is fast and convenient.

3.The door rotating up does not interfere with the operation and the tester takes a very small space only.

4.It’s unique condensating system can be contented by tap water.

5.The heater is under the container rather than in the water, which is long life, easy  to mainten.

6.The water level controller is outside the box, easy to monitor.

7.The machine has truckles, convenient to move.

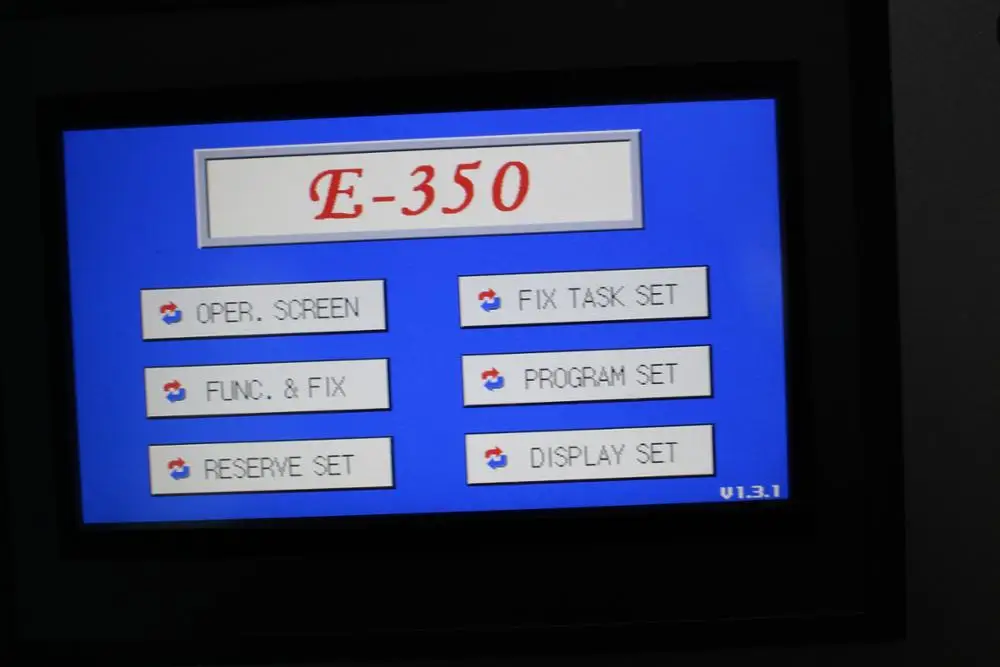

8.Computer programming is convenient, automaticly alarming when incorrect operated or faulted.

9.It has irradiance calibrator to extend the life of the lamp tube(more than 1600h).

10.It has Chinese and English instruction book, convenient to consult.

11.Divided into three types: common, light irradiance controlling, spraying

Features:

(1) Electronic-eye irradiance control system

(2) Use blackboard temperature sensor providing precise temperature and recurring test result.

(3) Perform humidifying, condensation and water spraying circulating test.

(4) Irradiance is calibrated by CR-10 calibrator and automatic calibration procedure

(5) Specimen size and quantity: 75mm×300mm 24pcs, 75mm×150mm 48pcs

Temperature Control:

During UV exposure cycle, the photochemical reaction is not so sensitive to temperature. But the following all reactions speed are all determined UV Lamp Weathering Tester by the temperature. The reaction speed will be accelerated with the rise of temperature. So the control of temperature is very important. At the same time, we should make sure that the test chamber temperature is the same with the highest temperature that material exposed directly by sunshine.
In this equipment, UV exposure temperature and environment temperature can be set at any value within 50℃~80℃. The UV exposure temperature is controlled by a sensitive thermostat and a air-blast system and it has perfect uniformity.

Circulation Period:

The degree of humidity erosion is aggravating with the rising of temperature, so the temperature control during humidification circulation is very important. Then we have to do humidity exposure test in high temperature condition if need to do accelerated tes. In this equipment, condensation temperature can be controled among 40°C~60℃, the condensation temperature has completely nothing to do with UV exposure temperature.

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.

 3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

 4.Good Packaging:

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
