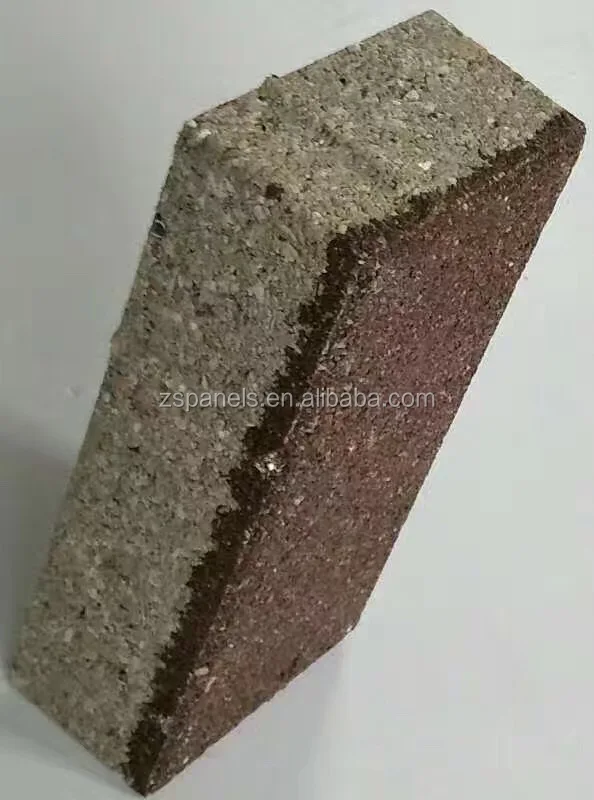

Ceramic Permeable Brick tile, city road floor tile, brick wall tiles

Share on (60697368834):


Price:RUB 1,337.89 - RUB 1,858.18

Quantity:


Product Overview

Description

ZSR Permeable Brick

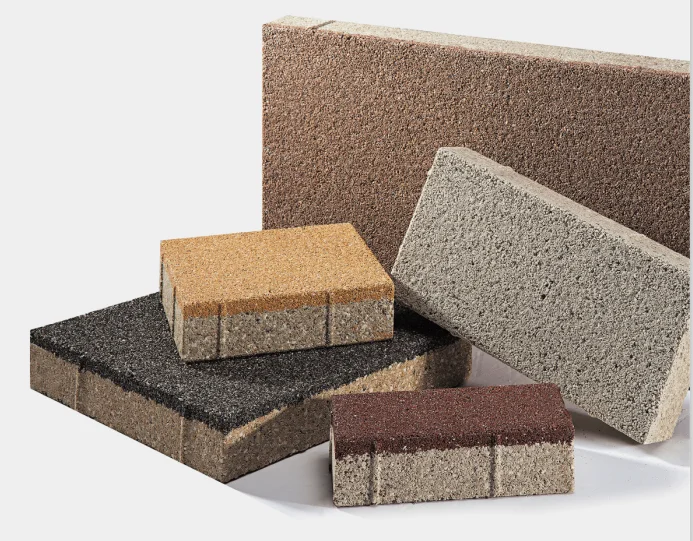

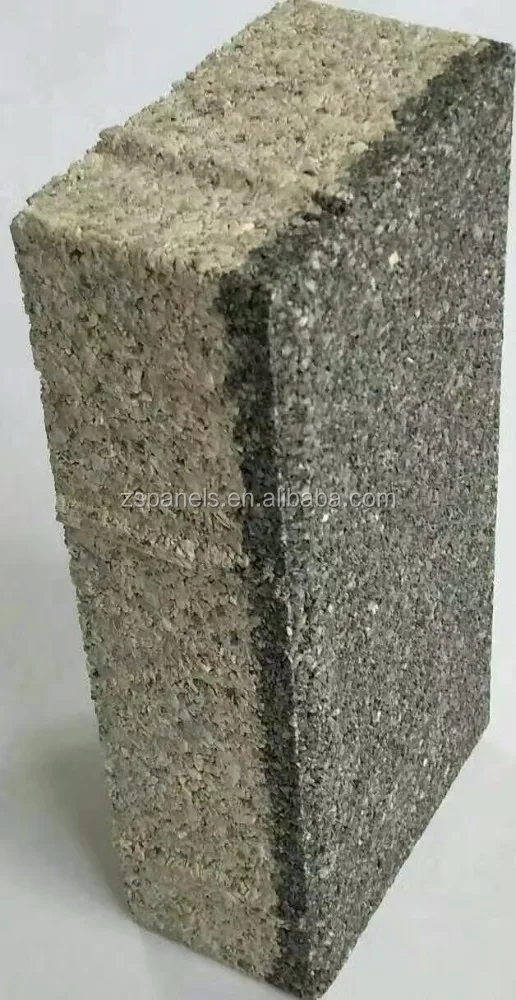

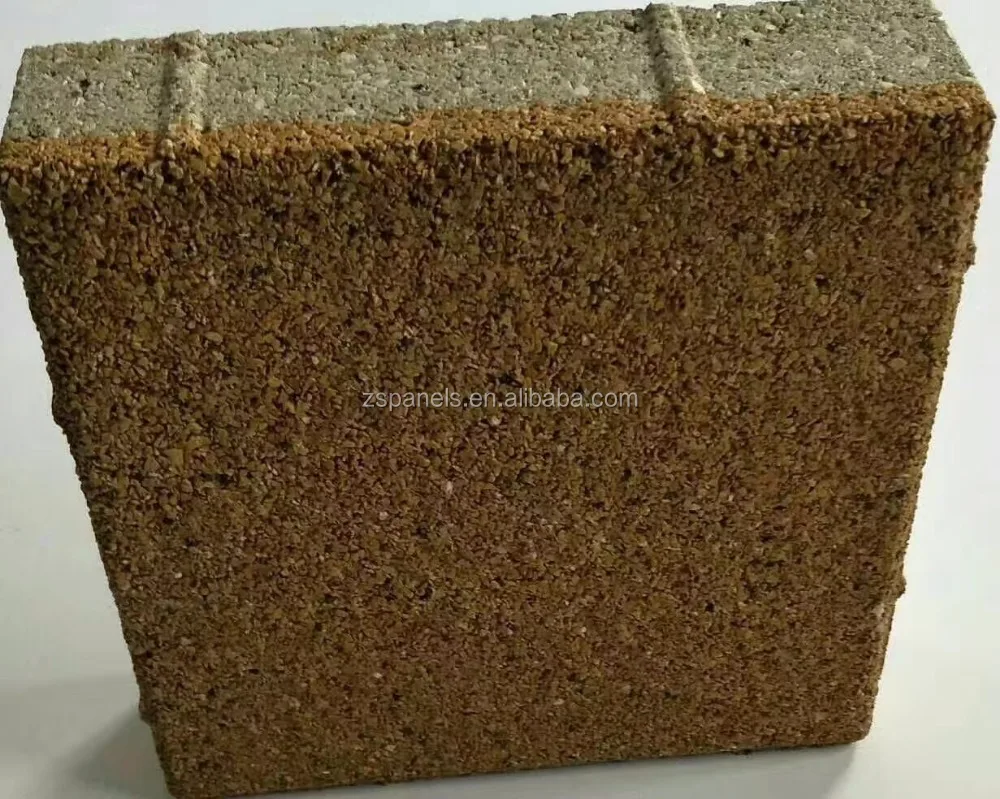

ZSR Ecological Ceramic Permeable Brick



ZSR Ecological Ceramic Permeable Brick , with raw materials of ceramic waste brick, industiral tailings and other inorganic carrier, after 300 meters length of high temperature(1250 degree centigrade ), roller kiln 10 hours of fire, green enviromental protection material, product, powerful permeability high compressive strength, bending strngth, rich decorative, shop is the "sponge city" construction waterproof material ideal products.



Product Features :

  1. Good water permeablility——natural water lowering can quikly let the water go through the ground, and timely replenish groundwater resources.Save water and reduce the city waterlogging.
  2. Function of automatic adjustment——excellent permeability can regulate the surface temperature and humidity to eliminate the “heat island phenomenon” and maintain the ecological balance
  3. Safety and comfort——in the rainy days, road has no water to prevent night reflection and improve the safety and comfort of vehicle and pedestrian.
  4. Strong water absorbing capacity——used in public or family kitchen and bathroom floor, it can absorb water and exerts excellent anti-skid effect.
  5. Noise reduction——porous structure can absorb the vehicle noise, and create a quiet and comfortable environment
  6. High compressive strength——made with high pressure and high temperature sintering, the compressive strength,flexural strength is higher than that of other floor laying material.
  7. Low carbon emission and environmental protection——long product life and weathering resistance can bring infinite times repeated recycling.
  8. Elimination of Smog——at present, in some cities,haze phenomenon is very serious. The main reason is the dry air.Because of the lack of water vapor adsorption,suspended particles can not be timely settled. Only large area of water permeable bricks can eliminate the haze.



Product Information

Product Information :

Item Name

Ceramic Paving Tile

Material

wasted ceramic + inorgaic additive

Color range

White, grey, black, pink, red-brown, yellow, coffee, indian red etc

Finish

Glazed & sintered under high temperature---1200 degree centigrade

Resistance

slip-proof, frost-proof, compress-proof, wear-proof, weather-proof etc

Edge

with 5mm tongues for easy installation

Water keeping rate

50-55kg /m2

L*W (mm)

300*300; 200*200; 200*100

Other sizes (mm)

300*150; 450*300; 300*600

Other thickness(mm)

55,50, 40, 30

Installation

For people: the first layer of 20 cm thickness is15-20cm stones; the second layer of 3cm is 2-3cm sands; the last layer is ceramic tiles (put a non-woven cloth between the first layer and the second layer)

 For cars: the first layer of 15cm thickness is 15-20cm stones; the second layer of 10cm thickness is cement concrete; the third layer of 3cm thickness is cement; the last layer is ceramic tiles



Product Specifications :

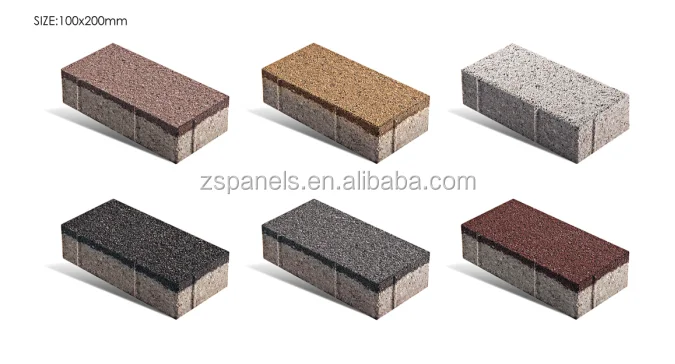

A. 100 x 200 x 55mmT , 1.97kgs/pc, 0.02m2/pc, 255m2/20'GP

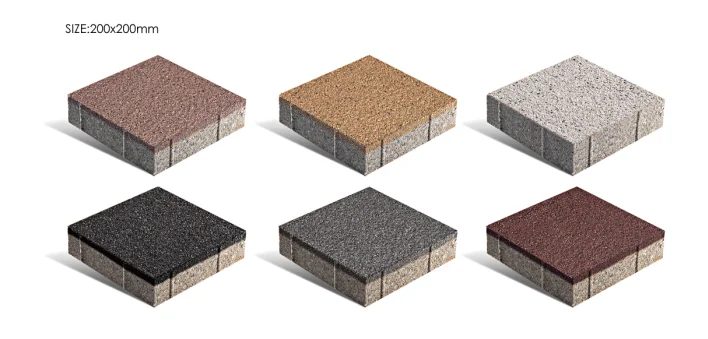

B. 200 x 200 x 55mmT , 3.8kgs/pc, 0.04m2/pc, 250m2/20'GP

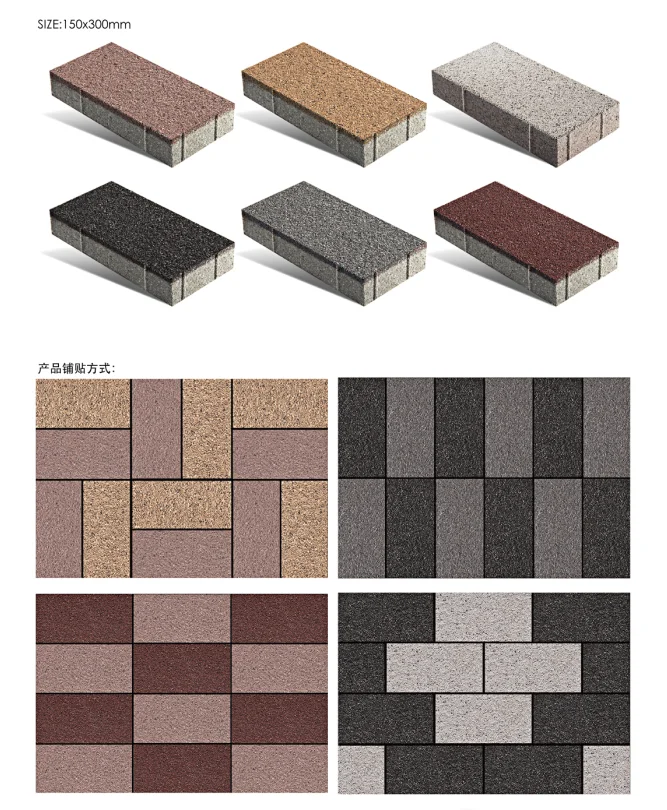

C. 150 x 300 x 55mmT , 4.56kgs/pc, 0.045m2/pc, 250m2/20'GP

D. 300 x 300 x 55mmT,  8.9kgs/pc, 0.09m2/pc, 250m2/20'GP

E. 300 x 600 x 55mmT,  18kgs/pc, 0.18m2/pc, 250m2/20'GP
