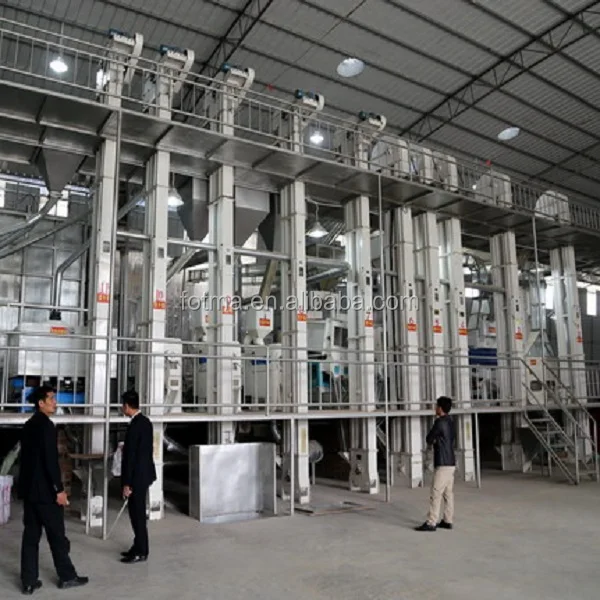

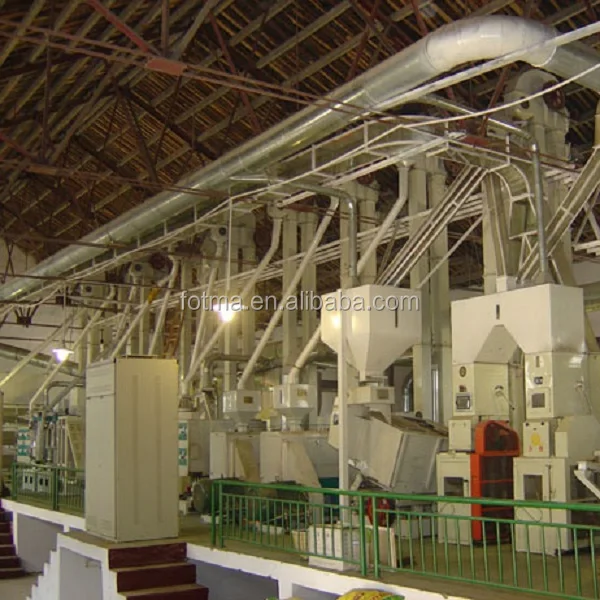

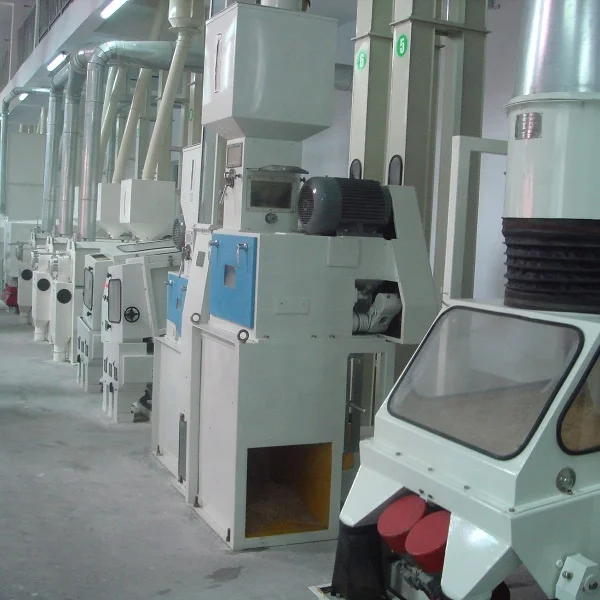

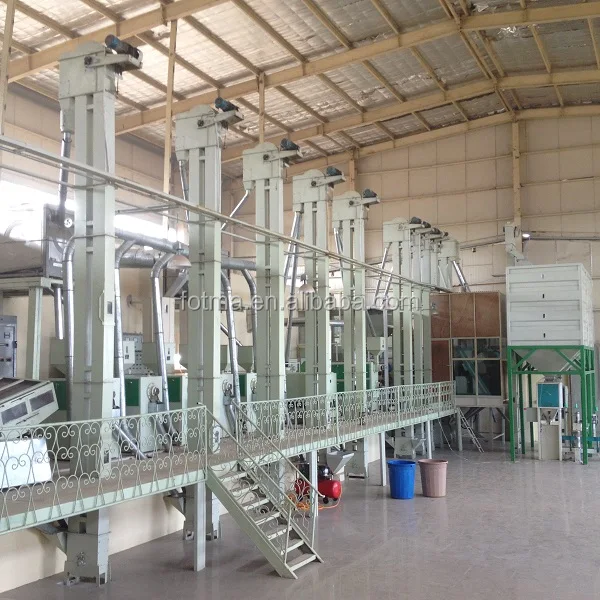

70 80 t/day Complete Rice Milling Plant

 FOTMA has more over than 20 years manufacturing experience and have exported our rice milling equipments to more than 30 countries in the world like Nigeria, Tanzania, Ghana, Uganda, Benin, Burundi, Ivory Coast, Sri Lanka, Malaysia, Philippines, Guatemala, etc..We offer complete set of rice mill equipment from 18T/Day to 500T/Day, with high white rice yield, excellent polished rice quality. Additionally, we can do reasonable design as per the customers' specific requirement so as to form a complete set or system to your satisfaction.

1. The descriptions for complete rice milling processing

a. Cleaning: removing all impurities and unfilled grains from the paddy.
b. De-stoning: separating small stones from the paddy.
c. Husking: removing the husk from the paddy.
d. Paddy separation: separating the unhusked paddy from the brown rice.
e. Whitening: removing all or part of the bran layer and germ from the brown rice.
f. Polishing: improving the appearance of milled rice by removing remaining bran particles and by polishing the exterior of the milled kernel.
g. Grading: separate different quality rice and broken rice from the good head ones.
h. Color sorting machine: select the bad black/yellow/white belly rice and other grains.
i. Blending: mix head rice with predetermined amount of brokens, as required by the customer
j. Weighing and bagging: packing the finished rice into bags, preparing milled rice for transport to the customer.

----------------------------------------------------------------Flow Chart----------------------------------------------------------------
Paddy Cleaner → Destoner → Paddy husker → Paddy Separator → Rice Whitener → Water polisher → Rice Grader → Color Sorter → Packing

2. The features of 70-80t/day complete rice mill plant

1. Equipped with two units low temperature whitemers, twice whiting, small increase in broken but bring high precision and good quality white rice;

2. Equipped with separate cleaning machine alone with de-stoner, more fruitful on impurities and stones removing; 3. Lower energy consumption,  high efficiency and high yield;

4. The enhanced silky polishing machine is available, which make the rice shining and glossy, suitbale for high-grade rice production;

5. The complete set of machines arrangement is compact and reasonable, save workshop space;

6. All spare parts are made by high quality materials, durable and reliable;

7. Automatic operation from the paddy loading to finished white rice, convenient to operate and maintain;

8. The electronic packing scale and color sorter are optional, to produce high grade rice and pack the finished rice into bags;

9. The installation mode can be by steel framed operation platform or concrete flatbed according to customers requirepments.

3.Necessary machines of 70-80T/D Complete Rice Mill Machine

70-80T/D complete rice mill plant is capable of processing 2.5-3.2 tons raw paddy per hour, and produce about 3 ton white rice per hour. The vibration cleaner, destoner, rice husker, paddy separator, rice whitener and rice grader are necessary units in this rice mill plant.This series of machine is developed by our company can produce high-quality rice. The series has a blowing device, bran can be separated directly. The output rice is very clean and bright, rice temperature is low, and low power consumption, large output, also has a beautiful appearance, compact structure, conveninent maintenance and operation characteristics, widely use in urban, rural, small and medium-sized rice processing plant.

The 70-80t/day complete rice milling plant includes the following main machines:

1 unit TCQY100 Cylindrical Pre-cleaner

1 unit TQLZ125 Vibrating Clenaer

1 unit TQSX125 Destoner

1 unit MLGQ51B Pneumatic Rice Huller

1 unit MGCZ46×20×2 Doubel Body Paddy Separator

3 units MNMF25C Rice Whiteners

1 unit MJP120×4 Rice Grader

1 unit MPGW22 Water Polisher

1 unit FM6 Rice Color Sorter

1 unit DCS-50 Packing and Bagging Machine

3 units LDT180 Bucket Elevators

11 units LDT1510 Low Speed Bucket Elevators

1 set Control Cabinet

1 set dust/husk/bran collection system and installation materials

Capacity: 3-3.5t/h

Power Required: 243KW

Overall Dimensions(L×W×H): 25000×8000×9000mm

 The optional machines for 70-80t/d complete rice milling plant:

Thickness grader,

Length Grader,

Rice Husk Hammer Mill, etc..
