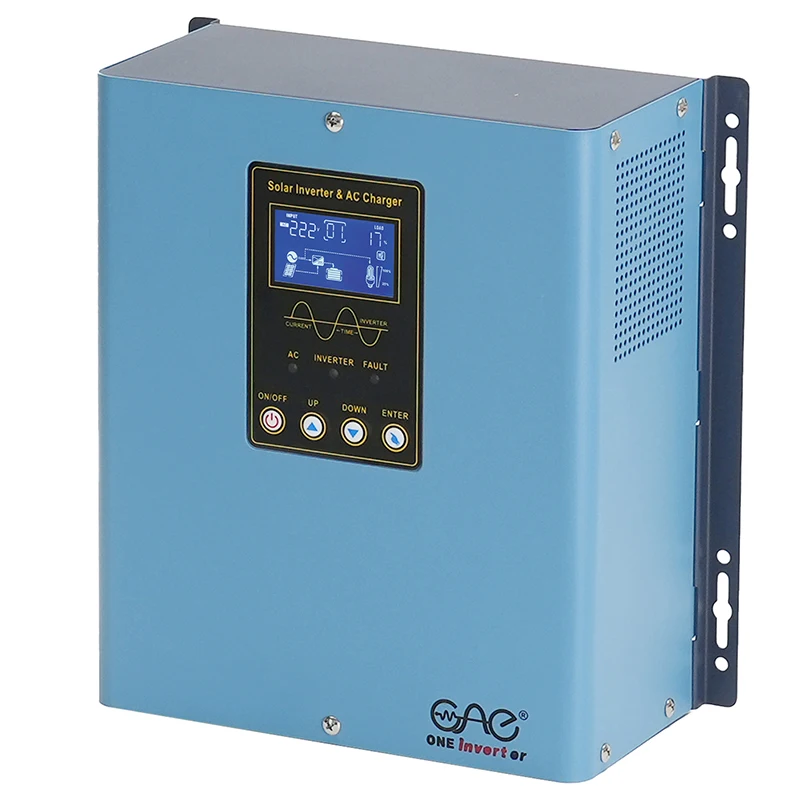

Solar inverter 350w HSI series solar inverter high efficiency low frequency hybrid solar inverter
- Category: >>>
- Supplier: Foshan Top One Power Technology Co. Ltd.Foshan Ltd.
Share on (60697388613):
Product Overview
Description
Products Description
Specification
Model | HSI-102 | HSI-122 | ||
Rated power | 1000W | 1200W | ||
Surge power | 3000W | 3600W | ||
AC Input & Output | ||||
Voltage | 220VAC | |||
Selectable Voltage Range | 165-275VAC (220VAC) | |||
Frequency Range | 50Hz/60Hz automatic recognition | |||
AC Voltage Regulation | (DC Batt.mode)220vac±3% | |||
Transfer Time | ≤8ms | |||
Wave Form | Pure Sine Wave | |||
Transformer type | Toroidal | |||
Transfer efficiency | ≥85% | |||
Battery | ||||
Battery Voltage | 12V/24V | |||
Type | Gel/SLA/AGM/Water battery | |||
DC Charge Voltage | 13.8VDC(12V)/27.6VDC(24V) | |||
Overcharge Protection | Battery voltage ≧16VDC (12V) ≧32VDC (24V), stop charging after 60s alarm | |||
Solar Charge & Ac Charger | ||||
Type | PWM Solar Charger Controller | |||
Maximum PV Array Open Circuit Voltage | Max. 30V(12V) / 50V (24V) | |||
Maximum PV Array Power | 450W(12V)/900W(24V) | |||
Maximum AC Charge Current | 15A | |||
Maximum Solar Charge Current | 30A PWM | |||
Maximum Charging Current | 45A | |||
Working mode | ||||
01 mode | AC mains priority | |||
02 mode | ECO mode | |||
03 mode | DC battery priority | |||
Packing Details | ||||
Dimension, D*W*H(MM) | 360*330*215 | |||
G.W.(KGS) | 10 | 10 | ||
Environment | ||||
Humidity | 0~95%（NO CONDESNSATION) | |||
Operating Temperature | 0~60℃ | |||
Storage Temperature | 0~60℃ | |||
*Product Specifications Are Subject To Change Without Further Notice | ||||
Company Profile
Certifications
FAQ
Q1: Does your company also provide other solar products except Pure Sine Wave Inverter?
A1: Yes, we also provide other solar products, like MPPT Solar Controller, off grid solar inverter, UPS inverter, pump inverter etc.
Q2: How to choose a right inverter?
A2: Advise your demand, our sales will recommend a suitable inverter to you.
Q3: How about the delivery time?
A3: 3-7 days for sample; 7-15 days for bulk order.more details pls check with sales.
Q4: What is the warranty of inverter?
A4: 1 year warranty.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
