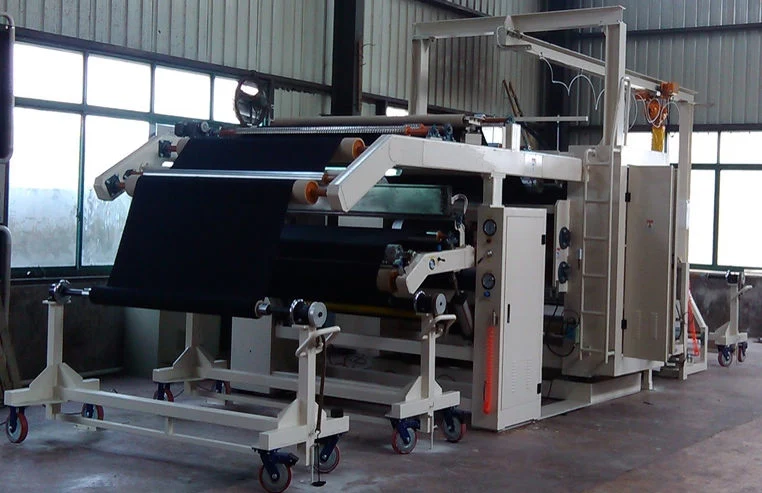

PUR hot-melt -coating & laminating machine (FS-68)

INTRODUCTION

FS-68 type is a new generation laminating machine which is updated being based on FS-66 type.It added the active uncoiling device and the U shape groove storage which are different from FS-66 type .And the new functions changed the way of rewinding and unreeling ,and its structure .The biggest advantage can realize the tension-free unwinding and no need to stop the machine when you need lap changing.They are more suitable for sponge and fabric ,fabric and fabric,It’s the first choice for underwear ,textile and automobile industries .

What is PUR?

1.The PUR features are excellent adhesion, can laminate 99.9% fabrics, it is non-toxic and environmental ,the laminated fabrics’ adhesion and flexibility are very good, the fabrics are high temperature resistant, low temperature resistance to fracture, moisture not easily affected by the temperature after reaction, flexible durable, wear-resisting, oil resistant, anti-aging.

2.It is replacing traditional solvent and water-based rubber joint, besides PUR has excellent mist effectiveness, low precipitation material and neutral color features, it can be applied to must repeat disinfection of medical products.

EQUIPMENT PERFORMANCE

1.Machine speed : 3-40 (m/min)

2.Coating weight : 5-25 (g/m²)

3.Compressed air source :(5 kg/cm² G)

4.Electric power source : 380 v *50 HZ *3phases *30-50KW

MAIN CHARACTERISTICS

1.The products have no spare solvent and use the ideal green glue production ,no pollution ,energy saving .

2.The design with a small amount of a variety of production can cost saving .The digital control system, regardless of the speed ratio ,clearance and temperature control ,make the operation much better .

3.The substrate is no tensile and soft in the process of composite , so the hand feeling is good .

4.Hot melt adhesive without water,no need drying and composite speed is fast .

5.The process of composite can produce the wet solid reaction ,which is irreversible and strong adhesion can resist to wash.

6.Strong viscosity ,coating weight reducing ,cost saving .

7.Heat source is to use the heat oil which can heat fast and heat is uniform.

8.Melt system independent ,melt speed fully .

9.The products use the punctiform gluing which make the products with good air permeability and strong stereos copy .

10.Machine humanized design ,saving the operators and having a small setting area.

APPLICATION

PUR Hot melt coating &laminating machine is widely used in lots of industry ,such as textile ,automobile ,garment,health care,filter material ,footwear and so on.

Inner Package: Protective Film, etc

Outside Package: Standard Export Container

1.Machines well packed with protective film and loaded in export container;

2.English version operation manual and technical data;

3.One-Year-Period wear parts;

4.Tool kit
