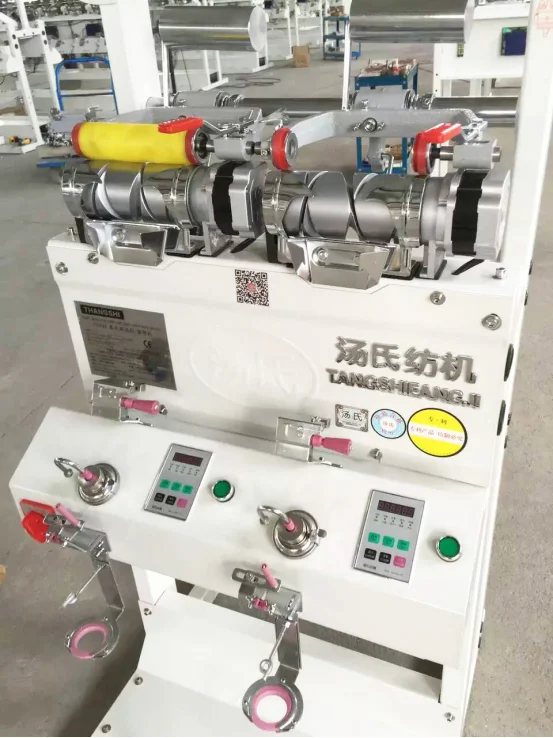

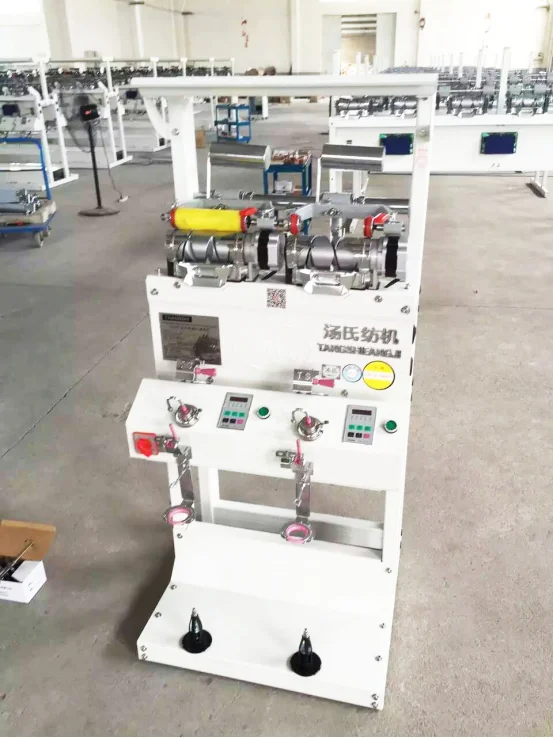

Polyester yarn bobbin winding coning machine
Yarn cone winding machine is used to wind good yarn cone shape for knitting,warping,
weaving,dyeing,bleaching,etc. It is suitable for cotton yarn,wool yarn,polyester yarn,etc.
Layout | Single side |
Power Supply | 220V |
Max.package diameter | 250mm |
Take-up traverse | 152mm |
Motor Power | 0.08KW/spindle |
Take-up speed | Max. 1000 meters/min |
Driving | Individual |
Auto Stop Device | Motion sensor |
Electronic Anti-Stack | Inverter control |
Auto-waxing device | Optional |
Cleaner device | Optional |
Electronic Yarn Clearer | Optional |
Air Splicer | Optional |
Blower cleaner | Optional |
Lighting System | optional |
Dimensions | L 700 x W 710 x H 1470 mm ( 2 spindles) |
Weight | 100kg |

Our service
----------------- It is our aim to provide customers high quality products and good service.Our main services are pre-sale and after-sale service.
Pre-sale service | Detailed product introduction |
Respond to your inquiries at time | |
Visiting our factory | |
Visiting our customers’ factories available | |
Taking up yarn samples for customers |

After-sale service | Common spare parts available |
Machines installed by our engineer available | |
1 year warranty | |
Engineer is available to service overseas | |
Respond to the customers' questions about our machine on time | |
Having agent in Egypt,Iran,etc.Also,having office in Bangladesh. |
