EPS foam recycling and processing high end lump mill Production and sales of integrated source manufacturers
- Category: >>>
- Supplier: Lanxi Green Building New Material Co. Ltd.
Share on (60697416187):
Product Overview
Description

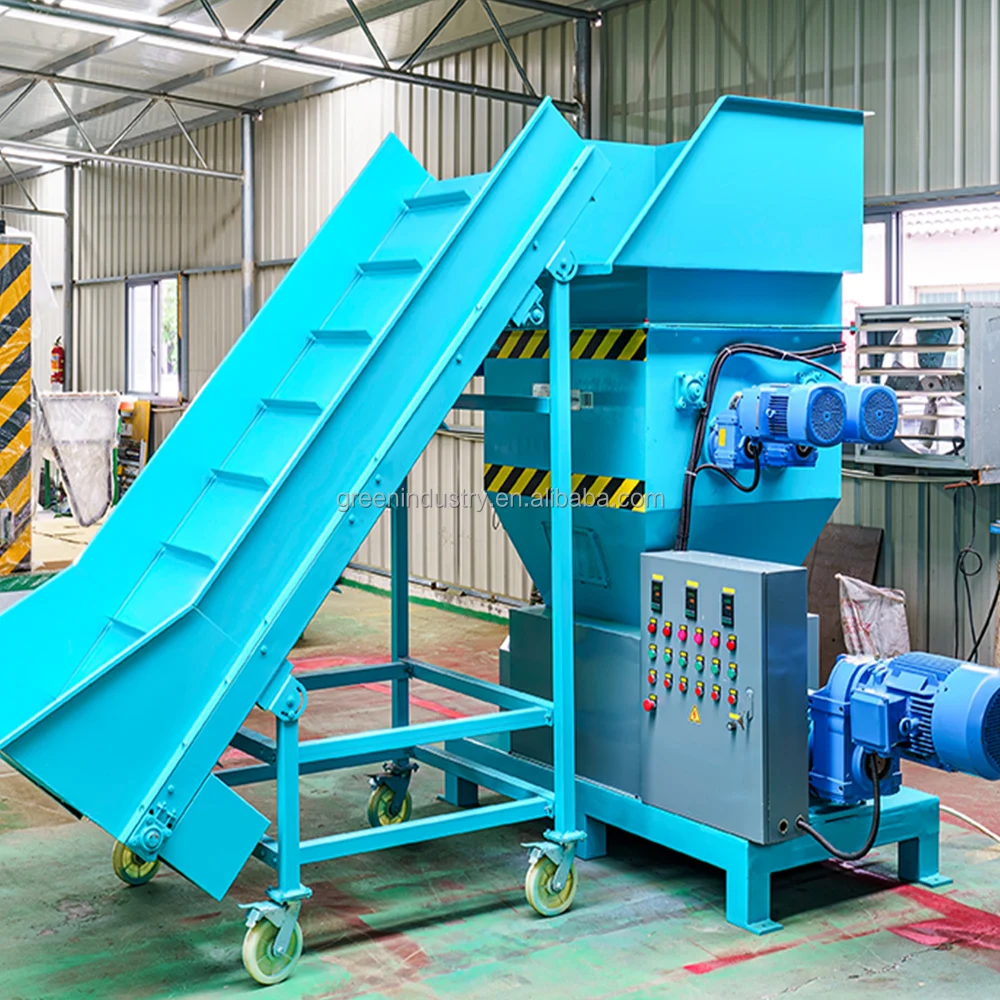

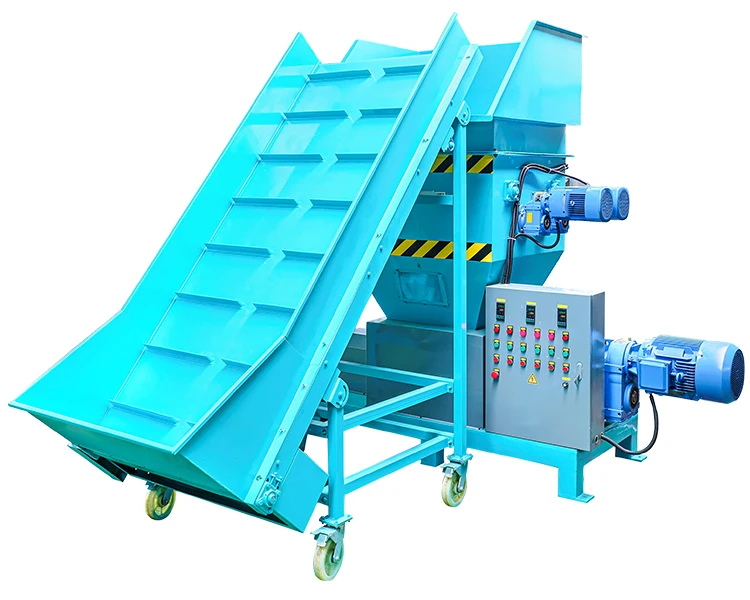

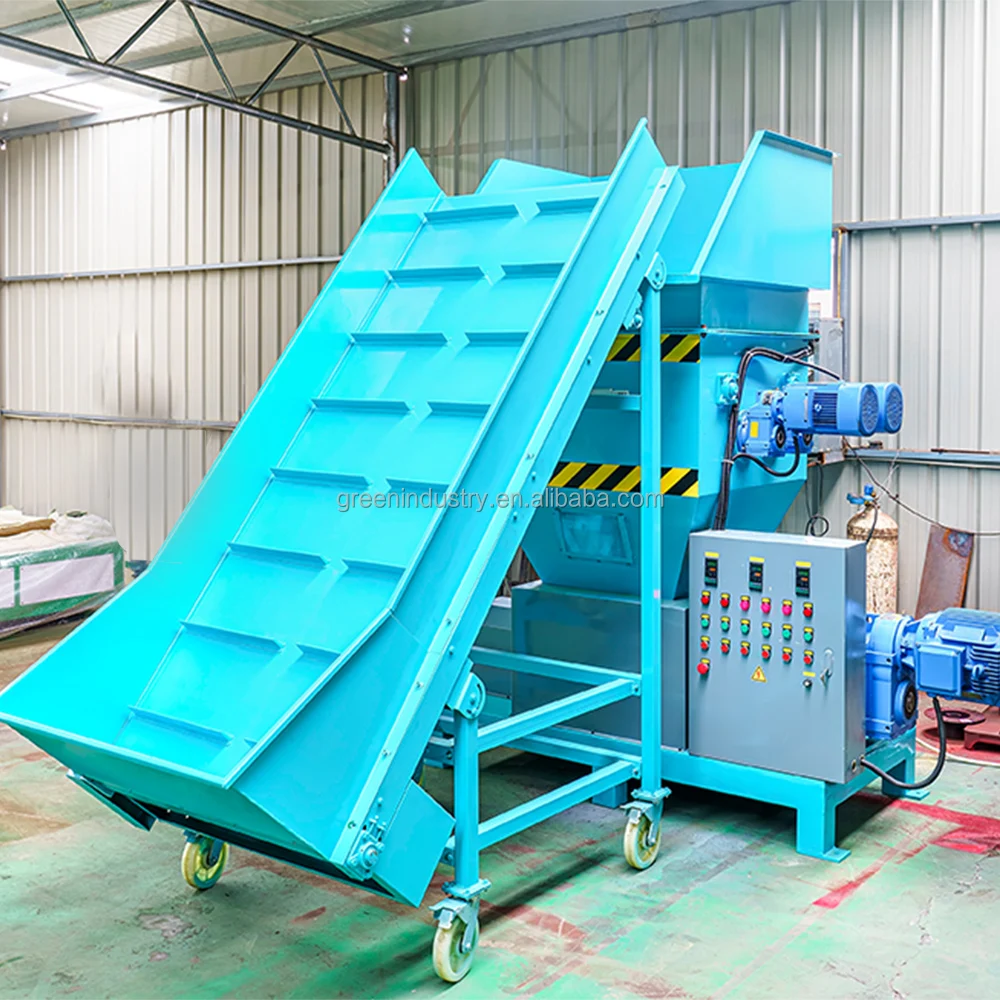

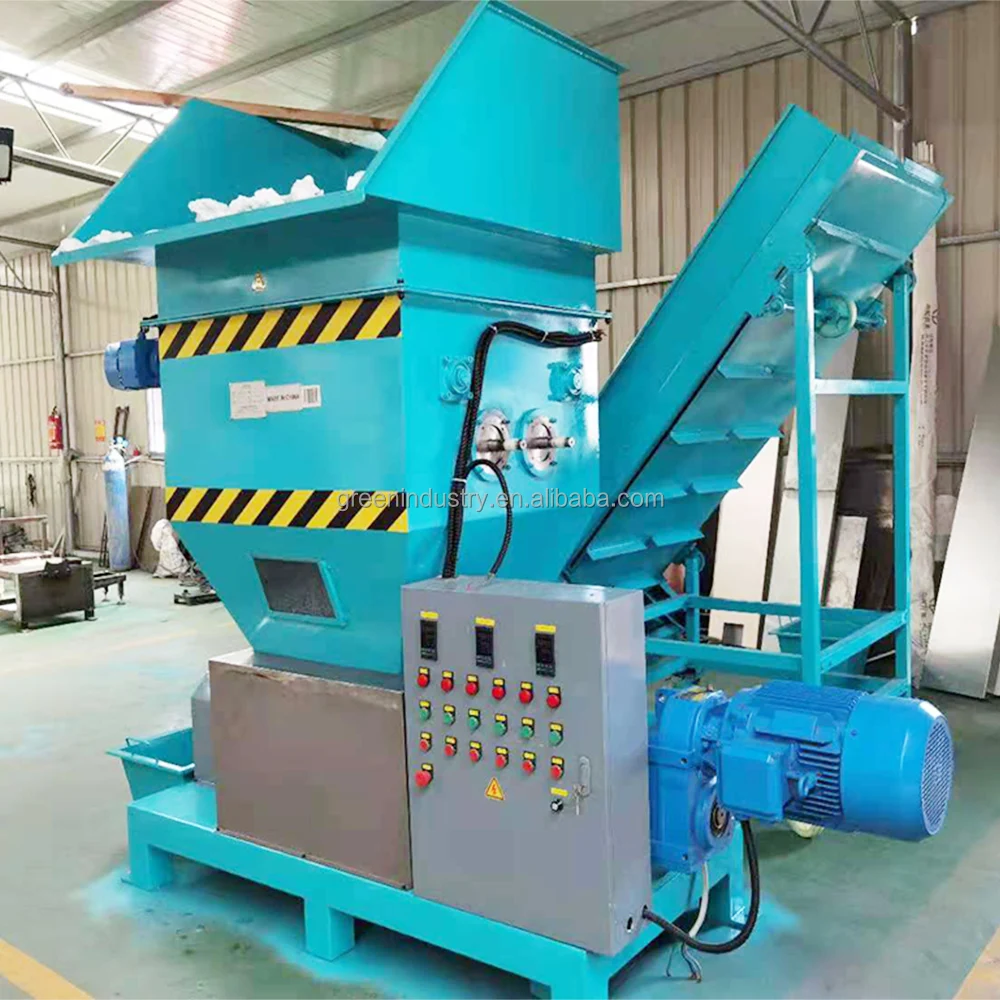

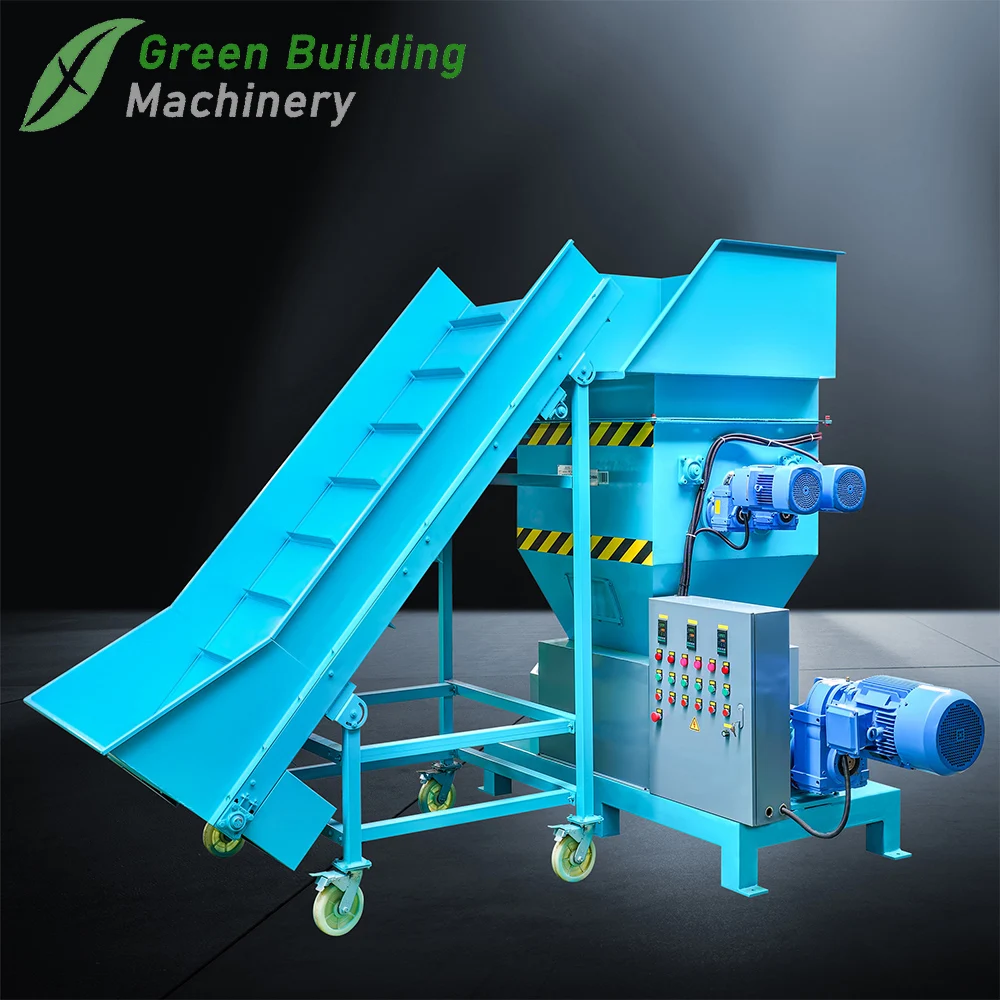

- EPS Pelletize Machine -
High speed compression, rapid melting
Mechanical part detailed drawing display
1.The frame adopts profile welding, with reasonable structure, stable performance and convenient operation. It is mainly used for crushing waste foam into lumps.
Mechanical part detailed drawing display
2.Turn on the power supply, check whether there is any abnormality, and then press the heating switch first;
The general temperature is set at about 300 degrees Celsius. After the set temperature is reached, the waste foam is poured from the feed inlet.The maximum set
temperature should not exceed 400 degrees. The waste foam is crushed into pieces,screw extruded and heated.
The general temperature is set at about 300 degrees Celsius. After the set temperature is reached, the waste foam is poured from the feed inlet.The maximum set
temperature should not exceed 400 degrees. The waste foam is crushed into pieces,screw extruded and heated.
- Parameters -
Mechanical model GB-C100 | ||
Conveying motor:1.5KW | heating power:16KW | |
Crushing motor Four:6KW | Main motor power:11KW | |
Total weight:1500Kg | Overall dimension： 2600×32000×2530mm | |
Heating ring temperature setting：300-350℃ | ||
Product Details
- Product detail drawing and effect display -
The source manufacturer has complete technology, reliable quality, after-sales patic
Company Profile
- 20+ Years Experience in EPS industry -
We have 20 years EPS industry’s experience. We can provide you full solution of EPS industry. Especially EPS exterior wall decoration projects. We believe , our professional service, qualified products and reliablity of team work will really benefit both side.
- After Service -
We will take reponsiblity for what we offer. Ensure to provide the qualified products to your side. What is more, the qualified
start-up and training service can be provided from our side. In case , any problem in future, fast on- line service avaible.
start-up and training service can be provided from our side. In case , any problem in future, fast on- line service avaible.
- Customer Case -
- Our Customer -
Product packaging
FAQ
1.What is full business range ?
EPS decorative elements (column , cornice, trim) , EPS decorative machine and projects, EPS foam relative machinery.
2.Why we select your company ?
Our qualified products, our professional service and our reliablity will benefit your side more.
3.Where is your location, and sea port or airport?
We are 300KM far from shanghai, jinhua city ,zhejiang province. Ningbo port is not far from us.
4.If you visited, ?You can take international flight to shanghai or hangzhou airport?
Our nearest domestic airport is Yiwu city.
5.How is payment term?
T/T , L/C payment is avaible
6.How is gurantee ?
All machinery gurantee is one year. In case any problem owing to quality issue during gurantee. We will take free changes.
