Product Overview

Description


Ordering


Ordering number: HD-3I or THD-3I


-5 indicates the humidity transmitter accuracy is 5%; -3 indicates 3%, -2 indicates 2%.


-I  indicates the humiditt transmitter signal out is 4-20mA. If U indicates the signal is 0-10V.


-T indicates the humidity transmitter integration with temperature signal out.


For example:THD-5I


The duct humidity transmitter signal out is 4-20mA and the temperature signal out is 4-20mA.


Technical Specification






















































































Power suply



Option voltage



VDC18V---VDC30V



Power Cunsumption



Max 2 VA



Signal out



signal



4-20mA



accuracy



5%



Humudity range



0%-100%



Sensing element



Capacitive Element:


Range


Accuracy






5%---95%






Connection



Connection Terminals



2.5 mm2



Environment



Operation
Climatic Conditions
Temperature
Humidity



To IEC 721-3-3
class 3 K5
-4070°C
<95% r.h.



Transport & Storage
Climatic Conditions
Temperature
Humidity
Mechanical Conditions



To IEC 721-3-2 and IEC 721-3-1
class 3 K3 and class 1 K3
-4080°C
<95% r.h.
class 2M2



Standards



          conform according to
EMC Standard 89/336/EEC
EMEI Standard 73/23/EEC




EN 61 000-6-1/ EN 61 000-6-3






Automatic electrical controls for household and similar use


Special requirement on temperature dependent controls



EN 60 730 1





EN 60 730 2 - 9



Pollution Class



Normal acc. To EN 60 730,RoHS compliant



Degree of Protection



IP56 to EN 60 529







Safety Class



III (IEC 60536)



Housing Materials



       Cover & Mounting Plate



Fire proof ABS plastic



General



Dimensions [mm]



Cover: 42 x 112 x 88 (H x W x D)


probe: ø 10 x 200 (Diameter x L)



Weight (including package)



135g

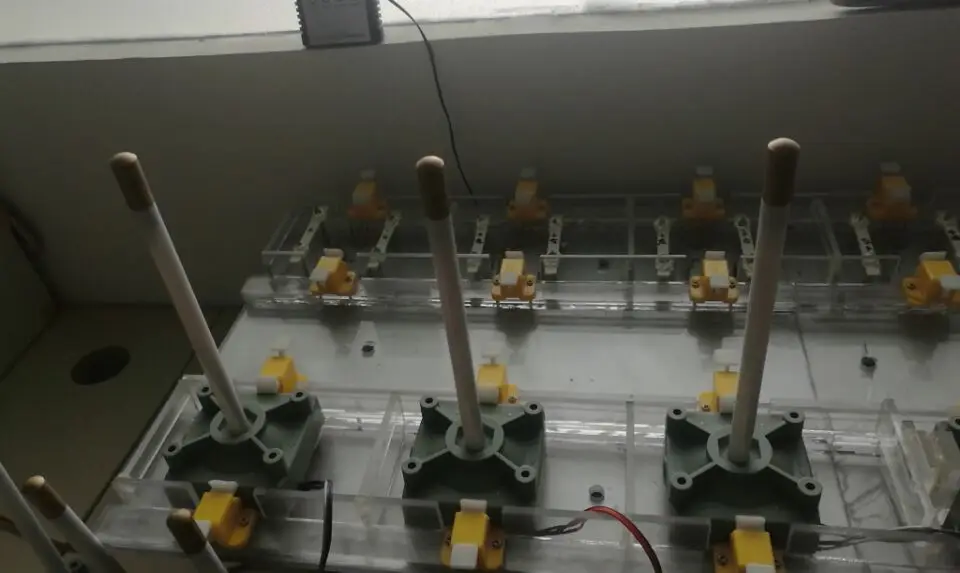

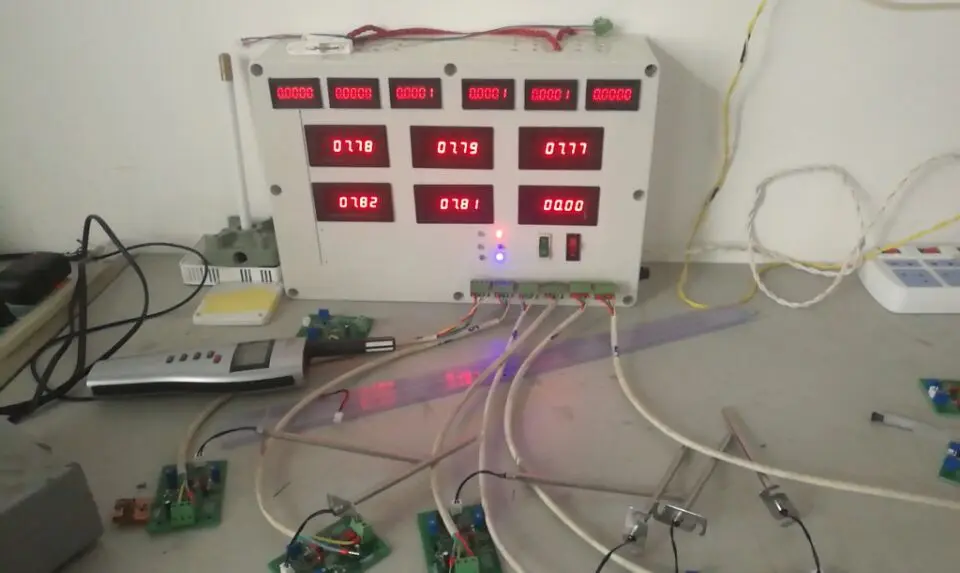

 Testing:


QQ20180102133929QQ20180102133912





Package and Shipping



















Sample Order



Order



OEM Order


Three work days2 weeks3 weeks




Port


Shanghai








♦ Specilizng in manufacturing products of HVAC for almost 10 years.


♦ Harsh process of production and strict testing system.


♦ High quality with competitive price.


♦ Delivery in time.


♦ Reply in 24 hours.





Please feel free to contact the supplier if you need more information or help.
