1. Produce bottle from 6L to 10L(1 cavity) 2. Output capacity up to 300 for 6L using two-cavity blow mold 3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second 4. Equipped with special designed air storage unit 5. Using Infrared preform heater 6. Independent Temperature Control for different heating lamp to get ideal preform heating results 7. Heating lamps are adjustable in directions to suit various preforms. 8. Operated only by one person without special training. 9. Simple installation & startup adjustment.
ITEM
UNIT

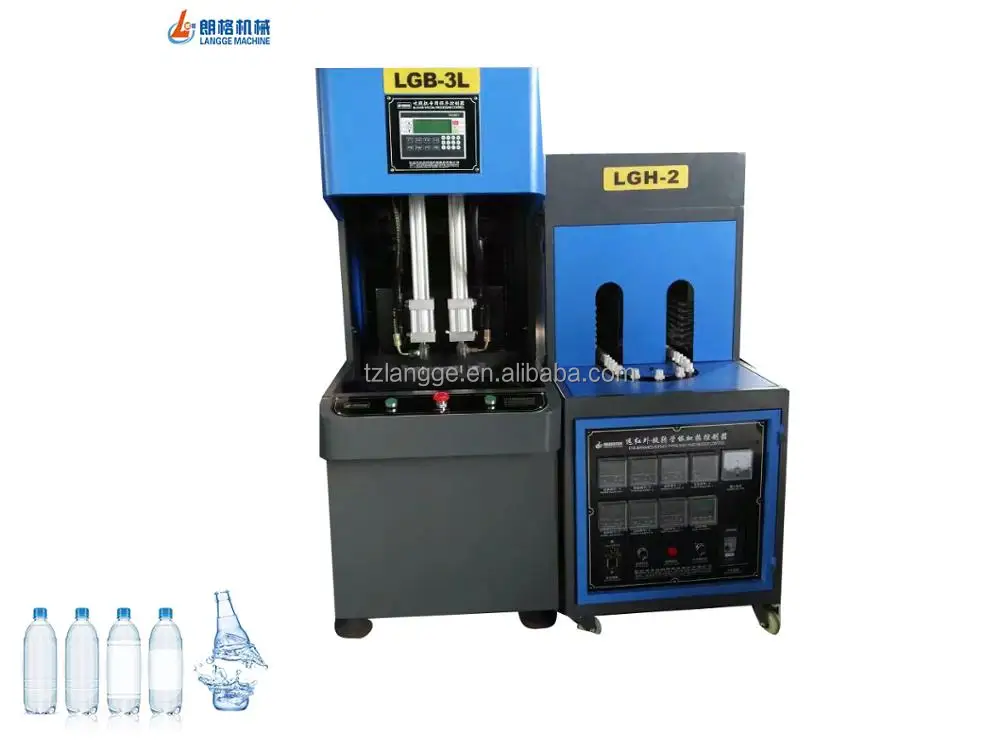

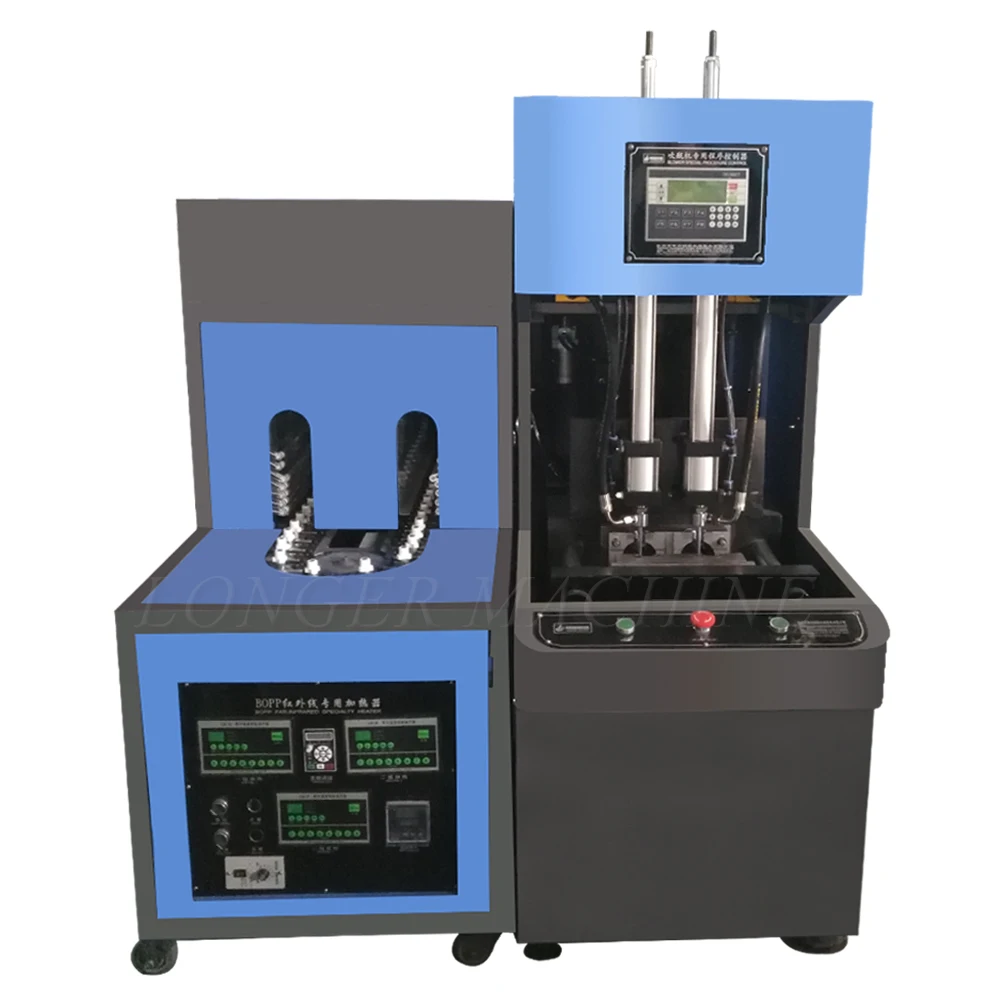

LGB-3L
Theoretical Output
pcs/hr
1000 500
Max.container volume
L
2{2-cavity} 3{1-cavity}
Max.neck diameter
mm
90 120
Max.container diameter
mm
110 150
Max.container height
mm
340
Mould Thickness
mm
100-180
Mould Stroke
mm
170
Heat Lamp Amount
pcs
28
Max.heating power
kw
14
Power of Main Blower
kw
14.5
Actual power consumption
kw
10-15kw
Working Pressure
Mpa
0.8
Low pressure consuming
Ltr/min
800
Blowing pressure
Mpa
3
High pressure consuming
Ltr/min
800
Measurement of Main Blower
mm
1970*610*1650
Measurement of preheater
mm
2180*600*1380
Weight of Main Blower
kg
1700

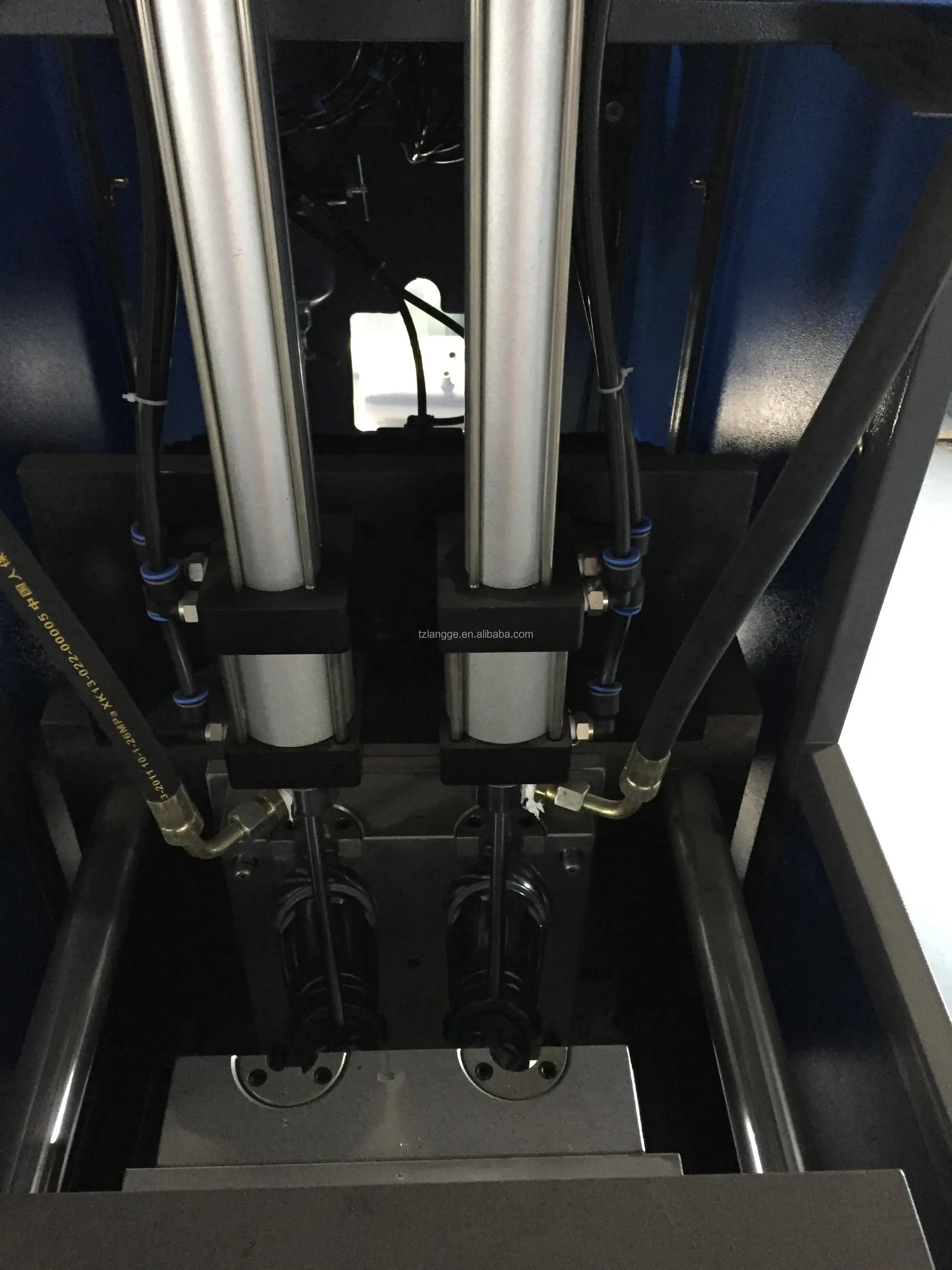

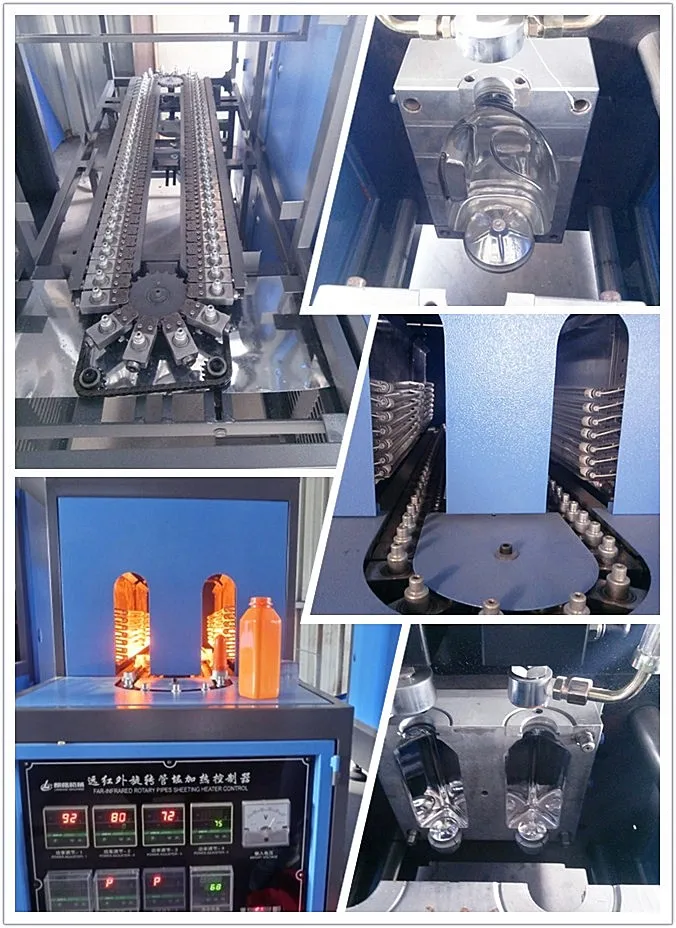

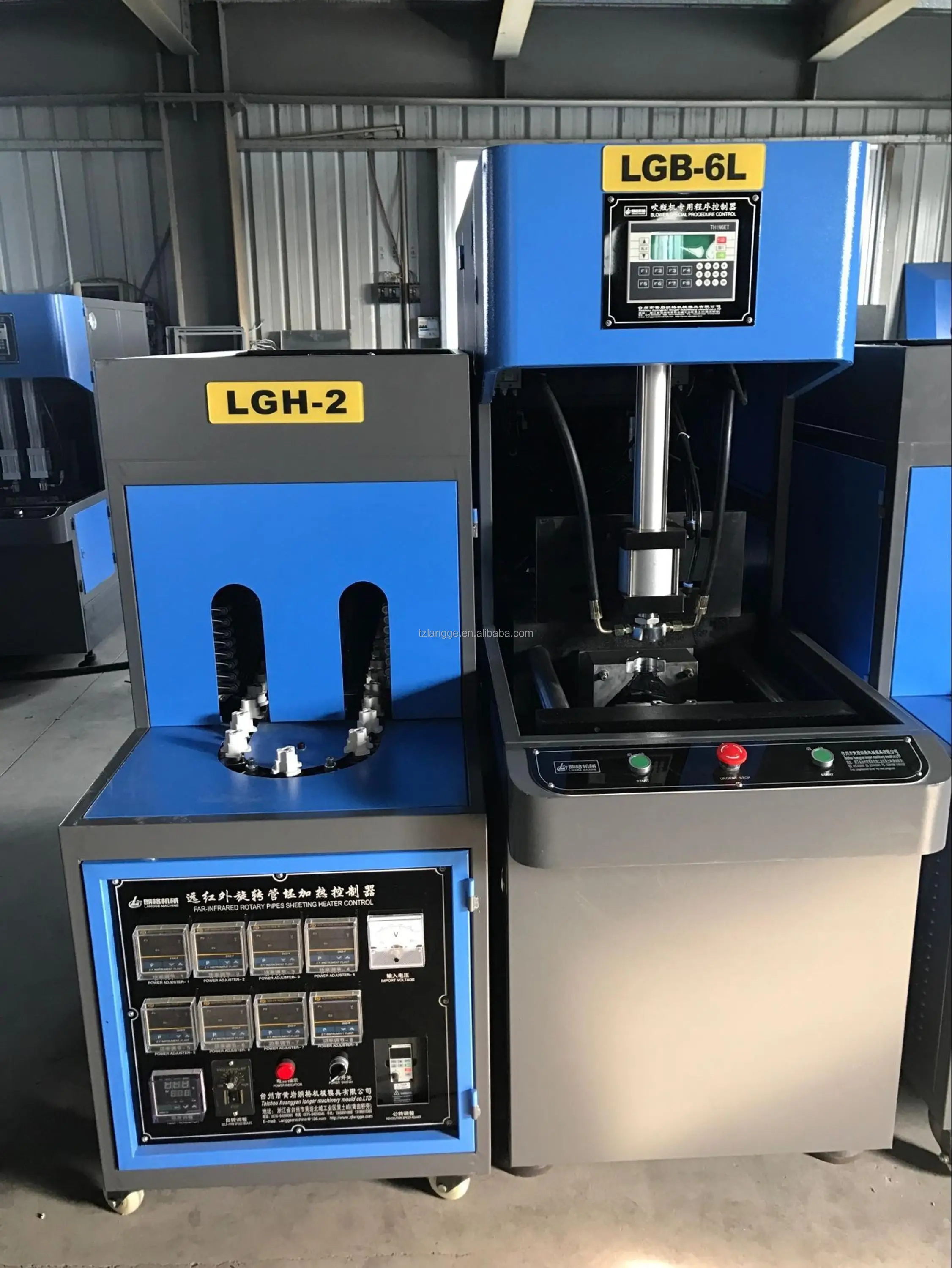

Detailed Images

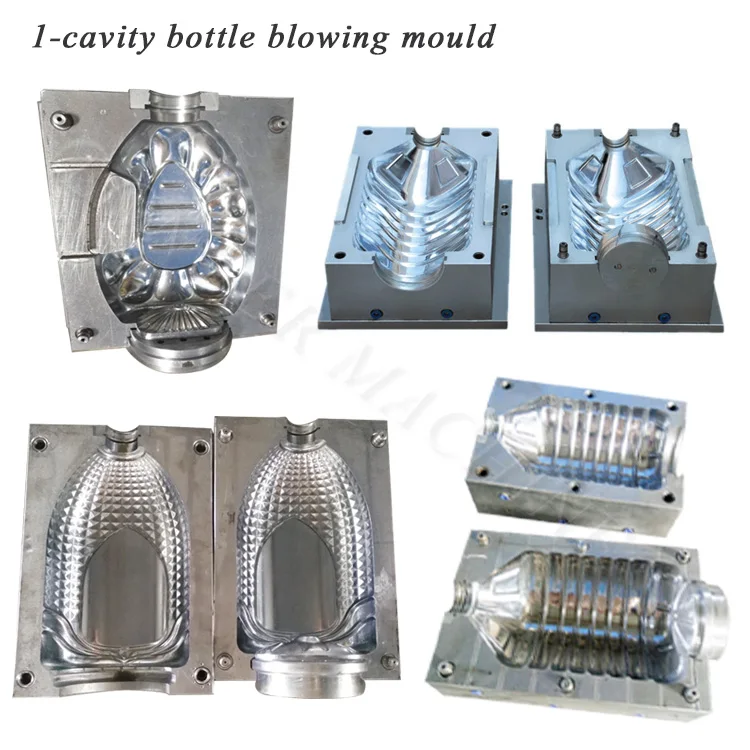

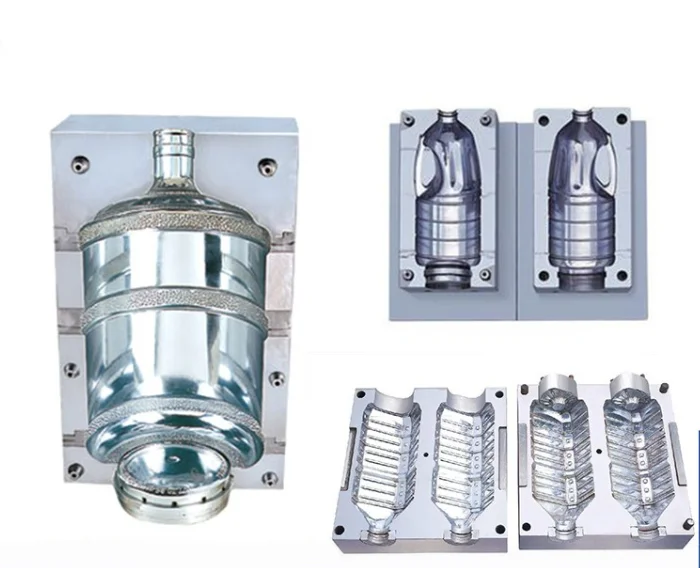

mold 3
Related Products
Blow process
Packaging
FAQ
A:Are you a factory or trading company?
B:We are a factory.
A: Which material can be prodcue in this machine?
B: PET,BOPP.
A:How about quality control in your factory?
B:Quality is first, Customers are friends.
A: Whare is your factory located?
B: Our factory is in Huangyan, Taizhou city,Zhejiang Province, China.
Taizhou LONGER MACHINERY are always paying graet attentions to quality controlling from the beginning to end. Every machine is tested strictly before packing.
