Iron based Amorphous Ribbon 1K101 Amorphous Strip 2605sa1 142mm Amorphous Tape

Product Overview

Description

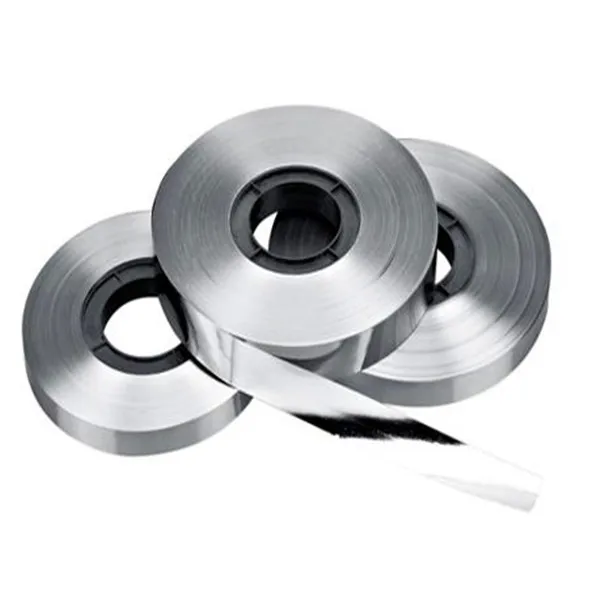

Fe-based Amorphous Ribbon



   Amorphous alloy is a new soft magnetic material. It is produced though the advanced technology of rapid solidification of molten metal at a cooling rate of about a million ℃/sec. During this process the metal is rapidly quenched as a form of ribbon with 15-35µm thickness, and the micro-structure of the alloy is the amorphous due to the high quenching rate



  Fe-based amorphous ribbon has many advantages,such as high permeability, high saturate induction,high electrical resistivity,high density,low core loss and good stability. It can replace the materials of silicon steel,permalloy and ferrite. It is widely used in electronics products that high accuracy and good stability are the most required.



Application



•  Inverter reactor,transformer core

•  Wide constant permeable inductor core,PFC inductor core

•  Mid-frequency transformer core,distribution transformer core

•  Amorphous electomagnetic shielding material for digital devices





Performance Index



Saturate induction Bs(T)	1.56	Magnetostriction λs	27 x106
Curie temperature Tc  (℃)	410	Density  (g/cm3 )	7.18
Crystallization Tx  (℃)	535	Resistivity( µ Ω-cm)	130
Hardness Hv(kg/mm2 )	960	Coercivity Hc(A/m)	<4
