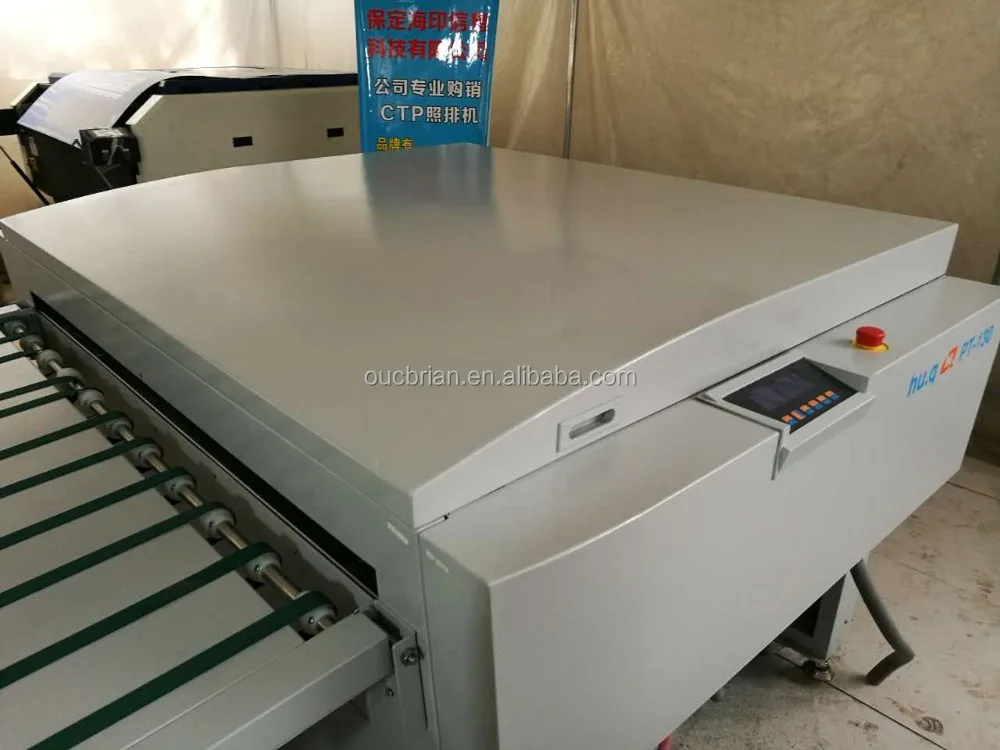

USED Thermal CTP Computer to Plate 1120
USED Thermal CTP Computer to Plate 1120
USED Thermal CTP Computer to Plate 1120
USED Thermal CTP Computer to Plate 1120
USED Thermal CTP Computer to Plate 1120
USED Thermal CTP Computer to Plate 1120
USED Thermal CTP Computer to Plate 1120

USED Thermal CTP Computer to Plate 1120

Share on (60697531891):


Price:

Quantity:


Product Overview

Description


Product Description

Maximum size of plate: 1,130mm*920mm.

Features: Less manpower, high stability and perfect output quality.

UV plate and thermal plate are available for you to lower production cost.

Furthermore, to improve the production efficiency, 32 channels, 48 chan

USED Hans Gronhi Computer to Plate.CTP.Thermal CTP,UV CTP Plate maker

Technical Specifications



Model\tU832\tU848\tU864\tT832\tT848\tT864

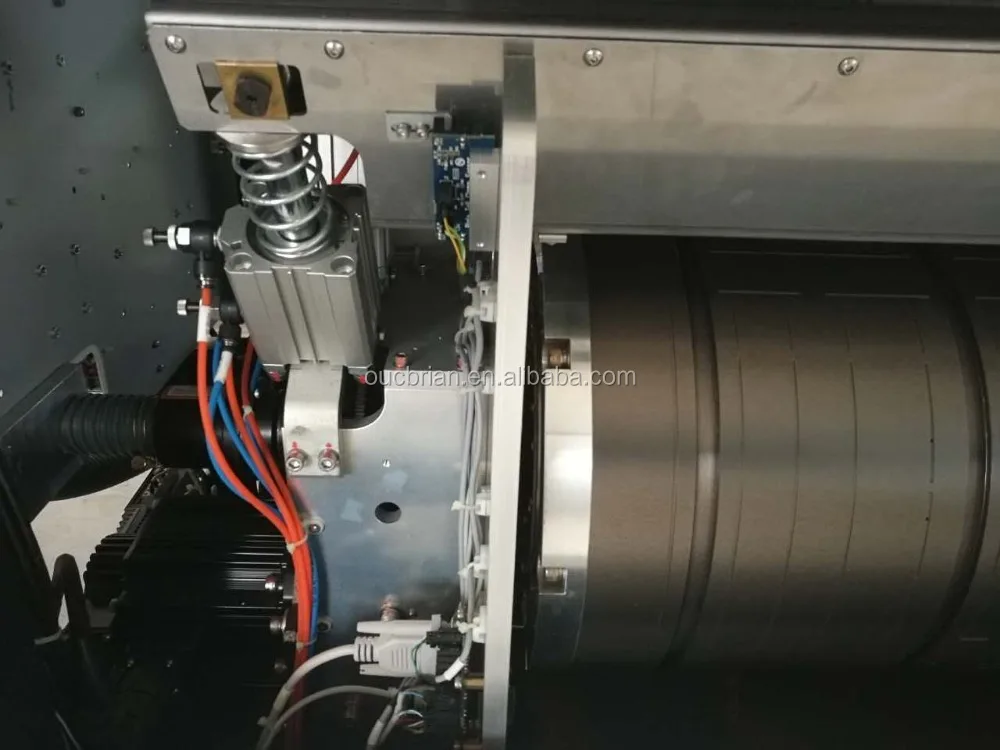

Exposing Method\tExternal Drum

Imaging System\t32-channel\t48-channel\t64-channel\t32-channel\t48-channel\t64-channel

Discrete 400-410nm laser\tDiscrete 830nm laser

Output Speed\t16 plates/hour\t22 plates/hour\t28 plates/hour\t16 plates/hour\t22 plates/hour\t28 plates/hour

1,030×800mm 2,400dpi

Plate Size\tMax.1,130×920mm，Min. 400×300mm

Exposing Size\tMax. 1,130×906mm

Plate Type\tUV plate, high-sensitive PS plate\tThermal plate

Plate Thickness\t0.15mm-0.3mm

Resolutions\t2,400dpi

Repeatability\t±5μm(Continuous exposure over four times on the same plate with a temperature of 23℃ and 60% RH )

Interface\tUSB2.0 / USB3.0 (Recommended option is USB2.0)

Plate Loading\tAlternative autoloader system

Net Weight\t1,200KG

Device Size\t2,127×1,405×1,058mm(W×D×H)

Power\tSingle phase:200V-240V; Max power(Peak value):4KW

Environment\tRecommended temperature: 21-25℃ Allowed temperature: 15-30℃ Humidity: <70%


Main Features

USED Computer to plate CTP
1) The process software is supporting PS and PDF file which is generated by kinds of common use plate maker software like In design and Word and also other kinds of Image format file
2) RIP color separation make all kinds of image, diagram and characters during the computer plate making into the recordable bitmap information from the maker. This information can be made as CMYK with different precision which have the screening angle
3)The makeup process function make the image and the characters finish the makeup on the page after the RIP and also the folding hand process function can demarcate the page number and sequence according to the size of the paper automatically.So its convenience totally change the working pattern of the traditional makeup performance, to make the operation easy, convenient and fast so that the work efficiency is improved.
4) When the CIP3 is under the process of the ink amount preset, the RIP work on the page,in the mean time of the makeup performance, the layout printing ink information will be interpreted and keep in the PPF files and then transferred into the press by internet. The press controlled identify and proceed the ink preset automatically,so the rationality and accuracy of the ink area distribution of the press is enhanced greatly

\t
Manufacturer
\t
1120
\t
Year of Build
\t
2013
\t
Press Position
\t
China
\t
Machine Condition Options
\t
In store,In stock,We offer as owners,Excellent condition,Worked on single shift
\t
Work Experiences
\t
Thermal plate
\t
The Last Operator´s Opinion
\t
Machine is main printing press in company
Always taken maximum care
Well maintained

\t
Swan's Opinion
\t
Perfect machine for smaller printer
Second owner
Machine from smaller printing house
Very good printing results
No damage on impression cylinders
\t
Swan's Service
\t
We are ready for loading,transporting and installing.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Visa for visit China support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
4330x1820x1720mm
\t
Weight
\t
9.2 T
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
\t
Packaging
\t
Size
\t
2200x1820x1720mm two packages
\t
Weight
\t
9.2 T
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
