Metal Curcuma Turmeric Super Fine Powder Grinding Machine with Good Price
- Category: >>>
- Supplier: Taizhou Telang Machinery Equipment Co. Ltd.
Share on (60697539775):
Product Overview
Description
Product Description

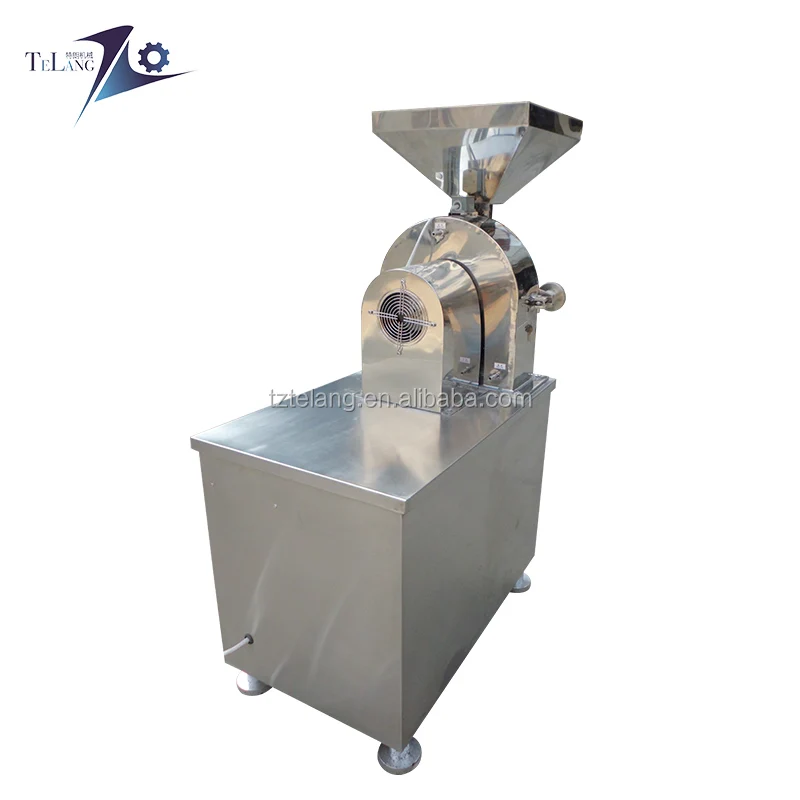

Metal Curcuma Turmeric Super Fine Powder Grinding Machine with Good Price
This powder grinding machine is universal type, features of simple structure, stable running, effective milling
and pulverizing, can be used to grind many kinds of raw stuff into fine powder as following,
-salt/sugar like stuff,
-dry herb, tea,vegatable like material,
-grain, rice, maize,etc
-crispy raw materials, minerals, fish bone, egg shell, etc.
Just set the proper crushing knife according to different raw stuff, and make the sieve of the size for the
powder.
Technical data:
Model | SF130 | SF180 | SF250 | SF320 | SF420 | SF520 |
Capacity(kg/h) | 2-5kg/h | 10-30kg/h | 50-250kg/h | 80-300kg/h | 200-400kg/h | 300-800kg/h |
Speed of main axis (r/min) | 4200 | 4200 | 4200 | 4200 | 4200 | 3200 |
Working noise (db) | <85 | <85 | <85 | <85 | <85 | <85 |
Fineness of powder (mesh) | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 |
Power of motor(KW ) | 1.5 | 2.2 | 5.5 | 7.5 | 11 | 18.5 |
Overall size(mm) | 400*700*800 | 400*700*880 | 630*490*1160 | 810*500*1230 | 700*500*1500 | 1170*750*1800 |
Weight(kg) | 75.00kgs | 85.00kgs | 155.00kgs | 208kgs | 258kgs | 500kgs |

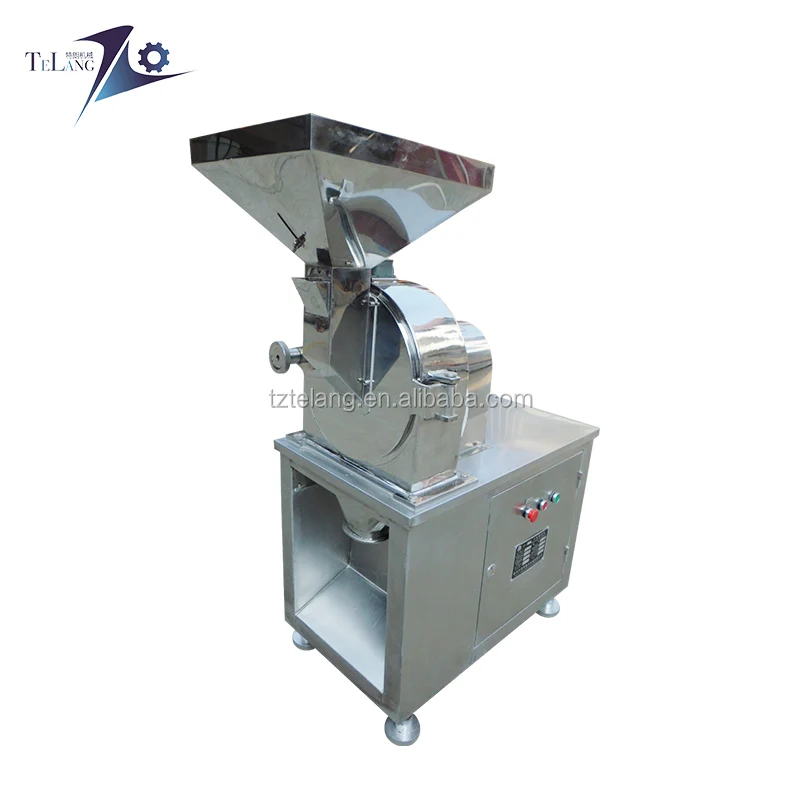

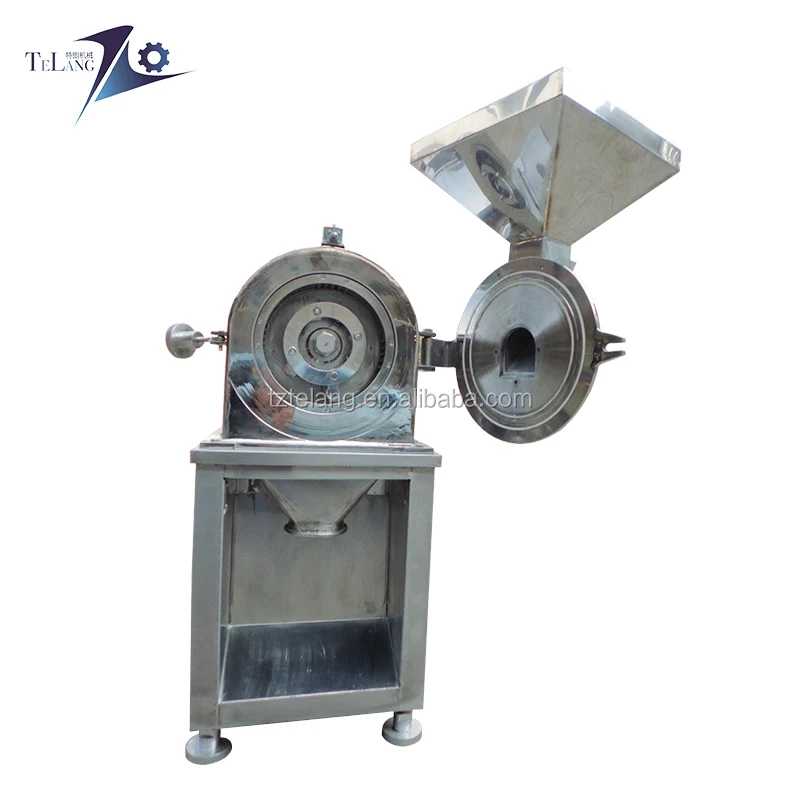

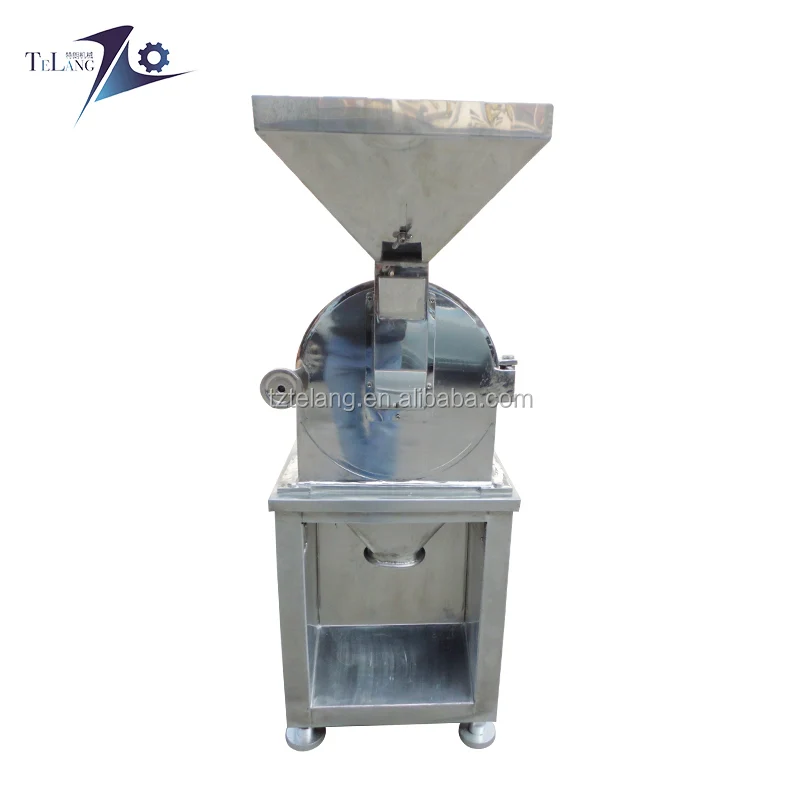

Product Show
Working Mode:
The opposite high speed motion between moving disc and fixed disc, make the material in chamber
cutted, crushed, impacted under high strengh friction, then the fine powder come out via sieve. Different
size of powder could be made by changing different size of sieve screen.
Feature of SF model:
- simple structure, easy operation and convenient maintenance
- smooth surface inside the crushing chamber, no residual or powder piled up inside.
- different size of powder could be made just by simple changing various size of sieve screen.
- water cooling and propeller can be setted for special grinding material

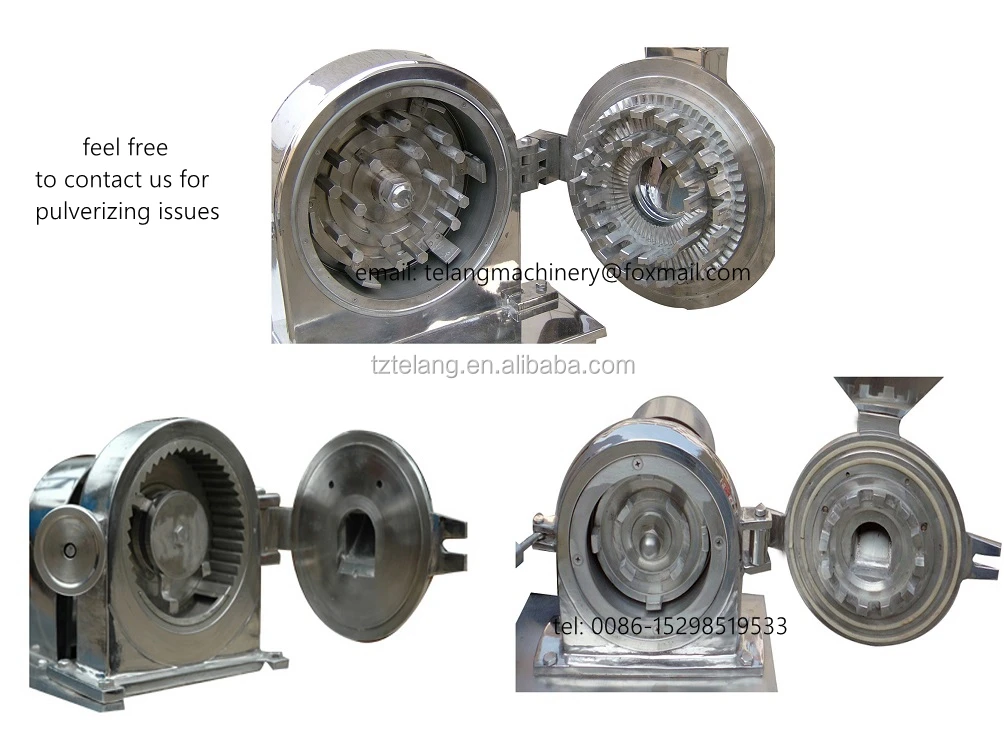

-diffferent cutting knife as following for choice, specially for different kinds of raw materials:
Following models are with different function based on SF models, Dedusting, Powder Recycling, and Automatical Discharging.
B dedusting grinding machine

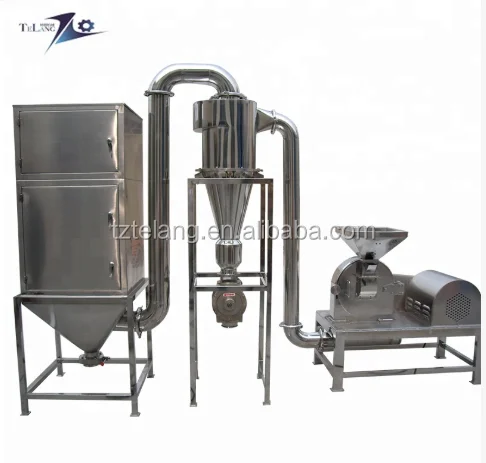

WSF Pulverizing Unit with effective dedusting, powder recycleing, and instant discharging
Machine Application :
Machine Related
Package & Delivery
♦ Package: wrapped with plastic film, packed inside the wooden case, and fixed with sea-worthy pallet ♦ Delivery: By sea / air / courier would be suppored according to buyer's location, just tell us where you wanna send and when you wanna get, the best solution would be suggested. |
Factory View
TELANG Machinery Equipment Co.,Ltd, an efficient and technically strong company, locates in
Taizhou City, Jiangsu province, China, begins its activities as a specialized foreign trade depar-
tment of manufacturing factory for nearly 7 years and has grown over the years to be an indepe-
ndent procurement and supplying company, enjoying sound experience in manufacturing & su-
pplying quality machines, mainly focus on offering added-value technical expertise, cost-savin-
g solutions & rich heritage of industrial & mechanical knowledge.
TELANG Machinery Equipment Co.,Ltd helps customer SAVE time and cost by directly provi-
ding the right machinery equipments and sparepart with good quality to make sure your produ-
ction effcient.
FAQ
1. How to choose proper machine / equipment .
Please reply us the following items,
-what the product like you would produce, size, shape, etc.
- raw material
- the production capacity, how much kilogram per hour or per day
- power supply, such as Voltage, Hz, and Phase
Our technical engineer would suggest the proper model with necssary information for your reference. And the production line with workshop projection design could also be supplied as per your inquiry.
2. Quality Assurance
· We support SAMPLE PRE-PROCESSING in machine
· Every set of machine would be strictly inspected before shipment to ensure the quality.
· TEST RUNNING with material could be supported according to your inquiry.
· There would be quality certificate along with machine.
· Wear and tear parts would be shipped with machine.
· Real-time checking on line for machine manufacturing would be supplied if you like.
· Spot checking would be welcome if you pay visiting to our workshop, which would be well arranged and confirmed with you in email
3. After sale service.
We supply operation training for workers, and sport installation would be supplied for production line and workshop design.
Regular inquiry in the email would be supplied for machine running and usual maintenance.
