8ch 5 in 1 XM p2p ahd dvr
- Category: >>>
- Supplier: Shenzhen Aiseeing Technology Co. Ltd.
Share on (60697542178):
Product Overview
Description
Product Display
Parameters
Model | AI-TVR2104 | AI-TVR2108 | AI-TVR2116 | |
Video | ||||
Encode | 4CH*1080N@25fps | 8CH*1080N@12fps | 16CH*1080N@12fps | |
Playback | 1CH*1080N@25fps | 8CH*1080N@12fps | 16CH*1080N@12fps | |
Multi-Mode | HD | 4CH*1080N | 8CH*1080N | 16CH*1080N |
Hybrid | 2CH*720P(Analog)+2CH*720P(IP) | 4CH*1080N(Analog)+4CH*960P(IP) | 8CH*1080N(Analog)+8CH*960P(IP) | |
IP | 8CH*1080P/8CH*720P | 16CH*1080P/9CH*1080P/ 16CH*960P/4CH*5M | 8CH*1080P+8CH*960P/16CH*960P /4CH*3M/4CH*5M | |
Video Compression | H.264 | |||
Audio | ||||
Audio Compression | G.711A | |||
Interface | ||||
Video Input | 4*BNC | 8*BNC | 16*BNC | |
Video Output | 1*VGA,1*HDMI | |||
Audio I/O | 4/1 | 2/1 | ||
Alarm I/O | -- | |||
Ethernet | 1*10/100Mbps Ethernet port, RJ45 port | |||
PTZ Control | 1*RS485, Support for multiple PTZ protocol | |||
USB | 2*USB2.0 | |||
Max HDD | 1×8TB | |||
General | ||||
Temperature | 0 ℃ - + 55 ℃ | |||
Humidity | 10%-90%RH | |||
Power | 12V/2A | |||
Consumption | <15W(Without HDD) | |||
Dimension | 260*43*190mm | |||
Features
- 5-in-1 AHD DVR: Each channel supports AHD/CVI/TVI/Analog/IP Video input
- HDMI / VGA simultaneous output up to 1920×1080P,BNC port optional
- H.264 dual-stream video compression
- Easy operation and clearer image quality
- Support DHCP,FTP,DNS,DDNS,NTP,UPNP,EMAIL,3G,WIFI
- Support ONVIF Protocol
- Support WEB,VMS Platform
- Support Mobile Phone Monitoring(IOS ,Android)
- Cloud Services,P2P,Alarm Information Push To Phone
- Support Multi-Language

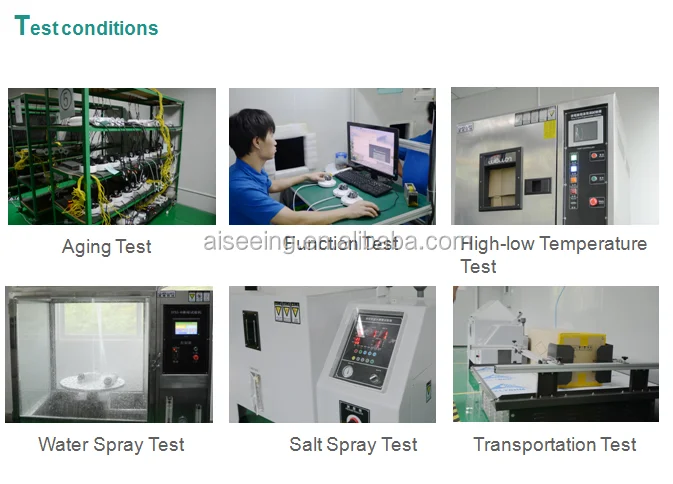

Testing Process
Production Process
Company Profile
Aiseeing Technology Co.,Ltd was established in 2003 as a premier provider for Security IP Cameras, NVR Recording systems,
analog camerasand standalone DVRs. We also have some featured product lines such as LPR/ANPR cameras, fisheye
cameras for your choice.
High quality is our first principal way to show respect to our customers. We have passed ISO9001 quality management system
High quality is our first principal way to show respect to our customers. We have passed ISO9001 quality management system
and got CE, FCC,RoHs and other certificates.
All our security products have been widely used in USA, European countries, South American, Russia, South African, the Middle
All our security products have been widely used in USA, European countries, South American, Russia, South African, the Middle
East, Asia and so on.
You can find more information of us at: #
Certificates
Trading Process
Our Service
After-sale service
A.All goods will be strictly checked by our QC department before shipping
B.All goods will be well packaged
C.12-24 Months hardware warranty
D.Life –time software/firmware update and technical support
E.All questions will be replied at the first time
Payment terms
We accept T/T by bank transfer, PayPal, Escrow, Western Union, Money Gram and L/C for bulk order
A.All goods will be strictly checked by our QC department before shipping
B.All goods will be well packaged
C.12-24 Months hardware warranty
D.Life –time software/firmware update and technical support
E.All questions will be replied at the first time
Payment terms
We accept T/T by bank transfer, PayPal, Escrow, Western Union, Money Gram and L/C for bulk order
Shipping
We have strong cooperation with DHL, FedEx, UPS, TNT, EMS, China post office. You can also choose your own forwarder
We have strong cooperation with DHL, FedEx, UPS, TNT, EMS, China post office. You can also choose your own forwarder
