Boshida 5X 25X Universal neurosurgery Operating Microscope Ophthalmic surgery Spine surgery vascular surgery microscope
- Category: >>>
- Supplier: Shenzhen Boshida Optical Instrument Co. Ltd.
Share on (60697548029):
Product Overview
Description
XT-X-6A continously zoom 5X-25X Universal neurosurgery Operating Microscope Ophthalmic surgery Spine surgery vascular surgery microscope
Product Description

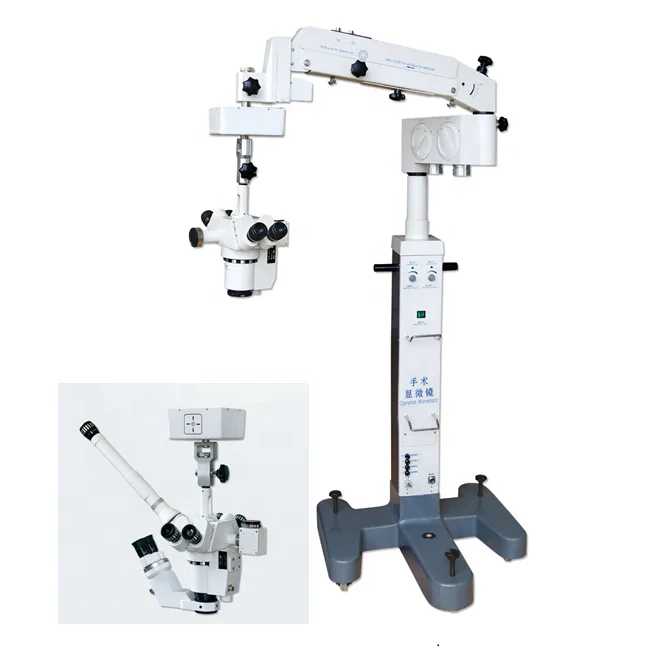

XT-X-6A

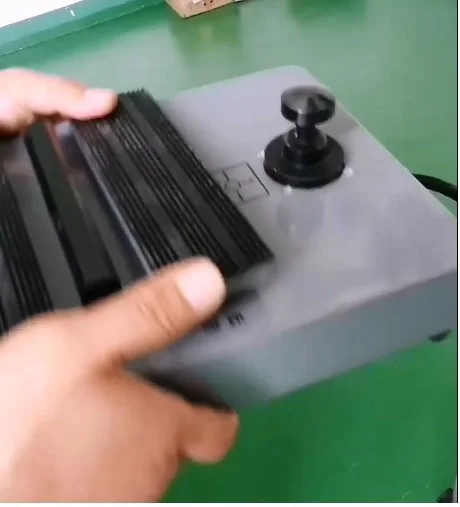

Foot Control Panel

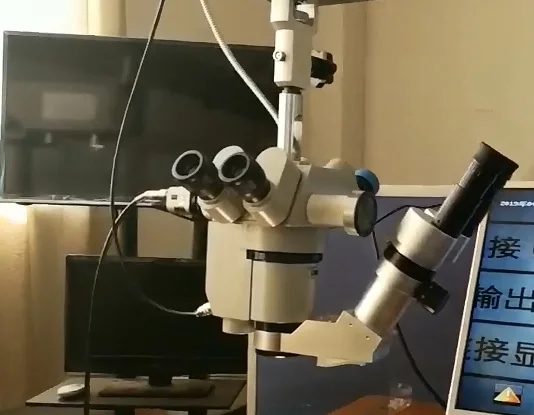

With Assistant Lens, for 3 doctors
Dual illumination lamp:
One illumination and one backup illumination to ensure the safty of surgery.
Optional: Digital camera and screen
Model | XT-X-6A |
Optics system | Apochromatic optical system |
Eyepiece | Main eyepiece and assistant eyepiece: 12.5X wide field eyepiece Dioptric adjustment: +6/-6 IPD adjustment: 55mm ~ 75mm |
View head | 180°rotating |
Objective | Focal length: 200m/250mm/300mm Zoom times: 5X-25X Continuously zoom by knob and foot panel Sight range:11-82.5mm |
Working distance | 200mm |
Light source | 4 groups cold light illumination. 15V/150W OSRAM halogen lamp. Brightness adjustable. Coaxial Light brightness: ≥50000LX |
Extension hand | 1230mm in radius. |
Focusing | Focusing speed: ≤1.5mm/s Focusing adjusting range: ≥40mm. |
Plain X-Y movement | Control by foot panel. Moving range: 40*40mm |
Height adjust | 1.8-2m |
Power supply | .AC220V, 50Hz |
Our Services
1. Free sample testing.
We can test sample of user and help user to choose the most suitable microscope according to applications and requirements.
2. Online trainning.
3. Life time technical service.
4. Free Solutions.
We can suggest solutions according to applicatins and requirements.
5. Customized.
We can customize products according to applicatins and requirements.
5. Warranty: 1 year.
We will supply new microscope or parts if the microscope have problem within warranty time.
