3.5 inch Portable 4K TVI CVI AHD IP Analog cctv video camera monitor tester
- Category: CCTV Monitor >>>
- Supplier: Guangzhou Wanglu Technology Co. Ltd.
Share on (60697562912):
Product Overview
Description
3.5 inch touch screen IP+Analog+8MP TVI 3 IN 1 CCTV Tester
Model : IPC-3500ADH Plus
Application :
- CCTV system installation and maintenance
- Network cabling project installation and maintenance
- Dome camera, 4K H.265 camera testing
- Video transmission channel testing
- PTZ controller
Features:
Featu
Item series | IPC-3500ADH Plus |
| ||
Display | New 3.5 inch wide angle touch screen ,480*320 resolution |
| ||

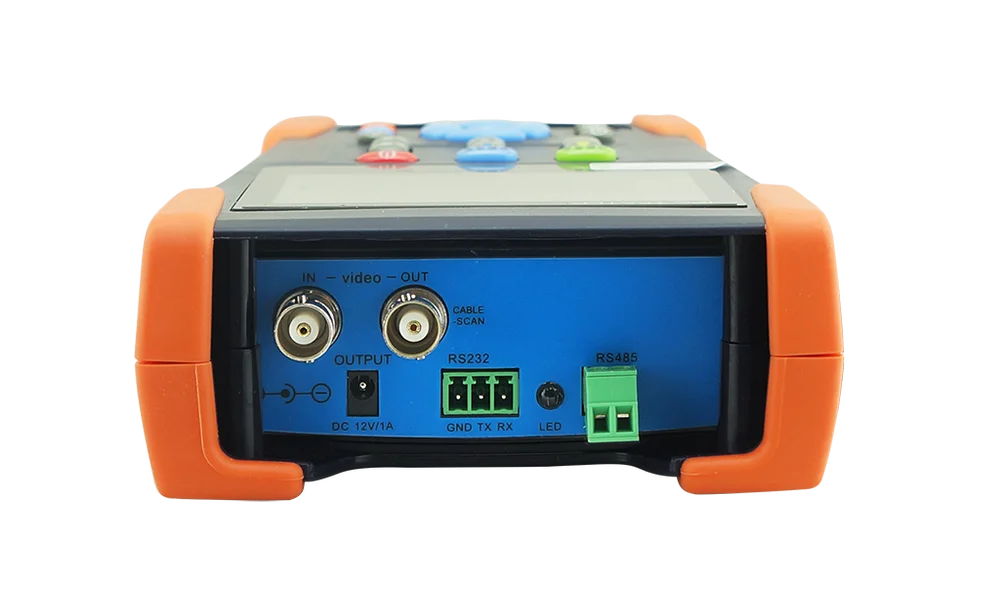

Video Mode | CVBS | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) |
| |
PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc |
| |||
CVBS loop test | the tester send and receive color bar generator signal , check BNC cable |
| ||
IP camera test 4k/H.265/H.264 | IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK |
| ||
Rapid Video | Auto view the video, create testing report |
| ||
Hik test tool | pressing just one key to activate camera , Image test, can modify the user name, password and IP parameters |
| ||
DH test tool | ip camera test, modify the user name, password and IP parameters |
| ||
IP& CVBS test | IP& CVBS test at the same time ,converter test from analog to digital with dual test window |
| ||
Coaxial HD test | 8MP TVI CVI AHD test |
| ||
Zoom Image
| 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back |
| ||
| ||||
Analog Video out | color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable |
| |
12V/2A power | Output DC12V/2A power out ,supply temporarily power for the camera | |||
Power output | PoE power output | 48V PoE power output, max power 24W |
| |
UTP cable test | Test UTP cable connection status and display on the screen. Read the number on the screen |
| ||
RJ45 cable TDR test | test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement range 180M. |
| ||
TesterPlay |
| |||
Network test | Trace route, Link monitor , DHCP server, port flashing , Ping test |
| ||
Wi-Fi | Built in WIFI,speeds150M,display wireless camera image |
| ||
Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
| ||
Data monitor | Captures and analyzes the command data from controlling device,also can send hexadecimal |
| ||
PoE test | Measurement POE switch or PSE power supply voltage and cable connection status |
| ||
Drop-down menu | You can select CVBS,IP setting, WLAN switch etc in any interface |
| ||
External power supply | DC 12V 2A |
| ||
Battery | Built-in 7.4V Lithium polymer battery ,2800mAh |
| ||
Rechargeable | After charging 3-4 hours, normal working time 8 hours |
| ||
Operation setting | OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc |
| ||
Auto off | 1-30 (mins) |
| ||
Working Temperature | -10℃---+50℃ |
| ||
Working Humidity | 30%-90% |
| ||
Dimension/Weight | 194mm x 112mm x 48mm / 540g |
| ||
Packaging & Shipping
OEM customized packing
color box
We have strong cooperation with DHL, UPS, FEDEX, EMS, TNT,etc .
You also can choose your own shipping forwarder
Our Services
1.soon reply , Any inquiries will be replied within 24hours
2.Professional manuafacurer and wholesaler more than 10 years.
3.OEM available:
1)Customized logo or color box
2)Any your idea on camera, we can help you to design and put it into production
4.High quality, fashion design, reasonable&competitive price
5.After-sale service:
1) All products will have been strictly Quality checked in workshop before packing
2) All products will be well packed before shipping.
3) All our products have 1 year warranty, and we are sure our products will be free from maintenance
within warranty period in general.
6.Fast delivery:
Sample order in stock; 50~100pcs: 2~4 days; 5~7 days for bulk order
7.Payment:
You can pay for the order via: T/T,Western Union/ paypal
