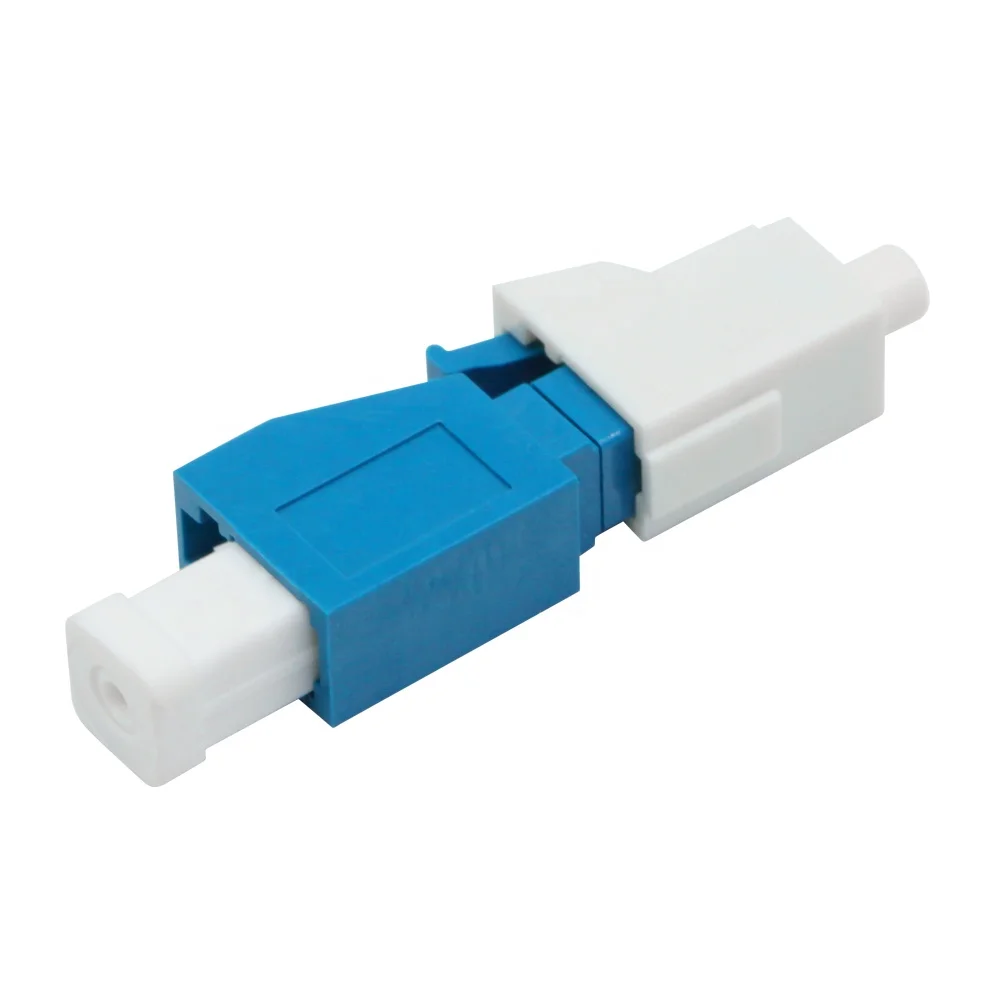

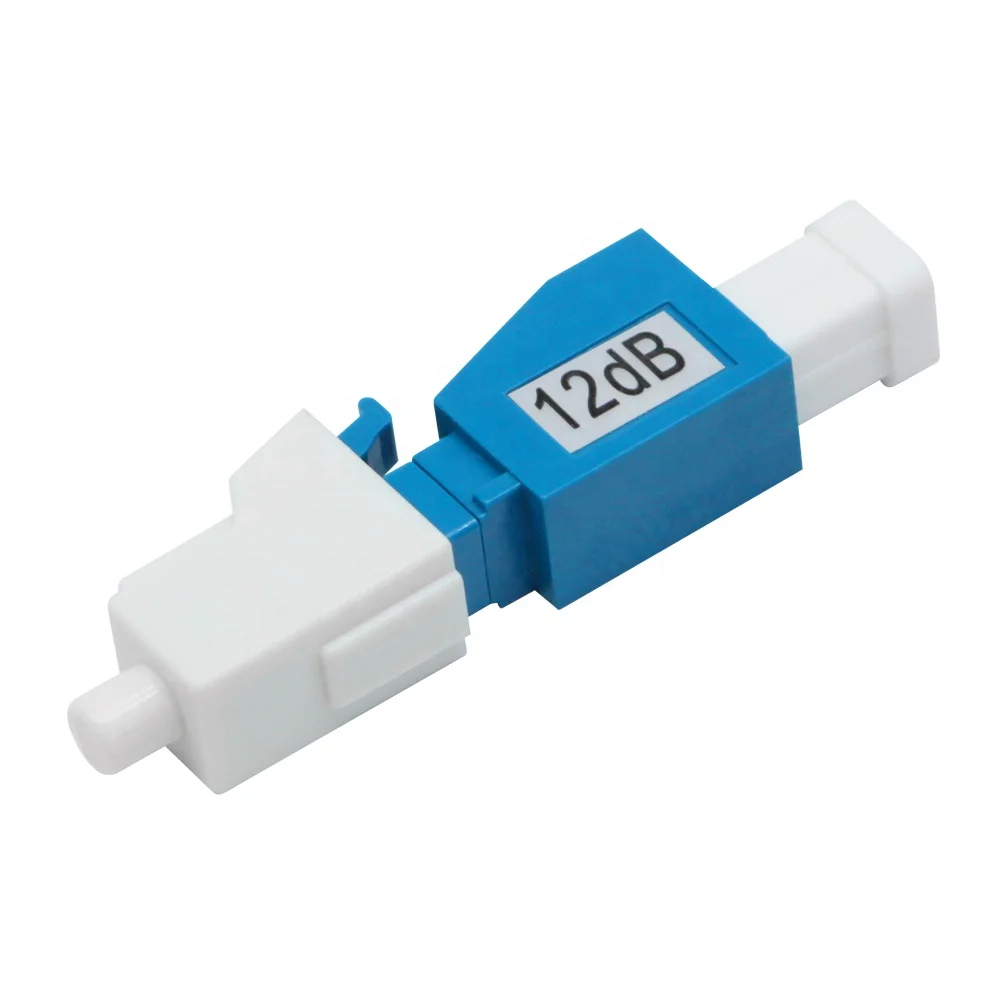

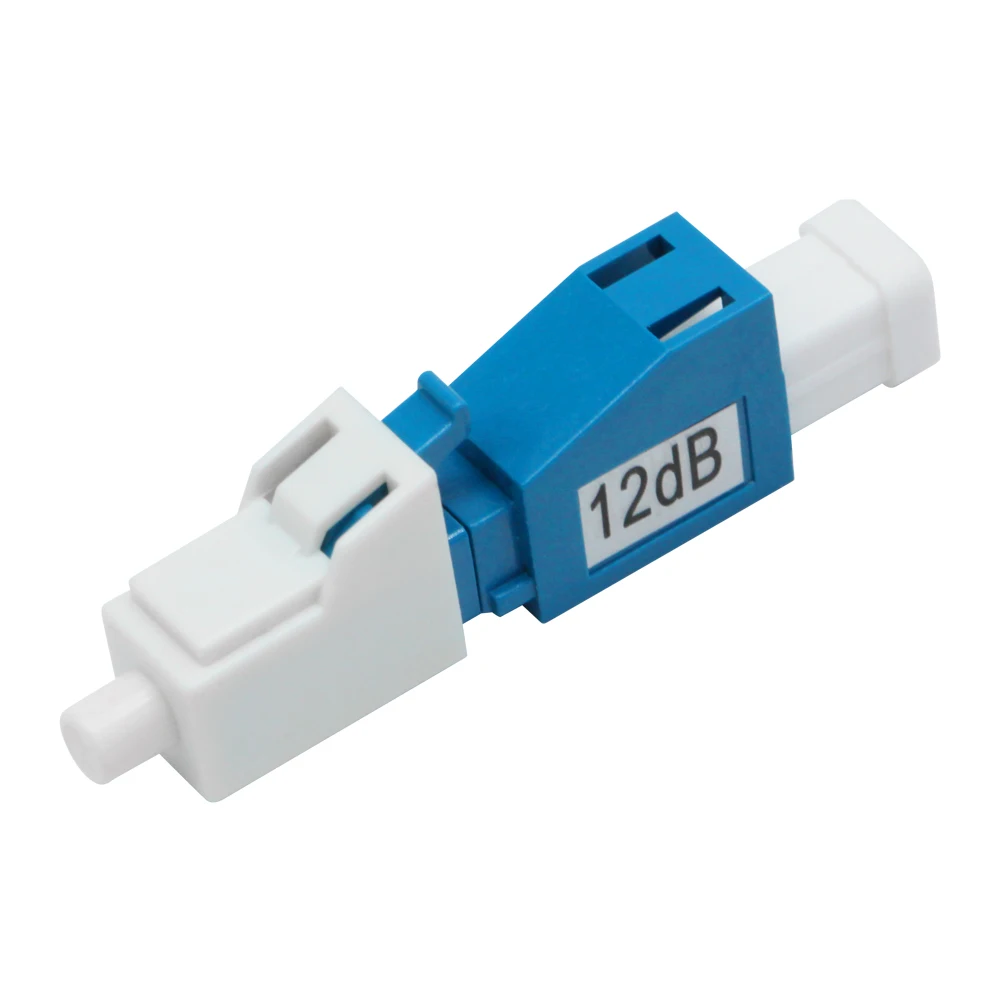

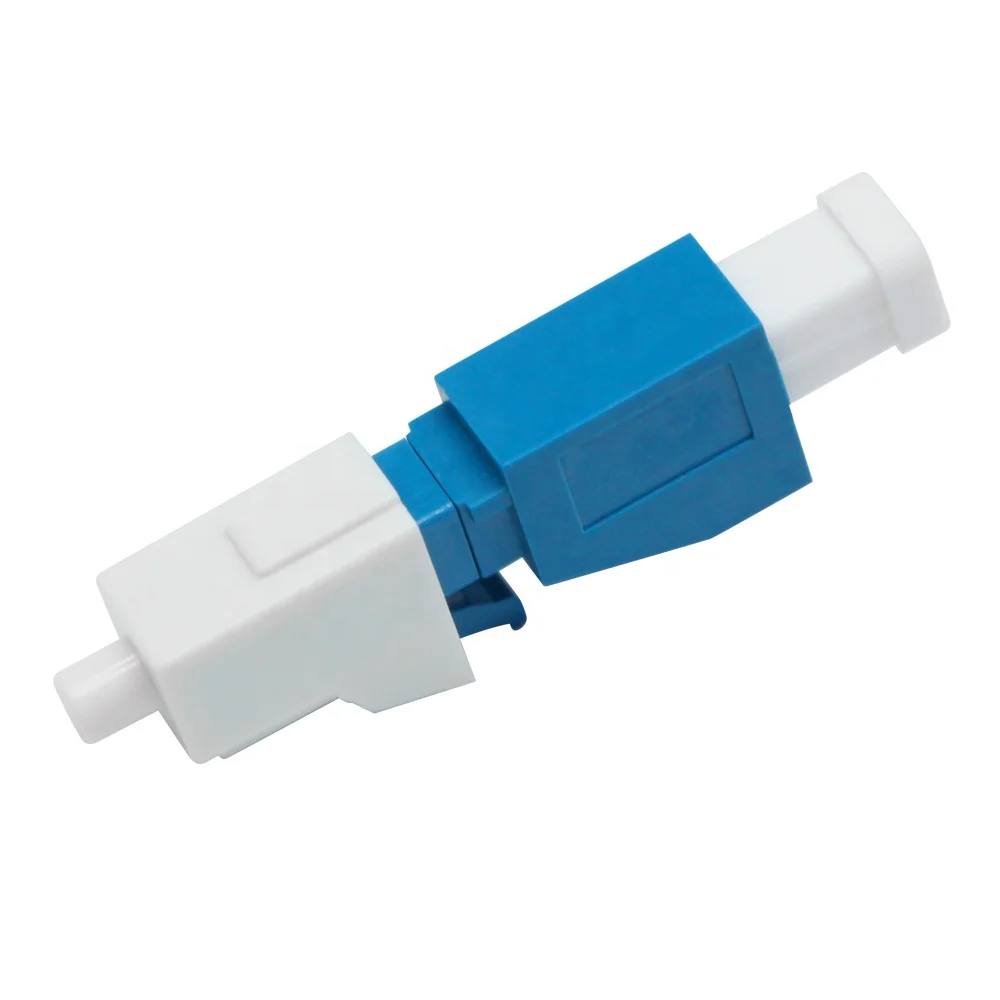

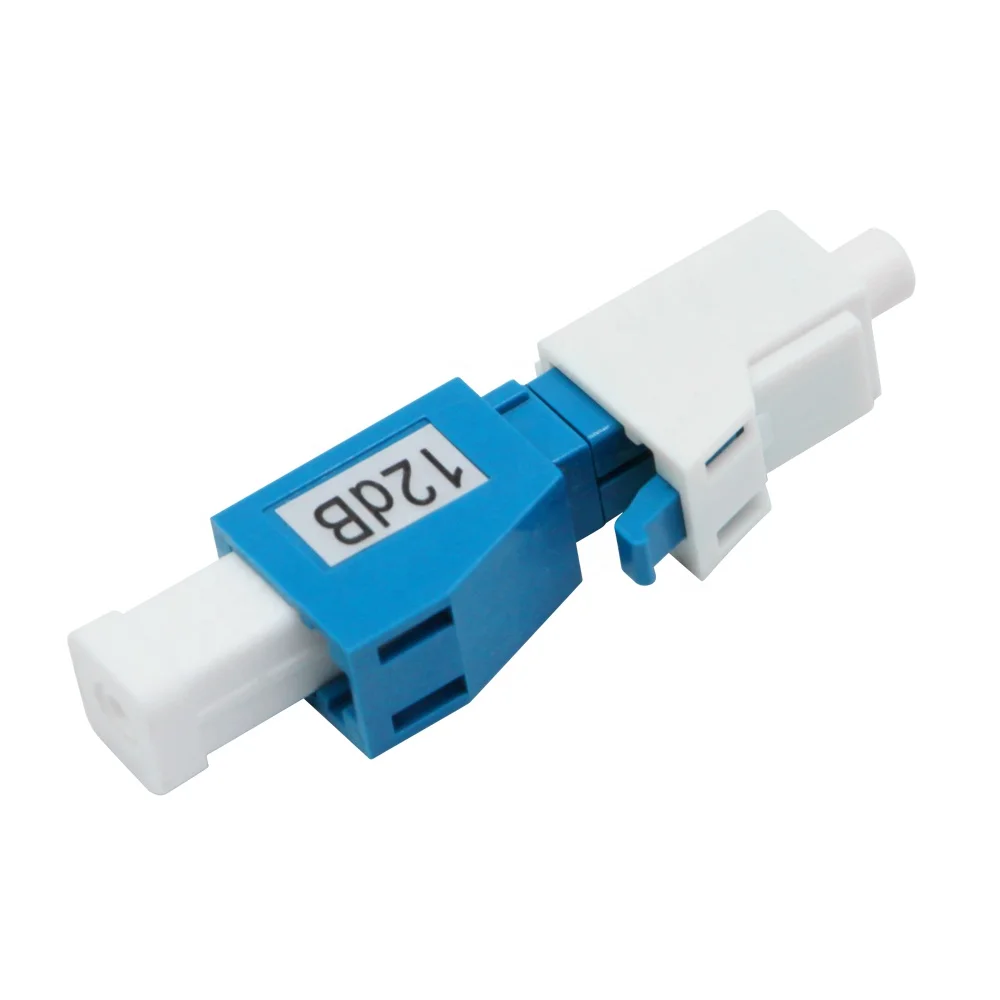

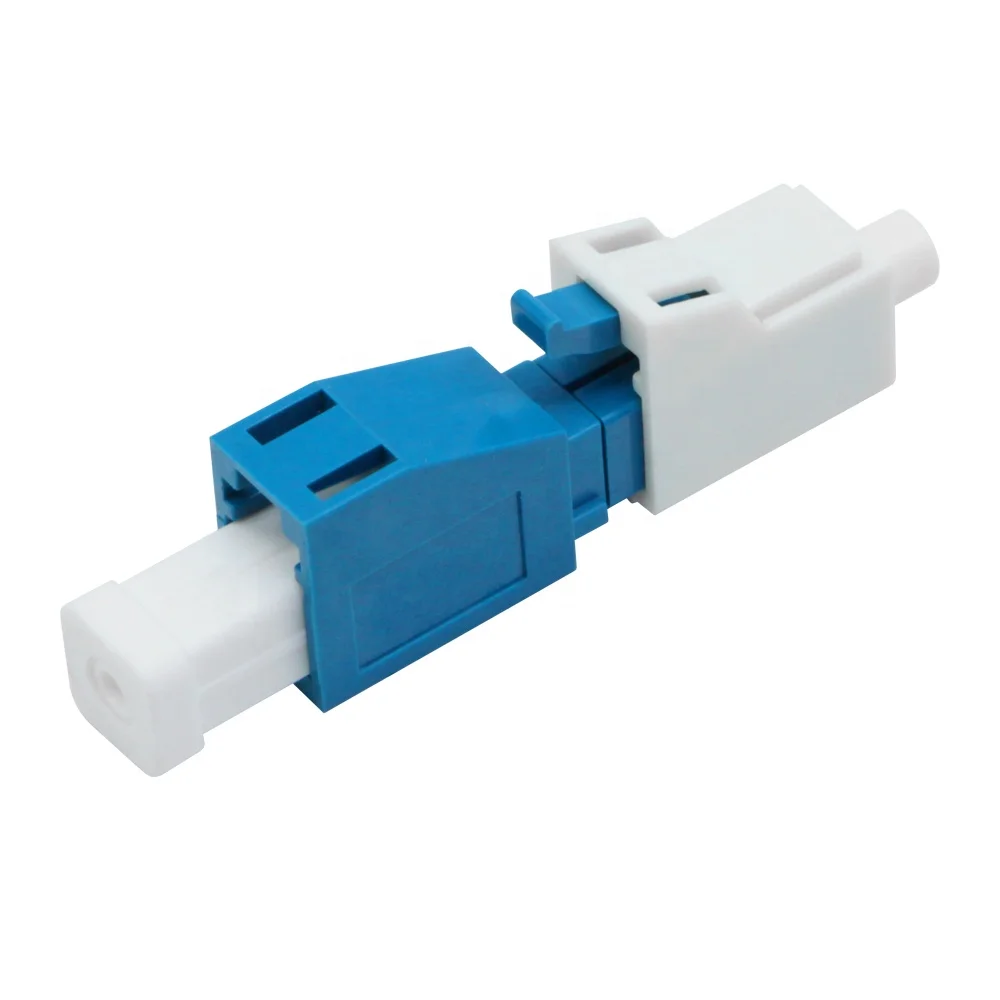

12dB lc/apc UPC fixed optical attenuator lc to lc/pc fixed 5db single mode fiber optic attenuator
- Category: >>>
- Supplier: Dongguan Qingying Industry Co. Ltd.
Share on (60697622959):
Product Overview
Description
2Port LC APC Simplex Fiber Adapter Zirconia Sleeve LC UPC APC SM DX Blue Coupler Optic Fiber Adapter Fiber optical adapter
Why Choose Us
① One-stop supplier from molding design, plastic injection.
② 10000 square meters manufacturing plant.
③ 10 Production lines, 300 workers.
④ An R&D team of 30 with degree, a quality system team of 30.
⑤ ISO 9001, CE, RoHS certification.
⑥ 12-month after-sale warranty.
② 10000 square meters manufacturing plant.
③ 10 Production lines, 300 workers.
④ An R&D team of 30 with degree, a quality system team of 30.
⑤ ISO 9001, CE, RoHS certification.
⑥ 12-month after-sale warranty.
Products Description
QY's offers a wide range of Fiber Optic Attenuators. Available for use in Single-mode 9/125, Multimode 50/125, and Multimode 62.5/125 applications.
Our Male to Female Buildout Optical Attenuation (Pads) is available in all fiber modes with LC, LC/APC SC, SC/APC, FC, FC/APC, and ST types.
Features
Fiber optic attenuators are devices that reduce (attenuate) the strength of a fiber optic signal within a fiber-optic network.
Attenuators are usually used when the signal arriving at the receiver is too strong and hence may overpower the receiving elements.
Sometimes attenuators are also used for stress testing a network link by incrementally reducing the signal strength (increasing the dB attenuation) until the optical link fails, thus determining the signal’s existing safety margin.
Low PDL & insertion loss
Precisional reflection polishing
The flexible case for easy portability
Accurate size armed with elegant dust cap, better ensure the handy installation and protection from out-service.
Accurate size armed with elegant dust cap, better ensure the handy installation and protection from out-service.
Plastic Material Clip
Allow for easy snap-in installation without tools
Allow for easy snap-in installation without tools
Applications
Specifications
Optical Fiber Attenuator | FC/APC Field Installable Connector | |||||
Item Name | Unit | APC | UPC | |||
Return Loss | dB | ≥60 | ≥50 | |||
Attenuation Vale | dB | 0 ~3 0 | ||||
Operating Wavelength | nm | 1260~1620 (Customer ordered) | ||||
Polarization Loss | dB | ≤0.2dB | ||||
Attenuation Tolerance | dB | 0dB~9dB:0.5dB, 10~30dB:10% of attenuation value | ||||
Maximum Power Capability | mW | 250 | ||||
Operating Temperature | °C | -40°C~+85 | ||||
Packing
Recommend Products
Company Briefing
Founded in 2010, Dongguan Qingying Industrial Co., Ltd (QY) is a sophisticated fiber company located in two cities, Dongguan and Chongqing, in China. With more than 10,000m2 plant area, QY is now a company with integrated capability of R&D, production, trading and international sales.
QY is an ISO9001:2015 certified company with hundreds of customers in Europe, America, Southeast Asia and Australia. Our main products are fiber optic field installable connector (fast connector), patch cord, armored patch cord, pigtail, PLC splitter, attenuator, and many other FTTH products.
With 10-year experience in fiber optic industry, QY believes learning, cooperating, and sharing with customers is the best way to grow with customers. In the coming decade, QY will aggressively develop new products per customers’ demand, and improve quality of existing products for customers. All QY’s employees are looking forward to serving and co-working with customers for fiber business in the future.
QY is an ISO9001:2015 certified company with hundreds of customers in Europe, America, Southeast Asia and Australia. Our main products are fiber optic field installable connector (fast connector), patch cord, armored patch cord, pigtail, PLC splitter, attenuator, and many other FTTH products.
With 10-year experience in fiber optic industry, QY believes learning, cooperating, and sharing with customers is the best way to grow with customers. In the coming decade, QY will aggressively develop new products per customers’ demand, and improve quality of existing products for customers. All QY’s employees are looking forward to serving and co-working with customers for fiber business in the future.
After-sales service
Return Window | Exchange Window | Warranty Period | Notes |
30 Days | 30 Days | 1 Year | In the case of not affecting secondary sales, a 30-day return is available for in-stock items (excluding customized products). |
