TBS6209se DVB T2/C2/T/C/ISDB T 8 TV Tuner PCI e card for IPTV Streaming and Broadcasting
- Category: Radio & TV Broadcasting Equipment >>>
- Supplier: Shenzhen TBS Technologies Ltd.
Share on (60697655464):
Product Overview
Description
Product Description
TBS6209se DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0 Octa TV Tuner Card
TBS6209se is a DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0. TV Octa tuner card with PCI-Express interface, it can be used for watching eight different channels from eight different frequencies simultaneously, and it supports both DVB-T2 and DVB-C2 standard at the same time.
TBS6209se DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0. TV Octa tuner card works also as a digital video recorder for recording digital terrestrial TV programs with full HDTV support. TBS6209se is considered as a professional TV tuner for industrial-level users. When the PCIe slots in the server is limited, TBS6209se enables you to receive more channels than the usual dual or quad TV tuner. Thus, it is highly recommended for broadcasting system.
TBS6209se DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0. TV Octa tuner card works also as a digital video recorder for recording digital terrestrial TV programs with full HDTV support. TBS6209se is considered as a professional TV tuner for industrial-level users. When the PCIe slots in the server is limited, TBS6209se enables you to receive more channels than the usual dual or quad TV tuner. Thus, it is highly recommended for broadcasting system.
Main Features:
* DVB-T2/C2/T/C（J.83A/B/C）,ISDB-T/C ,ATSC1.0. SD or HD TV receiving;
Octa channel receiving simultaneously;
High-definition video, real-Time and scheduled video;
Recording digital terrestrial TV programs with full HDTV support;
High sensitivity DVB-T2 Octa Tuner for the best digital TV reception;
BDA driver and Linux Driver are ready.
Specification:
Receiving channel: VHF band, UHF band | ||
Bandwidth: 1.7, 5, 6, 7, 8MHz | ||
FEC:QPSK, 16QAM, 64QAM,256QAM | ||
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K | ||
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8 | ||
DVB-C2 | COFDM demodulator(16_QAM to 4096_QAM) | |
FEC(LDPC/BCH) decoder | ||
Bandwidth: 6MHz, 7MHz, 8MHz | ||
DVB-C | QAM demodulator | |
FEC decoder | ||
1 to 7.2MSymbol/s | ||
COFDM demodulator and FEC decoding | ||
Support 3 layers decoding | ||
TMCC decoding | ||
Support differential demodulation | ||
AC1 and AC2 decoding | ||
ISDB-C | 5.274 Msym/s | |
0.13 roll-off factor | ||
64 and 256QAM | ||
TSMF (Transport Streams Multiplexing Frame) | ||
5.056941, 5.360537, 5.6 Msym/s | ||
0.18 and 0.12 roll-off factor | ||
64 and 256QAM | ||
6MHz channel bandwidths | ||
8VSB modulation | ||
2/3 code rate | ||
Power consumption | ||
Input/ Power | 12V/14W | |
temperature | 0~60℃ | |
System Requirements | XP / Vista/ 7/8/10, Linux | |
Available PCI Express x1, x4, x8 or x16 slot | ||
Digital TV signal DVB-T2/C2/T/C(J.83A/B/C), ISDB-T/C, ATSC1.0. | ||
Dimension | ||
TV tuner card size | 104.5mm*150mm | |
Net weight | 190g | |
Gift Box Size | 17.7*16*3CM | |
Weight | 280g | |

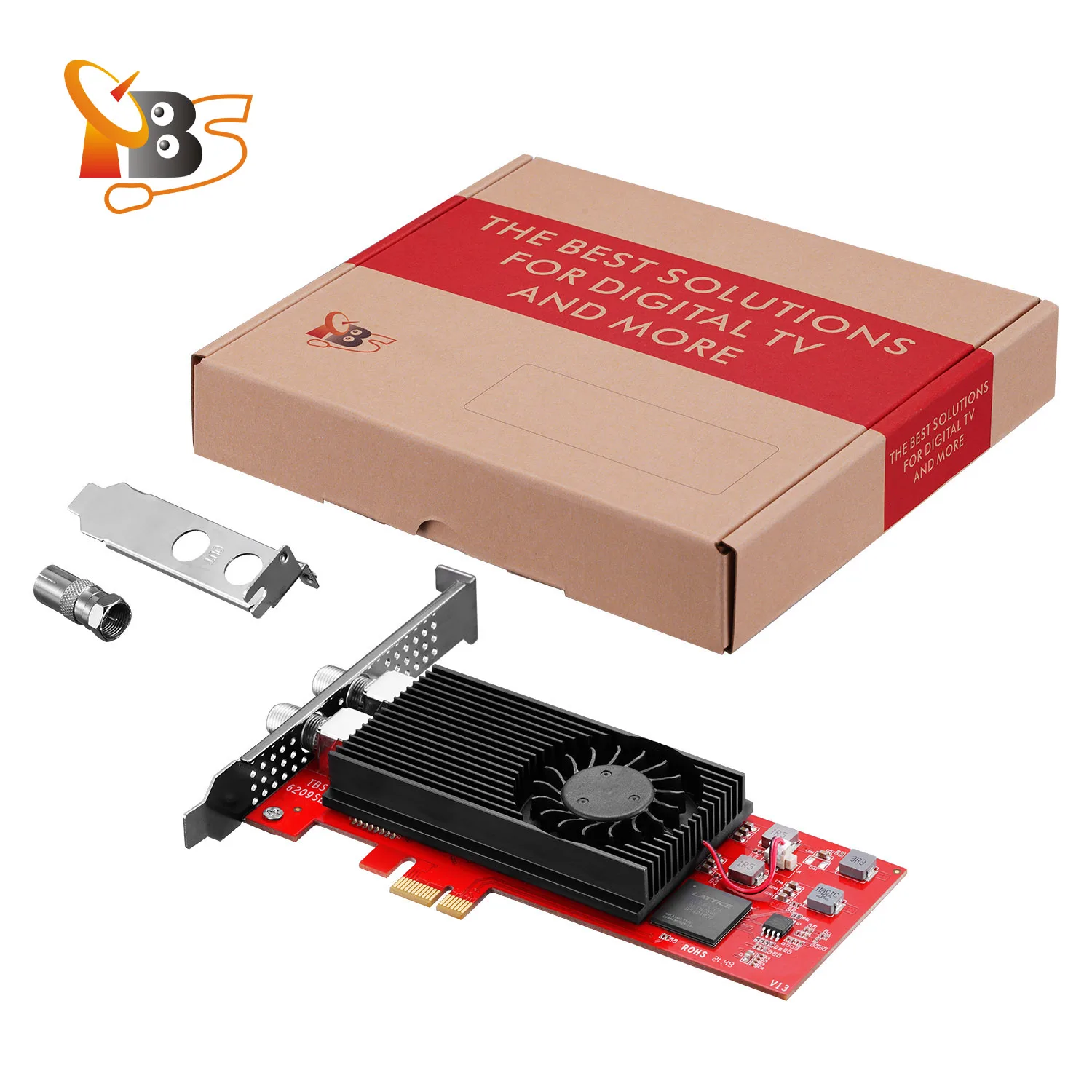

Package Contents | 1 x TBS6209se | |
1x DC line | ||
1x F Connector | ||

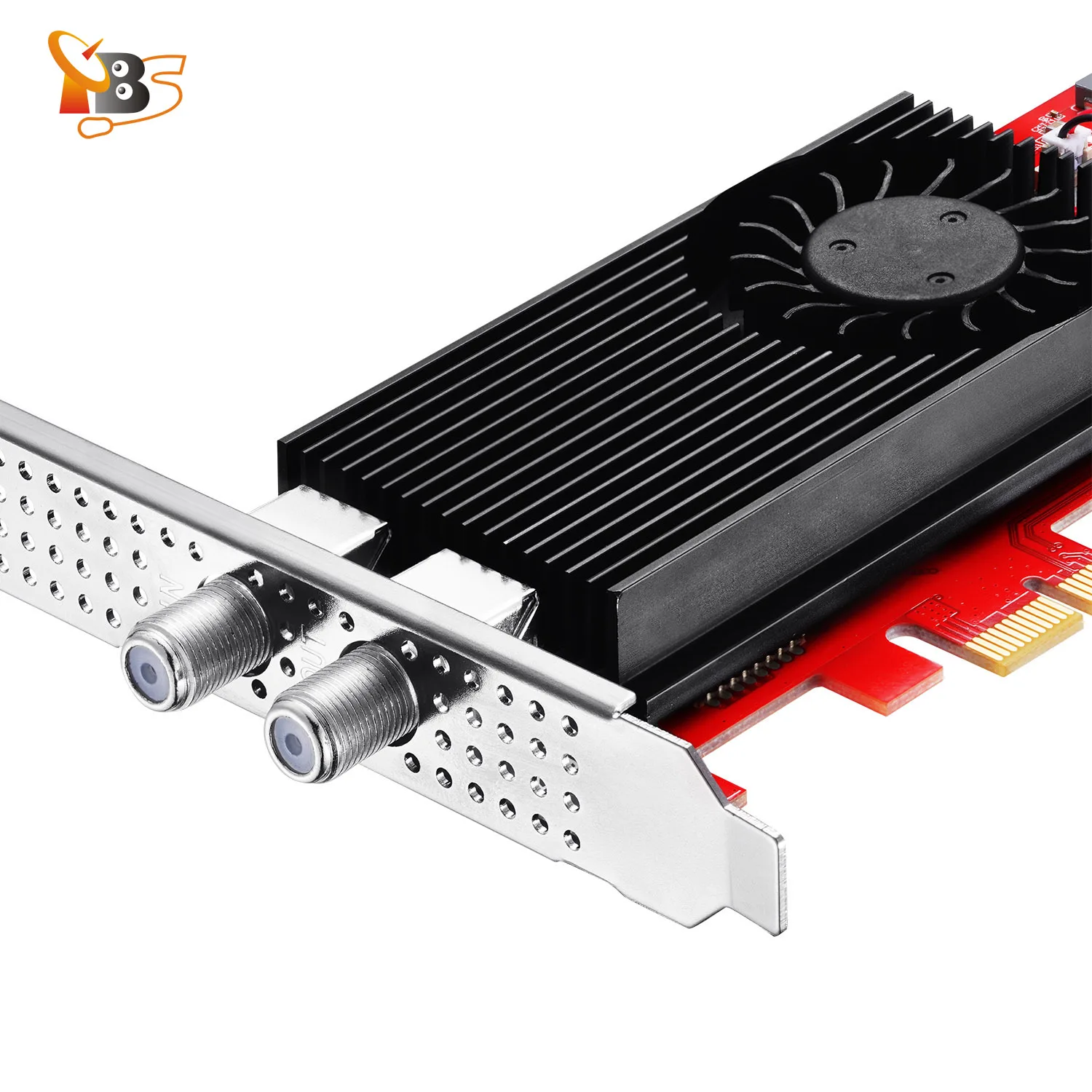

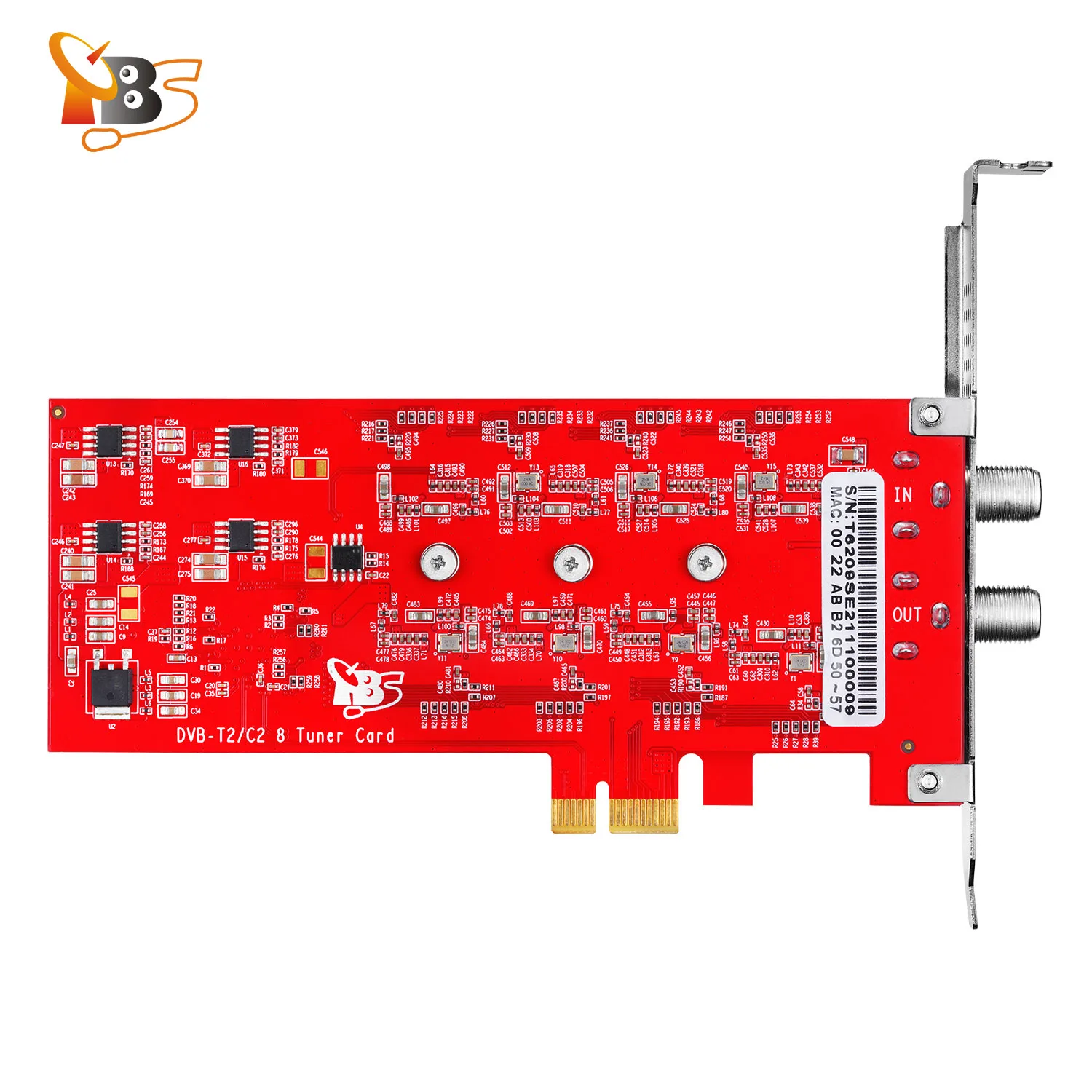

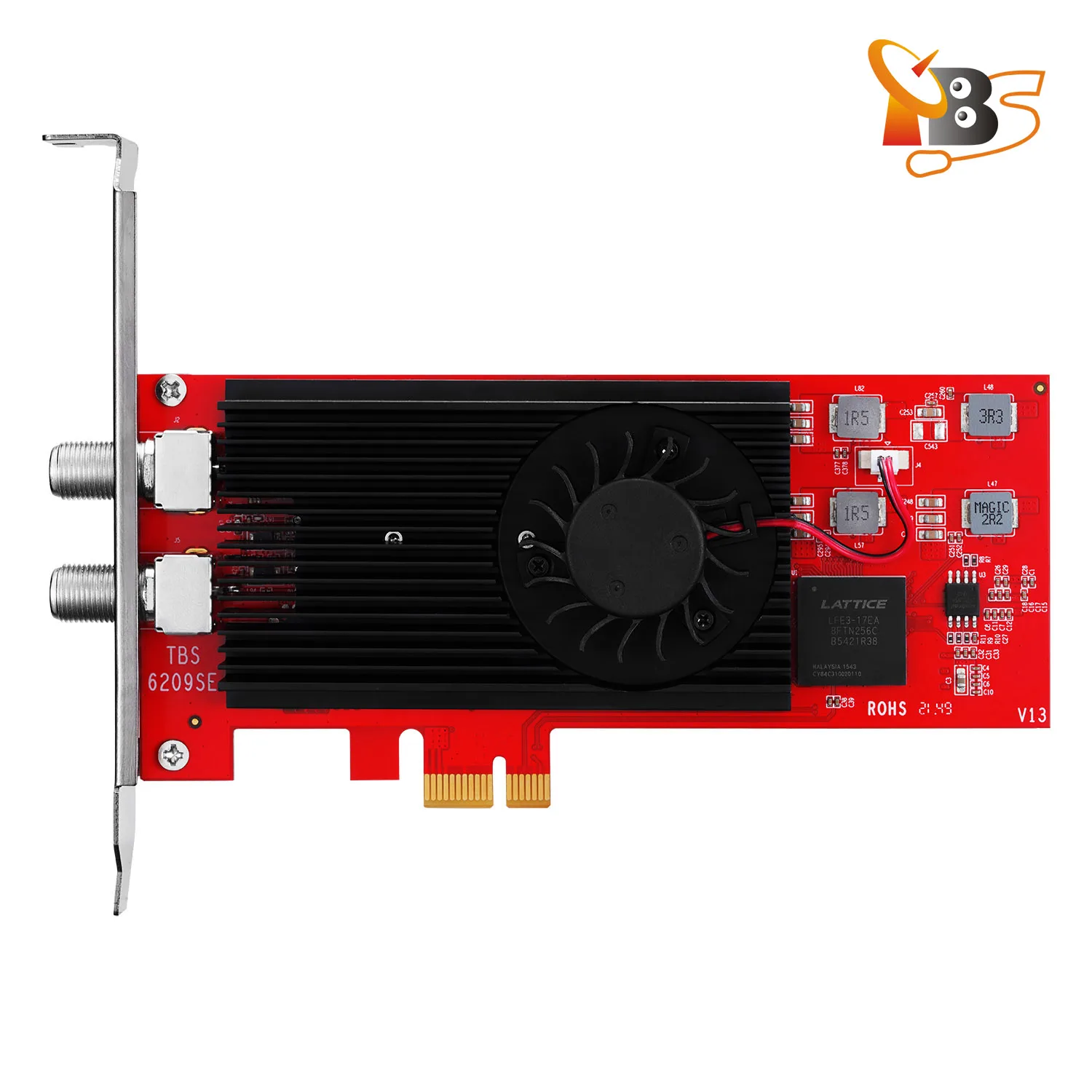

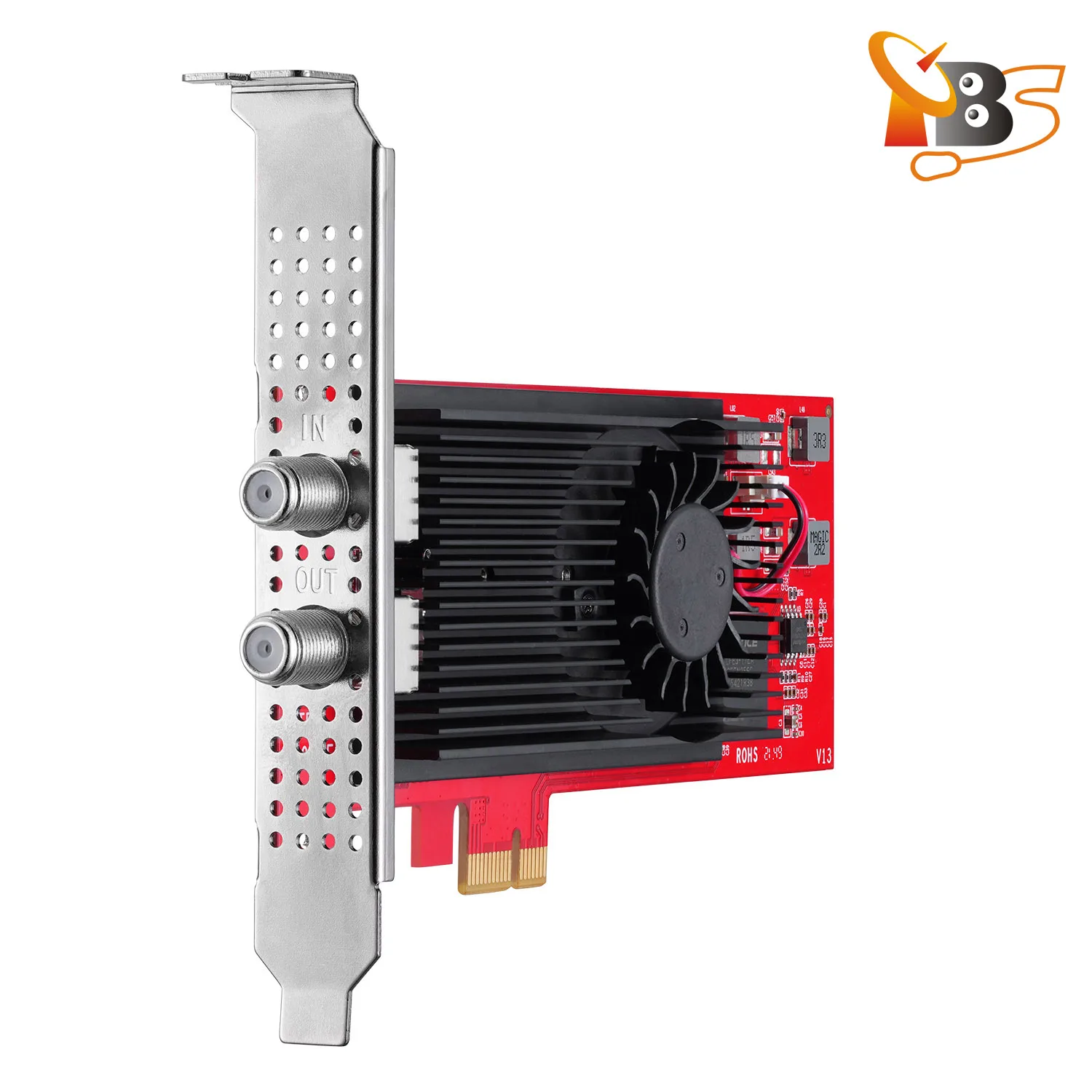

Detailed Images
Packing & Delivery
Dimension: 18*16.mm*3cm
Net weight: 1kg
temperature\t-20℃+ 60℃
