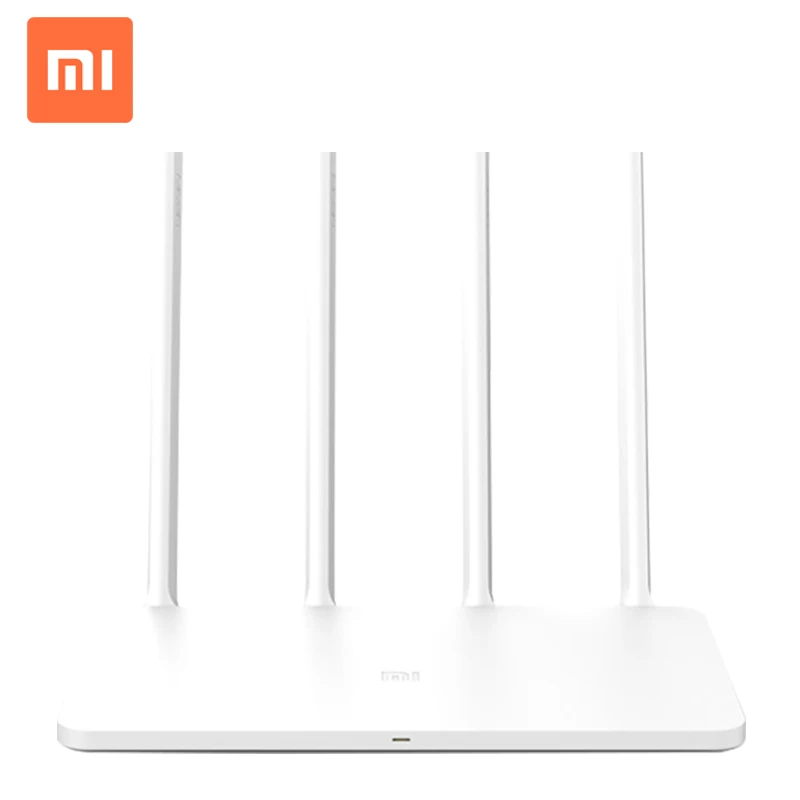

Powerline Communication Modem Bluetooth wifi Router 200hz for Xiaomi Home Smart
| Specifications | |

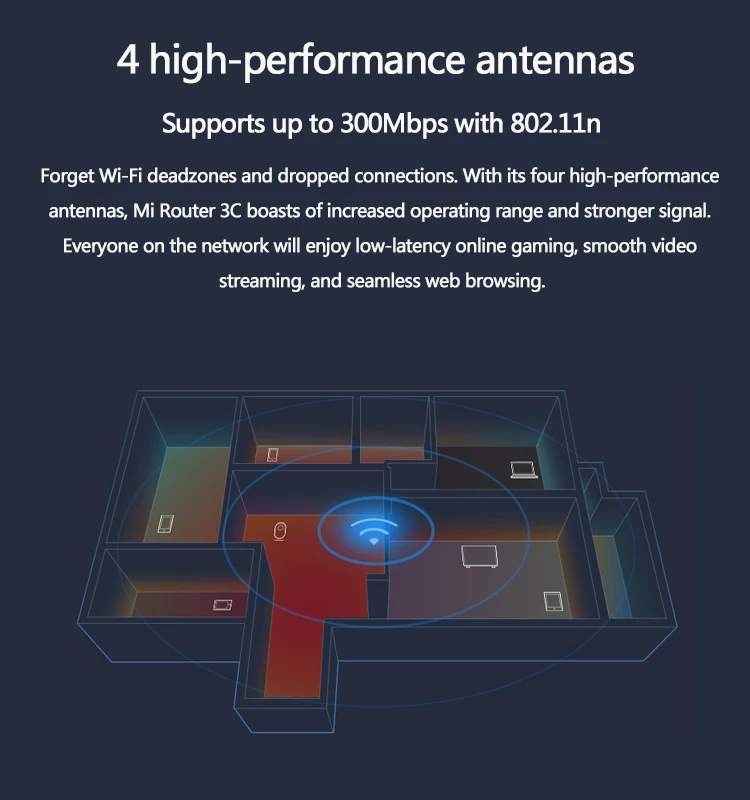

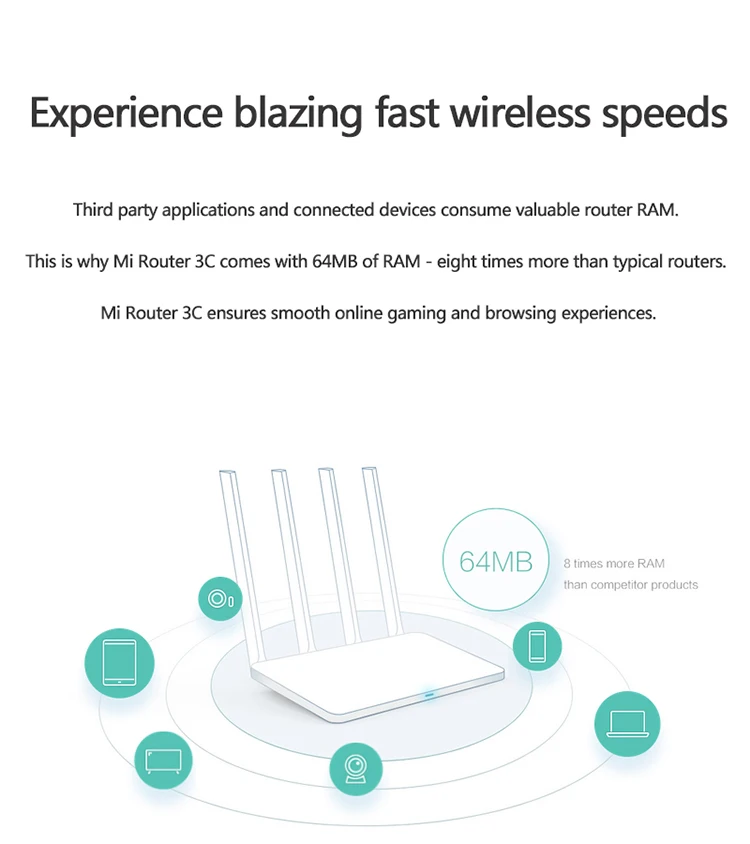

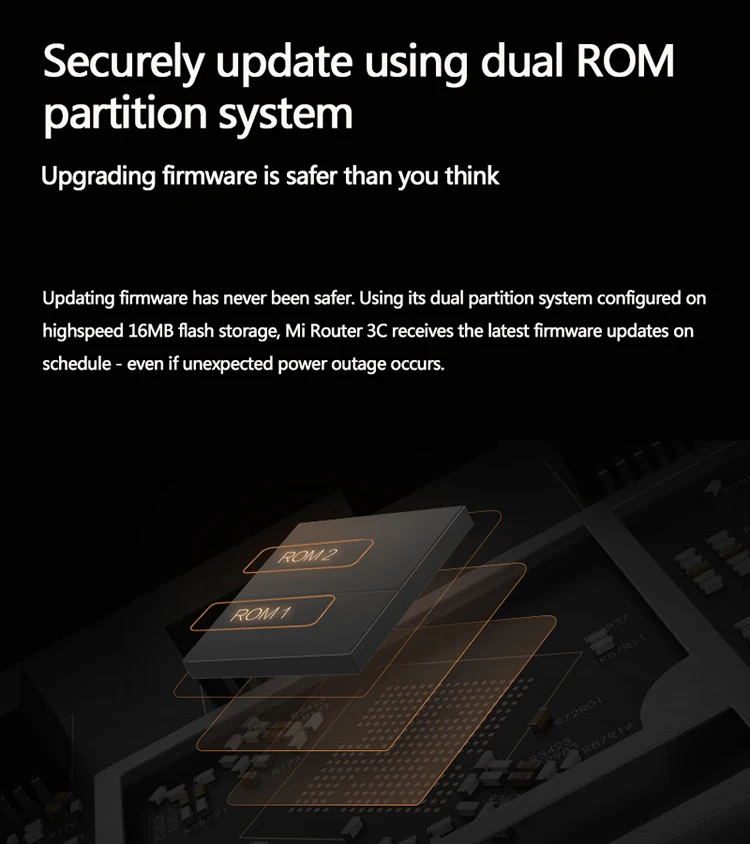

| Hardware Configuration | ROM 16MB NOR FLASH RAM 64MB DDR2 2.4G WiFi 2X2 (IEEE support 802.11N protocol, the highest rate of up to 300Mbps) Antenna An omnidirectional high gain antenna 4 |

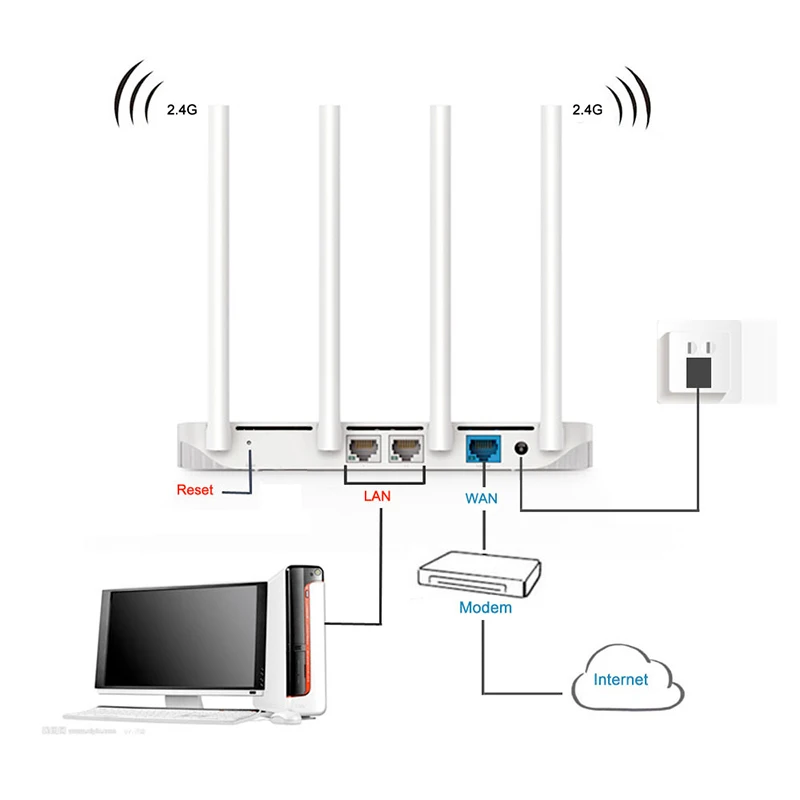

| Machine Interface | 2*10/100M LAN (Auto MDI/MDIX) adaptive 1*10/100M WAN (Auto MDI/MDIX) adaptive 1*red / Blue / yellow lights LED 1*system restore factory settings button 1*power input interface |
| Wireless Parameters | 2.4GHz single frequency Wireless Channel 2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13 Modulation Mode 11b:DSSS:DBPSK(1Mbps),DQPSK(2Mbps), CCK(5.5/11Mbps) 11g:OFDM:BPSK(6/9Mbps), QPSK(12/18Mbps),16QAM(24/36Mbps), 64QAM(48/54Mbps) 11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM Receiving sensitivity 11Mbps:≤-90dBm,54 Mbps:≤-72dBm, HT20 MCS7:≤-69dBm, HT40 MCS7:≤-66dBm |
| Software parameters | operating system OpenWRT customized intelligent router operating system MiWiFi ROM Support language Simplified Chinese(English Only Android and IOS APP) Wireless security WPA-PSK/WPA2-PSK encryption, wireless access control (black list), SSID hide. Management Applications support Web, Android, iOS |
| Protocol Standards | IEEE 802.11b/g/n,IEEE 802.3/3u |
| Certification Standard | GB9254-2008 YD/T993-1998 GB4943.1-2011 |
| Work environment | Working environment temperature 0-40 C Working humidity 10%-90%RH (not condensed) Storage temperature -40-70C Storage humidity 5%-90%RH (not condensed) Consumption 5W |
