YILIAN Brand WSFM C Type automatic environmental protection paper PE coating machine

Wenzhou WinRich Machinery co.,ltd has focused on laminating and compound machines since 1996, for the co-extrusion of special polymers - customized and modular layout to meet the demand for special products;

WSFM-C Mode Extrusion and compound units is at the forefront of technology, boasting a high manufacturing quality with components suitable for processing paper, nonwoven fabric ,aluminium and so on. we has focused on high performance extruders with special screw design for a wide range of materials like LDPE, SURLYN, EVA, EAA, PP, with customized solutions including different layers, sizes and die widths.

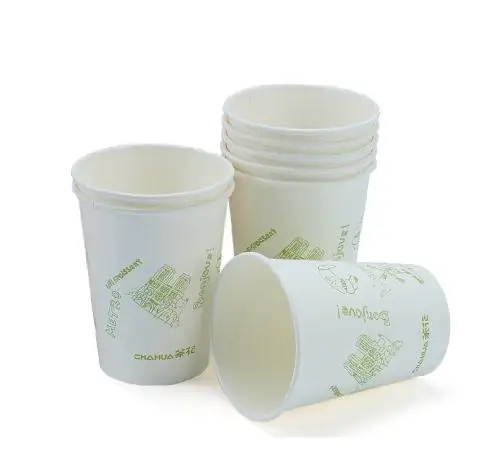

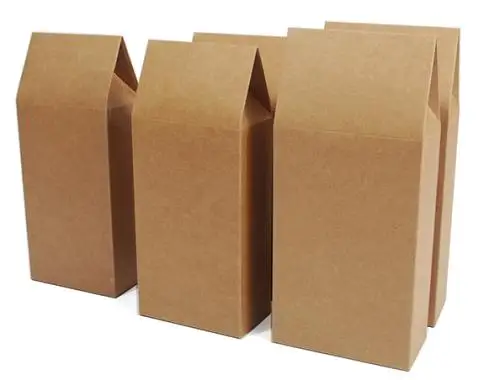

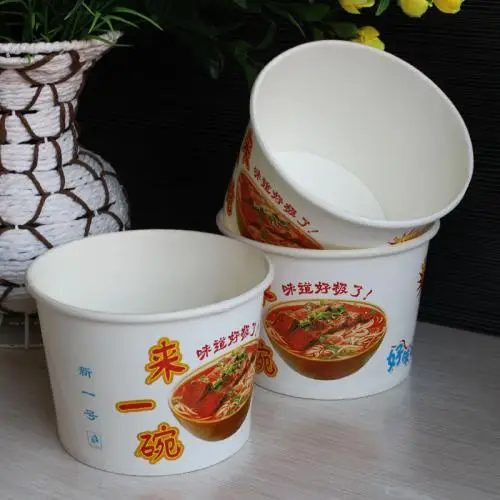

This machine is special for PE coating, applied in the field of paper cup, paper bowl,Paper bag and so on.

SPECIFICATIONS FOR WSFM1100-2000C COATING MACHINE
machinery specification	1100/90mm、1300/100mm 、1500/105mm、 1800/110mm
MAX.speed of coating film	150m/min、180m/min、200m/min
Suitable coating material	LDPE/ PP/EVA/EAA
suitable base material	BOPP、BOPET、BOPA、CPP、CPE、PAPER
width of coating film	1100mm、1300mm、1500mm、1800mm
thickness of coating film	0.012~0.1mm
inaccuracy thickness of coating film	≦±5%
complex cooling roller	Φ500mm、Φ600mm、Φ700mm
screw specification	（L/D）Φ90：33、Φ100：33、Φ105:33；Φ110:33
main unwinding diameter	Φ800-1500mm
diameter of auxiliary unwinding	Φ500mm
diameter of rewinding	Φ800-1700mm

Main Features

1) PLC man-machine interface centralized control, machine, electricity, gas integrated design. High precision, non edge imported original die head

2) High speed and efficient mixing equipment (US technology)

3) New technology static mixing device (Italy Technology)

4) Quick exchange network.

5) hydraulic shaft-less loading and off loading device, material can change at running speed, no need to lower the machine speed or stop the machine

5) Equipped with dry type composite system, with the function of dry composite machine

6) And can be matched with a single extruder, Twin Extruder, extruder, multilayer coextrusion

Certifications

Detailed Images

Machine Parts

Name: SHAFT-LESS LOADING PART

Brand: YILIAN

Original: China

two rolls of raw material can exchange at the normal machine speed, no need to lower speed or stop machine

Main Features

Name: PLC
Brand: WEINVIEW
Original: TAIWAN
Easy operation, assemble control.

Machine Parts

Name: EPC sensor
Brand: HZ
Original: China
Ultrasonic type EPC system,makes frequent replacement materials operation more simple

Main Features

Name: COMPOUND
Brand: YILIAN
Original: Germany design
Hydraulic lamination structure design (Germany Davis design ) can make coating thinner and firm

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	total 15-25 packages
Weight	40T
Packaging Details	1.Fixed by steel wire. 2. Spray anti-rust oil to prevent rust. 3. 5 layers telescopic wrap film covering. 4. Packed inside of wooden casesT

Packaging
Size	5 *40HQ
Weight	40 T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
