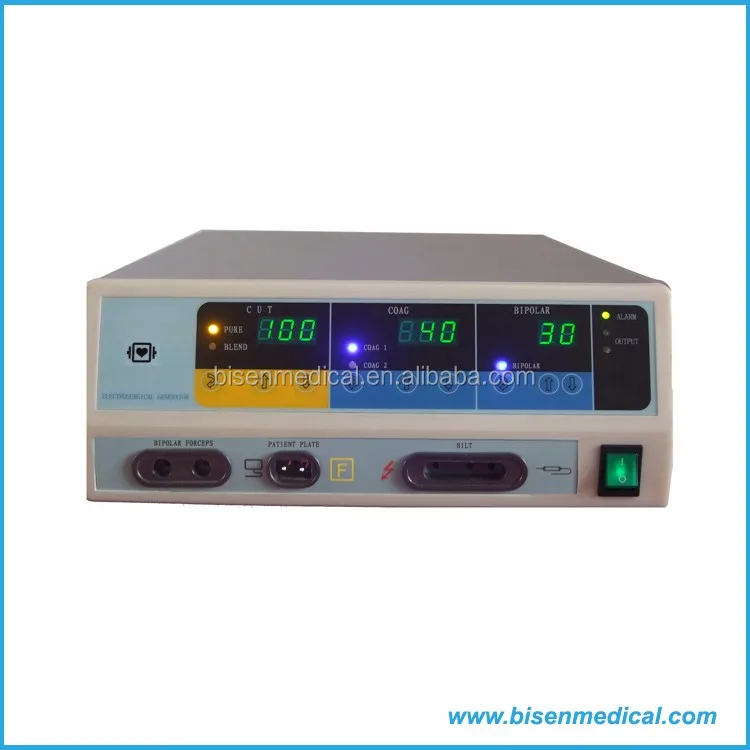

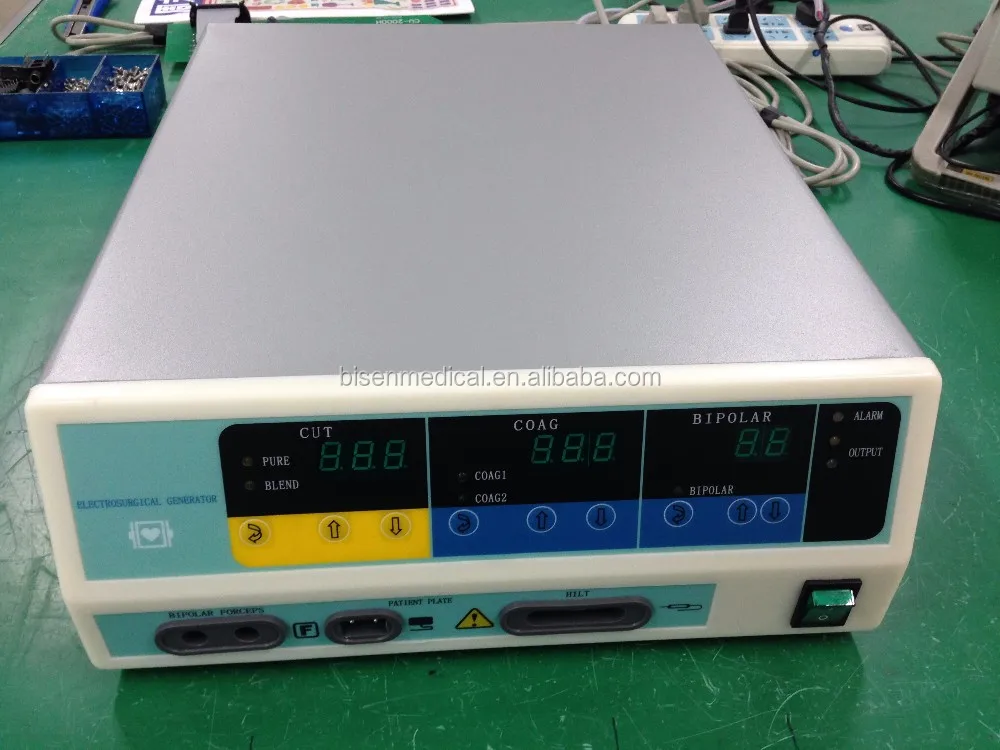

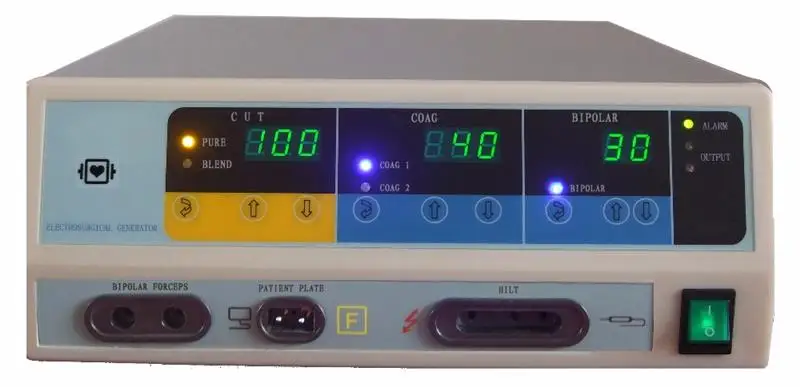

Five Working Modes Electrosurgical Generator Instruments Esu Cautery High Efficiency Surgical Machine

Main Features

Max 300W Electrosurgical Generator, with mono-polar and bipolar function.

Five working modes: pure cut, blend, spray coag, forced coag, bipolar coag.

Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.

Microprocessor controlled, digital display. With audible and visual indicators and errors codes during the process of outputting.

Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.

Both hand and foot controlled.

Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.

The ESU unit can be connected with laparoscope and endoscope, etc.

Protection against over-voltage and over-current.

Defibrillation protected.

Mounted on a 4 wheels cart(optional).

Meets the requirements of international safety standards EN60601-1 and EN60601-2.

Technical Specifications

Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)

Operating frequency: 512KHz

Power rating: 1100VA±10%

Five working modes:

Mono-polar Cut

Pure cut:1W~300W( Load 800Ω)

Blend:1W~200W(Load 800Ω)

Mono-polar Coag

Spray Coag:1W~80W( Load 800Ω)

Forced Coag:1W~120W( Load 800Ω)

Bipolar

Bipolar Coagulation: 1W~50W( Load 200Ω)

Power Consumption: ≤1100VA

Configuration Sheet

Electrosurgical Pencil      5pcs

Electrosurgical Pad        10pcs

Electrosurgical pad cable   1pcs

Footswitch                1set

Bipolar Forceps           1pcs

Bipolar forceps cable       1pcs
