 The CTS-1002 is a light-weight instrument with excellent performance which accumulates the experiences of 50 years for making ultrasonic instruments. This instrument is EN12668-1:2010 compliance and has an industrial-leveled TFT display with full WVGA(800×480) resolution providing superior visibility in all lighting conditions, including direct sunshine.

Weighing only 0.9kg, square wave excitation, full WVGA resolution TFT display and strong flaw detecting capabilities make it superior when compared with other similar products.





Specification:


















































































































































AttenuatorEvery 12dB ± 1dB
Equivalent Input Noise<80×10-9 V/√HZ
Transmitter Pulse"-Ve Square Wave Pulse, Tv: 25~250V; tunable with 25V per step
Working ModesT/R; T&R
Damping400,80 Ohm
FrequencyW/N Band, W:0.5~20MHz; N: 1.5~3MHz
Gain0.0~110.0dB.Steps as 0.1/1.0/2.0/6.0dB
Material Velocity1000~15000m/s tunable;.preset 30 frequently-used Vs optional
Disply Reachable0.0~10000mm LW at steel velocity tunable with min 0.1mm per step
RectificationPositive, negative, full
Gate & AlarmDual gates, hardware driving real-time alarming;
Alarming condition: excess/loss/DAC; Alarm mode: sound
Spotting: peak
Display4.3" industrial-leveled TFT color LCD with 800×480 WVGA resolution
Pulse Shift-7.5~3000μs
Probe Zero0~999.9μs
Pulse Repetition Frequency25~800Hz, auto adjustment mode
Vertical Linearity Accuracy≤3%
Horizontal Linearity Accuracy≤0.4%
Surplus Sensitivity≥60dB
Resolutions≥36dB(5P14)
Dynamic Range≥32dB
Reject(0~90)%
Electric Noise Level<10%
InterfaceQ9 transducer cable connectors
USB HOST
Power SupplyLarge-capacity li battery without memory effect; Battery Life: 8+ hrs;
Built-in charger, AC:220V
Dust/Splash/Water-proofIP54
StandardsEN12668-1 compliance
Conform to JB/T 10061-1999 standard
Environmental Temperature-30~50℃
Relative Humidity20%~95%RH
Weight0.9Kg (with battery and built-in charger)
DimensionTop:215mm×126mm×53mm
bottom,:215mm×104mm×42mm




Feature:



  • Circuitry of advanced design and sampling frequency up to 640MHz ensure instant and accurate display and analysis of flaw signals even when they're weak.

  • State-of-the-art square wave drive technique

  • Weighing only 0.9kg, convenient for operation and taking it along

  • TG, full WVGA TFT display

  • 8+ hour battery life premises consecutive working, inbuilt smart-type battery charger, auto-switching between the status of charging and that of powering.

  • External USB port for software upgrading, data transferring and printing, graftable to mouse, keyboard and USB disc.

  • EN12668:2000 compatible

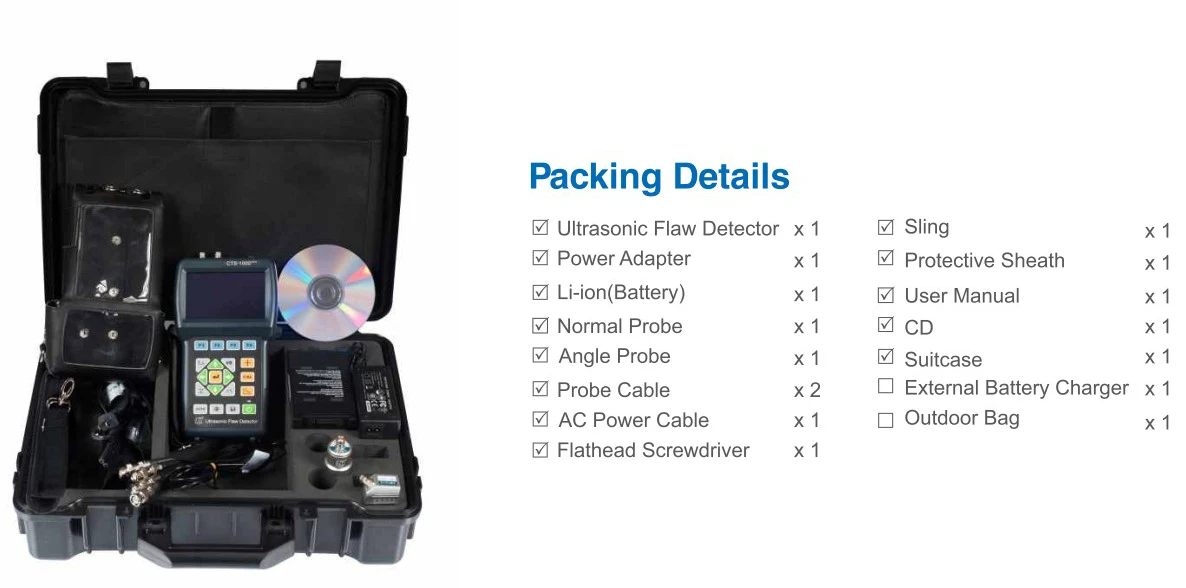

Packaging & Shipping
