Flexible PCB for 3W/4W/6W/9W/12W/15W/18W/24W SMD 2835 LED Slim Panel

Product Overview

Description

Flexible PCB for  3W/4W/6W/9W/12W/15W/18W/24W SMD 2835 LED Slim Panel

ITEM	Size	Surface	Layer	LED TYPE	Circuits	Remark
Round 3W	(L)173mm * (W)6mm	White oiled	1L	15D/SMD2835	5P3S
Round 4W	(L)248mm * (W)6mm	White oiled	1L	20D/SMD 2835	5P4S
Round 6W	(L)289mm * (W)6mm	White oiled	1L	30D/SMD 2835	5P6S
Round 9W	(L)366mm * (W)6mm	White oiled	1L	45D/SMD 2835	5P9S
Round 12W	(L)438mm * (W)6mm	White oiled	1L	60D/SMD 2835	5P12S
Round 15W	(L)499mm * (W)6mm	White oiled	1L	75D/SMD 2835	5P15S
Round 18W	(L)592mm * (W)6mm	White oiled	1L	90D/SMD 2835	5P18S
Round 24W	(L)414mm * (W)6mm	White oiled	1L	60D/SMD 2835	5P12S	X 2PCS=24W
Square 3W	(L)212mm * (W)6mm	White oiled	1L	15D/SMD 2835	5P3S
Square 6W	(L)331mm * (W)6mm	White oiled	1L	30D/SMD 2835	5P6S
Square 9W	(L)445mm * (W)6mm	White oiled	1L	45D/SMD 2835	5P9S
Square 12W	(L)525mm * (W)6mm	White oiled	1L	60D/SMD 2835	5P12S
Square 18W	(L)364mm * (W)6mm	White oiled	1L	45D/SMD 2835	5P9S	X 2PCS=18W
Square 24W	(L)507mm * (W)6mm	White oiled	1L	60D/SMD 2835	5P12S	X 2PCS=24W

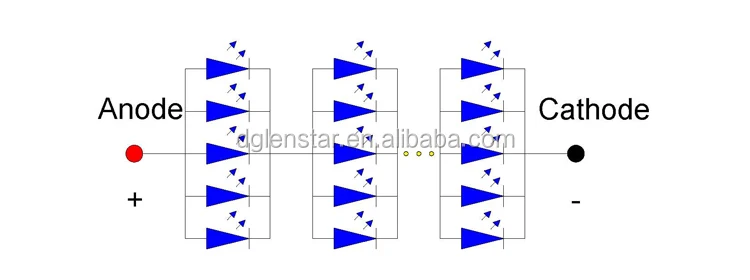

Schematic diagram
