5T/H reverse osmosis drinking pure water treatment machine for food industry

Q1: How often the pure water treatment machine should be washed?

A1: Generally, when the standardized flux decrease 10%~15%, or the system desalinization rate decrease 10%~15%, or the operation pressure or section pressure differences increase 10%~15%, the pure water treatment machine should be washed. Washing times is related to system preprocessing, when SDI15<3, the washing frequency is around 4 times/year; when the SDI15 is around 5, may be the washing frequency is 1 times than SDI15<3, but the washing frequency is also depend on the actual situation.

Q2: What is SDI?

A2: It is used to evaluate the colloid contamination possibility of RO system.

Q3: Which should be choice between RO treatment and ion exchanger treatment in general situation?

A3: Both RO treatment and ion exchanger treatment can be adopted. Base on economic conditions, generally, if the saltness is highre, the RO treatment is much substantial. If the saltness is lower, the ion exchanger is much substantial. Now, because the RO technology is widespread, more and more people adopt RO treatment+ion exchanger.

Q4: How long dose one RO membrane can be used?

A4: Generally, one membrane can be used for 5 years. On the other hand, the membrane life time is depend on the chemical stability of membrane, physical stability of components, cleanable, raw water source, preprocessing, washing frequency, operation and management and so on.

Q5: How about the membrane separation ability?

A5: RO technology is the most precision liquid filter technology. RO membrane can intercept inorganic molecule and molecule that dimension larger than 100. On the other hand, hydrone can permeate membrane freely.

Q6: What is the Max. silicon dioxide concentration can be allowed in raw water?

A6: The Max. silicon dioxide concentration is depend on temperature, PH and antisludging agent. When the antisludging agent isn't add, the Max. is 100ppm on concentration water side.

Q7: What kind of preform need before water flow into RO?

A7: The particle and suspended solids can be avoided through sand filter, carbon filter, ion exchanger, and precision filter. In order to the particle damage the HP pump blade and membrane components.

Q8: Could the membrane avoid virus and germ?

A8: The membrane has very high removal rate, at least 3log. Of course, the other components, detection and maintenance way are also importance steps, it can't depend on RO membrane completely.

Q9: Could temperature influence water yield?

A9: The temperature is higher, the water yield is more, vice versa; when the temperature become higher, the pressure should be turn down, vice versa.

Related Products

Drinking Water treatment device with 6mm stainless steel water softner

Drinking Water treatment device

80 M3/H 2500mm UF Water treatment equipment used in food processing

UF Water treatment equipment

UF Water treatment equipment with UF 4040 membrane

UF Water treatment equipment

Detailed Images

Reverse osmosis is a kind of reverse migration movement, with the aid of semipermeable membrane separate the solute and solvent under pressure. Using RO technology to avoid inorganic ion, germ, virus, organics, colloid and so on in raw water.

Packing & Delivery

1. the water treatment machine is packed by wooden case..
2. The delivery date of water treatment machine is within 30 days after payment.

Our Service

Our customer's size of factory are different, and the environment of installation is different, so the whole equipment even in safe delivery to customers, in a skilled engineers operation are possible to install the equipment, the reason is that the whole set of equipment is not placed according to the customer the environment to customize.

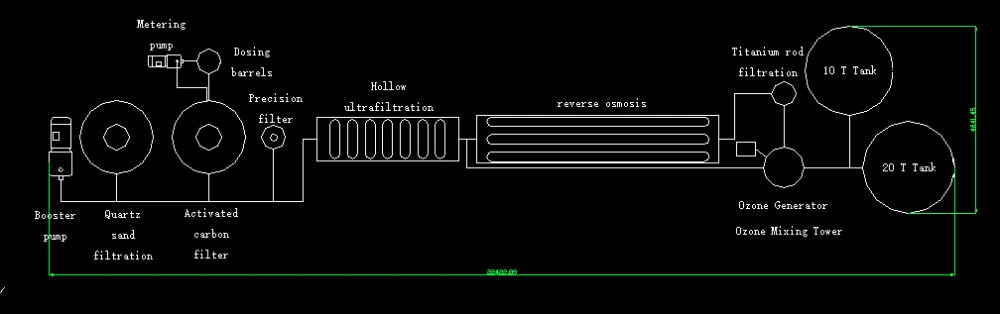

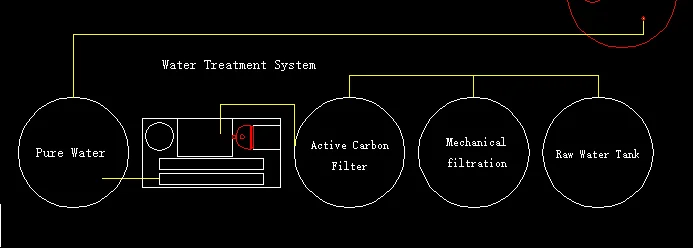

But  at the beginning of the production time our company's products will be according to the customer's delivery room size to design drawings, custom equipment at the outset to avoid possible problems in installation and debugging period, if the customer cannot provide our company equipment drawings, our company will communicate with customers to help them design installation the drawings for the local environment, the following is some custom drawing examples.

1.installation&commissioning
After the equipment arrived at the customer's site. the customer is responsible foe unpacking and arranging the equipment according to the placement drawing;Our technician will do equipment set up and commissioning,buyer should offer necessary help if needed

2.Training
We are responsible for offering the technical training to user.Through training,users' technical staff can grasp and the skill of operation and maintenance proficiently.The buyer also can send staff to our company for learning.

3.Quality assurance
The warranty period is 12 months after acceptance chech of the production line.if there is any different between the furnished equipment in the customer's factory and the equipment concerned in the contract.

FAQ

1.Why do you choose our factory?
There are many foreign guests cooperate with our company.We have enough experience and fund to provide you the high-quality products with the best price.

2.How long can you delivery?
About 30 days after we received the deposit(30%T/T in advance,70%T/T before shipment.)

3.How about your after-sale service?
One year repair for free Seller responsible for arrange engineer for installation and guide the workers of buyer how to operate and necessary repair,and give buyer a turnkey project.

4.How long can you finished the installation?
About 10-15 days.If the water and electricity is ready.If you have any questions,please do not hasitate to contact me.
