Model

NDR-403G-J120H

Camera

Image Sensor

1/2.8" CMOS

DSP

Hi 3516D

Minimum Illumination

Color: 0.05Lux, B/W: 0.005Lux,0 Lux with IR

3D NDR

Support

WDR

Support DWDR (0-100 Digital adjustment)

Electronic Shutter

1/25~1/100000

Day Night Mode

AUTO ICR Color to B/W

Focal Length:

5.4-108mm,20X Optical Zoom, (F1.5 to F2.7)

Support 16X Digital Zoom

Zoom Speed

Approx.3s(Optical Wide~Tele)

Horizontal visual angle

50.2°-2.9°

Resolution

1920*1080/1080P

Storage function

With SD slot(Support 128G SD card MAX)

Main Stream

25fps:(2592×1520)(1920×1080),(1280×960),(1280×720),(800×600),(704×576)

Sub Stream

25fps:(1280×960),(704×576),(640×480),(648×360)

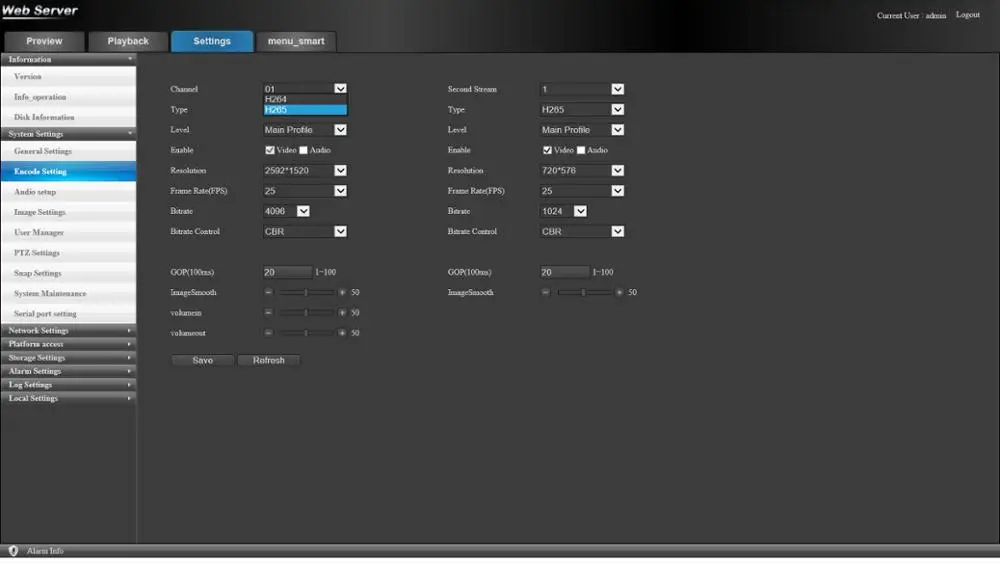

Video Compression

H.265,H.264

Network protocol

HTTP ,FTP,SMTP,UPnP,SNMP, DDNS,NTP,RTSP,RTP,TCP,DHCP, PPPoE

Interface protocol

ONVIF 2.4

PTZ Control

IR Distance

100m

Horizontal Range

0°~360° continuously

Vertical Range

0°~90°

Horizontal Speed

0.05°~100°/s

Vertical Speed

0.05°~100°/s

Max Speed

100°/S

Preset

256

Patrol scan

4pcs(10 preset for each)

L/R Scan

1pc

Horizontal Scan

1pc

Power-off memory

Support

PARK Action

Watch position/ Area Scan /Horizontal 360°scan/ Cruise

Watch position

Support

Wide angle speed limit

Focus / speed automatic matching function

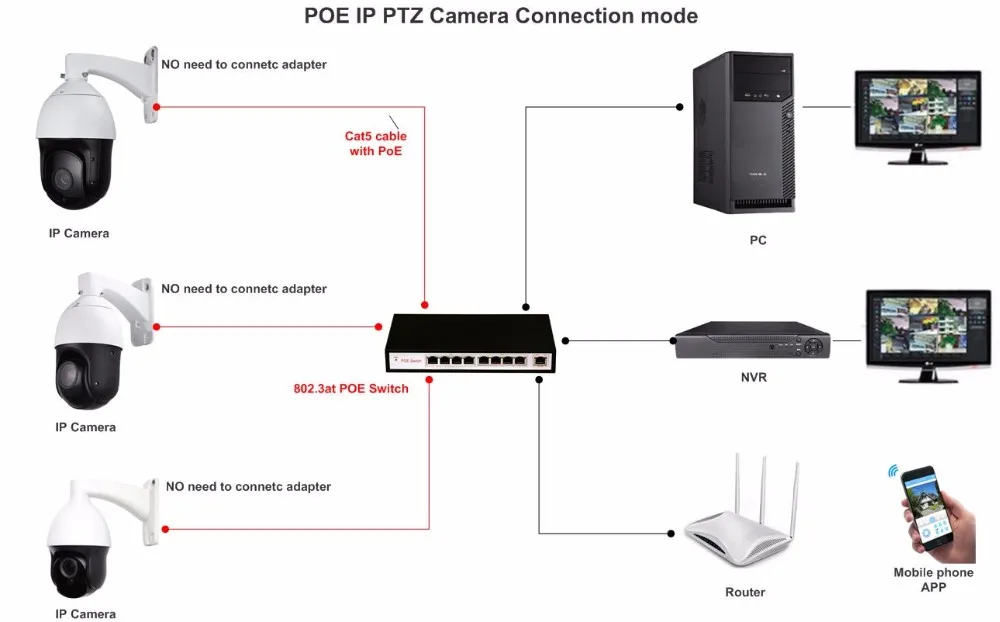

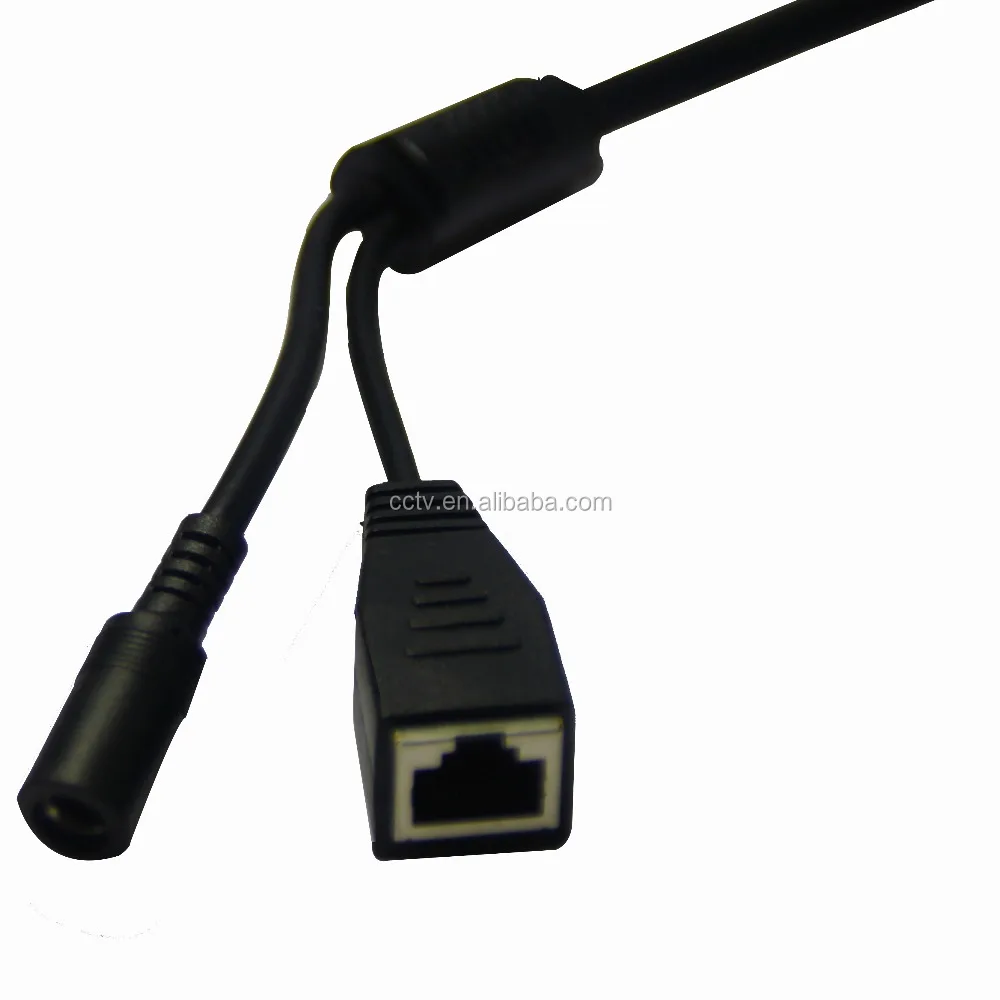

POE function(Optional)

POE supply voltage

DC48V

POE supply PIN

1,2(+),3,6(-)  /  4,5(+),7,8(-)  Auto adaptation

General

Power

DC12V/4A

Consumption

<22W

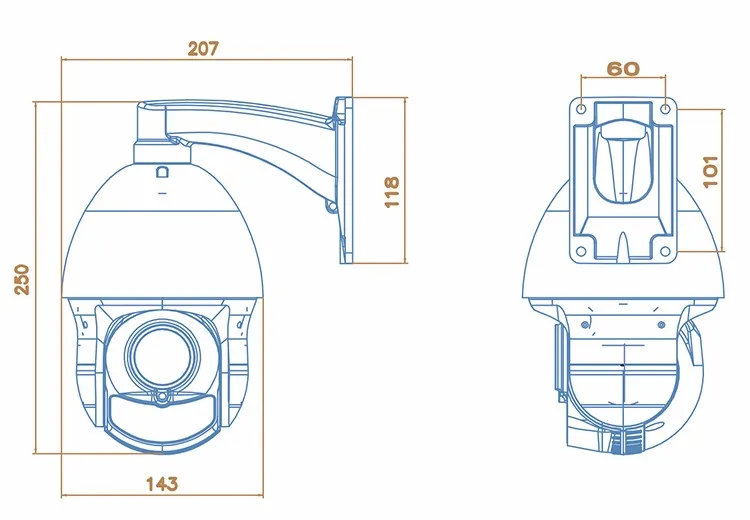

Mounting

Wall mounting or lifting

work environment

temperature :-20~60℃;humidity<90%

Protection level

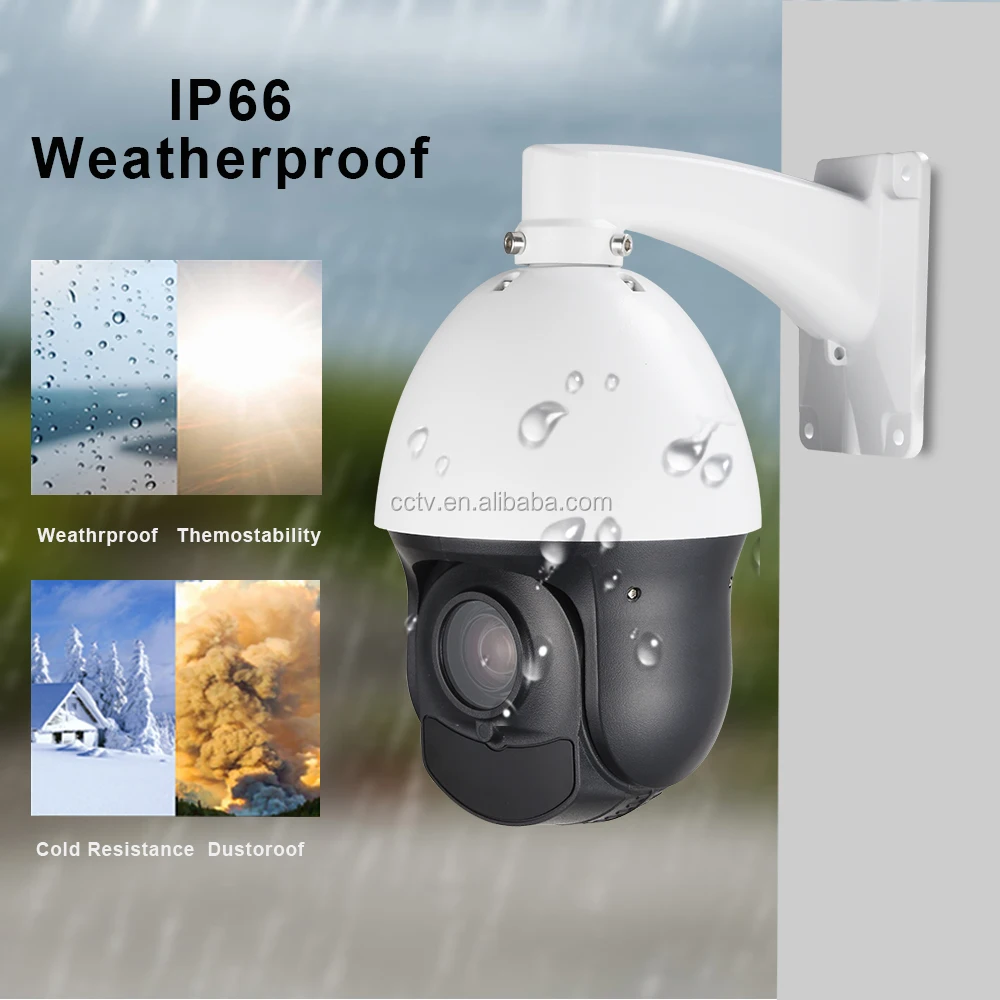

IP66 waterproof,4000V lightning protection

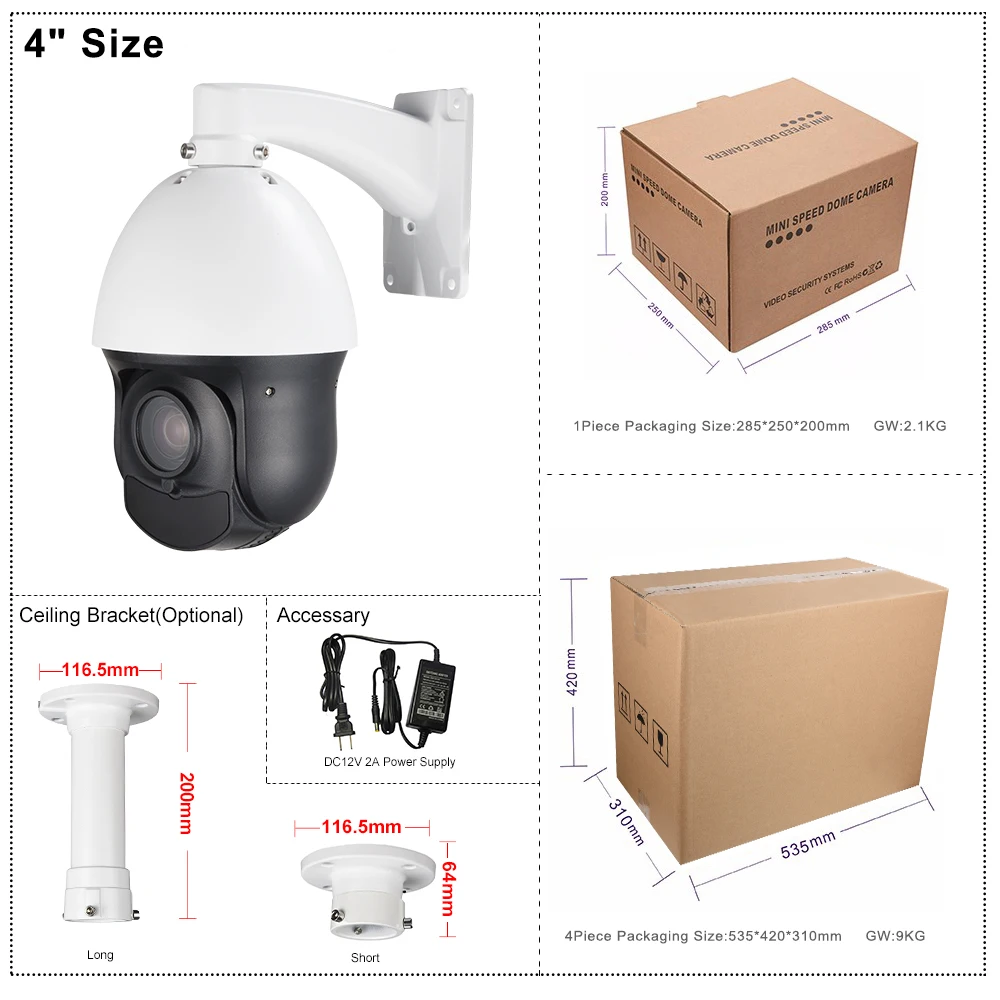

GW

2.15KG
