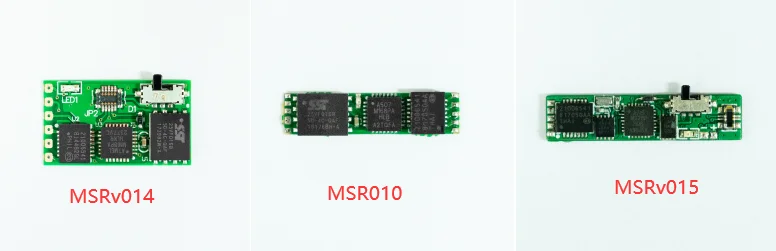

MSR010 magnetic reader PCB for all 3 tracks on the magnetic card module

Product Overview

Description

MSR010 magnetic reader PCB for all 3 tracks on the magnetic card module

PS# Sales: Amber

(skype: postechsales8, whatsapp: +86 15013918037, phone: +86 15013918037 ICQ: 723045080)


This MSR010 can read all 3 tracks on the magnetic card. It has very low energy consumption and can stay in work mode for about 6 days / 145 h / with 9mAh battery. All data is recorded on device memory, which can hold up to 8000 recordings.
The recorded information is segmented and saved in parts, but is extremely easy to compile.
Incomparable ability with the highest accuracy in the world.  It can interpret data at different speeds and sequences (even very low speeds); even if card swipe is performed in several stages, the data will be stored as a sequence allowing the user to assemble the full result.
Manual select Best swipe directions: The user can use this option to invert reading directions and choose the best "logical" result.
MSR is very easy to use and configure thanks to the software included. You can encrypt the file from the device with a password of your choosing, thus making you the only person who can open it. After that you can decrypt the file to see the data.
You can erase information from the device multiple times.
We have also included in the set another software, which only has the options to download and delete data from the MSR device, without the decryption tab.
In other words, you receive two programs for free:
The first one includes all the functionality: Control over the number of records, file download, device memory wipe and device file decryption.
The other one includes the following: Control over the number of records, file download and device memory wipe.
All software updates shall be completely free, without the need to buy a new device.


Specifications:
Thickness : 1 mm

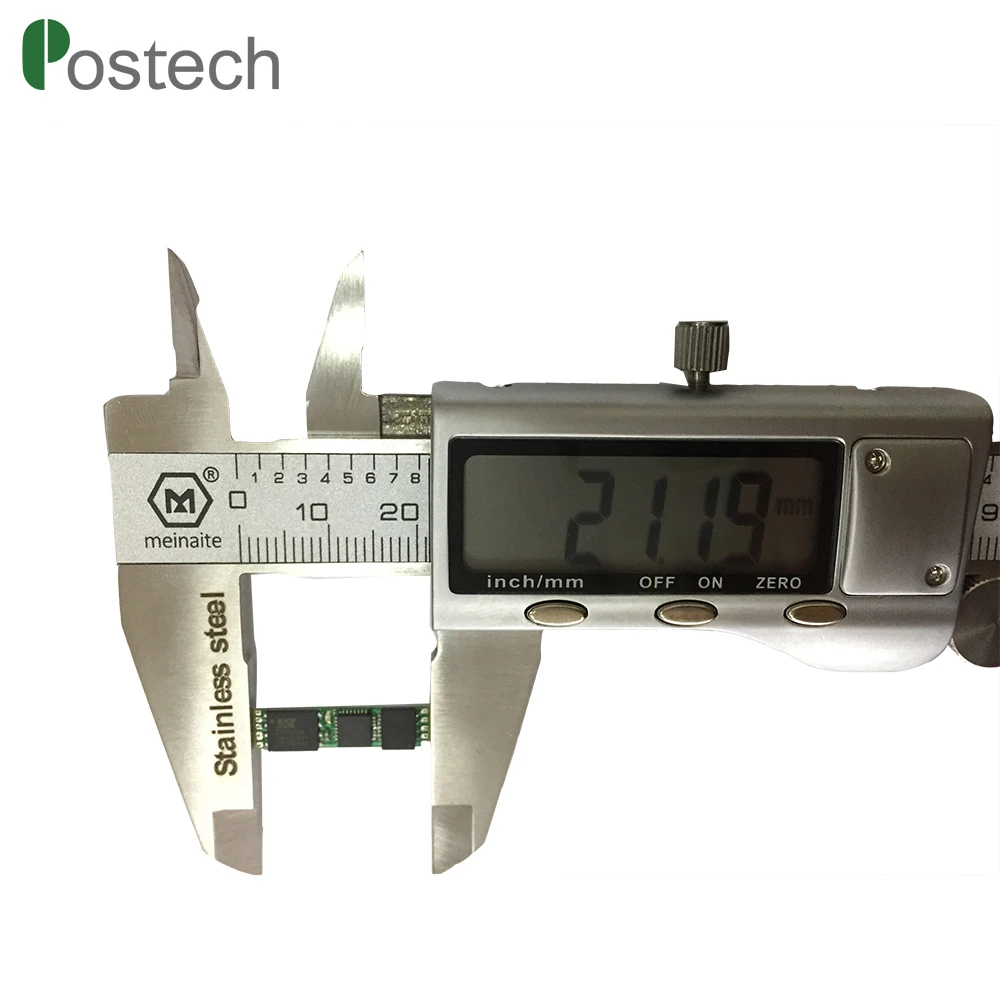

Length : 20 mm
Width : 5mm
.
Reads all 3 tracks: Track 1, track 2, Track 3
No issues with card lagging
File encryption
Date and time stamp on all files
Reads all magnetic formats: ISO, NON ISO
Swipes stored: 8000
Speed Limitations: 5 to 254 cm/s
Energy consumption: 0.06 mah
Working time with 9mAh battery: 145 h
Easy connection, no complex operations
Direct USB connection
High quality manufacture


Application:
University ID
Personal Entry cards
Driving License
Company personal ID
Transportation
Taxi Drivers payments system
Financial Transactions
Web payments
Dealers, provider’s payments

Connection:
Very easy to connect, no complex operations
Right side: 4 pads for the magnetic head (Standard, Track 1, Track 2 and Track 3)
Left side: 6 pads total: 4 pads for charging and data transfer, 2 pads for the battery
Please check out the diagrams for the correct connection plan
