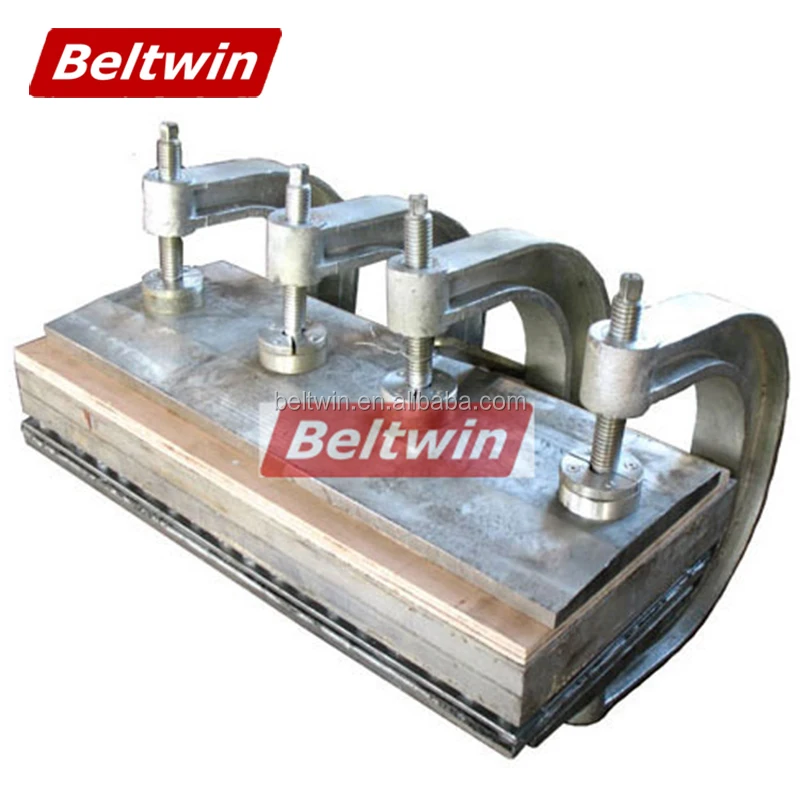

Beltwin Rubber Conveyor Belt Edge Repairs C clamp Repair Vulcanizers

   1.Convertor Belt Repairs

   2.Conveyor Belt Splicing on Steel Cord Belts

   3.Conveyor Belt Splicing,Fabric Belts,PVC

   4.Transmisiion Belts, Tangential Belt, Spindle Tape Splicing

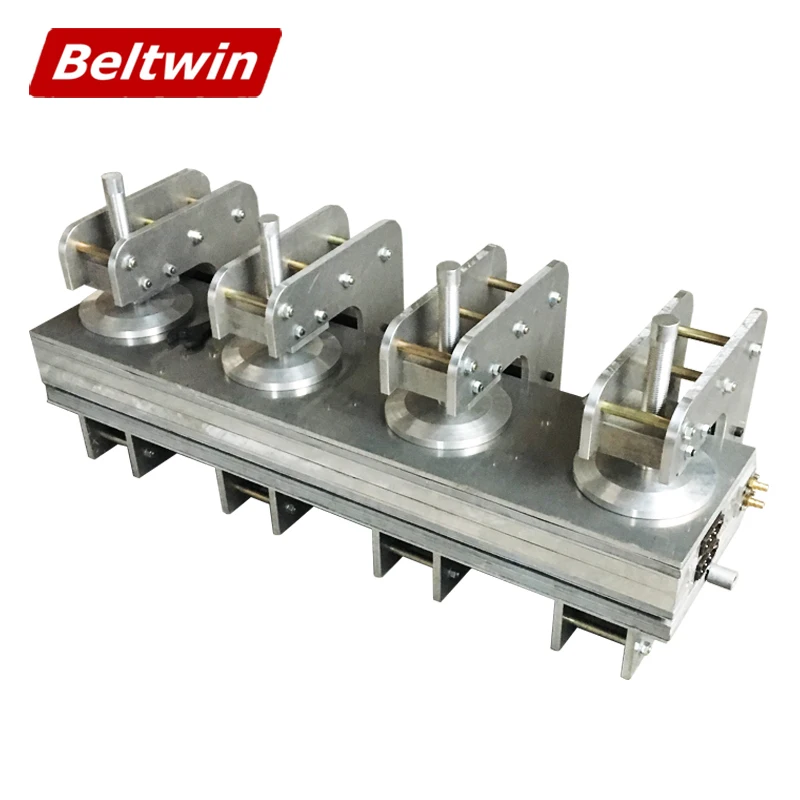

Feature: C-Clamp Repair Vulcanizers, special used for the edge-repairs of the belt. Hydraulic and Mechanical type. Also with automatic temperature and time controller.

• Portable due to the low weight with two components


• spot repairs on rubber conveyor belts


• smaller controller, also with temperature & time automatic controler


• pressure c-clamps made of aluminium alloy


• available sizes: also can make speical accords to customer's requirements


• maximum resistance to bending with minimum weight


• for conveyor belt repairs from belt edges up to belt center


• available sizes: also can make speical accords to customer's requirements
  200*800MM  200*1000MM  200*1500MM  200*2000MM
  160*800MM  160*1000MM  160*1500MM  160*2000MM

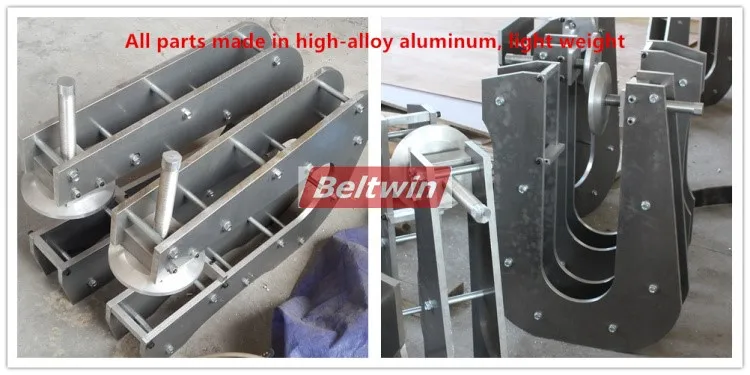

Easier operation with aluminum alloy body

_{^{1.Pressure: 0.3~0.5Mpa}}

_{^{2.Power :1.6~1.7KW}}

_{^{3.Voltage: Single phase 220V or 380V}}

_{^{4.Heating platen dimension: 350*350mm, also suitable for broken size 250*250mm}}

_{^{(Almex SSP repair presses use 300*300mm heating platen)}}

 _{^{( ACCPET OEM for special requirment )}}

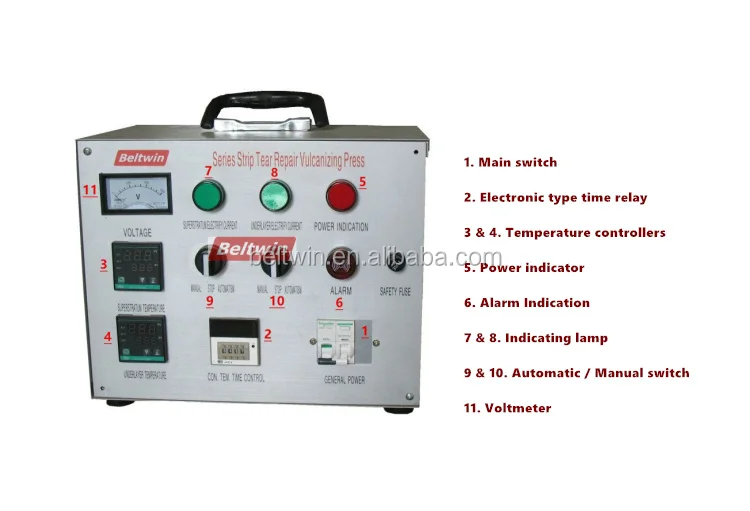

Automaitc control panel:

01) Q: Normal delivery time?

A: We have table produce line, hot sale products normally HAVE STOCK. If customized, need about 30 working days

02) Q: Will you test the machine before shipping?
A: Yes, each machine, we will install and test before shipping. And testing pressure is higher than working pressure.

03) Q: Can you print our logo or without any logo?
A: It’s no problem OEM. Before order, please send us the clear document of your logo, also the authorization paper to allow us to print your logo.

04) Q: Whether can visit your workshop and to see how to process the machine?
A: No problems, you are always welcomed to visit us, before order or before shipping.If need to see how to process the machines, please inform us what type machines you want to see, we will try to prepare the similar machines ready before you come.

05) Q: What's the payment term?

A:Normally we accept T/T 30% as deposit before production, pay the rest before delivery.

Credict Assurance is the best choice. And other methods of payment need negotiation.
