900 2100 GSM UMTS усилители сигнала мобильного телефона/ретранслятор для внутренних помещений с двойным жк дисплеем
- Category: >>>
- Supplier: Shenzhen Xinlun Communication Technology Co. Limited
Share on (60698123474):
Product Overview
Description
Product Description
900 2100 GSM UMTS Dual Band Mobile Phone Signal Booster/Repeater
A mobile phone signal repeater provides the ultimate solution in any area where celluar commnuications cannot work well due to leak of signals.The repeater device features easy installation and operation,build-in door antennaand no interference.it could also improve indoor electromagnetism enviroments,protract cellular battery life and reduce radiation of cellphones.A mobile phone repeater is ideal use for house,home,office use.
Technical specifications:
| Model No | XL-GW-900-2100-27 | ||
| Parameter data | Uplink | Downlink | |
| Frequency Range | GSM+WCDMA | 890~915/1920~1980MHz | 935~960/2110~2170MHz |
| Output Power | 23 ±2dBm | 27 ±2dBm | |
| Gain | 65 ±2 dB | 70±2dB | |
| Bandwidth | 25M+60M | ||
| Ripple in Band | GSM≤5dB,UMTS≤5dB, | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36dBm | |
| 1GHz~12.75GHz | ≤ -30dBm | ||
| Intermodulation Products | 9KHz~1GHz | ≤ -36dBm | |
| 1GHz~12.75GHz | ≤ -30dBm | ||
| VSWR | ≤3 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC:100~240V, 50/ 60Hz;DC:5V 2A | ||
| Power Comsumption | <6W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Dimensions (D*W*H ) | 238*182*22(mm) | ||
| Net weight | 1.2Kg | ||
| Packing size (D*W*H ) | 285*185*48(mm) | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10℃ ~ +55℃ | ||

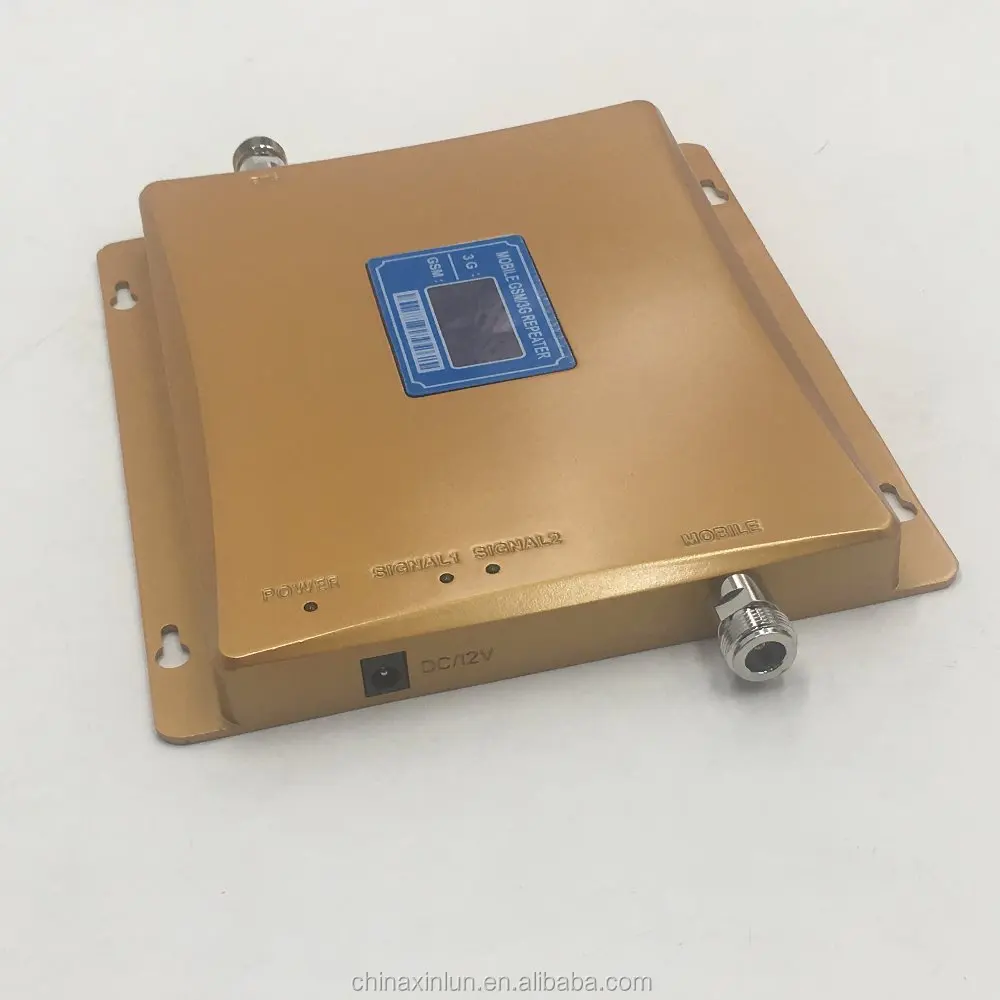

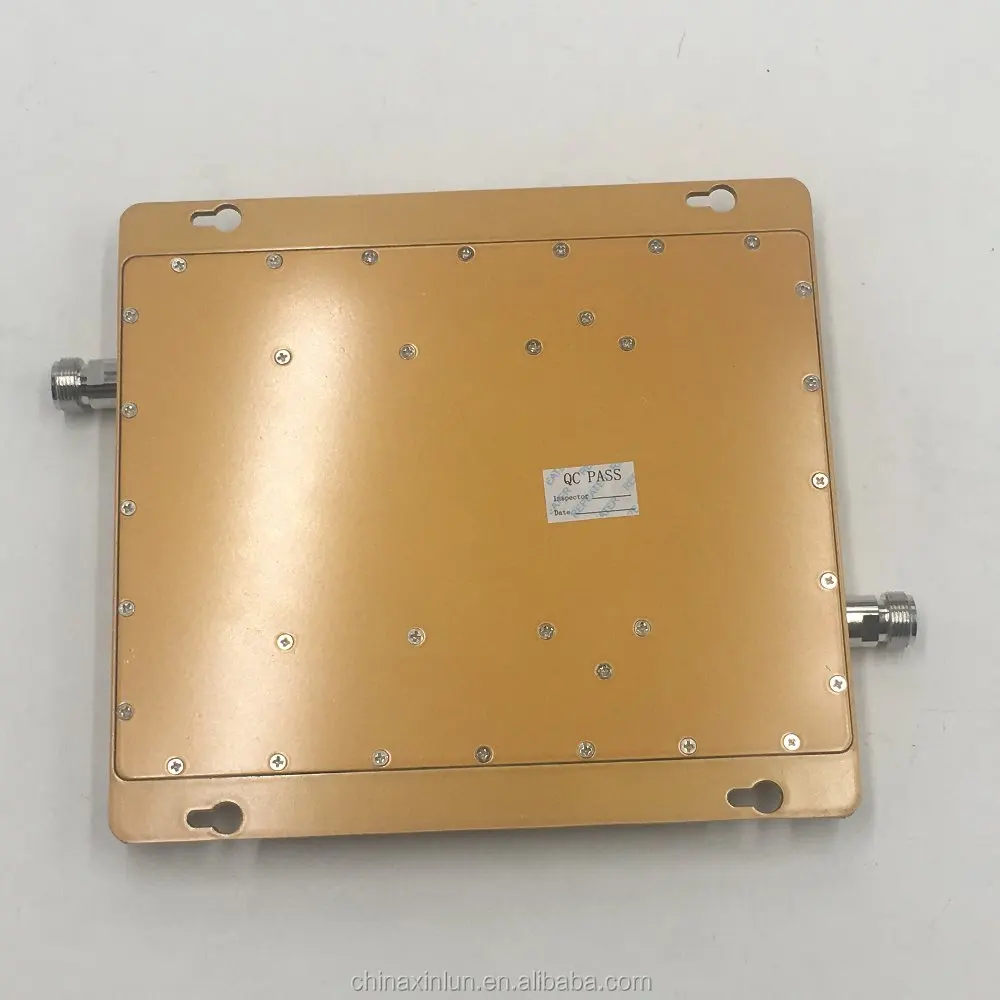

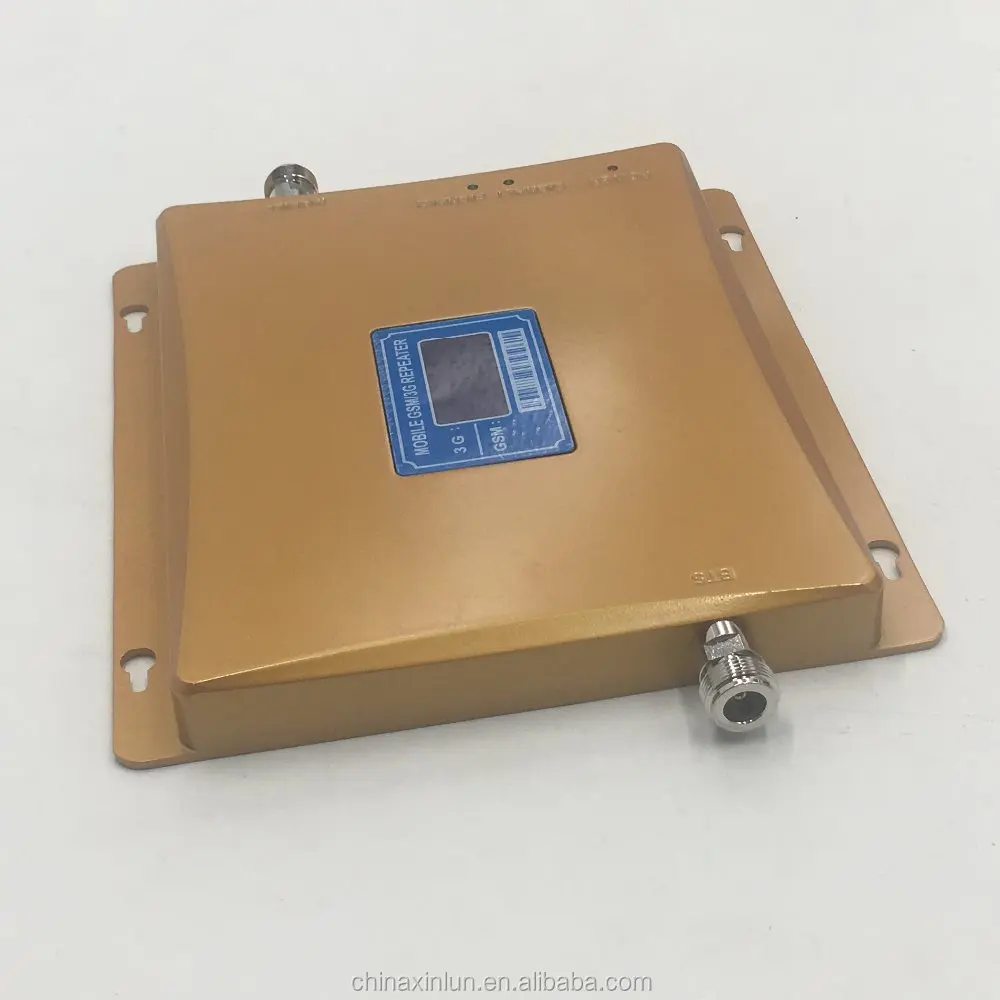

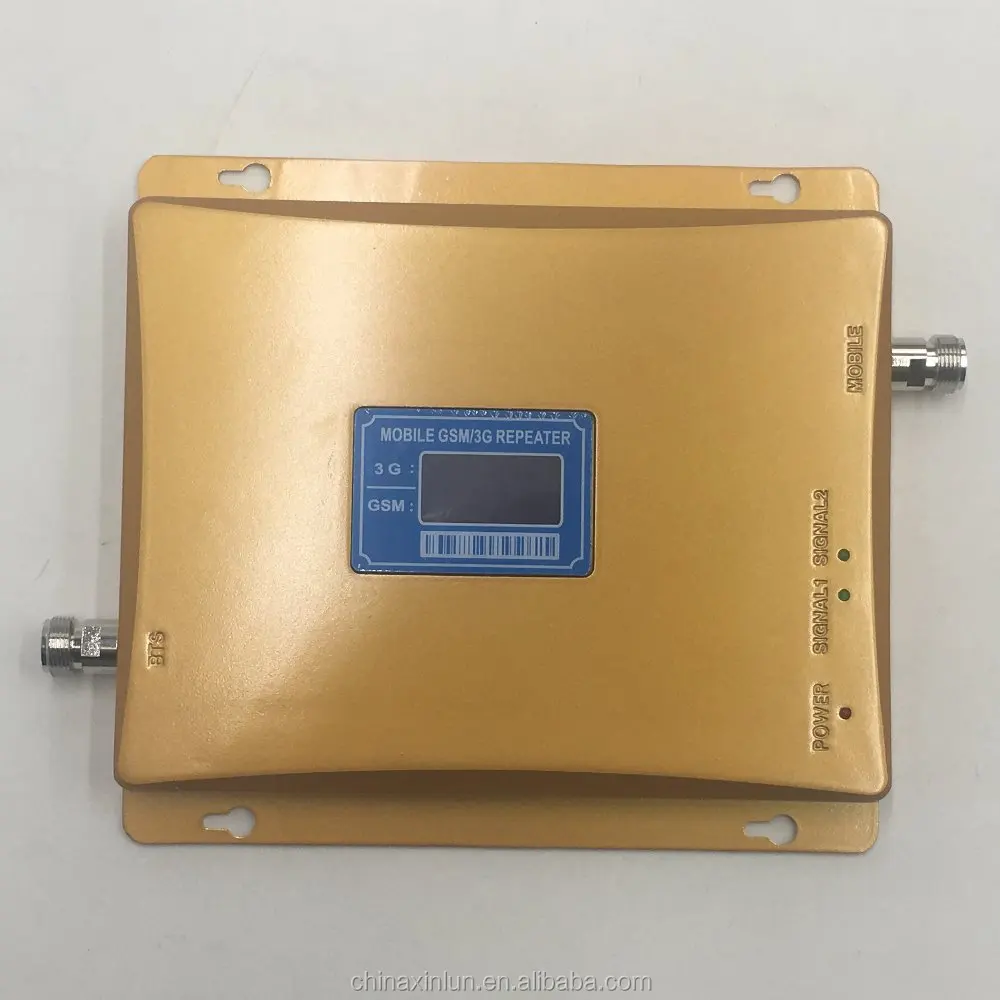

Detailed Images

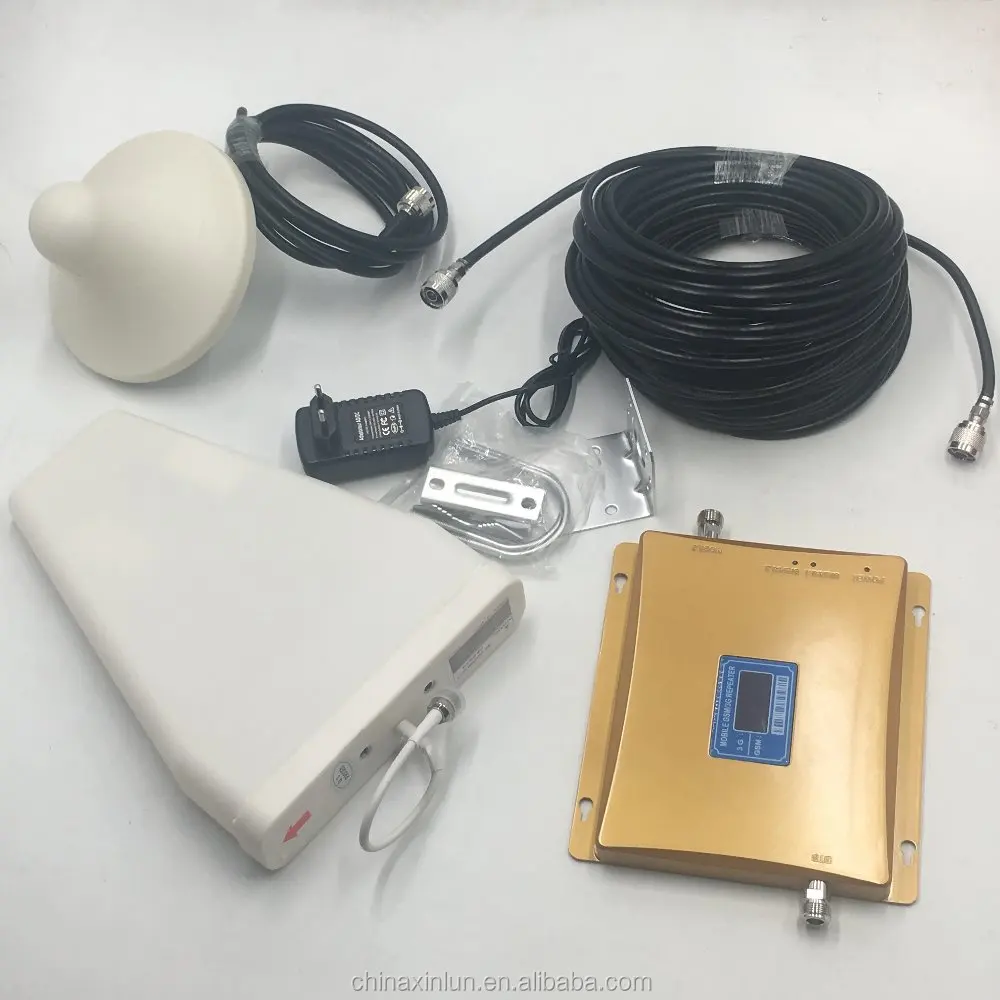

Accessories
a.one dual band signal booster;
b.one indoor antenna;
c.one outdoor antenna;
d.10meter cable and 3meter cable;
e.User manual;
f.power adapter.
Packaging & Shipping
1.Packaging:paper box ;
2.Delivery time:within 3 days after paid money;
3.Shipping ways:DHL/UPS/FEDEX/EMS etc;
4.Payment ways:T/T,Western Union,Paypal,Credit Card.
Our Services
1.Your inquiry related to our products or prices will be replied in 24hours;
2.Well-trained and experienced staffs to answer all your inquiries in fluent English;
3.Monthly output over 2000pcs;
4.Strong package;
5. Sample order in small quantity is acceptable;
Company Information
We design, develop, manufacture, market and service Signal Amplifiers systems for cell phone, with our innovative, dedicated and experienced team we can provide high quality products and solutions you want from your amplifier suppliers.
