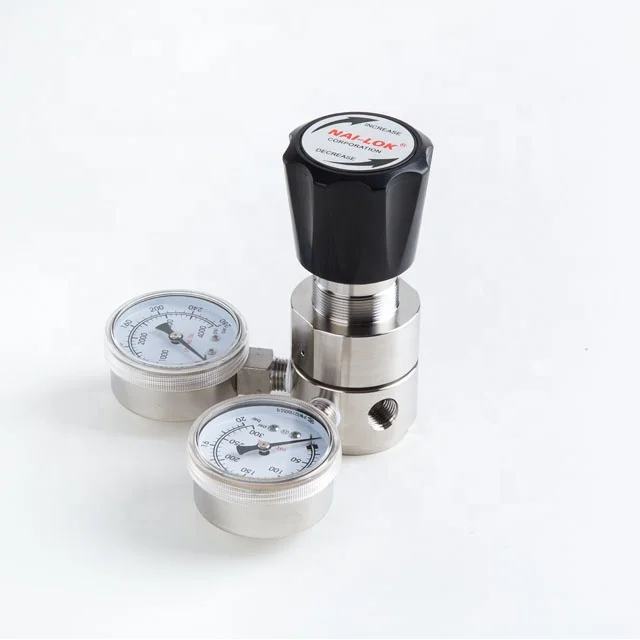

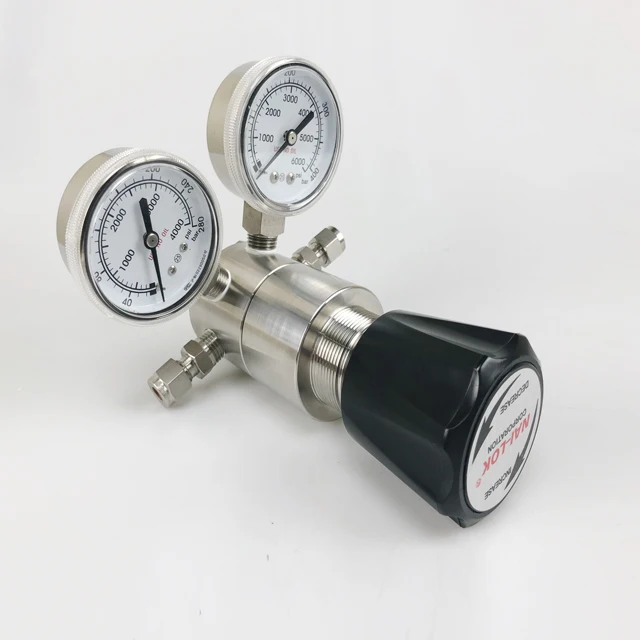

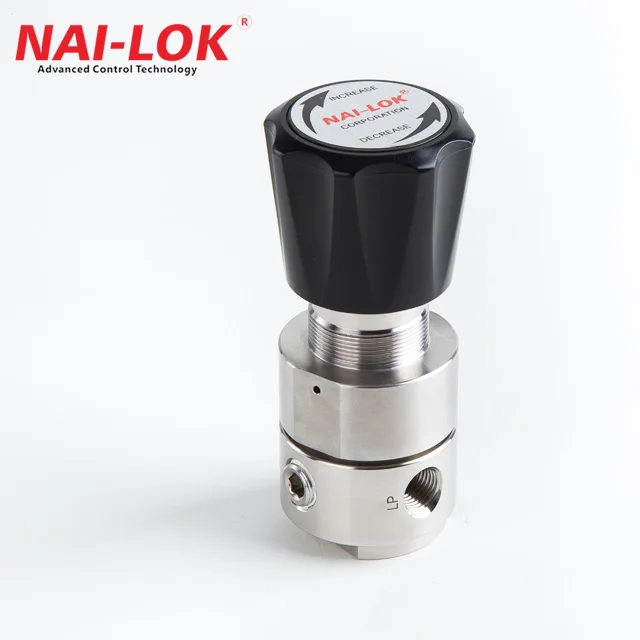

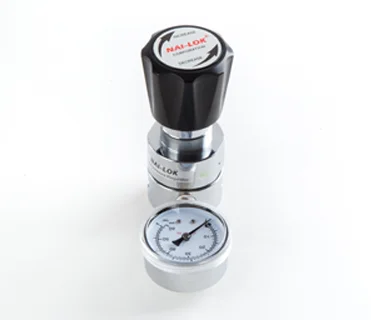

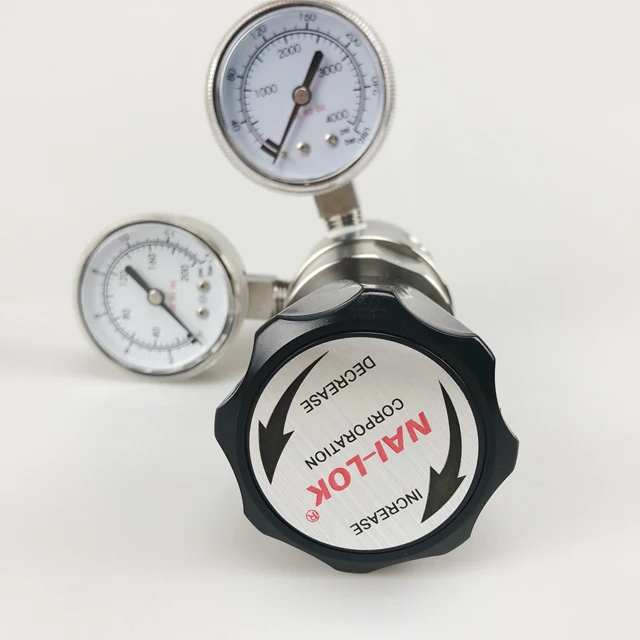

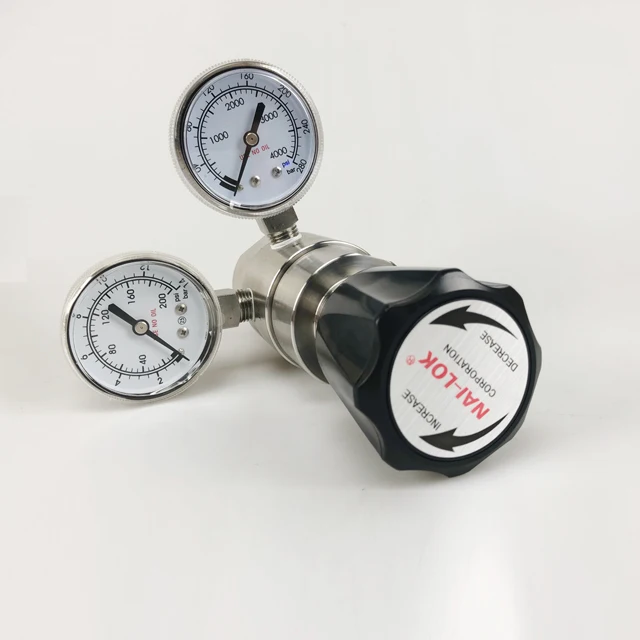

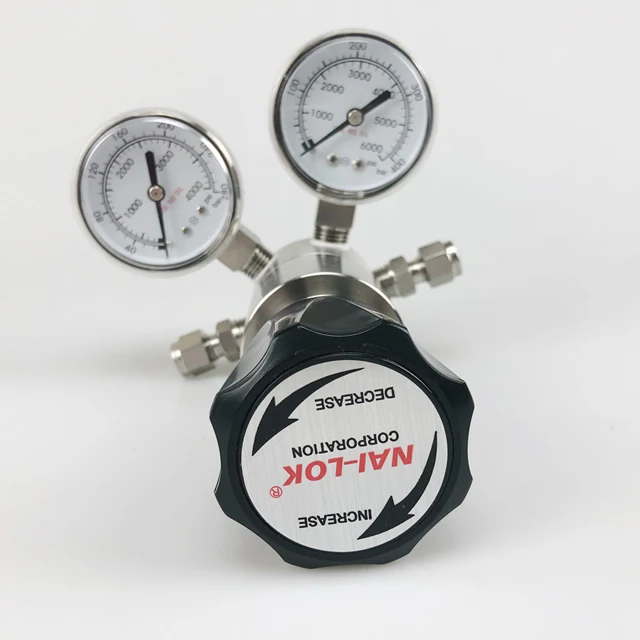

SS316 Nitrogen helium argon gas pressure regulator

Share on (60698204678):


Price:$98.00 - $104.00

Quantity:


Product Overview

Description


Product Description
\t
Product Name
\t
NR11 series pressure regulator
\t
Maximun Inlet Pressure
\t
400,3500 psig(27.6, 241 bar)
\t
Outlet Pressure Ranges
\t
0-25,0-50,0-100,0-250,0-500 psig(0-1.7, 0-3.4, 0-6.9, 0-17.2, 0-34.5 bar)
\t
Design Proof Pressure
\t
150% maximum rated pressure
\t
Leakage
\t
Internal: Bubble-tight
External:Design ro meet≤2×10-8atm cc/sec He
\t
Operating Temperature
\t
-40℉ to 165℉/-40℃ to 74℃
\t
Flow Capactiy
\t
3500 psig/241 bar Inlet:CV=0.06
400 psig/27.6 bar Inlet:CV=0.15
\t
Maximum Operating Torque
\t
30 in-lbs/3.4N•m

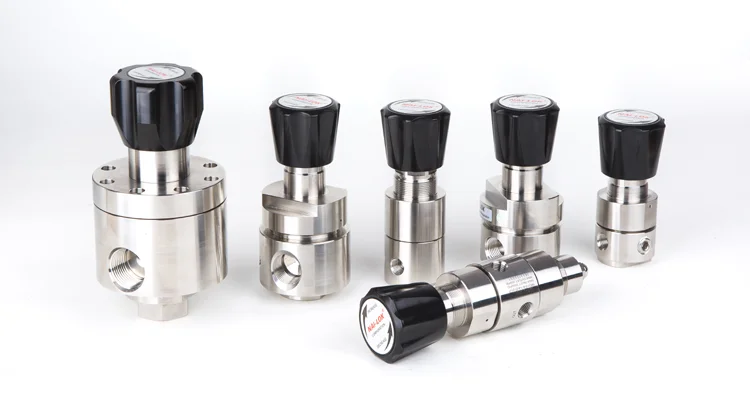

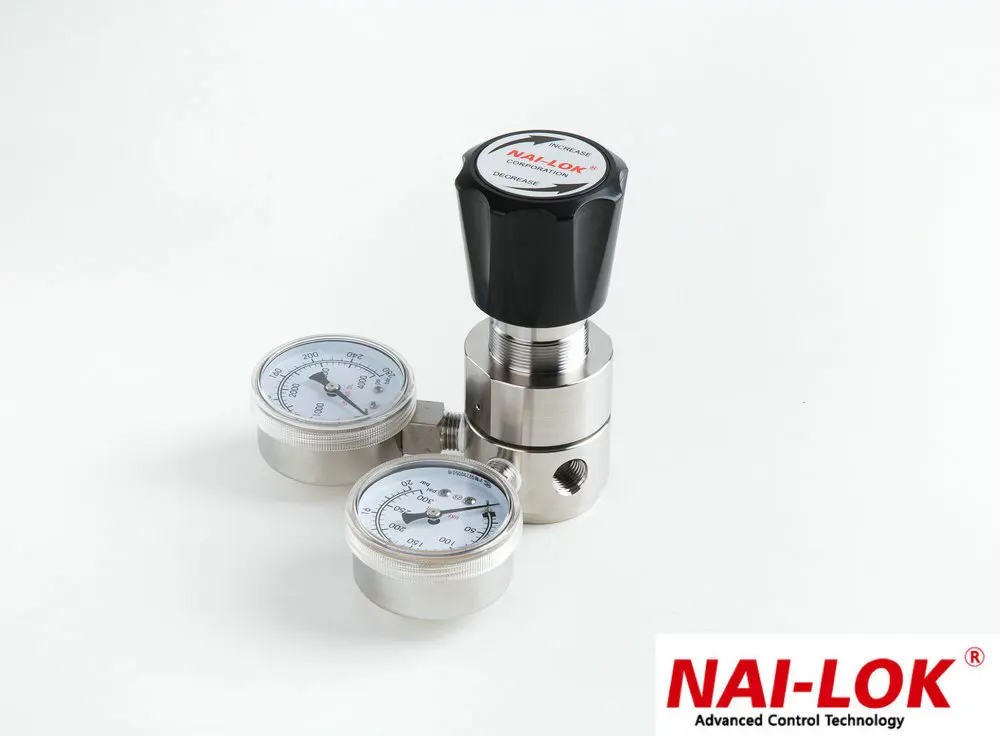

Products Show
Ordering Information
\t
Basic
Series
\t
 Body  Material
\t
Outlet
Pressure
\t
Inlet pressure
\t
Port Type
\t
NR11
\t
6-316
Stainless
Steel
\t
0 - 0-20psig
      0-1.4bar
\t
1 - 3500psig
      241bar
\t
3 - 3 ports

\t
1 - 0-50psig
      0-3.4bar
\t
2 - 400psig
      27.6bar
\t
4 - 4 ports

\t
2 - 0-100psig
      0-6.9bar
\t
\t
\t
3 - 0-150psig
      0 - 10.3bar
\t
\t
\t
5 - 0-250psig
      0-17.2bar
\t
\t
\t
D - 0-300psig
       0 -20.7bar
(Dome Load only)
\t
\t
\t
Series
\t
NR11-6-1-1-4
Packing & Delivery

Packing Details  : Wood,carton

Valves are thoroughly cleaned and degreased and individually packed in sealed polyethylene bags.

Delivery Details : 2-15 days after order


Our Quality
Strict test standards

Strictly according to International standards.

100% factory test

 1. leakage test
 2. pressure test



 Customized products

We have a good research and development team with rich experience.

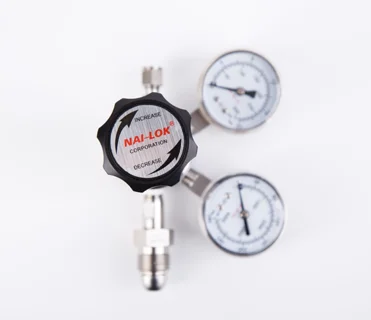

Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Our Company

Factory

Our Factory

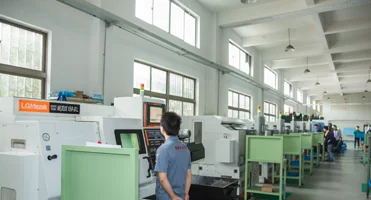

Workshop
