280 Flat DC Motor 13.5V 10000rpm

Product Overview

Description

FT- 280  12V 13.5V 24V 280 Flat DC Motor 10000rpm

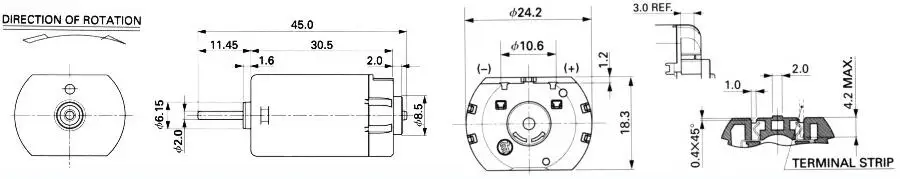

DRAWING (mm)



SPECIFICATIONS

The specifications are for reference only. Contact us for customized data.

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Power	Torque	Current
	V	mA	rpm	mA	rpm	gf.cm	W	gf.cm	mA
FT-280PA	12	≤90	10500	≤540	9000	42	3.96	≥295	≥3250
FT-280PA	24	≤40	8900	≤190	7360	34.5	2.66	≥200	≥920
FT-280SA	12	≤75	12300	≤500	10700	34.7	3.89	≥268	≥3400
FT-280SB	12	≤110	13100	≤780	11480	48.5	5.83	≥393	≥5560
FT-280SB	13.5	≤100	12650	≤550	10750	45.5	5.12	≥300	≥3080



CERTIFICATES: CE & ROHS



FAQ

Q: Can you make a motor with custom specifications?

A: Yes, actually this is what we are good at.

Q: Can you change the output shaft of the motor?

A: Yes, no problem.

Q: Does the motor rotate in both directions (CW and CCW)?

A: Yes, it does.

Q: What is delivery time for a sample?

A: It depends, normally 1~2 weeks.

Q: What is delivery time for mass production?

A: 3~4 weeks if there is no additional requirements.

Q: Do you have quality control?

A: Yes, it is a must. We do 100% inspection on all motors.

Q: Do you have warranty?

A: Yes, one year.

Q: Are you a real factory?

A: Yes, we are.

Q: How much does a sample cost?

A: We don’t expect to make any profit from samples. Please contact us and we’ll let you know.

Q: What are your payment terms?

A: 30% deposit, balance due before shipment or against shipping documents.

Q: Do you accept PayPal?

A: Yes, but for samples and for small amount of money only.

Q: How do you handle shipment?

A: a) For samples and small batches, we recommend FedEx and UPS express door to door. It is very fast, safe and convenient.

b) For mass production, we recommend shipment by sea and by airfreight and go with FOB/CIF/CFR terms.

Q: I don’t know too much about motor, can you recommend me a motor?

A: Sure. Normally we will ask you some questions regarding application, dimensions, rated voltage, speed at load/no load, torque at load/stall. i.e. a toy motor with diameter 24mm, 12V, 6,000rpm and 20gf.cm at load.

Q: How do I contact you?

A: Skype me, call me, or email me directly by scanning the QR code.



Or please fill in the form below.
