ADL 1600mm automatic pneumatic cold laminator ADL 1600C5
- Category: Office Equipment >>>
- Supplier: Zhengzhou Audley Digital Control Equipments Co. Ltd.
Share on (60698262223):
Product Overview
Description

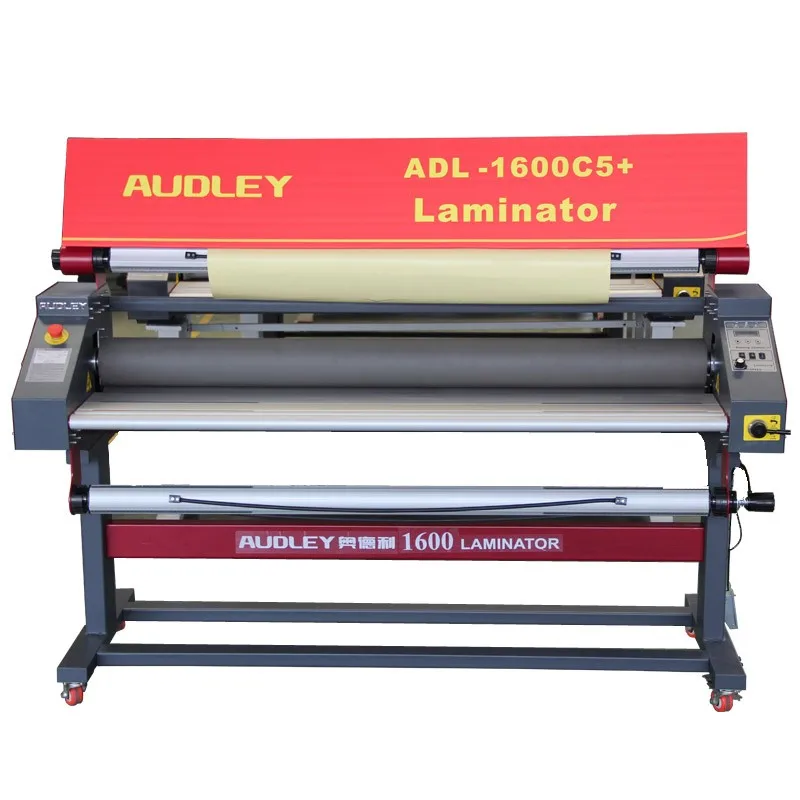

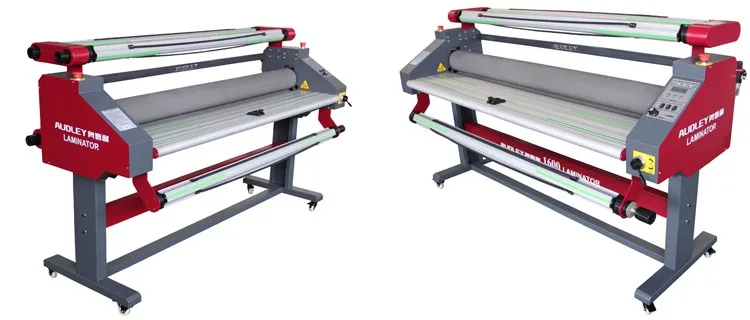

Audley 1600mm automatic pneumatic cold laminator ADL-1600C5+
Technical Parameters | ||||||
Product name | Cold Laminator | |||||
Model | ADL-1600C5+ | |||||
Max laminate width | 1520mm | |||||
Max laminate thickness | 25mm | |||||
Laminate speed | 0-8m/min | |||||

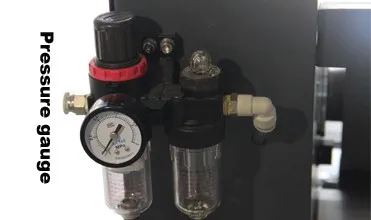

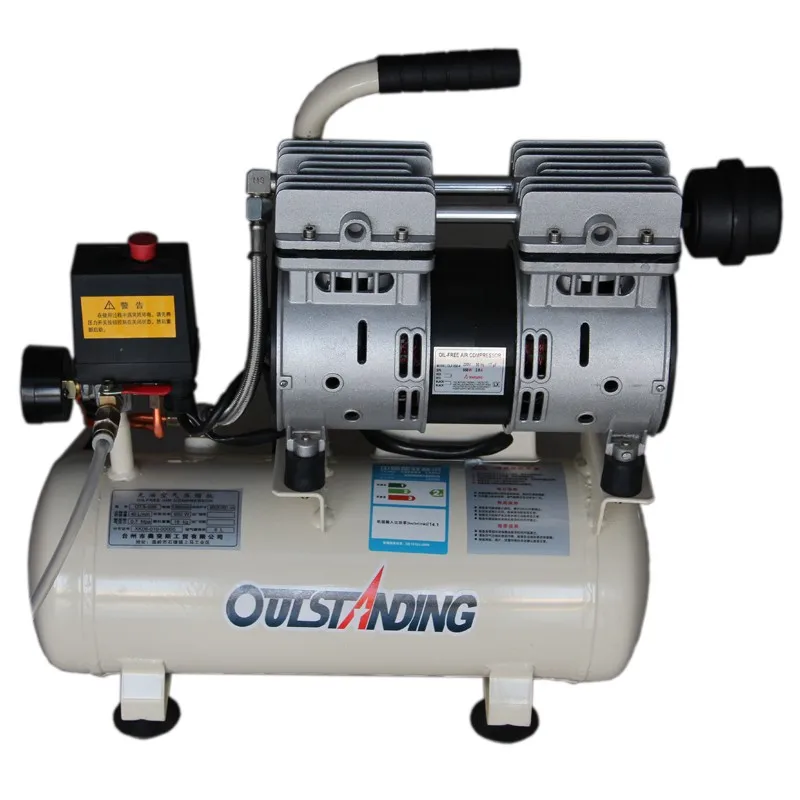

Enhance way | Pneumatic(air pump) | |||||
Working way | Auto | |||||
Rated input power | 0.2-0.8kw/h | |||||
Continuous power | 2200W | |||||
Temperature range | 60℃ | |||||
Rated input voltage | AC220V | |||||
Preheating time | 10-15min | |||||
Heating way | Infrared heating | |||||
Nw/Gw | 171kg/238kg | |||||
Packing size | 215*74*74cm | |||||
Product Application:
Can be widely used indoor printing work. Laminate membrane on wariety of materials such as printing paper, photographic paper, reflective flex, indoor photo, outdoor car posted.
Reduce the cost, improve quality: At least to save one worker 50 degrees cold framed, no bubbles.
High efficiency coated film, high yield: Coated the whole volume 50 m, avoid sliding problem, single operation or unmanned operation, production rate up to 400 square/hour.
Thin back glue not wrinkle, brunet picture of the prison coated film.
Main Features:
1. With infrared detection auto cut

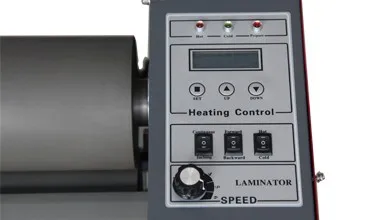

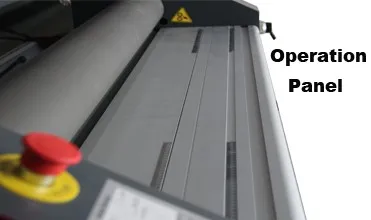

2. Easy useing panel, durable and speed laminating.
3. Infrared dection: auto detection, protect the operator and machine

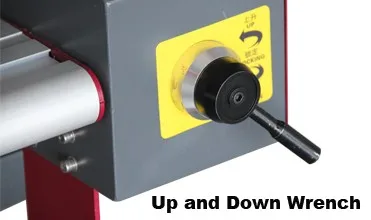

4. Auto cutting system, up and down, right and left moving; and Fine tune.
5. Anti-wrinkle device: maximum reduce wrinkle
6. With manual inching device, one people operation
7. 8m/min
Packaging | ||
Size | 215 (L) * 74 (W) * 74 (H)cm | |
Weight | 200kg/214kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request. | |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
