Product Description
Features of hot fix rhinestone machine:
1. Can fix different kinds of beads with different colors, with a highly improved efficiency, and no damage to the material.
2. Infrared positioning; Positioning accuracy; Sticking firmly
3. Different material parameter setting is one of the characteristics of this machine, related parameter can be set according to different material to reach the best rhinestone fixing effect
4. Rhinestone fixing simulating function: can do simulating fixing of the chose design, the speed can be slowed down or quicken, and also can be paused
5. Fixing effect testing function: can check the rhinestone fixing effect by moving the fabric manual and do semi-auto fixing
6. A few labor cost can achieve mass production, high production efficiency.
Technical parameters of crystal rhinestone machine for sale:
| Model | DS-1M150 (1plate) | DS-1M150S (2plate) |
| Voltage(V) | 220V | 220V |
| Power(W) | 300W | 300W |
| Weight(KG) | 80KG | 88KG |
| Production capacity | 150~200rhinestone/min | 150~200rhinestone/min |
| Packing size (cm) | 60 x 105 x 64 | 114 x 64 x 74 |

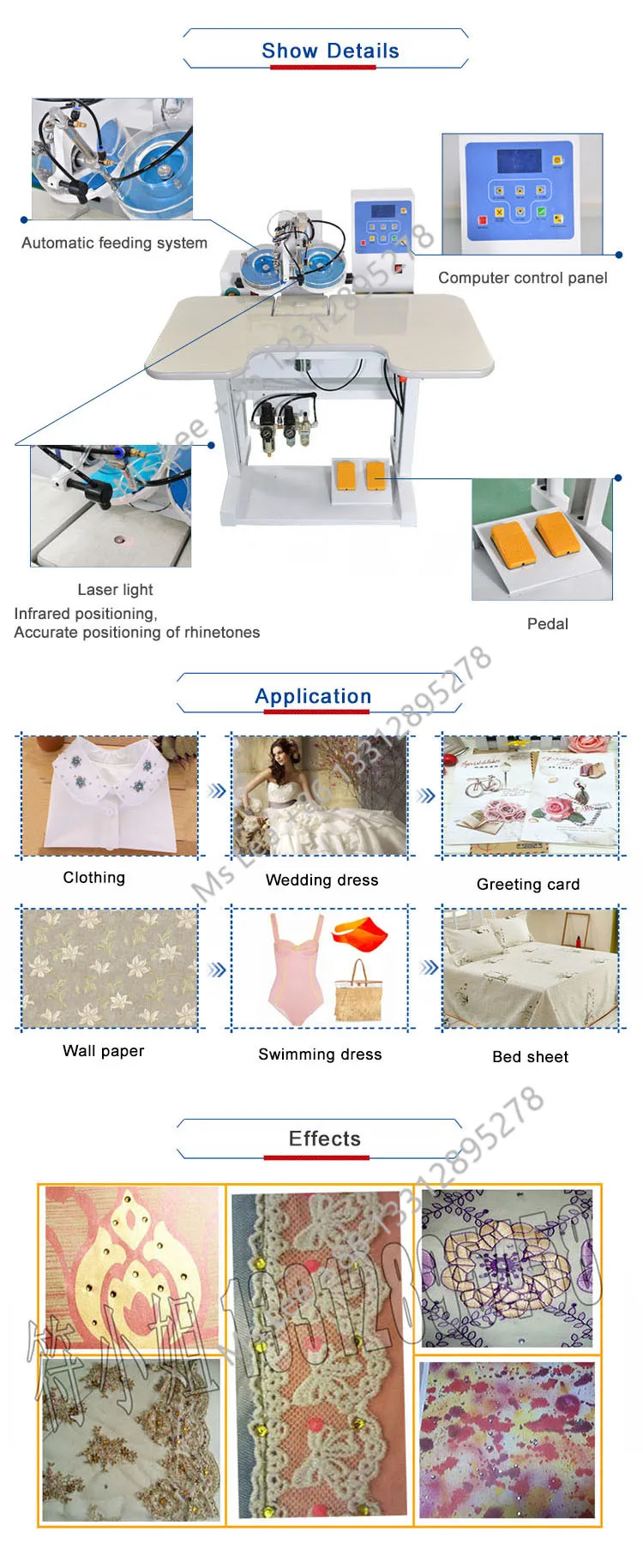

Product details of hotfix rhinestone:
1. Powerful and durable ultrasonic system
2.Equipped with laser marking light
3. Equipped with new rotation system
4. frame motor : step motor
5. Cylinder : germany fst
6. Heating system: ultrasonic
7. Air pressure: 8KG
Working theory:
Through ultrasonic heating principle, picking up rhinestones by Pneumatic control method.
At the same time move the material accordingly by hand after the red light locate, then
the machine will fix rhinestones on the material quickly. Working speed can reach 130-150pcs rhinestones per minute, and will not fall off after being cleaned by water.
