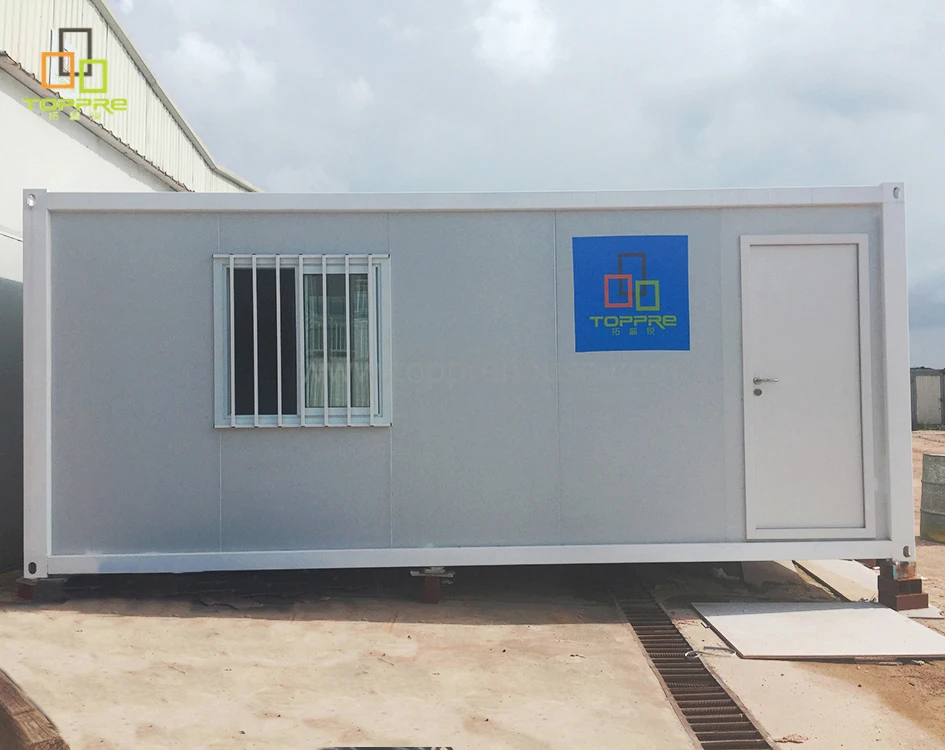

20 футовый легкий контейнер Бангладеш с защитой от тайфуна, цена на современный умный сборный стальной каркас, Роскошное Здание квартиры
- Category: >>>
- Supplier: Dongguan Toppre Modular House Co. Ltd.
Share on (60698301408):
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t

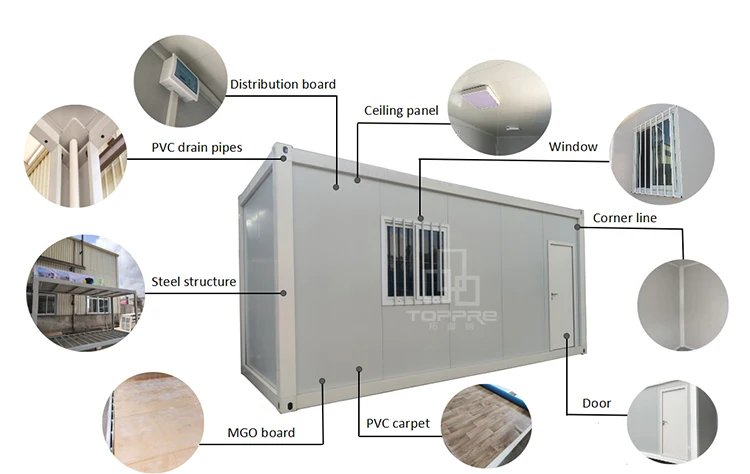

Product Paramenters
No | Material | Specification | ||
1 | Corner Column | 3mm steel flanging plate Galvanized +powder coating | ||
2 | Bottom Steel chassis girder- Short | 2.5mm C steel welded plate +5mm corner castings Galvanized +powder coating | ||
3 | Bottom Steel chassis girder- Long | 2.5mm C steel welded plate Galvanized +powder coating | ||
4 | Bottom Steel chassis secondary beam | RHS 80*40*1.2mm / 1.8mm Galvanized+powder coating | ||
5 | Top Steel chassis girder-Short | 2.5mm C steel welded plate with gutter Galvanized+powder coating | ||
6 | Top Steel chassis girder-Long | 2.5mm C steel welded plate Galvanized +powder coating | ||
7 | Top Steel chassis secondary beam | RHS 80*40*1.2mm/1.8mm Galvanized+powder coating | ||
8 | External &Internal Wall&Internal door | 50mm EPS sandwich panel 0.376mm PPGI Density:10kg/m³ | ||
9 | Roof | 0.476 Steel sheet | ||
10 | Galvanized hat keel | 25mm | ||
11 | Ceiling | 0.5mm steel sheet + galvanized flanging plate | ||
12 | Roof insulation | 100mm Glass wool Density:12kg/m³ | ||
13 | PVC Sliding Window | Single glass or double glazed 1130mm*1100mm | ||
14 | Door | Security door 840*2035mm or sandwich panel door 800mm*2000mm with handle,hinge,hardware | ||
15 | Waterproof Flooring | MGO Board 1200*2205*18mm | ||
16 | PVC flooring | 1.6mm | ||
17 | Fittings | Hexagon bolt,self tapping screw silcone structural adhesive, nut, Polyurethane foam rubber,etc. | ||
18 | Angle line | PVC corner line / PVC negative angle line | ||
19 | PVC drainage pipe fitting | PVC drain pipe, PVC reducer | ||
Unique waterproof design
Our units feature a four-side inner drain system make the water easily to flow out.

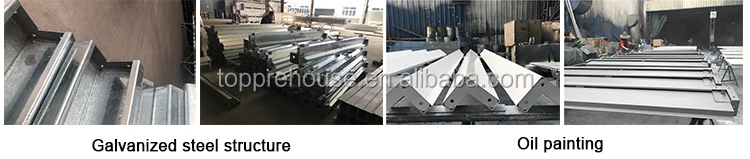

Rust-proof steel structure
All of our column, beam, purlins are galvanized+oil painting, to make sure the steel structure are rust-proof and beautiful.
Chareterstic:
*Easy install---4 worker can finish 1 unit in 6 hours without crane or forklift!
*Save transportation fee---1 X 40HC can hold 14 units container house!
*Anti-earthquake Structure---Our premium quality structural steel frames and building materials are selected to maximize safety and durability of each houes.
*Environmental protection---Our container house can be recycled and do not harm environment!
Our Advantages

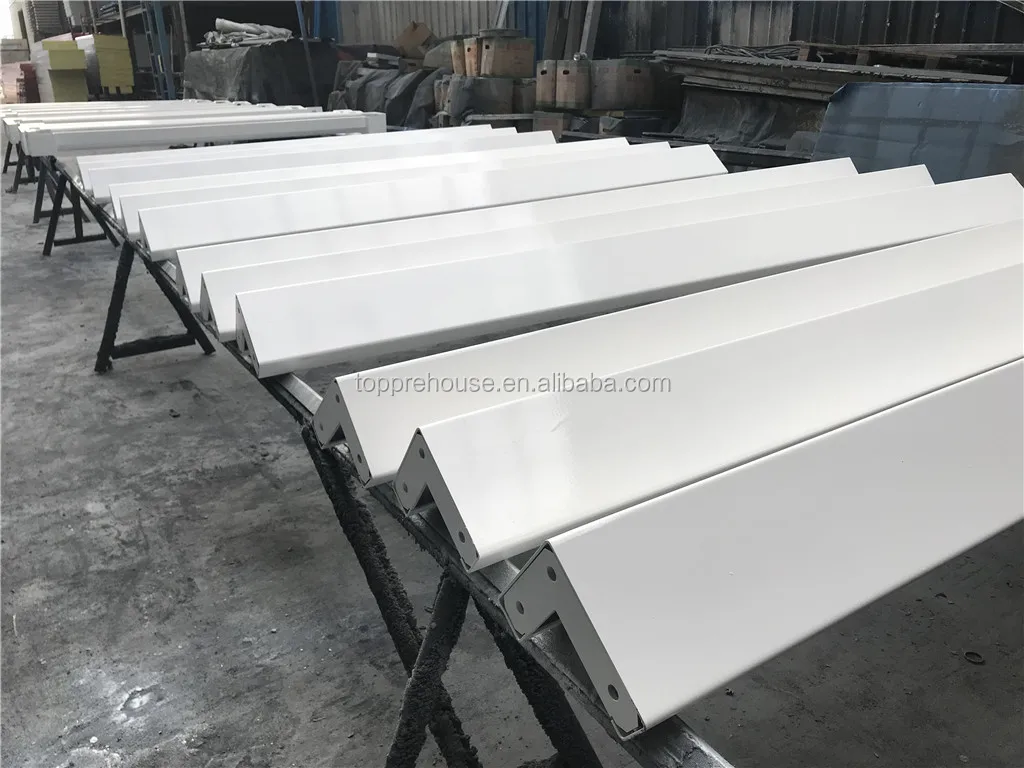

Strong steel structure
All the steel structure of our container house is strong Q235 steel frame which is galvanized and oil painting. Anti rusty and beautiful appearance.

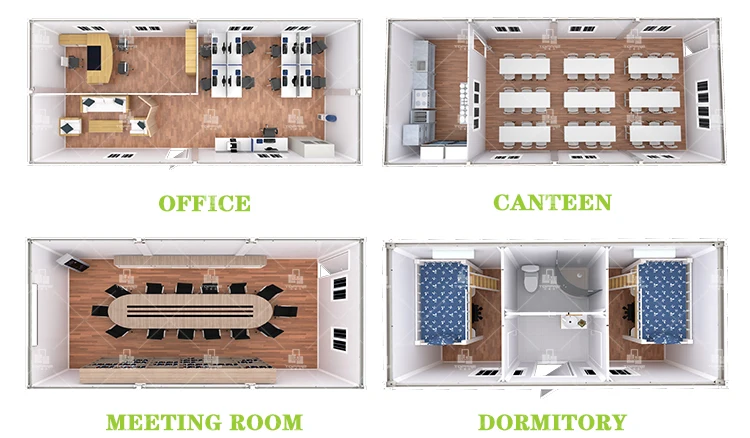

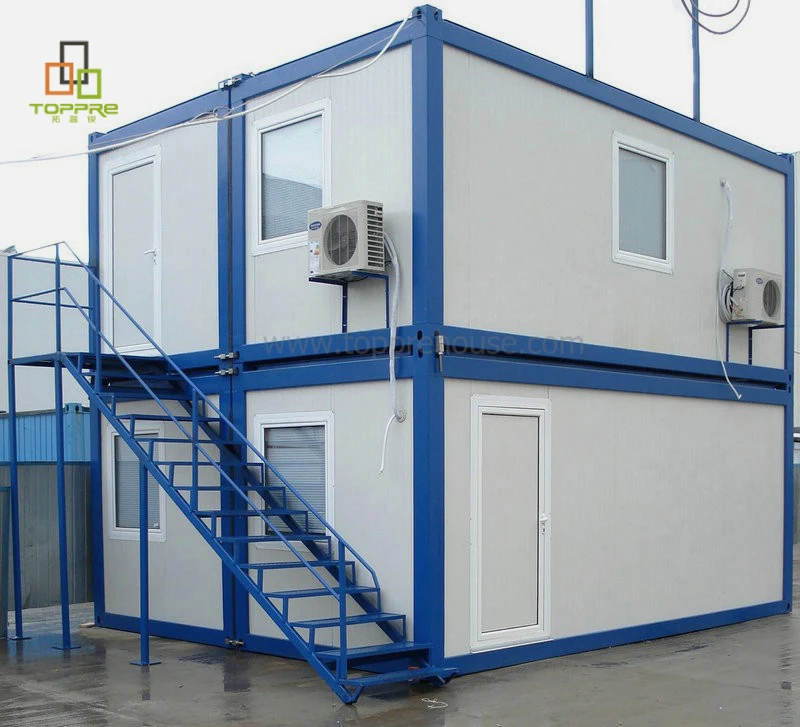

Can be Combined
It can be combined into a large space, so it can be widely used for office, school, dormitory, clinic, hospital etc.

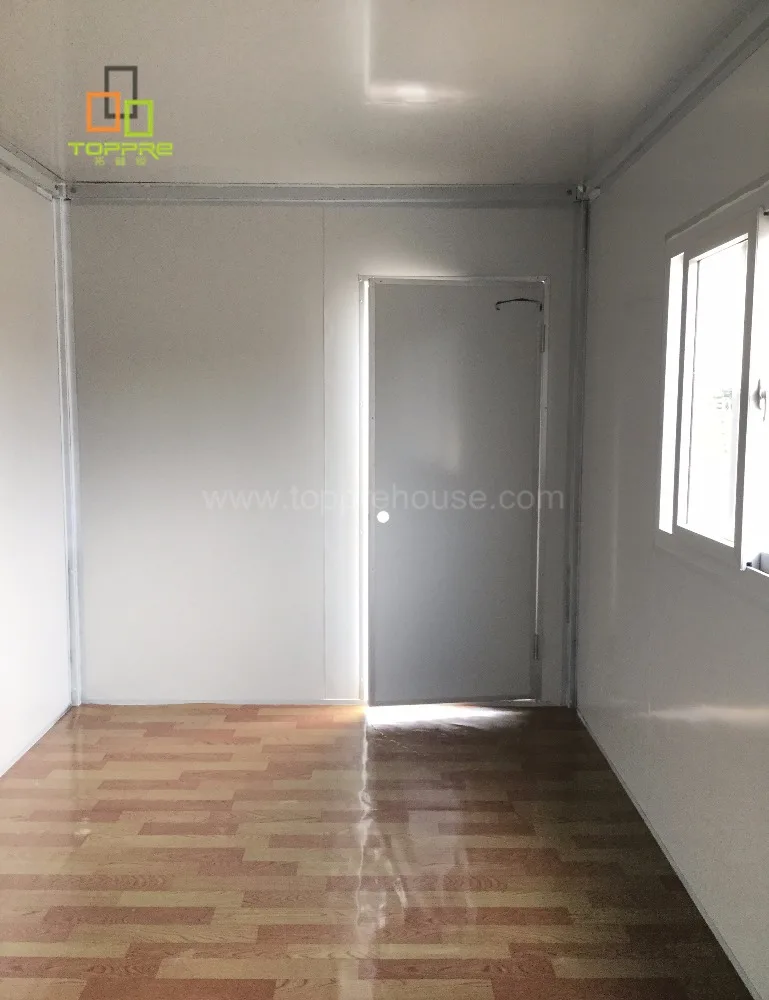

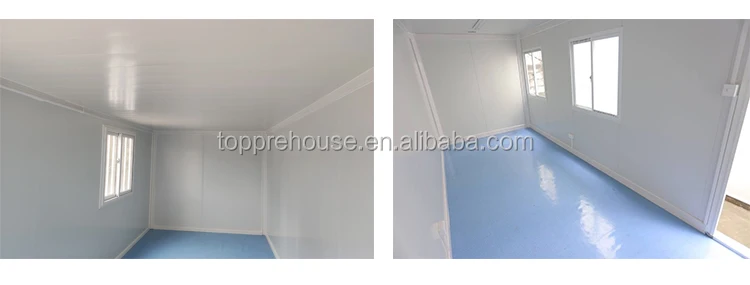

Large interior size
The interior size of our standard container house is 5.655m*2.235m*2.23m(L*W*H).All the steel structure is hidden inside the walls.

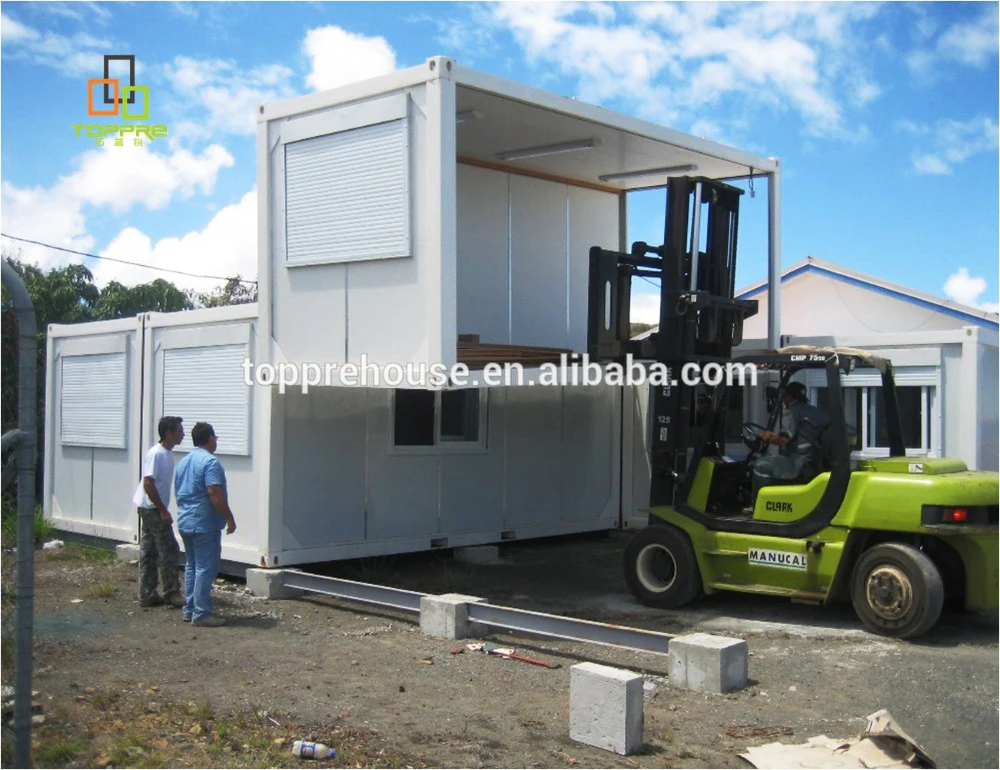

Save transportation fee & Easy installation
Our container house can hold 14 units in 1*40HQ.
Our container house use bolts for assemble, no welding, no crane, no forklift! It's easy to install, 4 workers can install 2 units a day!

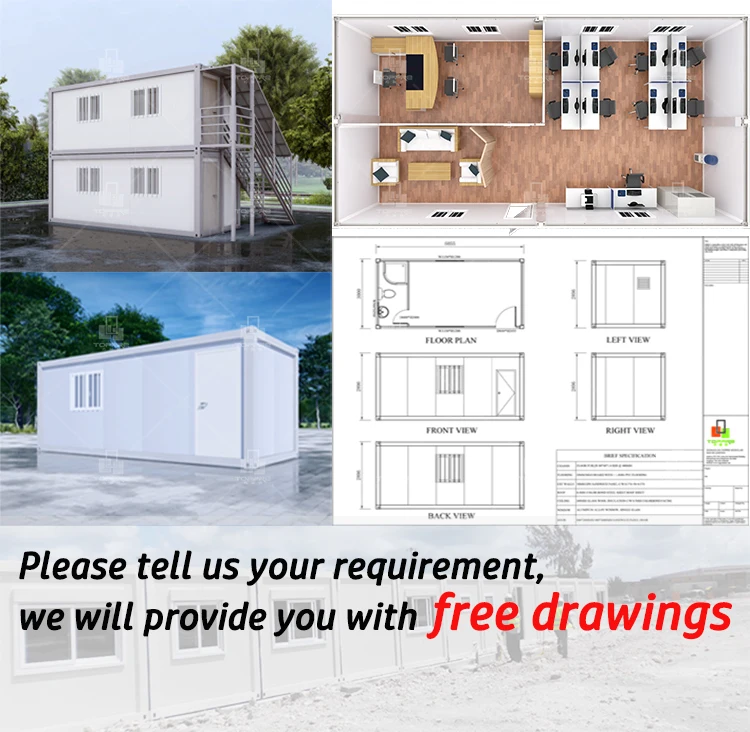

FOR MORE DESIGNS, PLEASE CONTACT US | ||||||

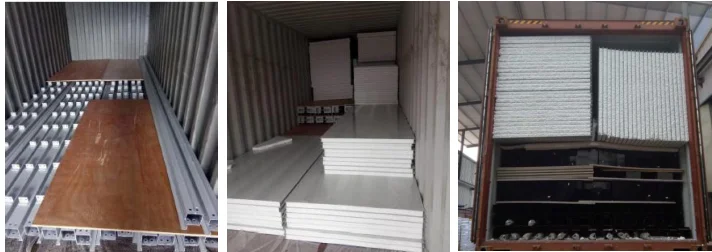

Packing & Delivery
HOT SALE
Container House
Cheap and customized container house

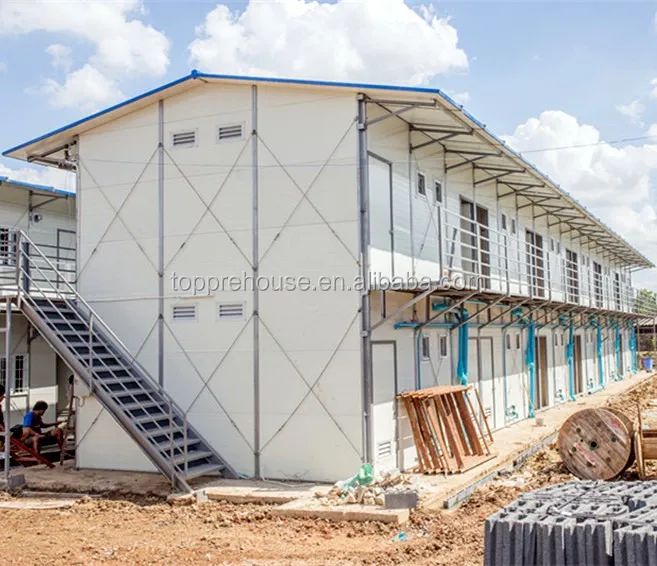

Sandwich panel house
Low cost labor camp, site office

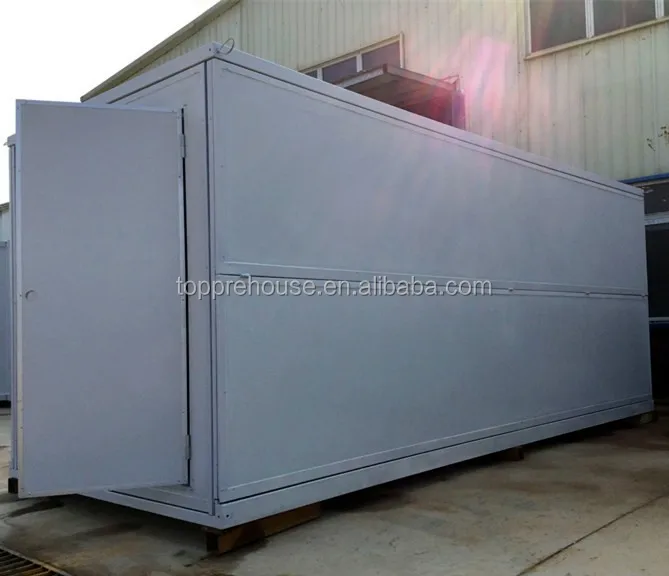

Folding container house
2.45*5.8*2.45m, 15 mins finish installation

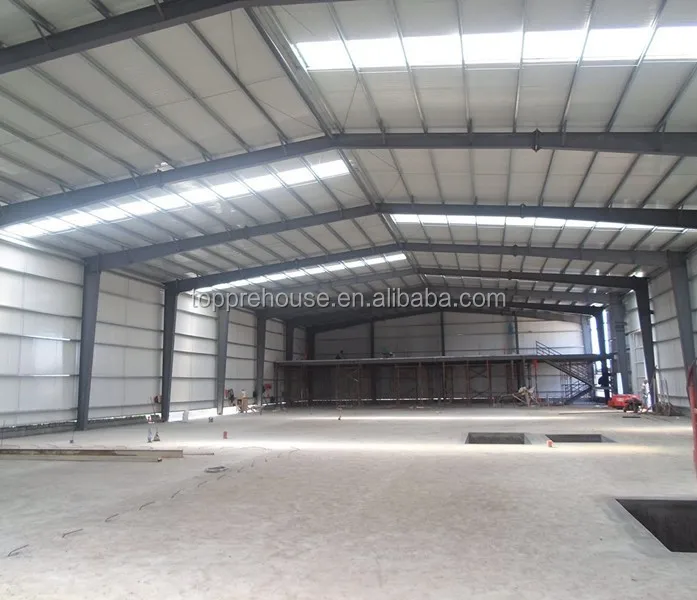

Steel structure warehouse
Prefabricated warehouse, workshop, poultry house
FOR DIFFERENT PRODUCTS, PLEASE CONTACT US | ||||||

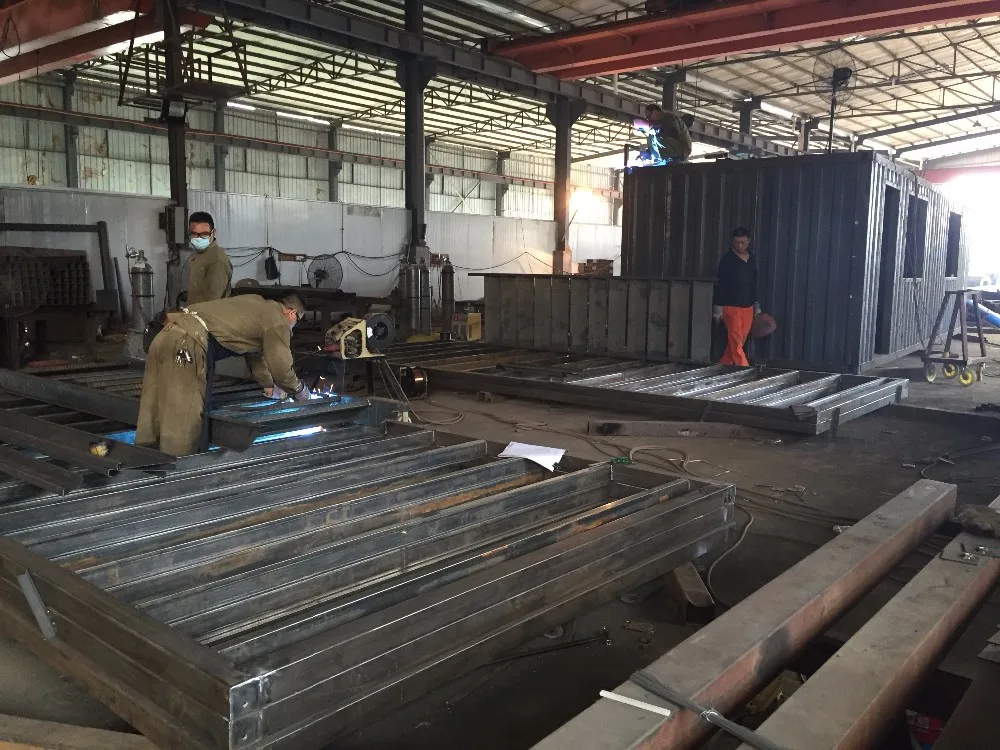

Company Profile

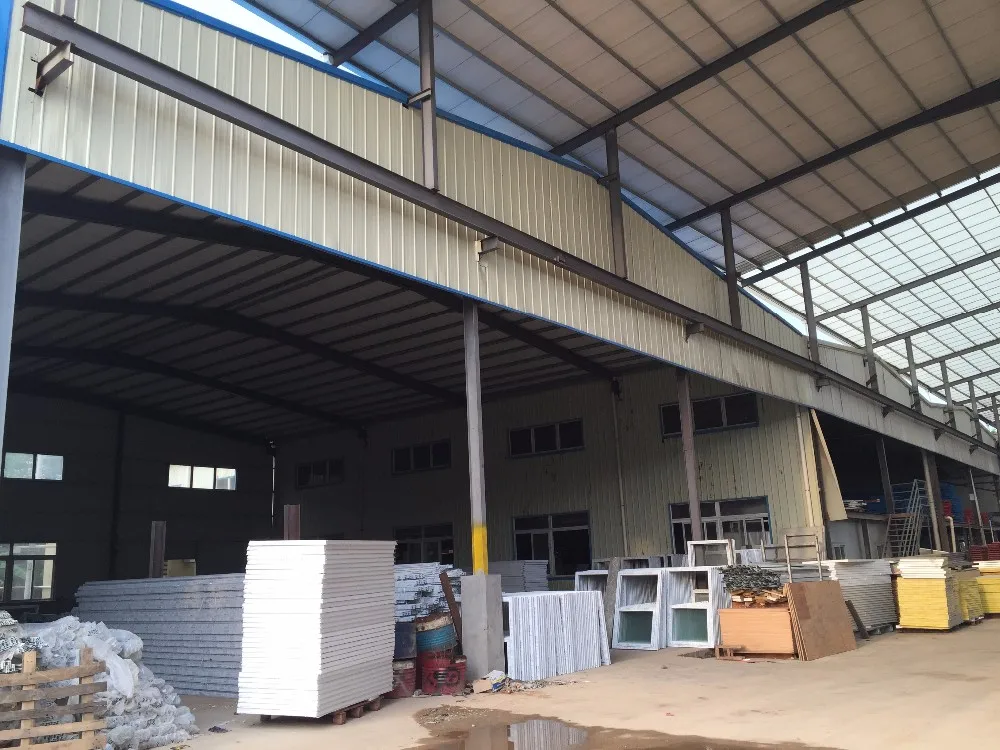

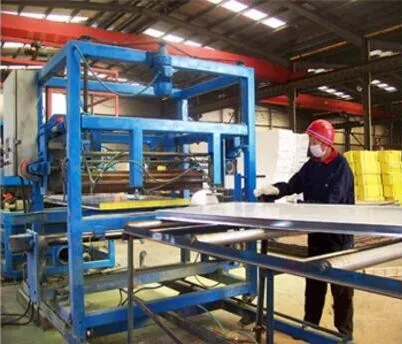

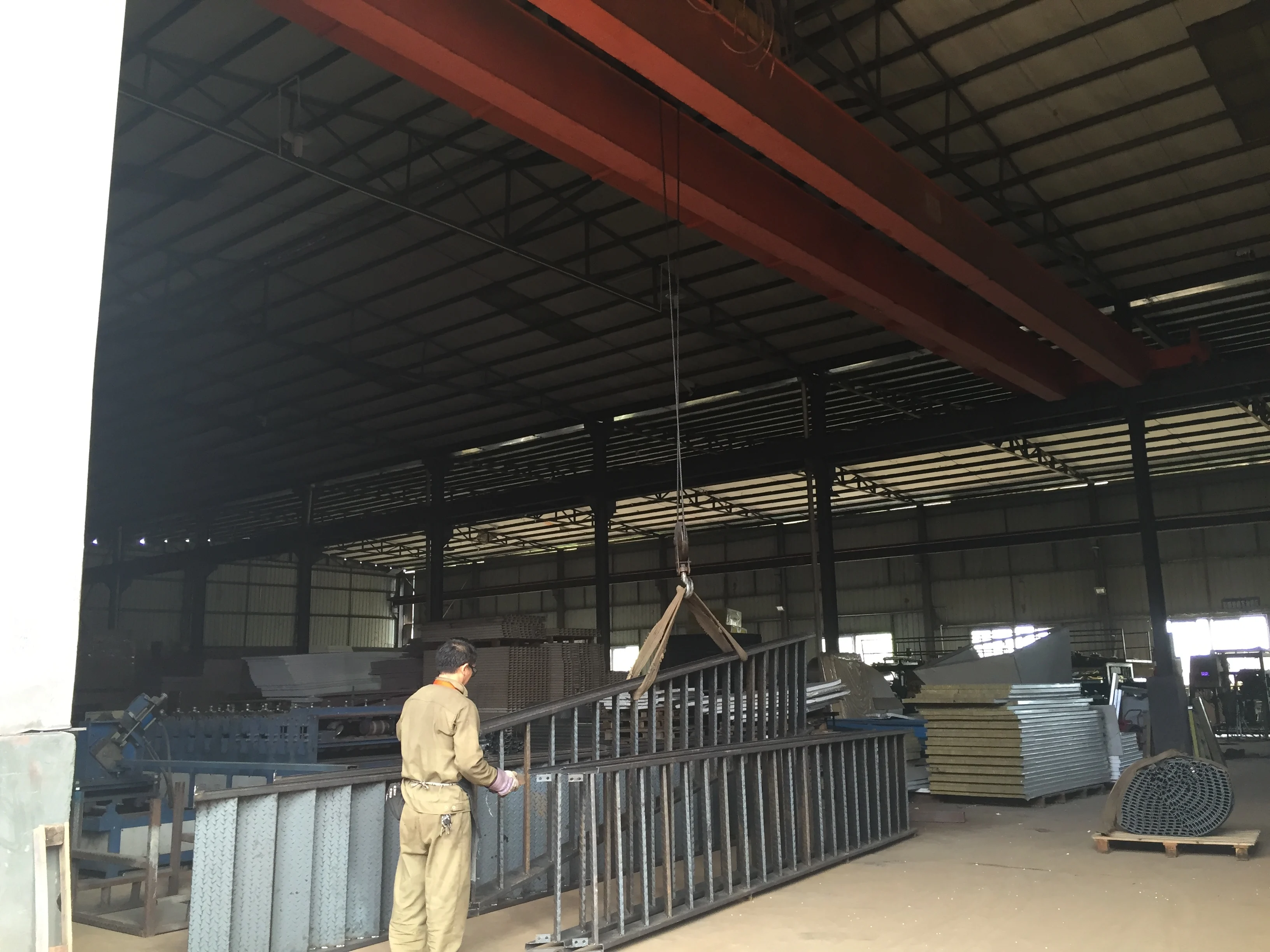

Toppre modular house limited has more than 12,000 ㎡ workshop and stronger technical team around 100 employees and 10 professional designers and engineers with rich experience in our field.
Specialized in produce, delivery, install and maintain prefab house including sandwich panel house, container house, steel structure, light steel house etc.

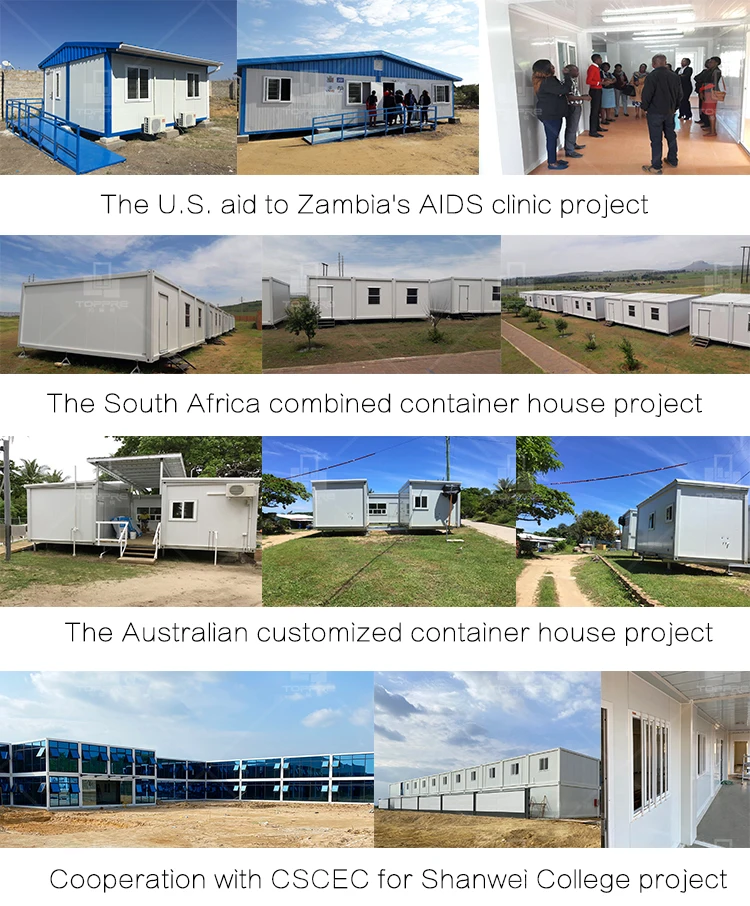

Toppre house have been exported over 50 countries. For example Australia, ,New Zealand, France, UAE, Qatar, Sudan, Fiji, Libya, Liberia, Kenya, Zambia, Sri lanka, India, Thaliand, Philippines, Malaysia, Indonesia, etc.
