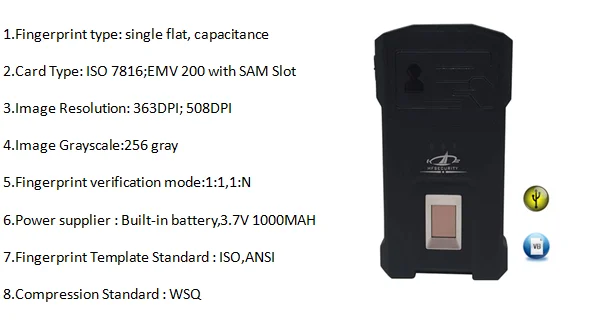

Biometric USB Fingerprint Reader with SDK Communication
Wireless and USB / Micro-USB
Card Type
ISO 78116;EMV 2000 with SAM Slot
Working voltage
built-in 3.7V lithium battery (1000maH)
Working currency
maxim 100mA
O.S
Android and Windows, IOS, Linux
Fingerprint collection
Reject fake fingers, live scan
Fingerprints sensor capacity
1000 templates
FRR
0.01%
FAR
0.0001%
Fingerprint verification time
<1s
Fingerprint sensor
14.4mm*10.4mm imaging area
208*288 pixel array
500 DPI, 8 bits per pixel
Anti-static electric capacity
IEC6100-4-2 standard 15KV
Image Format
Support ISO, ANSI template standard, & JPG, WSQ image format.
Supporting cards
Mifare card(13.56MHz card), NFC type A card, other required card can be customized.
Working temperature
-20°C to ~ 70°C
Working humidity
0-95%(no frosty)
Dimensions
83mm(length)x42.5mm(width)x16.5mm(height
Company Profile
Shenzhen BIO I/E, has specialized in biometric product and solution. As our logo indicates, Bis for face recognition; Ifor iris verification and Ofor fingerprint identification.
As long as it refers to biometric identification, such as, identify driver if he holds his own driving license; identify fingerprint as password, etc. we are confident to offer you most satisfactory solution in shortesttime,based on our past successful experience in more than decade.
You are also warmly invited to visit us, for discuss face to face.
Advantage:
1. We have professional technician team to support any of your questions on technician aspect 2. We also provide below service 3.OEM/ODM for adding your logo for free 4.Customized Language 5.Free Software/SDK 6.Life-Long After-Service
