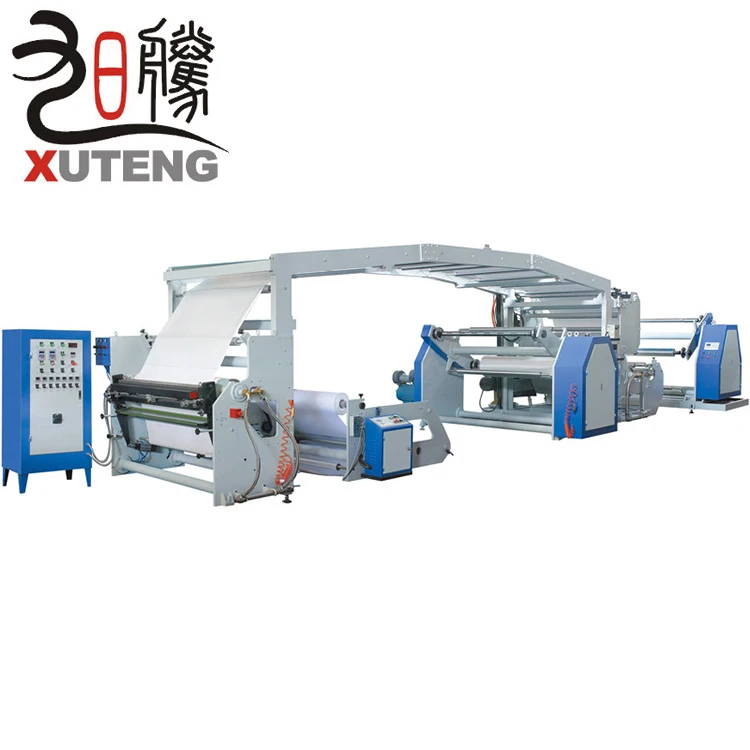

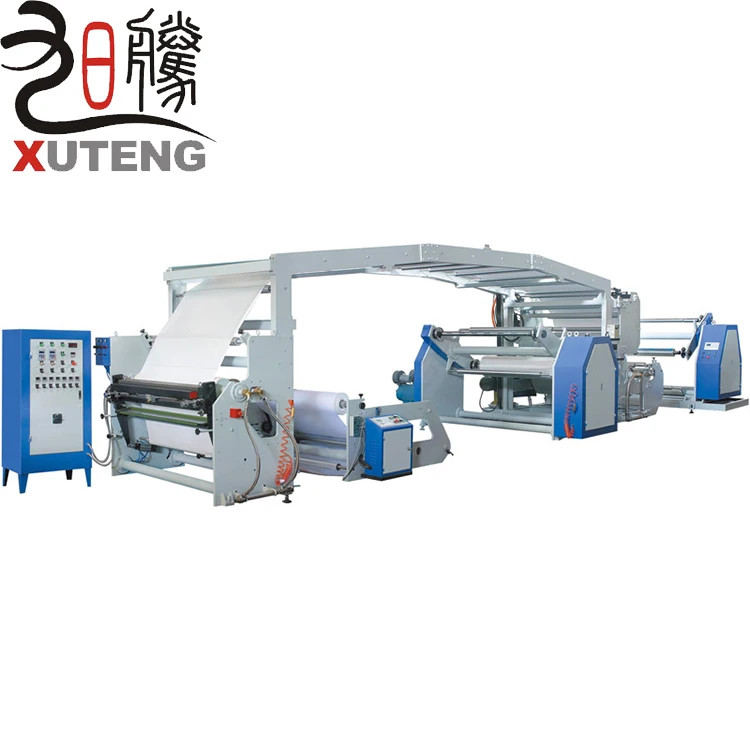

RTH Adhesive Tapes Hot Melt Laminating & Coating machine
Range of application
RTH Adhesive Tapes Hot Melt Laminating & Coating Machine is suitable for coating of hot melt pressure sensitive adhesive, such as self-adhesive label, heat sensitive label, adhesive tapes, advertisement jet printing material, etc.
Main characteristic
1.Adopted the high precision alloy steel spray head, the machine can make users get optimal coating result.

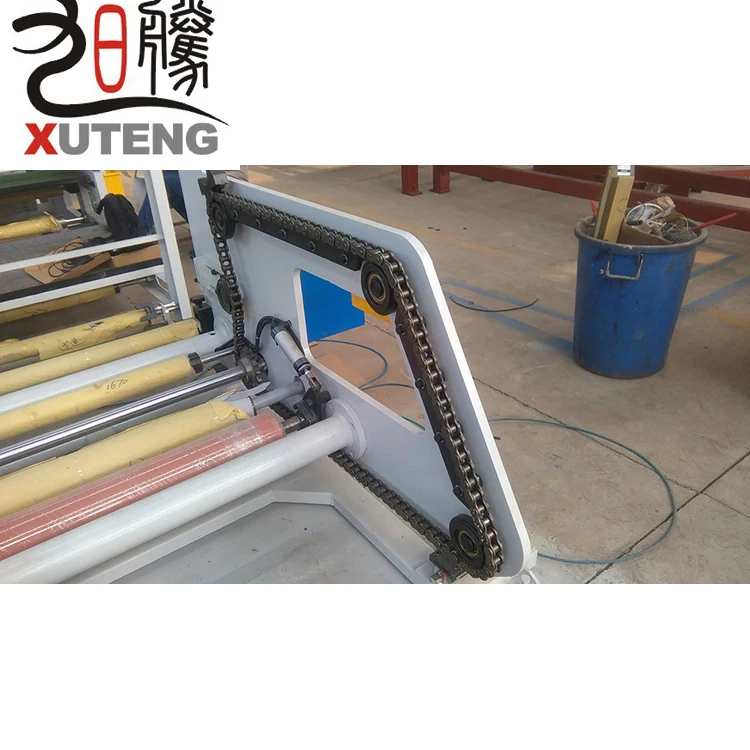

2.Double position of rewind and unwind, and collocate pneumatic device, can fill material without stopping the machine.
3.The highest speed is 150M/min, improve the production efficiency.
4.Extend distance between coating device and lamination device; it suits some material that can not bear the high temperature.
| Model | RTH |
| Coating width | 400-2500mm |
| Coating weight | 10-200g/m2 |
| Coating speed | 150m/min |
| Unwinding dimensions | 1000mm |
| Rewinding dimensions | 1000mm |
| Correction device | 1 set |
| Length of machine | 12m |
| Height of machine | 2.6m |
