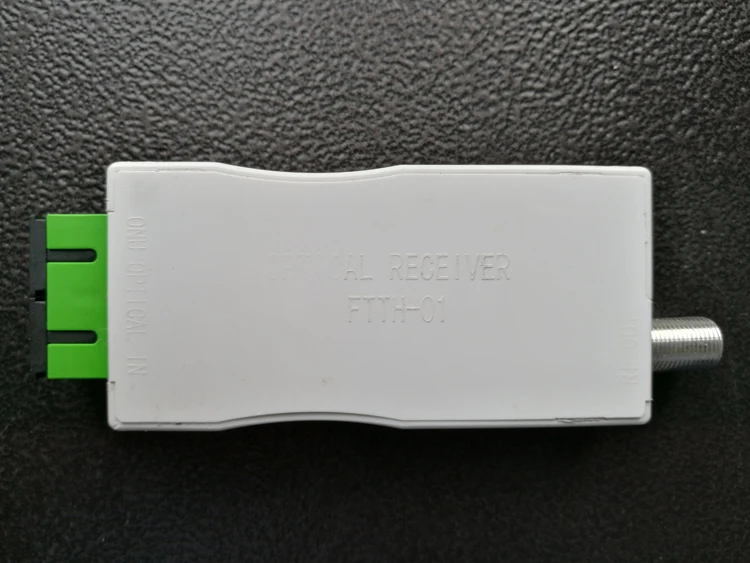

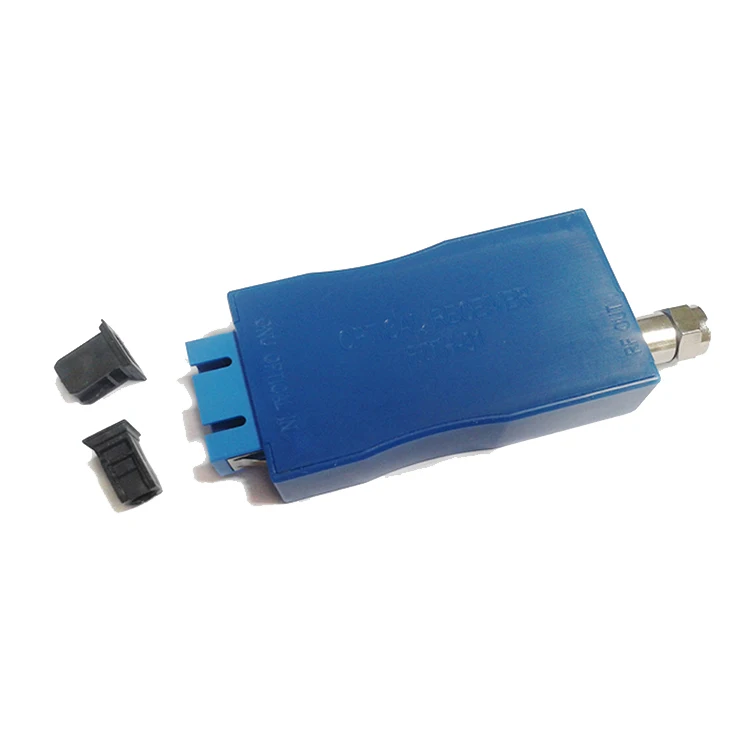

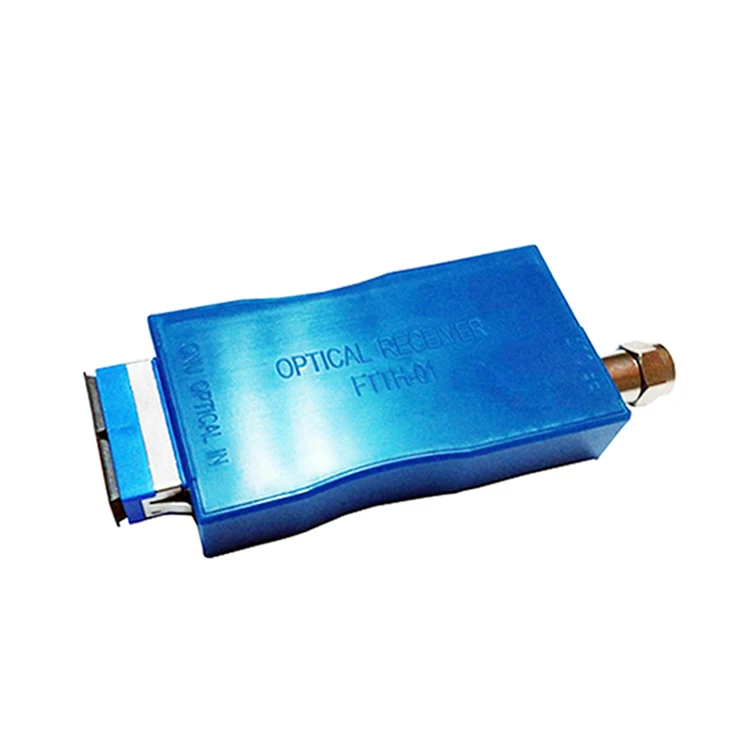

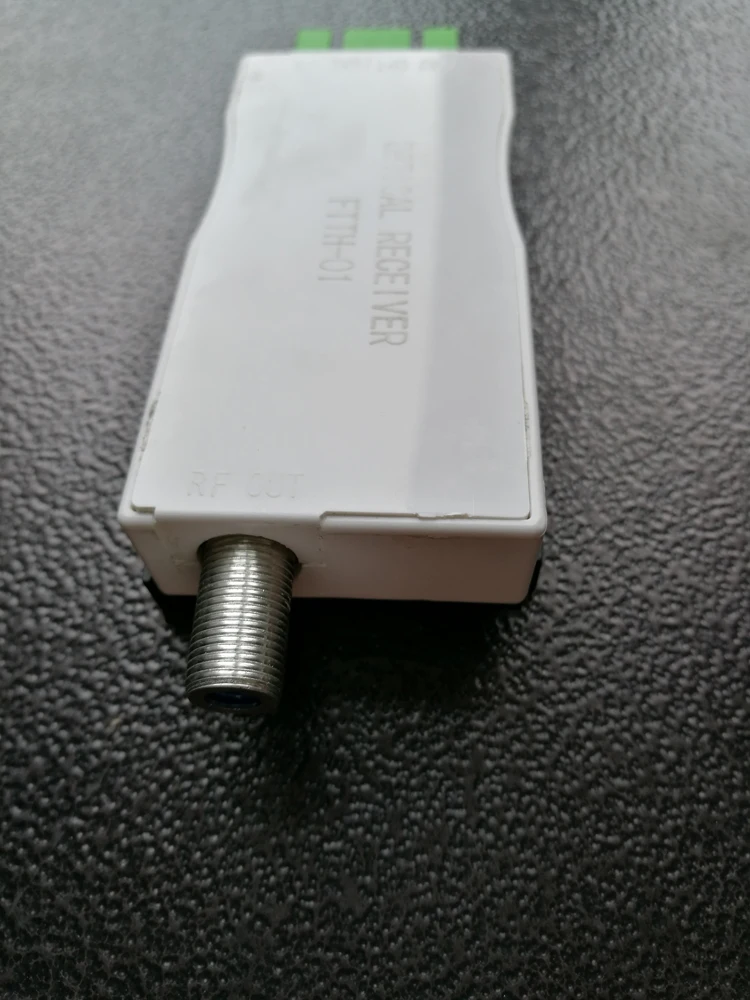

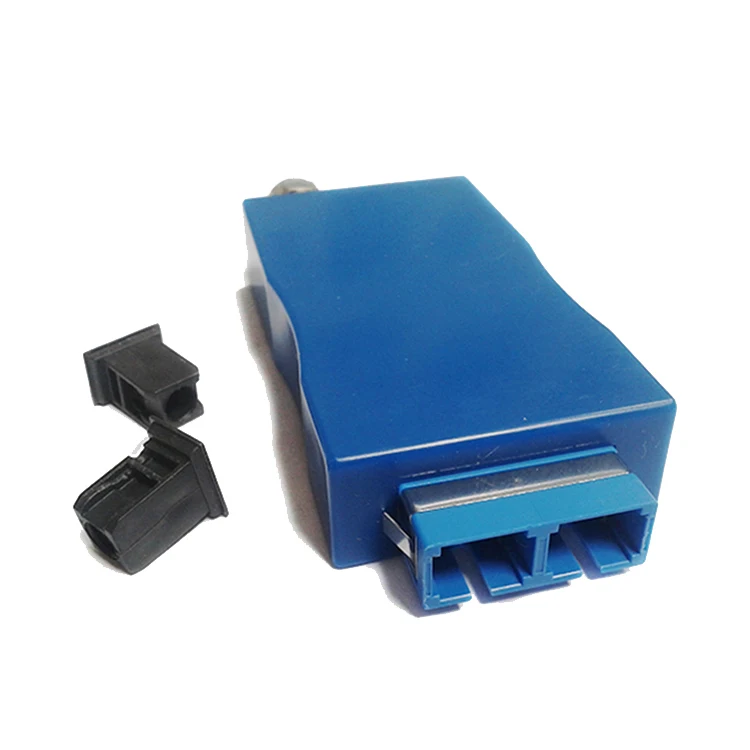

Mini Size Indoor Passive FTTH CATV Optical Receiver with FWDM

Product Overview

Description

Mini Size Indoor FTTH Passive CATV Optical Receiver with FWDM (without power supply)

SR1000B (Built-in FWDM)



SR1000A (Normal) & SR1000A-F (Built-in Filter)

DESCRIPTION

FTTH CATV Optical Receiver without power is a specialty product which is specially designed for FTTH - Fiber to the home network structure. Compact and reasonable internal circuit structure, the housing adopt dedicated aluminum alloy, wiredrawing oxidation treatment the surface. The performance indicators are good and the appearance is high-grade and beautiful.



SR1000 series CATV converter for digital television, fiber to the home.

It has the high sensitivity optical receiving tube, without power supply, no power consumption. When the input optical power output level Pin=-1dBm, Vo=68dBuV, can be economically and flexibly apply the integration of three networks, fiber to the home network application. SR1000 appearance of enamel, there are two kinds of optical made selection.



PRODUCT FEATURE

1. No Power required

2. Work bandwidth 45~1050MHz

3. Output Level=68 dBμV (Pin=-1dBm)

4. SR1000: CATV operating wavelength 1100~1620nm.

5. SR1000A-F: built-in 1310/1490nm filter, suitable for single-fiber triple wavelength system, CATV Operating wavelength 1550nm.

6. With FWDM Input three wavelength 1310+1490+1550nm, PON port output 1310+1490nm.



TECHNICAL INDEX

Optic feature	Unit	Index	Supplement
CATV Work wavelength	(nm)	1100~1620	SR1000A
		1540~1563	SR1000A-F
		1310+1490&1310+1490+1550	SR1000B
Channel Isolation	(dB)	≥40	1550nm & 1490nm
Responsibitity	(A/W)	≥0.85	1310nm
		≥0.9	1550nm
Receiving power	(dBm)	+2~-14	Digital TV (MER>29dB)
Optical return loss	(dB)	≥55
Optical fiber connector		SC/APC or FC/APC
RF Feature
Work bandwidth	(MHz)	45~1050
Output level	(dBμV)	>68	Digital TV (Pin=-1dBm)
Return loss	(dB)	≥14	47~862MHz
Output impedance	(Ω)	75
Output port number		1
RF tie-in		F-Female or F-male
OMI	(%)	4.3
BER		<1.0E-9	Pin:+2~-14dBm
Work temp	(c)	-20~+55
Storage temp	(c)	-40~85
Work relative temp	(%)	5~95
Size (L)×(W)×(H)	(mm)	45×26×16	SR1000A (normal)
Size (L)×(W)×(H)	(mm)	45×26×16	SR1000A-F (with filter)
Size (L)×(W)×(H)	(mm)	65*40*16	SR1000B (with FWDM)



RODUCT SERIES

Model	Input wavelength	CATV Operating wavelength	Fiber connector
SR1000A	1310, 1490/1550nm	1100~1620nm	SC/APC
SR1000A-F	1550nm	1530~1560nm	SC/APC
SR1000B	With FWDM	INPUT: 1310+1490+1550 PON OUTPUT: 1490-1550	INPUT: SC/APC; PON: SC/PC
