Буровые установки для бурения сердечников/гидравлическое исследование водяных скважин/бурение нефти и электроэнергии

Product Overview

Description

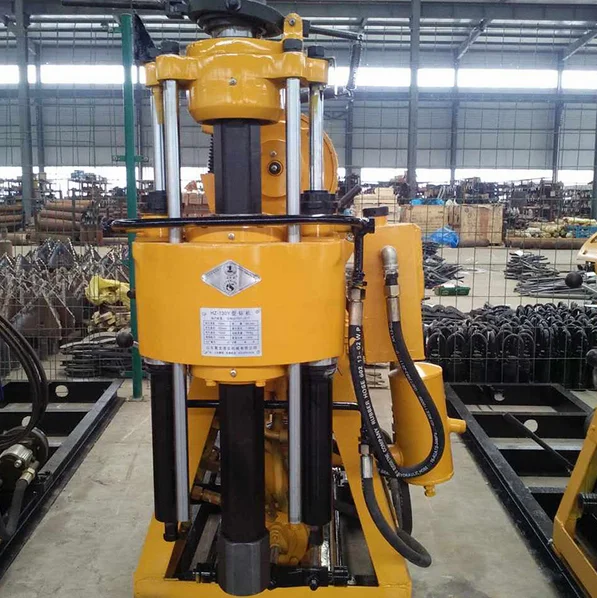

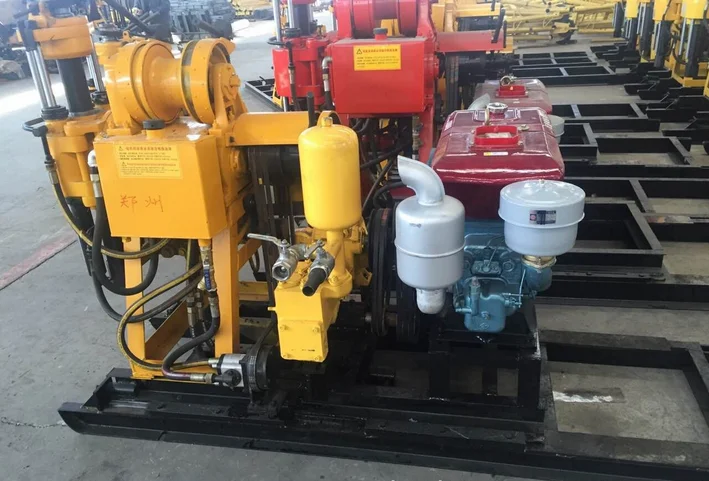

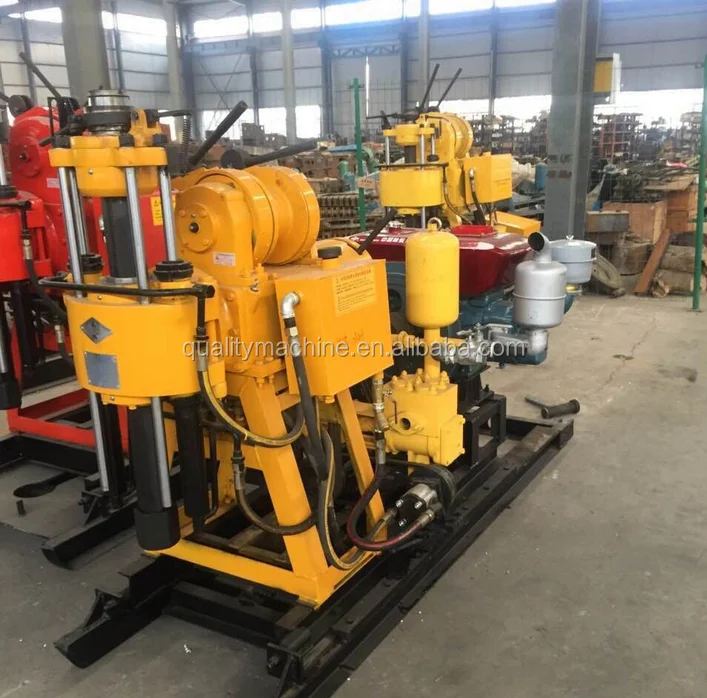

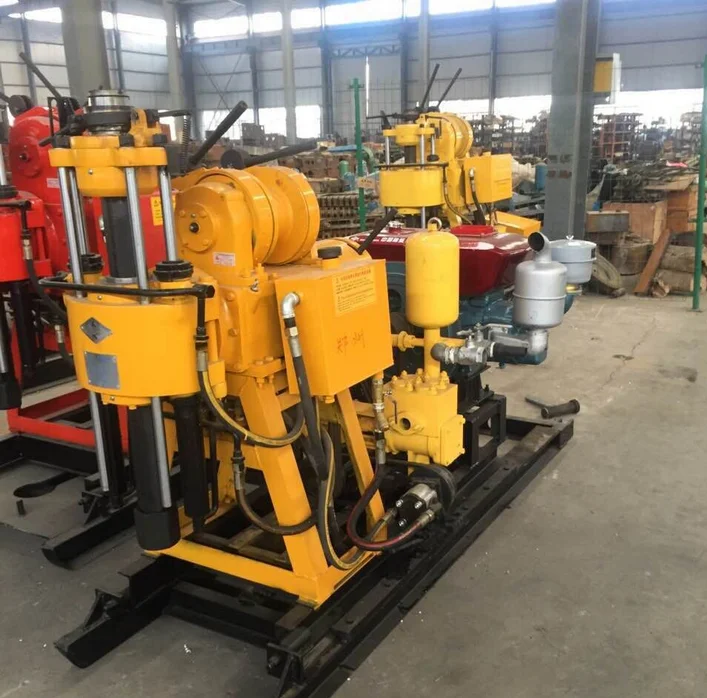

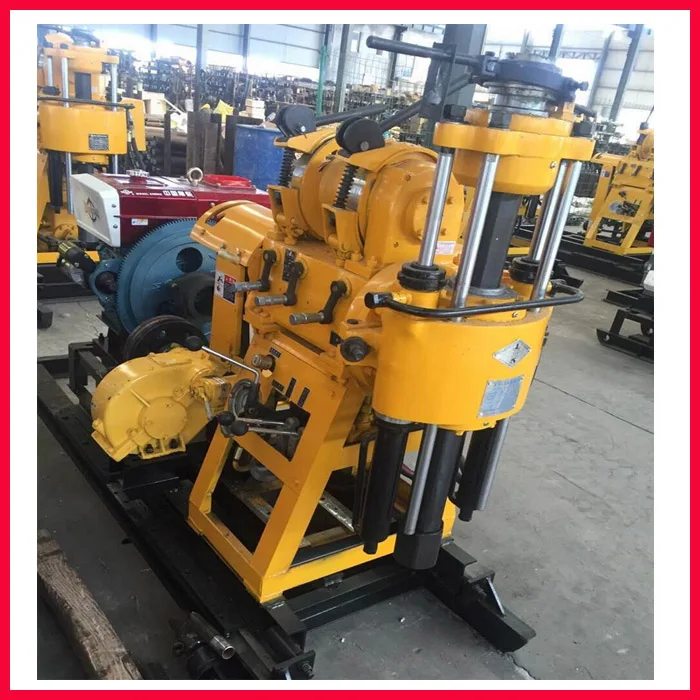

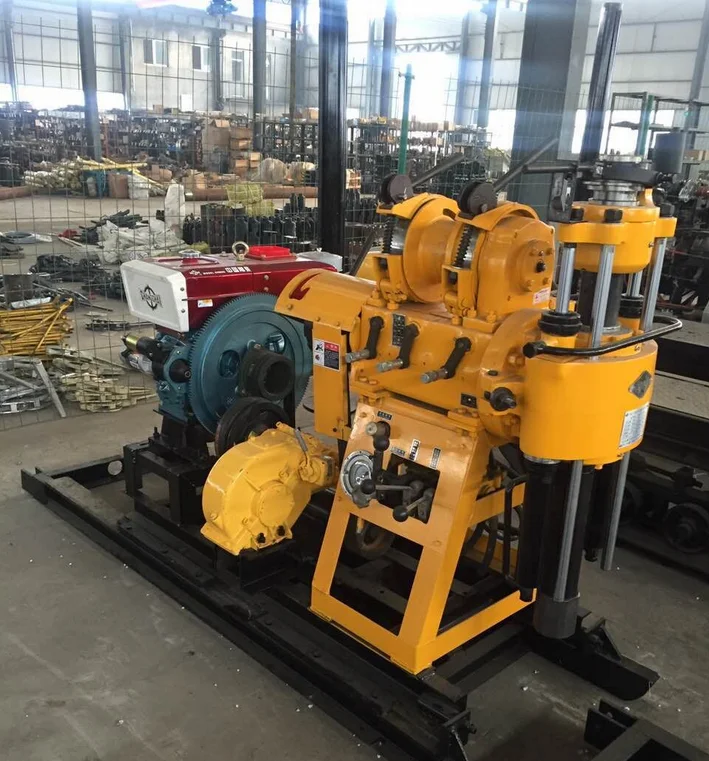

Introduction of  Factory price hydraulic water well drilling machine



1. water well drilling machine has a hydraulic automatic feed mechanism, improve drilling efficiency,reduce manual labor workers.

2. Card holder mechanism instead of using the ball chuck, can implement non-stop down the lever,easy to operate, safe and reliable.

3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.

4 The handle centralized, easy to operate.

5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas.



Drilling depth		200m
Maximum open hole caliber		300mm
End hole caliber		75mm
Drill rod caliber		60mm
Drilling angle		90°~75°
Drill weight (No include power)		525kg
Unity machine dimensions		1433×697×1273m
Spindle
spindle speed		71 142 310 620r/min
Spindle stroke		450mm
Winch
Max.single line hoisting capacity		15KN
Single line lifting speed		0.41,0.82,1.64m/s
steel wire rope caliber		13m(35m)
Mud pump
Type	Horizontal single urn twin-action
Displacement	170/150L/min(diesel or electromotor)
Diesle engine	16.2kw  2200r/min
Electric motor	11kw 1440r/min
