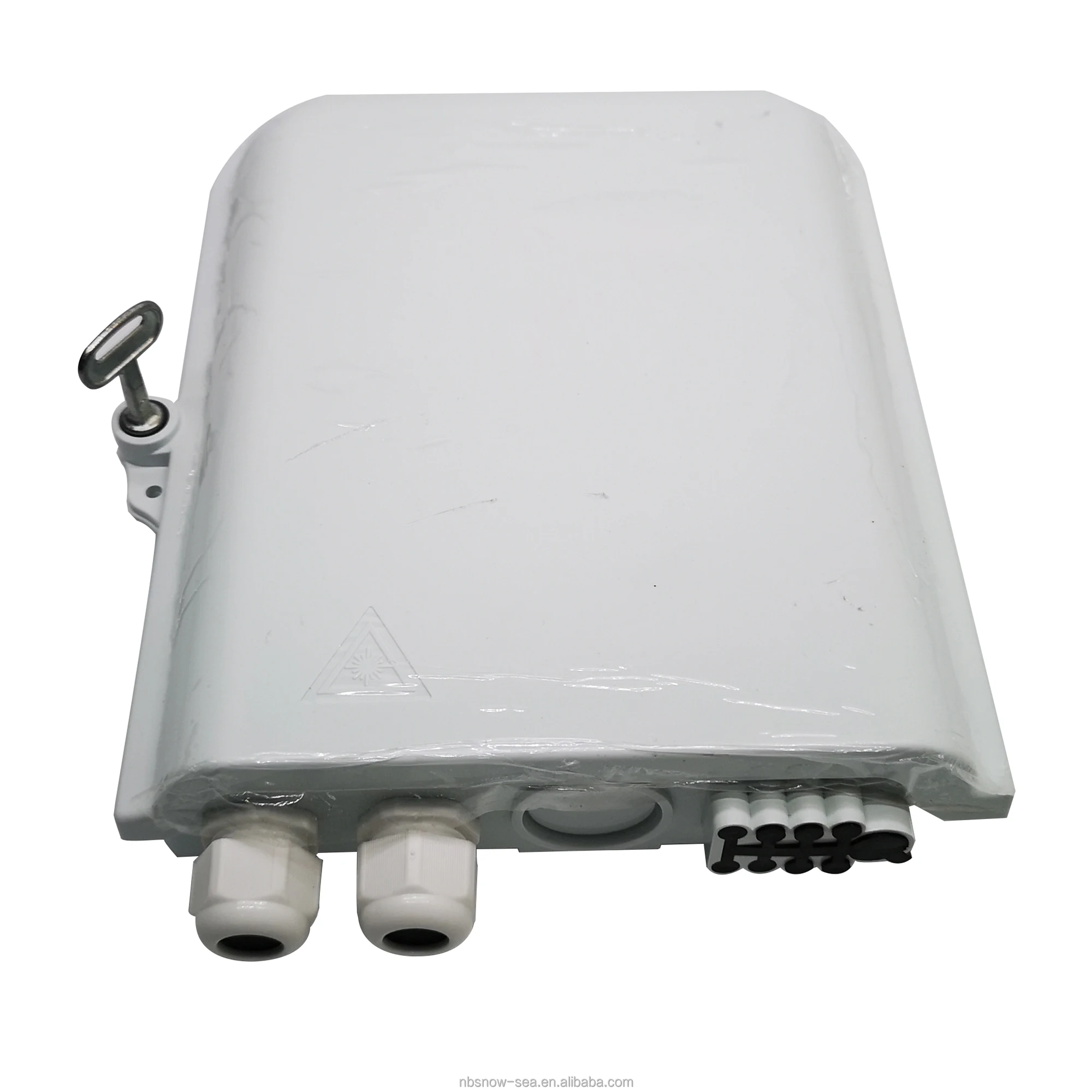

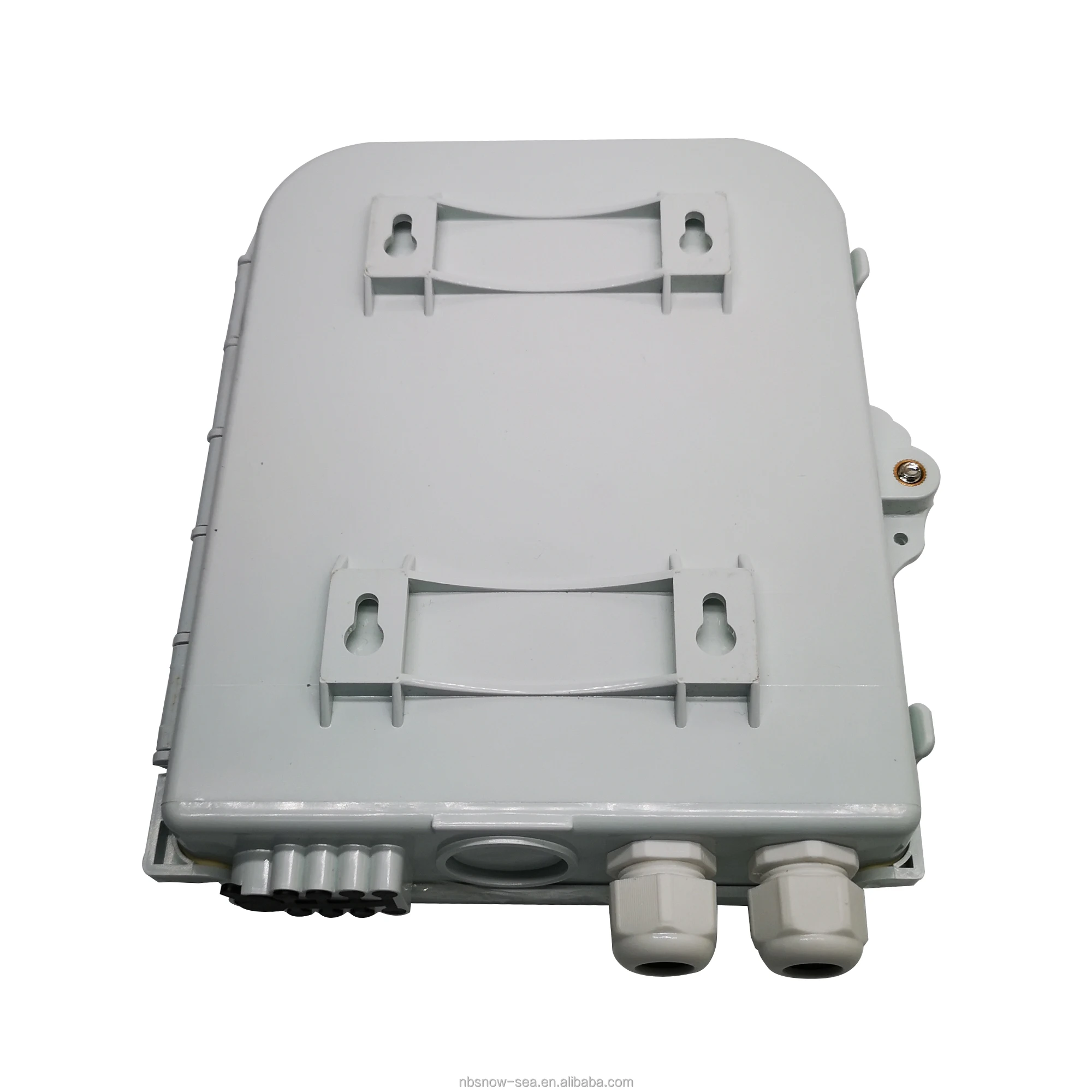

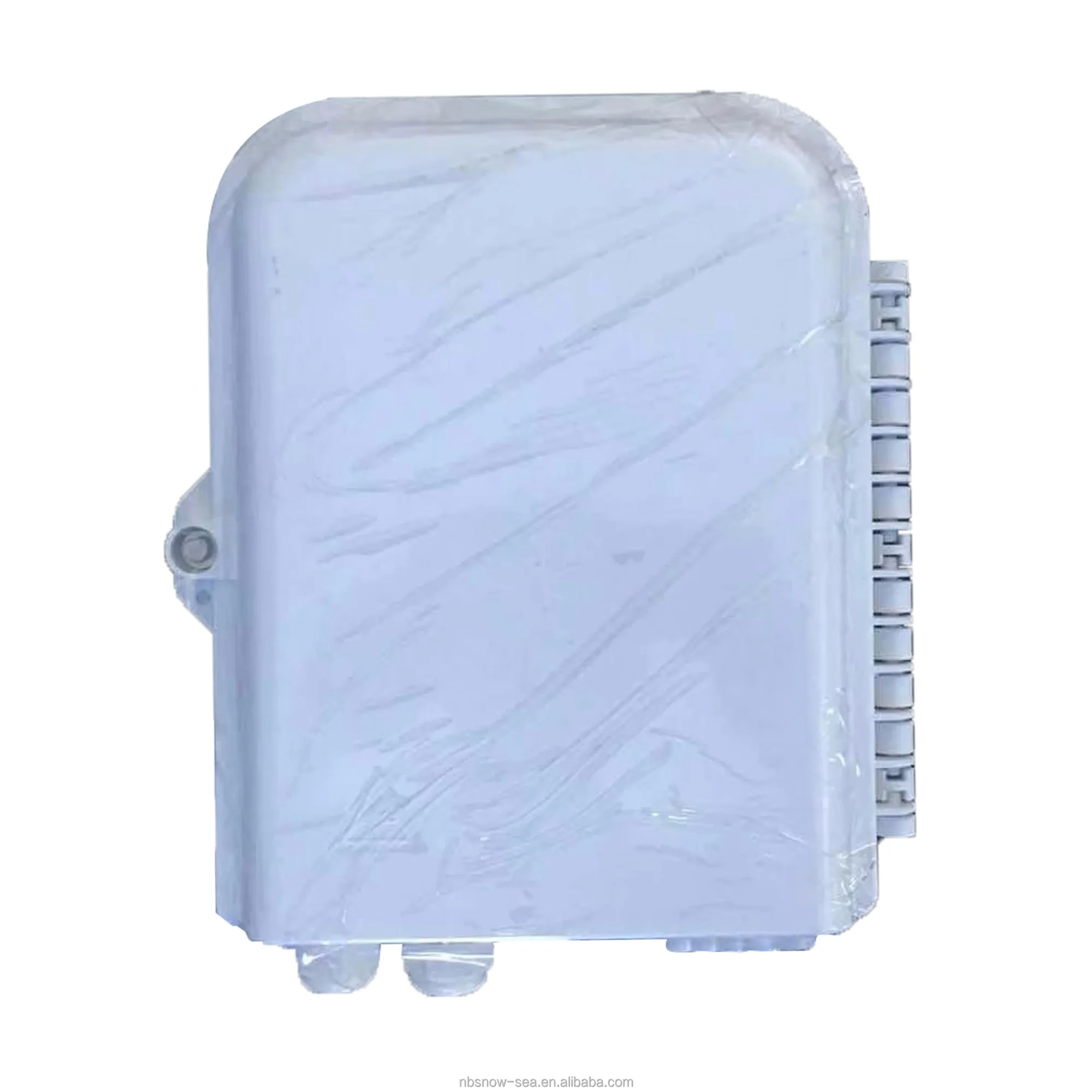

ABS PC Material Waterproof 8 Cores FTTH Mini Fiber Optic Terminal Box / Splitter Box for Mini Stainless Steel Tube Optical Split

Product Overview

Description

ABS+PC Material Waterproof 8 Cores FTTH Mini Fiber Optic Terminal Box / Splitter Box for Mini Stainless Steel Tube Optical Splitter

Description

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTH communication network system. The fiber splicing, splitting and distribution can be done in this box, and in meanwhile, it provides solid protection and management for the FTTH network building.

Features

1. Total enclosed structure.

2. Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP55.

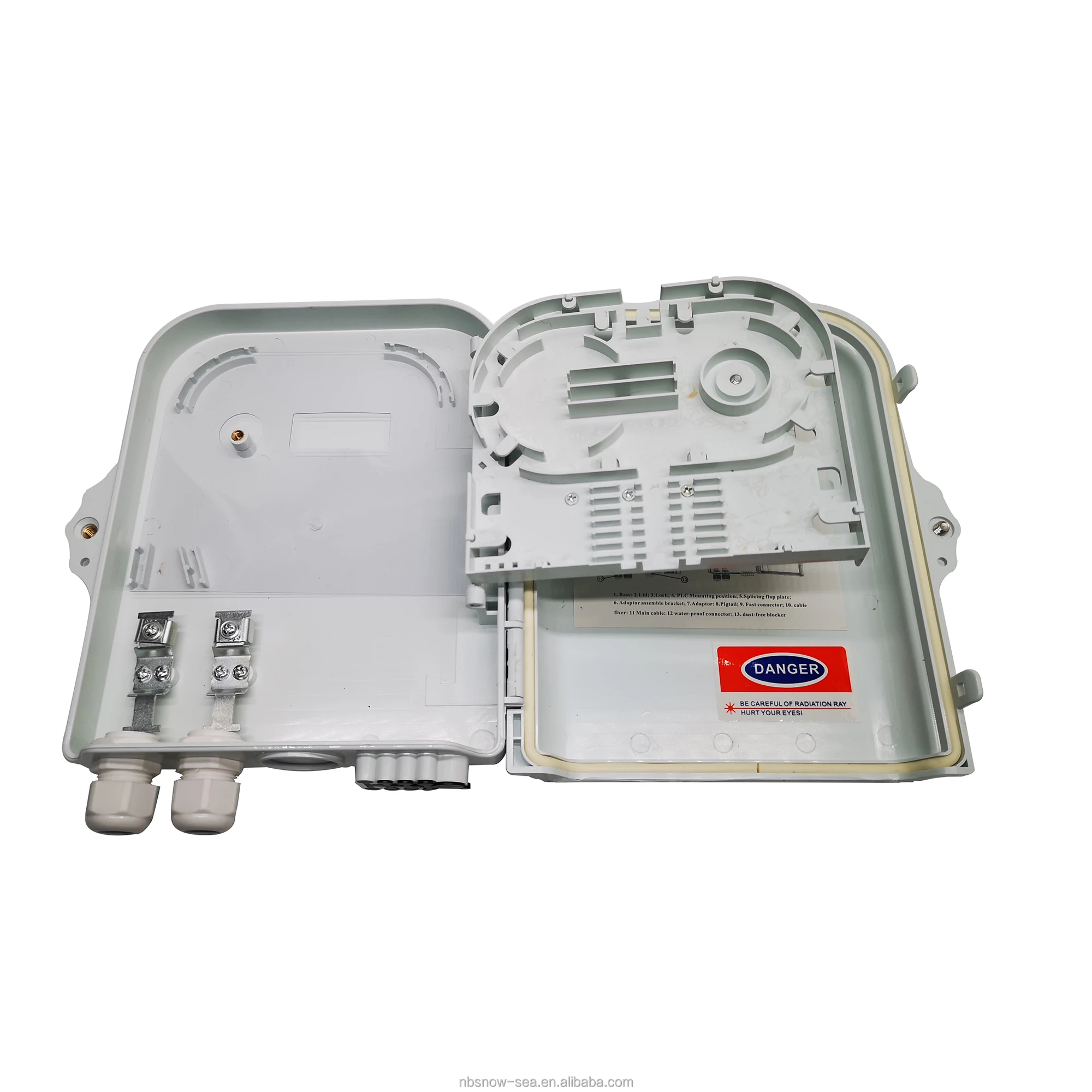

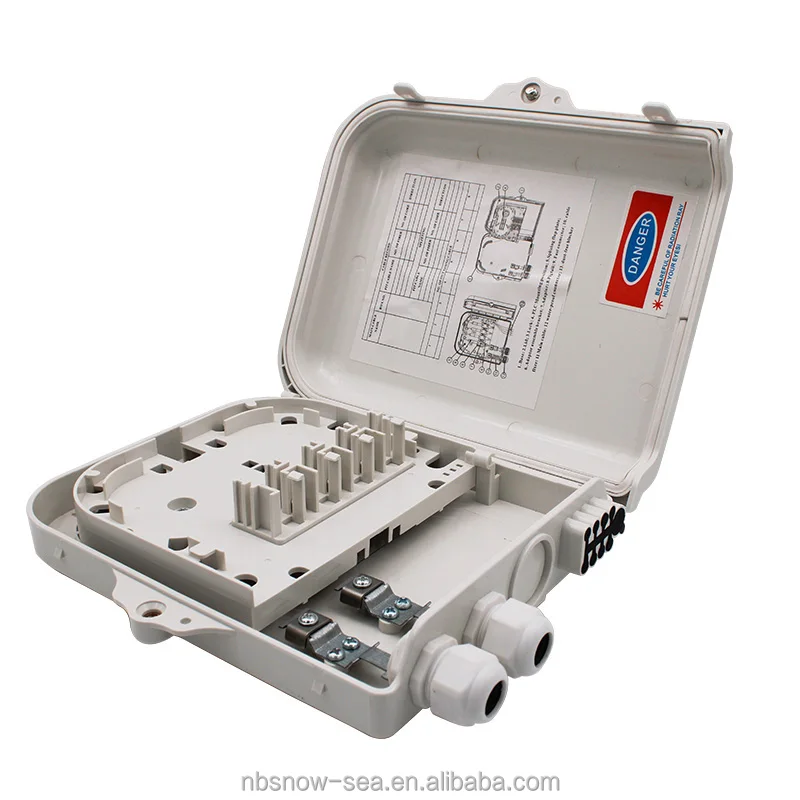

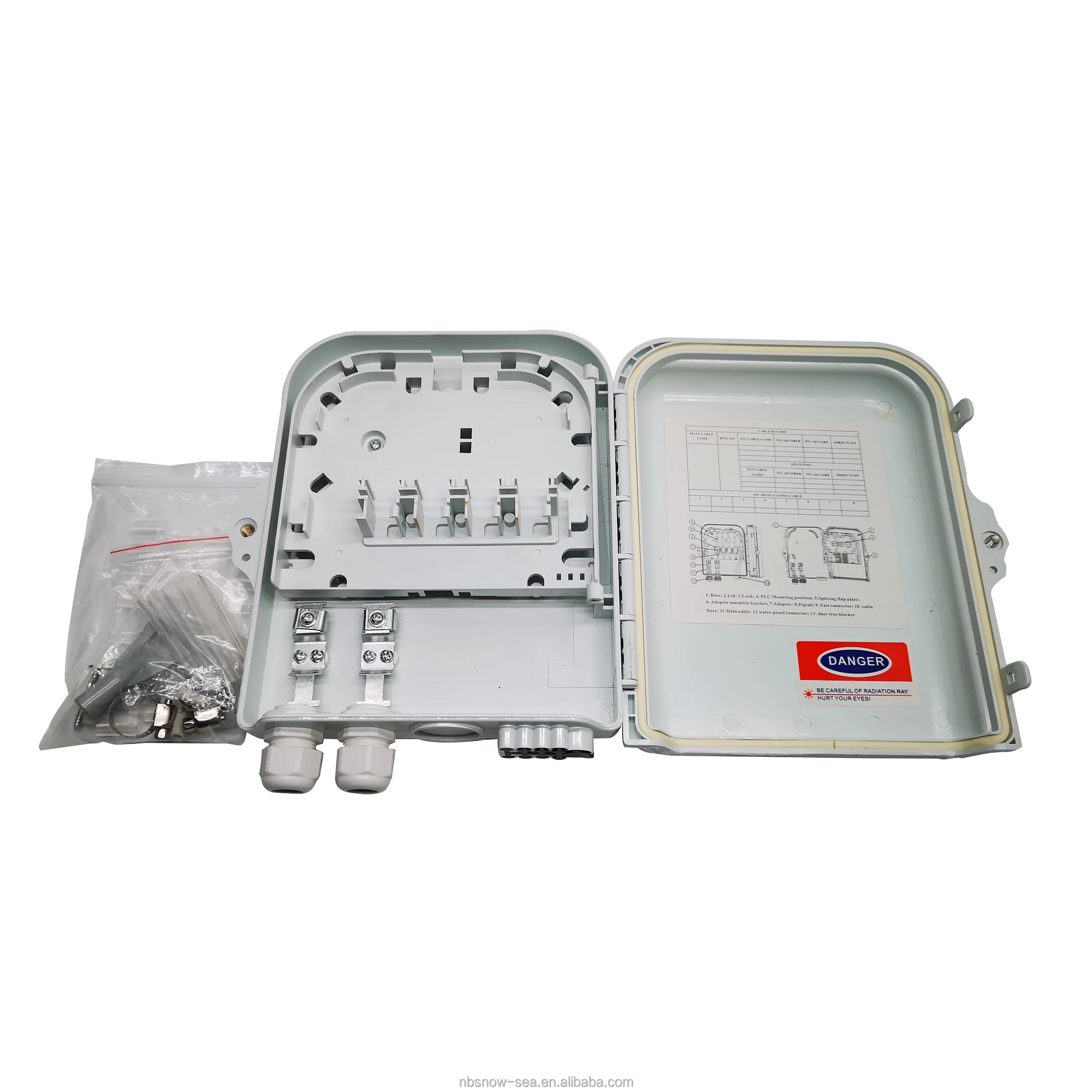

3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

4. Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.

5. Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
6. The high strength plastic, anti-ultraviolet radiation and ultraviolet radiation resistant, resistant to rain;
7. For indoor and outdoor wall mounted or pole mounted.
8. Box of body use "lock type" structure: Box of body switching of simple, convenient, with a lock function

9. Lateral pressure-resistance: 500N
10. Shock-resistance: 750N
12. Working temperature: -40 ~ +80℃



Specification

Product Name	8 Cores Optical Distribution Box
Application	Wall-mounted indoor, Pole-mounted outdoor
Dimension (Length/Width/Height)	23.5*20*6cm
Weight	0.9 kg

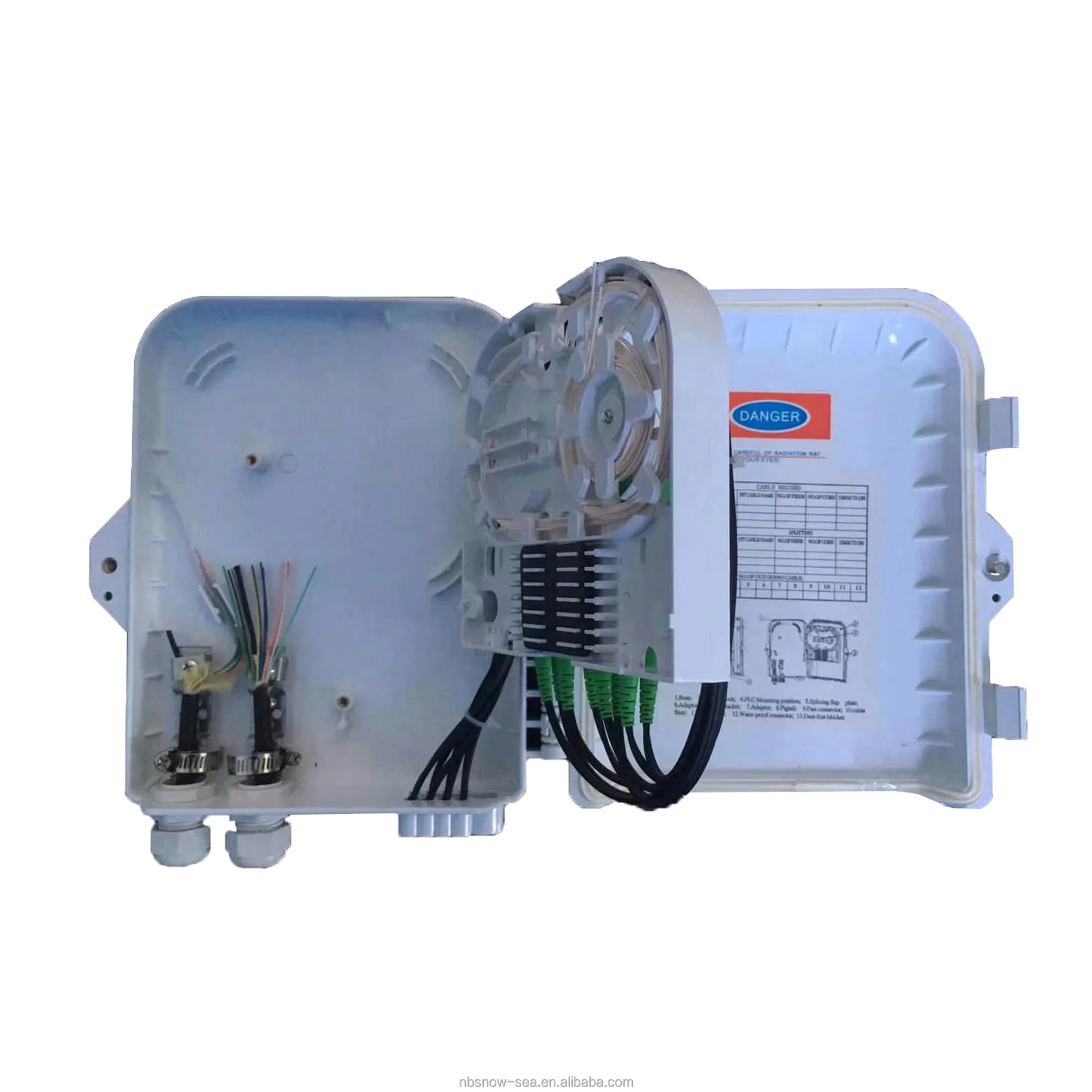

Product Function	It can internally installed 1pcs 1*8 (or 2pcs 1*4) mini stainless steel tube optical splitter and 8pcs SC (or LC duplex) fiber optic adapter
Product Material	High quality PC+ABS material



Dimensions and Capability
Dimensions: 235mm x 200mm x 60mm (W x H x D)

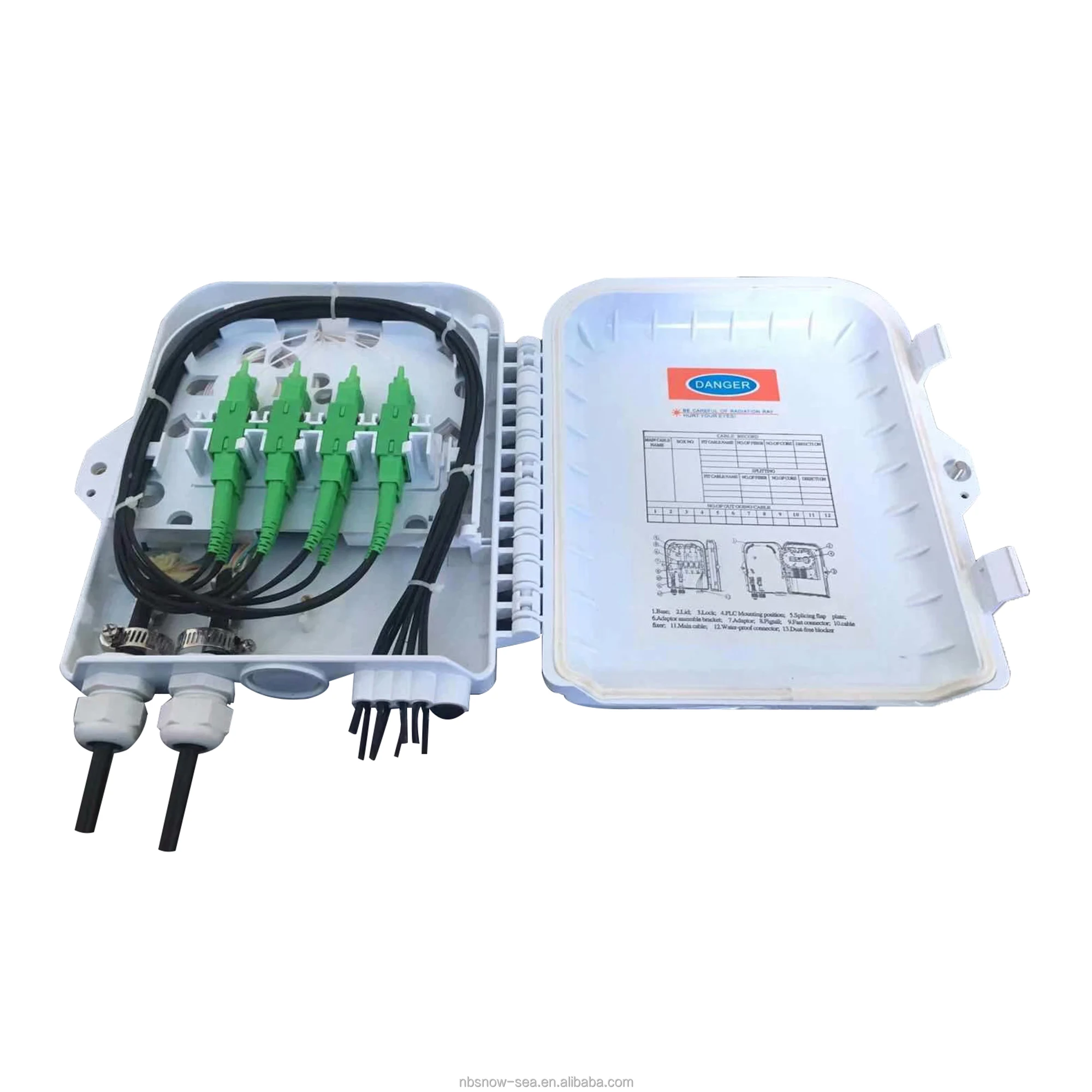

 Adapter Capacity: 8pcs SC/FC simplex adapters or LC duplex adapters.

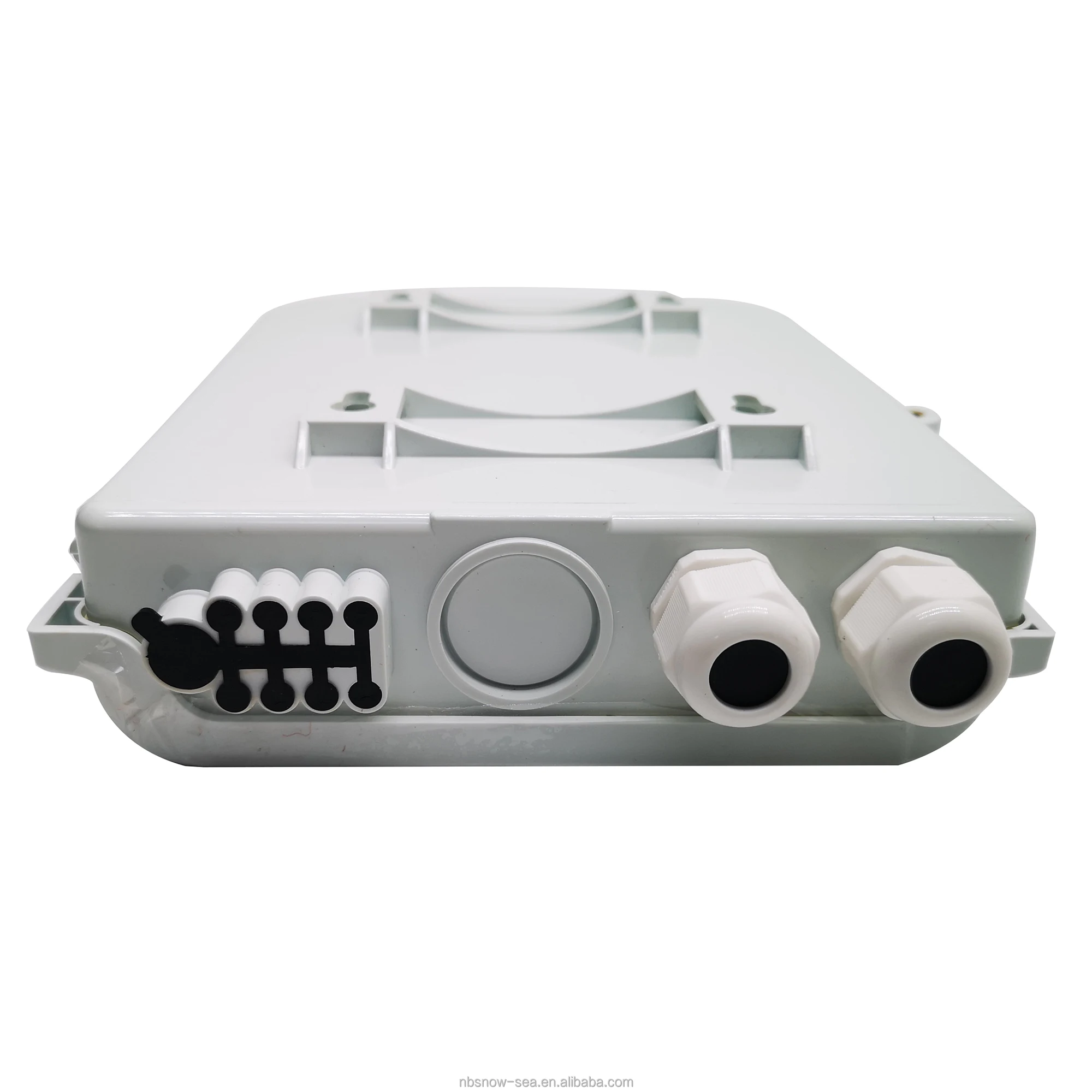

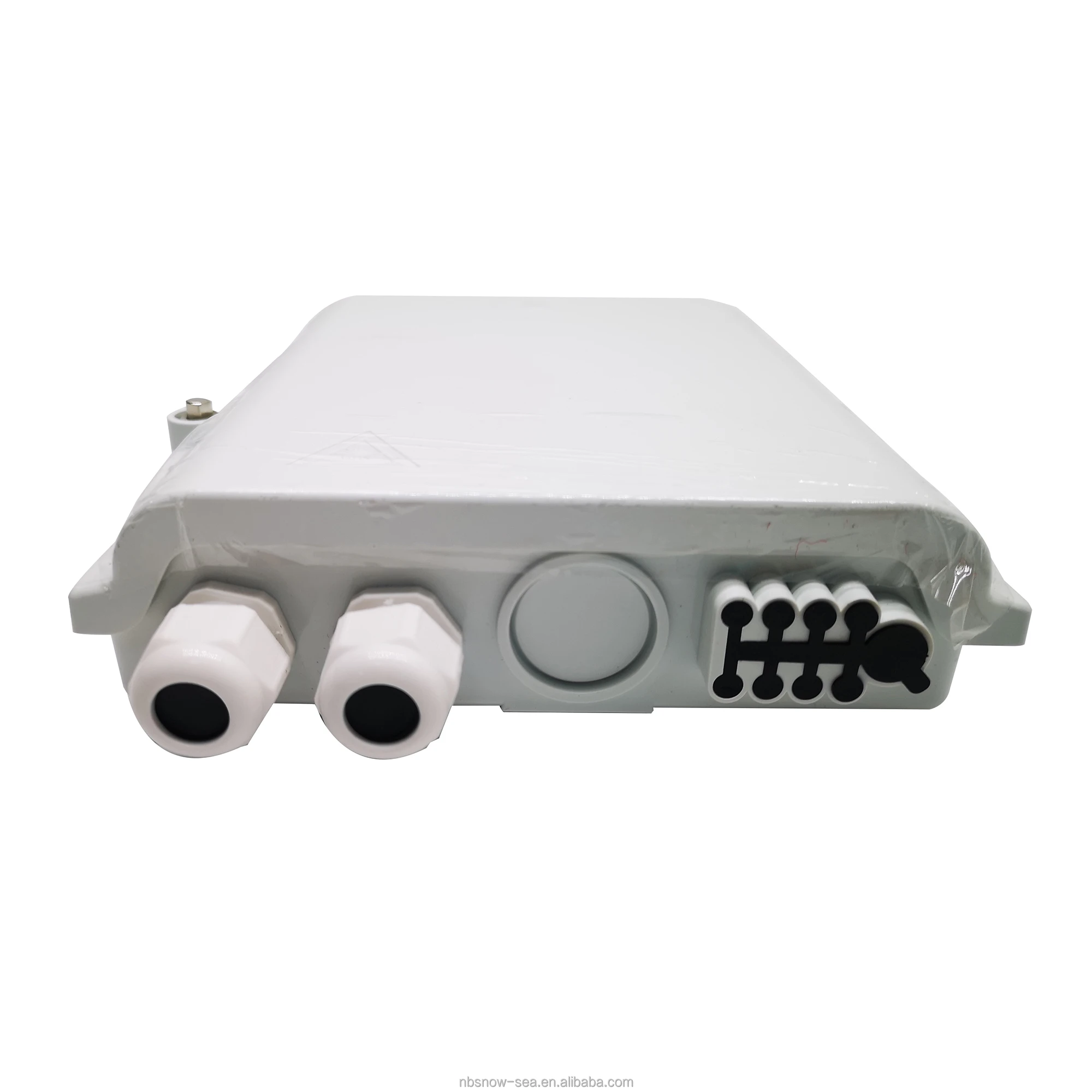

 Cable Entrance: 2
 Cable Exit: 8 simplex drop cables (Pre-connectorized cables supported)

Application
Optical LAN & WAN & CATV
FTTH project & FTTX Deployments
Broadband High-bit rate data transmission
Active device terminations
Testing instruments
Optical fiber communication networks
PON Networks
Optical Signal Distribution
