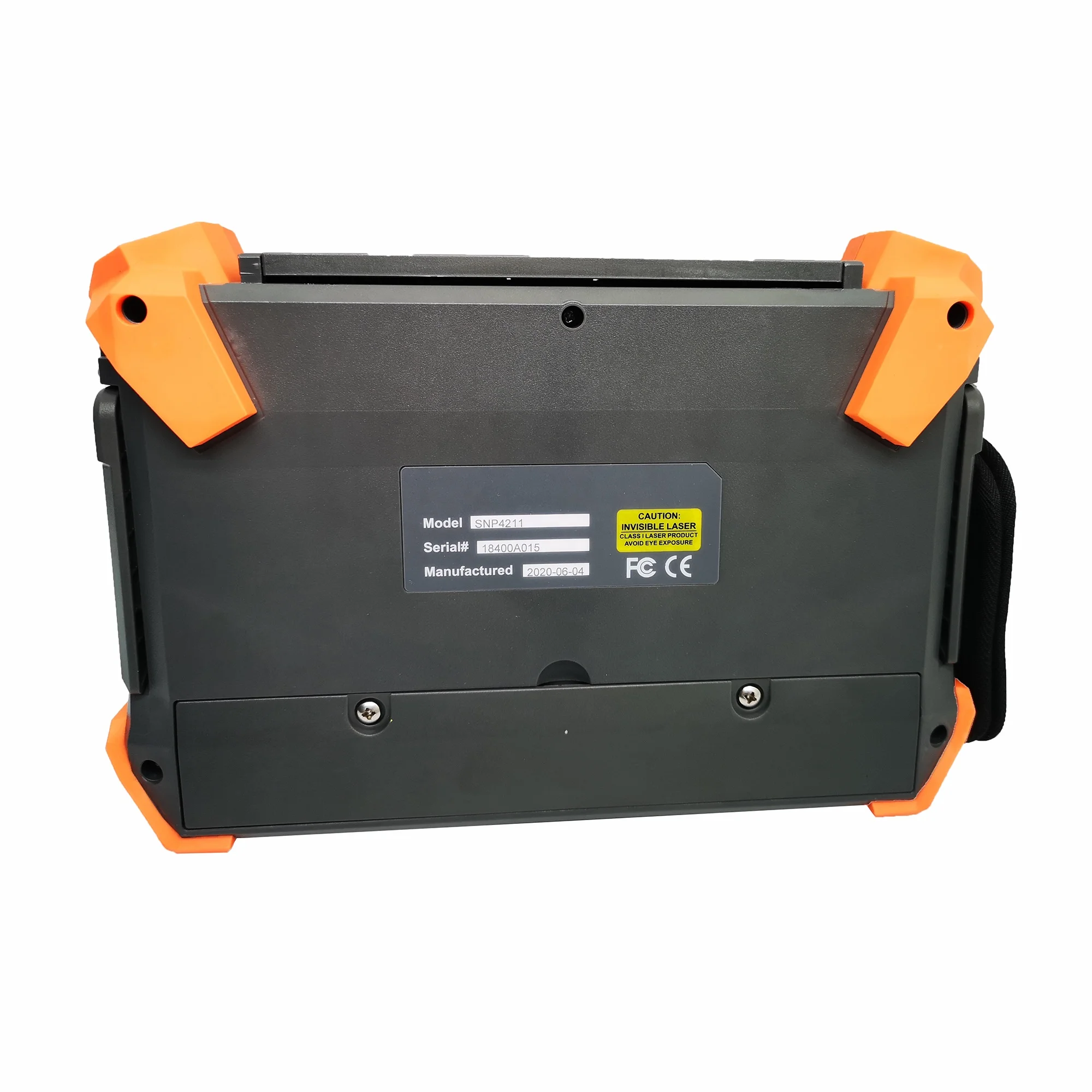

10/100/1000/10000M 10G Ethernet Network RJ45 LAN Cable Tester / CAT5E CAT6 SFP Multifunction Network Analyzer

Description

JOINWIT  JW4211 Ethernet tester provides a complete test for next generation Ethernet solution. There are many different test modules, which can help to verify the performance of their Ethernet. JW4211 has two 10/100/1000Mb/s electrical interfaces, two 100/1000M SFP optical interfaces and two 10Gbps SFP+. It can generate and analyze the test traffic streams, and provide the result. JW4211 provides install, maintain services and activate new profession service. JW4211 can provide a variety of test functions, which can help user to control and know the quality of Ethernet. We believe that the JW4211 will be the comprehensive and simple Ethernet and advanced IP connectivity test suites for the field technicians.



Features

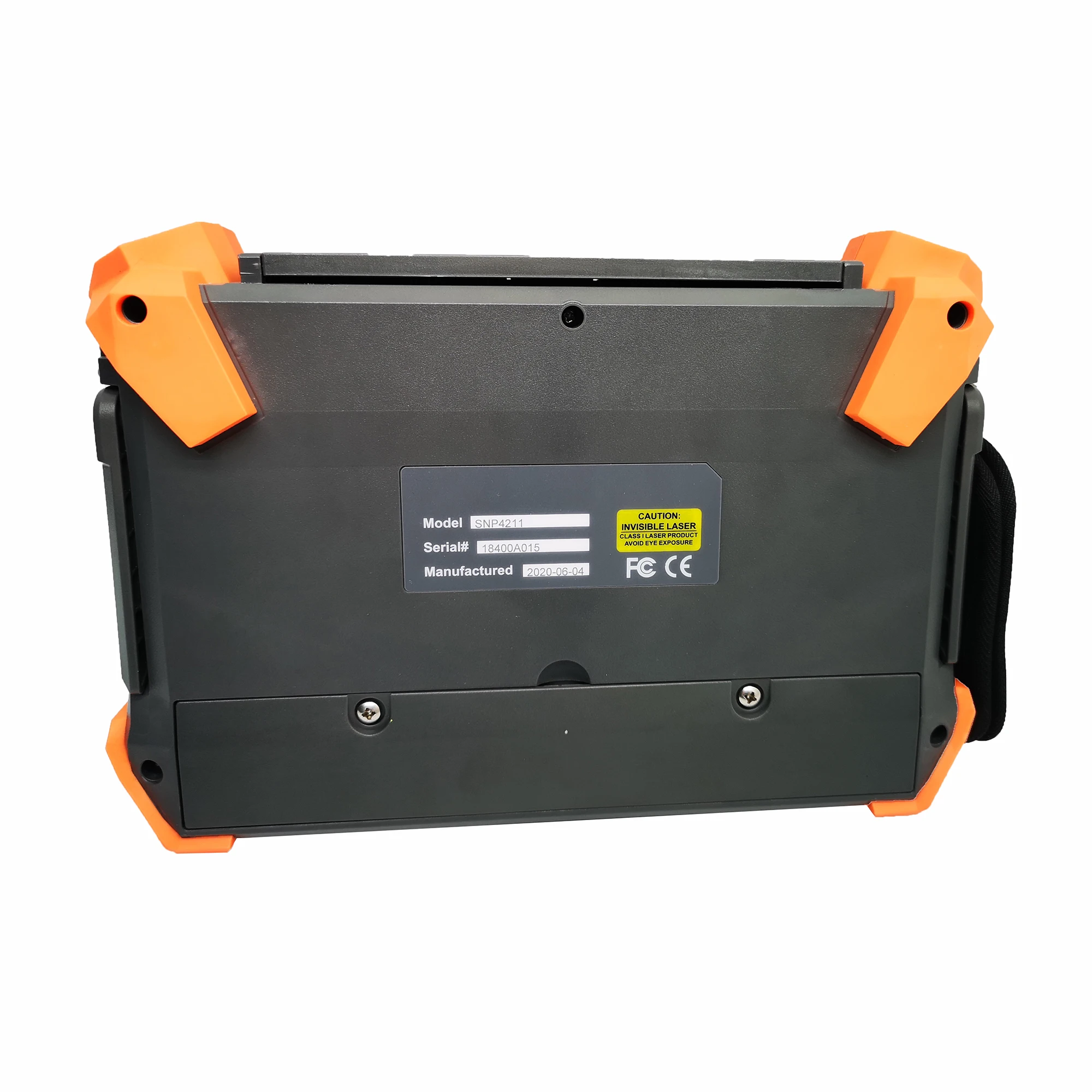

Smart and durable, field application ready

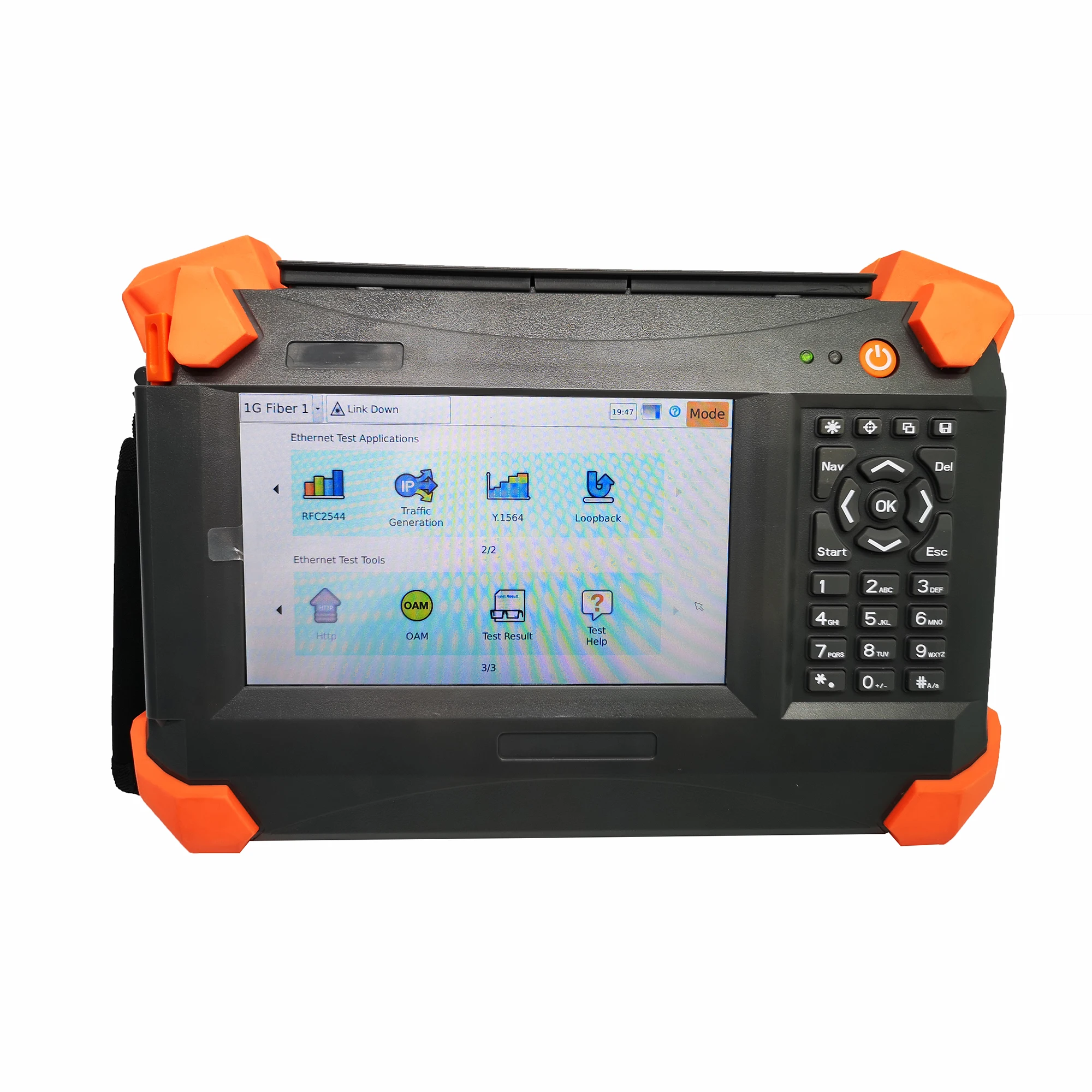

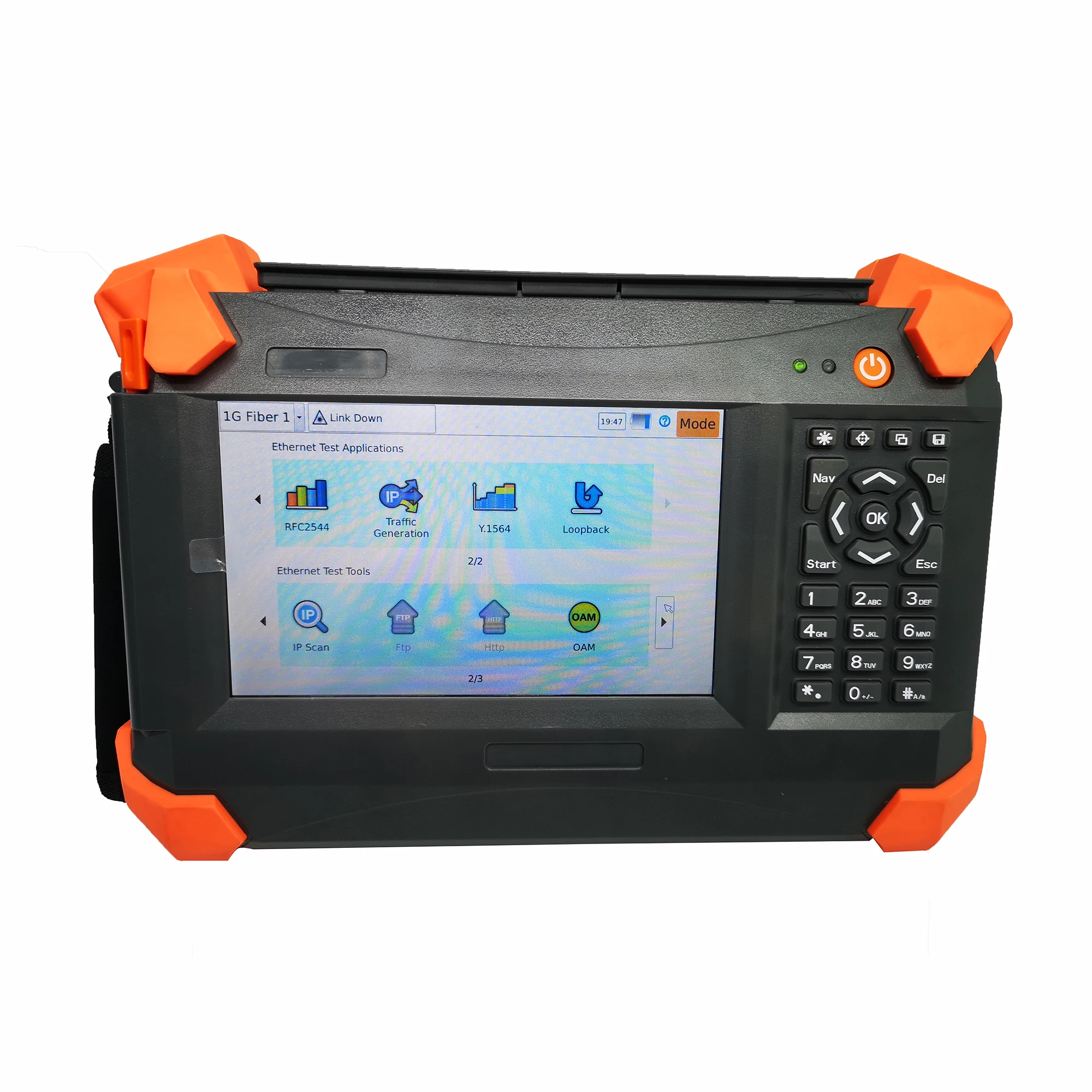

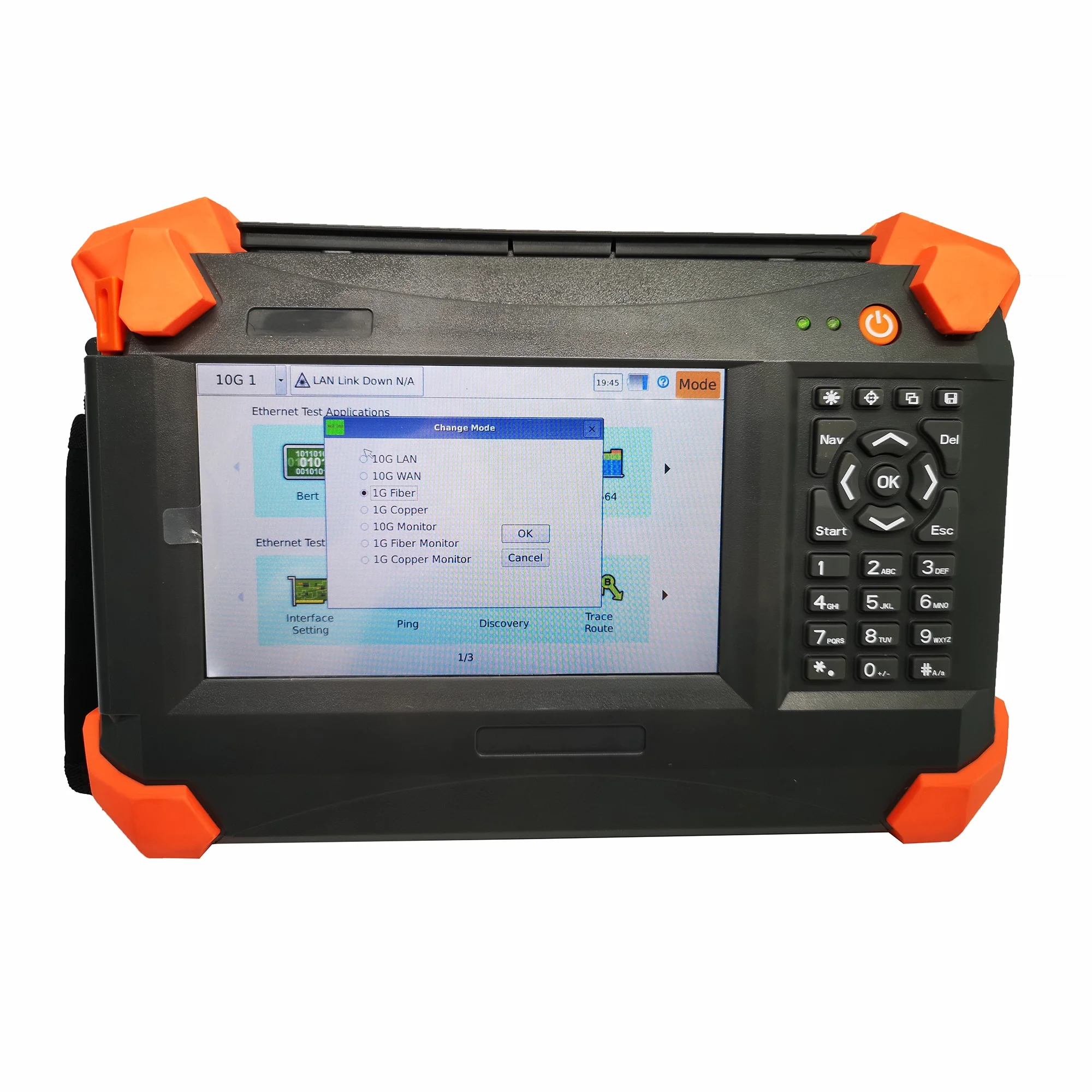

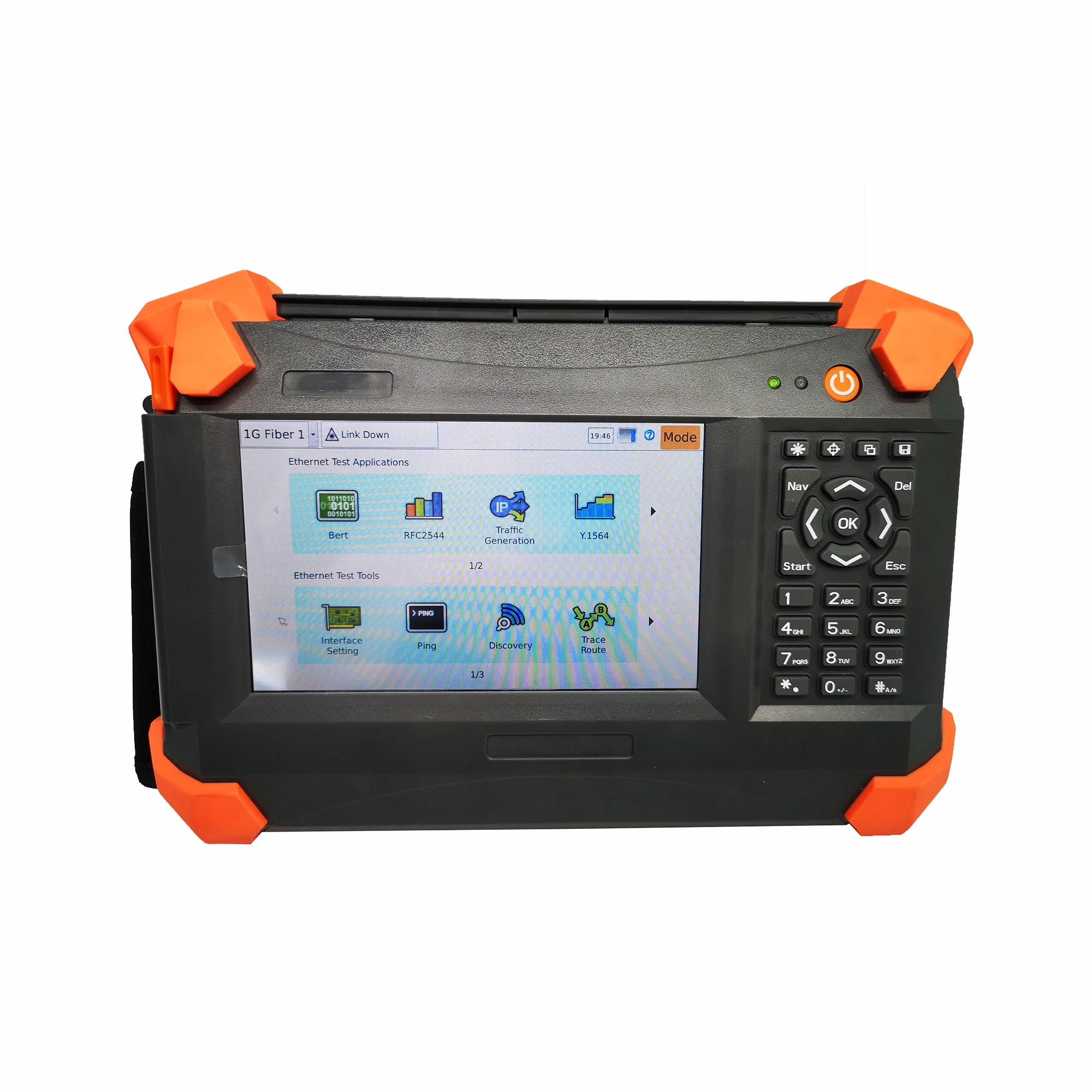

7 inch HD color touch screen, sun readable
User-friendly user interface
lPC remote control
Test profiles and data management, USB/FTP transfer
Comprehensive testing for Ethernet testing
Lithium battery up to 4 hours continuous testing



Functions

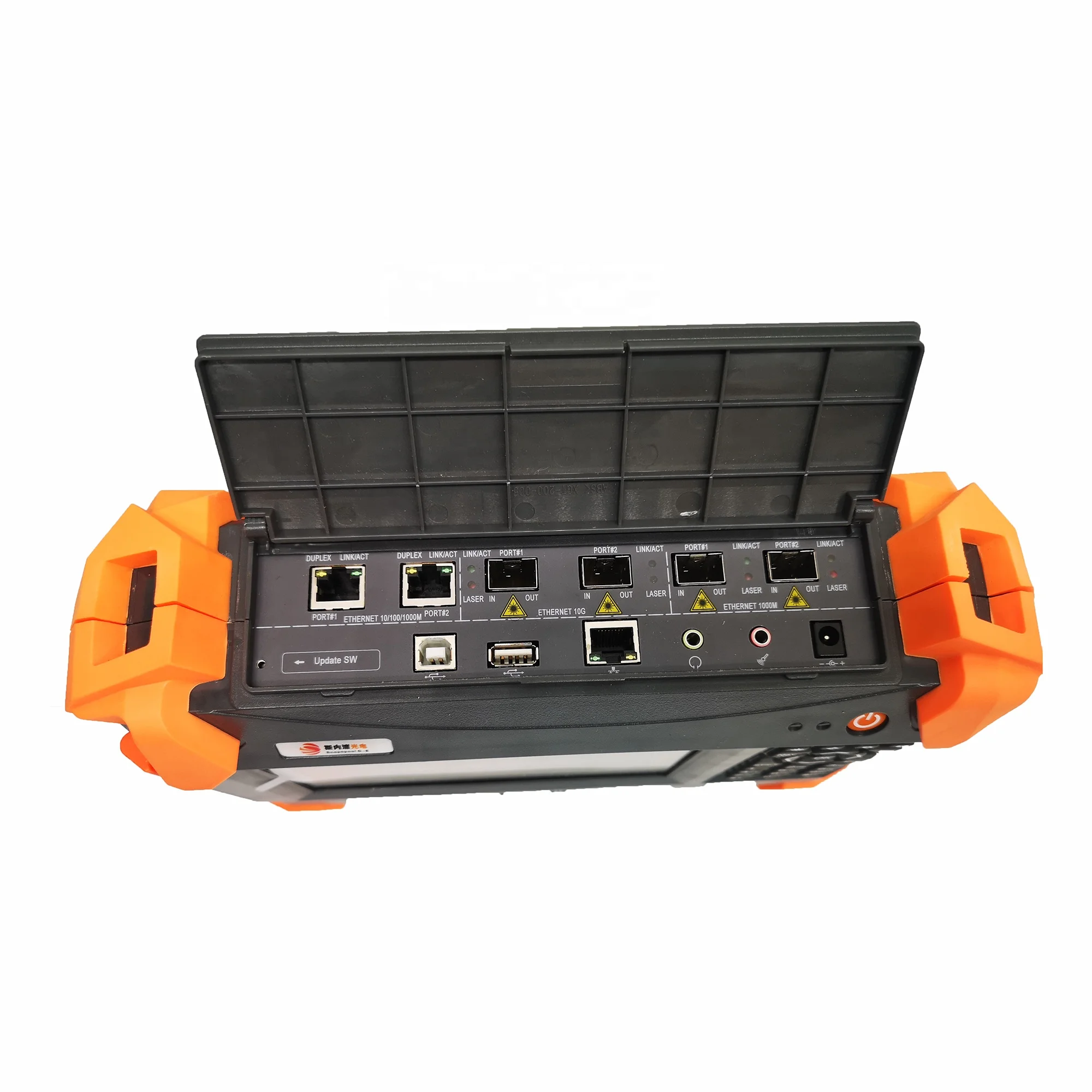

10GE SFP+ x2, 10/100/1000BASE-T RJ45 x2,100/1000BASE-X SFP x2
10M - 10Gb/s bandwidth, LAN and WAN mode
Layer 1/2/3/4 BERT test
Multi-stream traffic generation and analysis
RFC2544 and Y.1564 test
OAM test (optional)
VLAN and VLAN Q-in-Q test
MPLS test with multiple MPLS tags
Service disruption time test
CoS and ToS/DSCP priority test
Packet capture
Intelligent detection and remote control loopback test

Statistical analysis report



Specification

Optical Interface	Two GigE Ports
	1000Base-SX		1000Base-LX	1000Base-ZX
Wavelength(nm)	850		1310	1550
Laser/Connector/Transceivers type	VCSEL/LC/SFP		FP/LC/SFP	DFB/LC/SFP
Electrical Interfaces	Two Ports:10/100BaseT Half/Full Duplex and 1000BaseT Full  Duplex, Choose straight or crossover cables
	10BaseT		100BaseT	1000BaseT
Connector	RJ-45		RJ-45	RJ-45
SFP+ Optical Interface(10G)	Two 10GigE Ports
	10GBase-SR/SW		10GBase-LR/LW	10GBase-ER/EW
Wavelength(nm)	850		1310	1550
Laser/Connector/Transceivers type	VCSEL/LC/SFP+		DFB/LC/SFP+	CML/LC/SFP+
Testing Items
Y.1564		Capability to perform the service configuration test and service performance test as per ITU-T Y.1564. Tests can be performed to loopback or /dual test set mode for bidirectional results.
RFC2544		Throughput, back-to-back, frame loss and latency measurement as per RFC2544; Frame size: RFC-defined sizes, user-configurable 1to7
BERT Bit Error Test		Up to layer 4 supported with or without VLAN Q-in-Q.
Through mode		Sectionalize traffic between a service provider’s network and customer premises equipment.
Service Disruption Time(SDT)		Disruption time statistics include shortest, longest, last, average, total and pass/fail thresholds.
Multi-stream Generation		Capability to transmit and monitor up to 16 streams of Ethernet and IP traffic.
Traffic Generation and Monitoring		Capability to generate and monitor Traffic of Ethernet and IP; Traffic shaping can be based on those statistics: throughput, frame loss, packet jitter, frame sorting, latency, frame size, traffic type and traffic monitoring
VLAN Stacking		Capability to generate streams with up to two layers of VLAN (including IEEE802.1ad Q-in-Q tagged VLAN) and to filter received traffic by VLAN ID or VLAN priority at any of the stacked VLAN layers.
IPv6 Test		Including BERT, RFC2544, Traffic generation and monitoring, Background traffic, Smart Loopback, Ping and trace route



General Specifications

Display	7 inch color TFT touch screen (Resolution 960×480)
Data storage	8GB
Interface	USB 2.0 port,RJ-45 LAN
Battery	Rechargeable Lithium battery,4 hours continuous operation
Power Supply	AC/DC Adapter; Input 100 - 240V AC,50/60Hz,2A(Max.); Output 24V DC 90W
Dimension	282×186×75mm
Weight	2.9Kg

Specifications subject to change without notice



Order Information

Model:

JW4211A: Two full function 10G test port, and 10G test port can make a punch through testing

JW4211B: One 10G test port, another 10G port only for loopback function

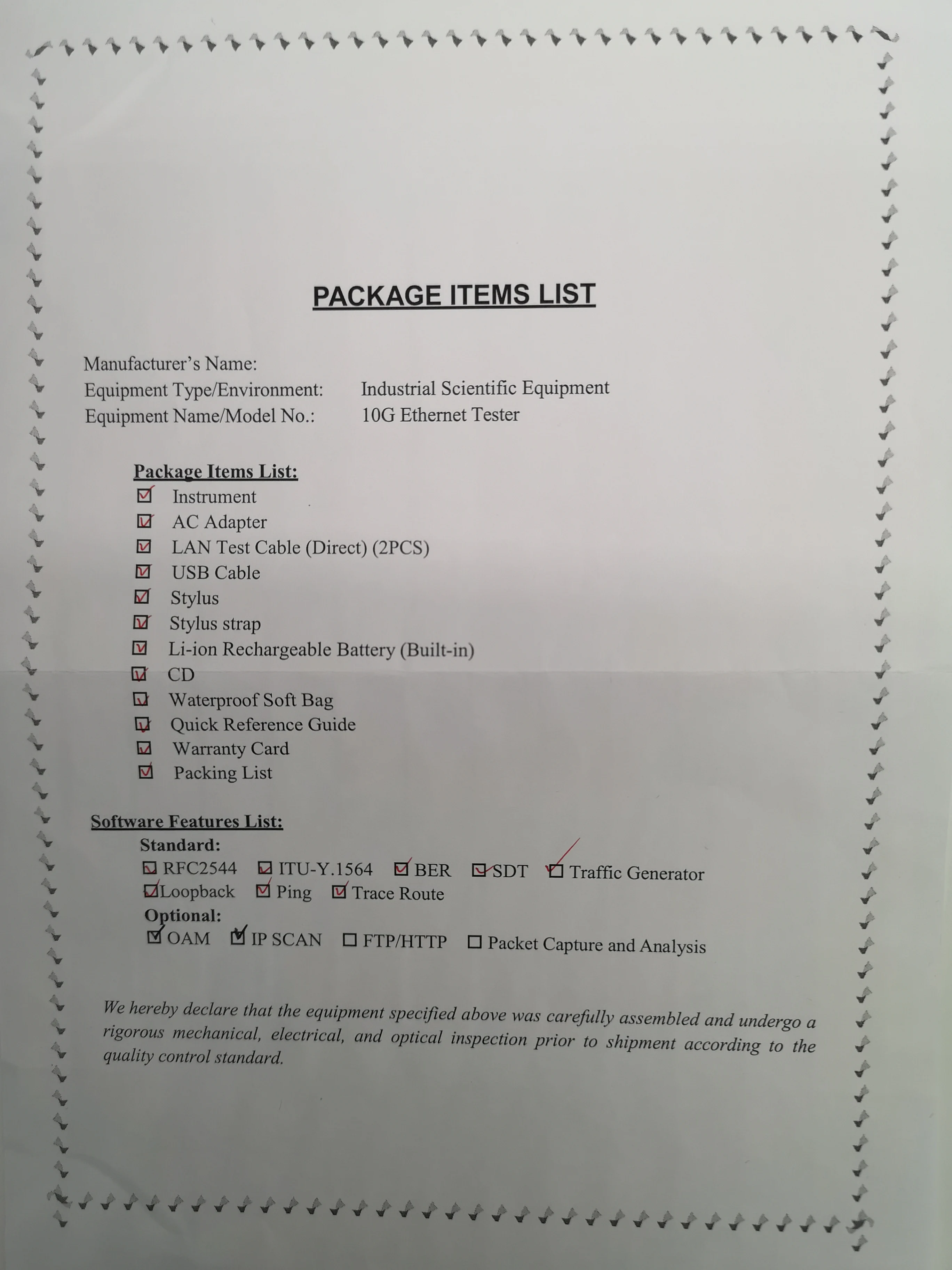

Standard Package

JW4211 Host, Battery, AC Adapter, Software CD, Carrying Case, User Manual, Warranty card



Optional:

CAT6 RJ-45 Gigabit Ethernet Cable

LC-LC Duplex Patchcord

10G SFP+ Optical Module (Wavelength/Transmission Distance:850nm/550m,1310nm/10km,1550nm/40km)

1.25G SFP Optical Module (Wavelength/Transmission Distance:850nm/550m,1310nm/10km)

OAM Test Function Module

Notice: According to the specific requirements, the specification of Optical Module can be changed.
